Data Sheet

Cisco Model DPC2425 DOCSIS 2.0 Wireless Residential

Gateway with Embedded Digital Voice Adapter

The Cisco® Model DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter (DPC2425) is a high-performance home gateway that combines a

cable modem, two-line digital voice adapter, router and wireless access point in a single

device providing a cost-effective voice and networking solution for both the home and

small office.

The DPC2425 has been designed to meet PacketCable™ 1.5 and DOCSIS® 2.0 specifications. In

addition, the DPC2425 is fully backward compatible for use on both DOCSIS 1.1 and DOCSIS 1.0

networks.

Figure 1. Model DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded Digital Voice Adapter

(image may vary from actual product and specification)

Designed for the active digital home or office, the DPC2425 integrated router features a Dynamic

Host Configuration Protocol (DHCP) server, Network Address and Port Translation (NAT/NAPT)

and a Stateful Packet Inspection (SPI) firewall. These features allow the user to share a single

high-speed public Internet connection as well as share files and folders between devices within the

home network by attaching multiple wired and wireless devices in the user’s home or office to the

wireless residential gateway.

Data Sheet

Consumer-friendly features like Wi-Fi Protected Setup (WPS) and user-configured Parental Control

can protect the home network from unwelcome intruders and family members from access to

undesirable websites.

Features

● High-performance broadband Internet connectivity to energize your online experience

● Compliant with DOCSIS 2.0, 1.1, and 1.0 standards along with PacketCable specifications

to deliver high-end performance and reliability

● Plug-and-Play operation for easy setup and installation, including color-coded data ports

and data cables compliant with the TR-068 specifications

● 802.11g Wireless Access Point with 4 service set identifiers (SSIDs)

● Wireless MultiMedia (WMM) features including Wi-Fi Protected Setup (WPS), including a

push button switch to activate WPS for simplified and secure wireless setup

● Allows the user to attach multiple devices to the wireless home gateway for high-speed

wired and wireless networking and sharing of files

● Four 10/100BASE-T auto-sensing with auto-MDIX Ethernet ports to provide connectivity for

high-speed data services or to other Internet devices

● Two-line embedded digital voice adapter for wired telephony service

● Two RJ-11 telephony ports for connecting to in-home wiring or directly to conventional

telephones or fax machines

● Advanced firewall technology deters hackers and protects the home network from

unauthorized access

● User-configurable Parental Control blocks access to undesirable Internet sites

● Dual antenna design - one internal and one detachable external

● Attractive, compact design that allows for vertical, horizontal, or wall-mounted placement

● DOCSIS-5 compliant LED labeling and behavior provides a user- and technician-friendly

method to check operational status and act as a troubleshooting tool

● Allows automatic software upgrades by the user’s service provider

Data Sheet

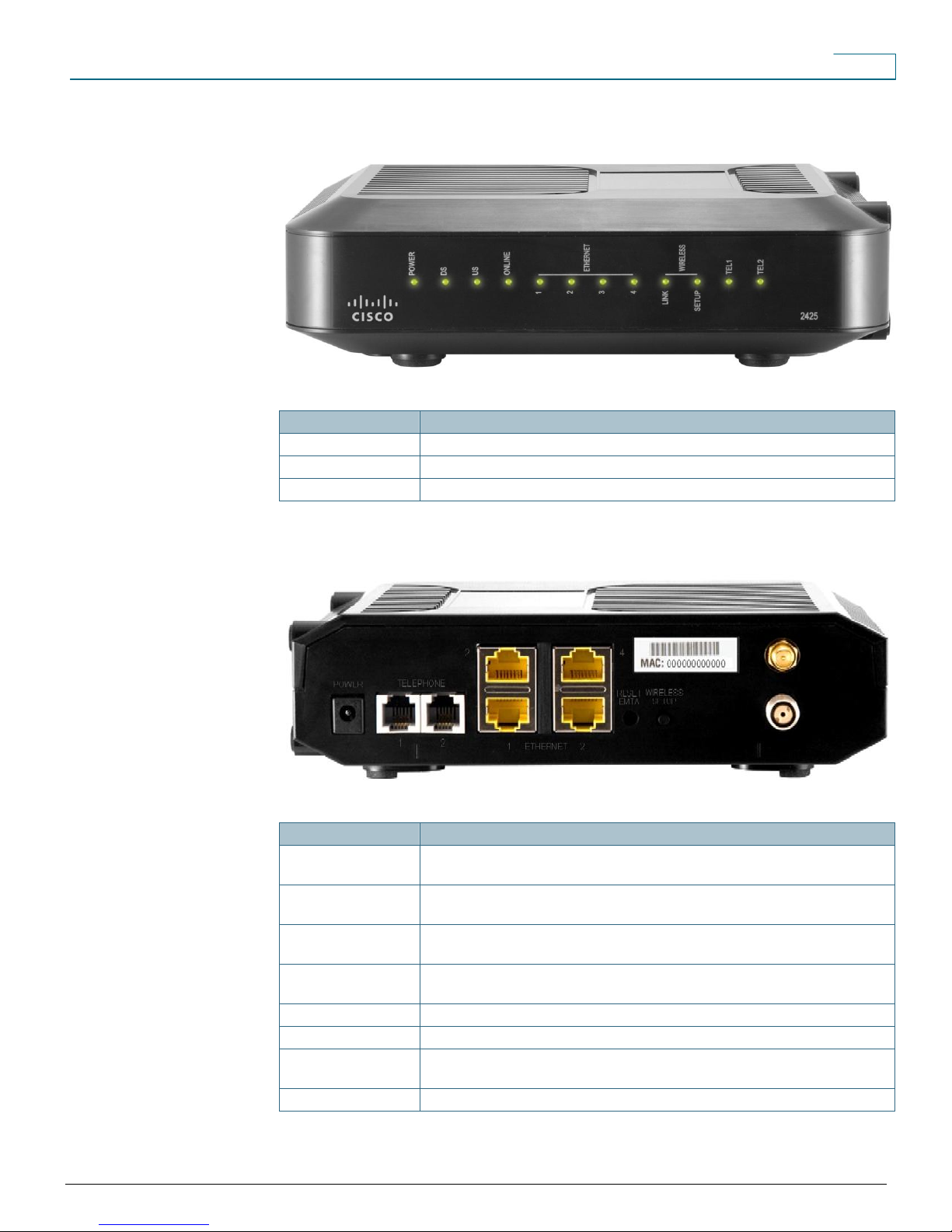

Figure 2. Model DPC2425 Front Panel (image may vary from actual product and specification)

Table 1. Front Panel Features

Feature

Description

Indicators

Power, DS, US, Online, Ethernet, Wireless Link, Wireless Setup, TEL1, TEL2

Color

Black housing, black lens, silver text

Branding

Cisco logo and model number

Figure 3. Model DPC2425 Back Panel (image may vary from actual product and specification)

Table 2. Back Panel Features

Feature

Description

POWER

Connector Color: Black

Connects the wireless home gateway to the DC output of the AC power adapter

Power Switch

(not shown)

Turn on and off device (power switch provided on all products carrying the CE mark)

TELEPHONE 1 and 2

Color: Gray

RJ-11 telephone ports connect to home telephone wiring and to conventional telephones or fax

machines

ETHERNET (1 – 4)

Connector Color: Yellow

Four RJ-45 Ethernet ports connect to the Ethernet ports on the user’s PC or home network

REBOOT EMTA

Power cycles the DPC2425

WIRELESS SETUP

Activates WPS to connect wireless devices to the home network

CABLE

Connector Color: White

F-connector connects to an active cable signal from the service provider

ANTENNA (not shown)

Provides a communication connection for the built-in WAP

Data Sheet

Product Specifications

Table 3. Product Specifications

Specification

Value

Voice Specifications

Call Signaling Protocol

MGCP/NCS including configurable IPsec encryption

Configurable to support RFC2833 event signaling

Supports Bell103 detection: Improves alarm panel and Point of Sale (POS) interoperability by

optimizing DSP for Bell103 protocol

Software upgradeable to support Session Initiation Protocol (SIP)

The following SIP standards are supported

● RFC 2617 HTTP Authentication: Basic and Digest Access Authentication

● RFC 2976 The SIP INFO Method

● RFC 3261 SIP: Session Initiation Protocol

● RFC 3262 Reliability of Provisional Responses in Session Initiation Protocol (SIP)

● RFC 3263 Session Initiation Protocol (SIP): Locating SIP Servers

● RFC 3264 An Offer/Answer Model with Session Description Protocol (SDP)

● RFC 3265 Session Initiation Protocol (SIP)-Specific Event Notification

● RFC 3420 Internet Media Type message/sipfrag

● RFC 3428 Session Initiation Protocol (SIP) Extension for Instant Messaging

● RFC 3515 The Session Initiation Protocol (SIP) Refer Method

● RFC 3842 A Message Summary and Message Waiting Indication Event

Package for the Session Initiation Protocol (SIP)

● RFC 3892 The Session Initiation Protocol (SIP) Referred-By Mechanism

● RFC 3903 Session Initiation Protocol (SIP) Extension for Event State Publication

● Draft-ietf-mmusic-sdp-new-24 SDP: Session Description Protocol (Replacement for RFC 2327)

● Draft-ietf-sipping-cc-transfer-01 Session Initiation Protocol Call Control – Transfer

● Draft-ietf-sip-session-timer-08 The SIP Session Timer

● Draft-ietf-sipping-realtimefax-01 SIP Support for Real-time Fax: Call Flow

Examples And Best Current Practices

● Draft-ietf-mmusic-sdescription-09 Session Description Protocol Security

● Descriptions for Media Streams

● Draft-ietf-sip-replaces-02 The Session Initiation Protocol (SIP) "Replaces" Header

Provisioning Modes

Full PacketCable secure provisioning

Kerberos support with NVRAM ticket caching

Configurable PacketCable-lite (MTA config file provisioning without security)

Configurable for non-PacketCable (MTA configuration using DOCSIS config file)

CODECs

Standard: G.711, T.38 Fax Relay, iLBC and BV16

Software upgradeable to support other CODEC combinations including:

● G.711 and G.728

● G.711 and G.729

● G.711 and G.729 a/e

● G.711 and BV16 and BV32 (High fidelity – near CD quality)

● G.711 and G.723

● G.711 and G.726

CODEC Packetization

Intervals

10, 20, and 30 mS

CODEC Synchronization

CODEC synchronization to UGS time clock allows slip-free end-to-end sync to PSTN clock

(minimizes frame slips that can cause Fax/Analog Modem call failures)

CODEC Encryption

Configurable to support AES-128 encryption or no encryption modes

Hearing Impaired Services

Support

TDD support including detection of V.18 including Annex A

Fax and Analog Modem

support

DSP based Modem/Fax Tone detection and support for Voice Band Data Mode with auto-

CODEC negotiation and auto-control of echo canceller, jitter buffer, and VAD

Jitter Buffer Support

Adaptive dynamically controlled

Latency Control

Configurable min / max jitter buffer size

Data Sheet

Specification

Value

Audio Gain Levels

Independently configurable Tx and Rx audio gains

Silence Suppression

Configurable VAD with comfort noise generation

Packet Loss Concealment

ANSI T1.521-1999

Call Connection Quality

Monitoring

RTCP, RFC1889, RFC1890, SNMP MIB for last call quality statistics

Dialing Modes

DTMF and configurable pulse dial support

DTMF Relay

RFC2833 including fast (40mS) DTMF Relay for alarm system signaling compatibility

Layer 2 Quality of Service

● Full PacketCable secure DQOS with GateID including UGS and UGS/AD

● DQOS Lite support including UGS and UGS/AD

Layer 3 Quality of Service

Configurable DiffServe/TOS support for Signaling, RTP, and RTCP flows

Payload Header

Suppression (PHS)

● Supported for RTP and RTCP packet flows to reduce per-call network bandwidth

● Advanced support for Dynamic Payload Header Suppression using Propane Technology

Management

SNMPv3, SNMPv2, SNMPv1, Telnet with configurable user ID and password, internal log, and

external Syslog support

Echo Cancellation

G.168 with extended echo tail support

Call Feature Support

● Caller ID

● Call Waiting with Caller ID

● Cancel Call Waiting

● Call Conferencing (3-way calls)

● Configurable hook flash support

● Distinctive Ringing (Configurable for up to 11 ring patterns per phone line)

● Ring Splash

● Stutter Dial Tone

● Off hook warning tone

● Open Switch Interval support to enhance answering machine compatibility

● Configurable star codes

● Euro/US hook-flash type

● Call transfer

● Message Waiting Indicator

● Warm Line

● Call Forwarding Unconditional

● Call Forwarding on Busy

● Call Forwarding No Answer

● Call Return

● Redial Call

● Automatic redial

Other call features available with compliant CMS or gateway

Telephone Ring Loading

Full 5 REN support on each phone line (10 REN total)

Ring Signal

Configurable balanced ring with configurable DC offset

Max Phone Line Distance

Supports up to 1000 ft of AWG26 wire (0.4 mm) on each phone line. Supports operation with

typical in-home telephone wiring

Country-Specific

Telephone Parameters

Supported

United States, Japan, United Kingdom, Germany, France, Belgium, Netherlands, Finland, Italy,

Switzerland, Sweden, Denmark, Brazil, ETSI 101 909-18

RF Downstream

Frequency Range

88 to 930 MHz

Demodulation

64 or 256 QAM

Maximum Data Rate

30 Mbps for 64 QAM

43 Mbps for 256 QAM

Bandwidth

6 MHz

Operating Level Range

-15 to +15 dBmV

Input Impedance

75 ohms

Data Sheet

Specification

Value

RF Upstream

Frequency Range

5 to 42 MHz

Modulation

QPSK

8 QAM

16 QAM

64 QAM

128 QAM TCM

Maximum Data Rate

5.12 Mbps for QPSK

10.2 Mbps for 16 QAM

30.0 Mbps for A-TDMA and SCDMA

Bandwidth

200 kHz to 6.4 MHz

Operating Level Range

(all values +/- 0.5 dBµV )

TDMA

QPSK +8 to +58 dBmV

8QAM +8 to +55 dBmV

16QAM +8 to +55 dBmV

32QAM +8 to +54 dBmV

64QAM +8 to +54 dBmV

SCDMA

QPSK +8 to +53 dBmV

8QAM +8 to +53 dBmV

16QAM +8 to +53 dBmV

32QAM +8 to +53 dBmV

64QAM +8 to +53 dBmV

128QAM +8 to +53 dBmV

Output Impedance

75 ohms

Wireless Access Point

Frequency Range

2.412~2.462 GHz, 11 Channels (North America; FCC)

2.412~2.472 GHz, 13 Channels (Europe; CE/ETSI)

Modulation

DSSS

OFDM

CCK

DQPSK

DBPSK

Data Rate:

802.11g

54 Mbps with Auto Fall-Back

Security

WPA2, WPA and 64/128-bit WEP

Transmit Power

14 dBm (typical for 802.11g)

Antenna System

One (1) external, detachable

One (1) internal

Other

Input Voltage

12 VDC

Power Consumption

(Modem Module)

6 Watts

Data Ports

Ethernet 10/100BASE-T (Auto-sensing with Auto-MDIX): RJ-45 Ethernet (4)

Female “F” type

Data Sheet

Specification

Value

Mechanical

Dimensions (W x D x H)

(approximate)

Not including “F” connector:

6 15/16 in. x 5 11/16 in. x 2 15/16 in. (17.7 cm x 14.5 cm x 5 cm)

Including “F” connector and wireless antenna:

6 15/16 in. x 6 in. x 2 15/16 in. (17.7 cm x 15.5 cm x 5 cm)

Weight (approximate)

13.7 oz (0.39 kg)

Operating Temperature

32˚ to 104˚F (0˚ to 40˚C)

Operating Humidity

0% to 90% RH non-condensing

Storage Temperature

-20˚ to 60˚C (-4˚ to 140˚F)

Standards and Approvals

Designed to Comply with

the Following Standards

PacketCable 1.5

DOCSIS 2.0, DOCSIS 1.1, DOCSIS 1.0

IEEE 802.11g

WEP, WPA, and WPA2

WMM, WPS

Regulatory and Safety

Approvals

As required per country where the DPC2425 will be used

Data Sheet

Ordering Information

Table 4. Ordering Information

Model

Description

Part Number

2 Voice Ports, North American Tuning Plan – NTSC

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 100-120 VAC/60 Hz, 15 VDC/1 A desktop linear switching power supply

● Ethernet cable

● CD-ROM containing user guide

North America

4028654

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● NTSC North American tuning plan

● 220 VAC/50-60 Hz, 15VDC/1 A desktop linear switching power supply

● Ethernet cable

● CD-ROM containing user guide

Argentina

4028655

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 120 VAC/50-60 Hz, 15VDC/1 A wall-mount linear switching power

supply

● Ethernet cable

● CD-ROM containing user guide

Brazil (Customer-specific configuration)

4028612

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 100-240 VAC/50-60 Hz, 15VDC/1 A desktop switching regulated power

supply

● Power cord, Brazil

● Ethernet cable

● CD-ROM containing user guide

Brazil (Customer-specific configuration)

4028619

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 100-120 VAC/50-60 Hz, 15VDC/1 A desktop linear switching power

supply

● Ethernet cable

● CD-ROM containing user guide

Columbia (Customer-specific configuration)

4039149

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 100-120 VAC/50-60 Hz, 15VDC/1 A desktop linear-switching power

supply

● Ethernet cable

● CD-ROM containing user guide

North America (Customer-specific configuration)

4036003

2 Voice Ports, International Tuning Plan – PAL/NTSC

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 230 VAC/50-60 Hz, 15VDC/1 A wall-mount linear switching power

supply for Europe

● Ethernet cable

● CD-ROM containing user guide

Europe (Customer-specific Configuration)

4029063

Data Sheet

Model

Description

Part Number

1 Voice Port, North American Tuning Plan – NTSC

Model DPC2425

DPC2425 DOCSIS 2.0 Wireless Residential Gateway with Embedded

Digital Voice Adapter. Includes:

● 220 VAC/50-60 Hz, 15VDC/1 A desktop linear switching power supply

● Ethernet cable

● CD-ROM containing user guide and USB driver

Argentina(Customer-specific Configuration)

4029064

Data Sheet

Replacement Components

Table 5. Replacement Components

Description

Part Number

Power Supply

Class 2 Linear Switching

100-120 VAC / 50-60 Hz, 15 VDC /1 A desktop style linear-switching power supply, North America

4018776

230 VAC / 50-60 Hz, 15 VDC /1 A wall-mount linear-switching power supply, Europe

4015455

220 VAC / 50 Hz, 15 VDC /1 A desktop style linear-switching power supply, Argentina

4023778

Power Cord

Power cord, 2 conductors, CEE7/16 to C7, INMETRO, non-polarized, Brazil

4009115

Data Cable

Ethernet cable, 1.2 meters

740580

CD-ROM

CD-ROM with User Guide

7016771

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. A

listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks.

DOCSIS is a registered trademark of Cable Television Laboratories, Inc.

PacketCable is a trademark of Cable Television Laboratories, Inc.

Other third party trademarks mentioned are the property of their respective owners.

The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1009R)

Specifications and product availability are subject to change without notice.

Cisco Systems, Inc.

800 722-2009 or 678 277-1120 Part Number 7016387 Rev B

www.cisco.com November 2010

Altri manuali per DPC2425

Indice

Altri manuali Cisco Portale

Cisco

Cisco ASR 9000 Series Manuale di installazione

Cisco

Cisco DPC3928 DOCSIS Manuale utente

Cisco

Cisco Small Business Pro SA520 Guida alla risoluzione dei problemi

Cisco

Cisco EPC3928 DOCSIS Manuale utente

Cisco

Cisco DDR2201 Series Istruzioni operative

Cisco

Cisco RFGW-10 Manuale

Cisco

Cisco Firepower 2100 Manuale utente

Cisco

Cisco 3545 PRI Manuale di installazione e funzionamento

Cisco

Cisco EPC2434 Manuale utente

Cisco

Cisco ASR 5000 Series Manuale di istruzioni

Cisco

Cisco RF Gateway 10 Manuale utente

Cisco

Cisco VG204 Manuale utente

Cisco

Cisco DPC2434 Istruzioni operative

Cisco

Cisco DPC3825 Manuale utente

Cisco

Cisco ASR 5000 Manuale di istruzioni

Cisco

Cisco TES301 Manuale utente

Cisco

Cisco SLM224G4PS Guida rapida

Cisco

Cisco Small Business SPA8000 Manuale utente

Cisco

Cisco DPC3941T Manuale utente

Cisco

Cisco EPC3925 Manuale utente

Cisco

Cisco Linksys WPG12 Manuale utente

Cisco

Cisco Linksys AG310 Manuale utente

Cisco

Cisco Linksys SPA400 Manuale operativo

Cisco

Cisco DPC3848V Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
