Phone Setup

•Connect Footstand, page 1

•Adjust Phone Display Viewing Angle, page 2

•Adjust the Handset Rest, page 3

•Secure the Phone with a Cable Lock, page 4

Connect Footstand

If your phone is placed on a table or desk, connect the footstand to the back of the phone.

Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 10.0 (SIP)

Procedure

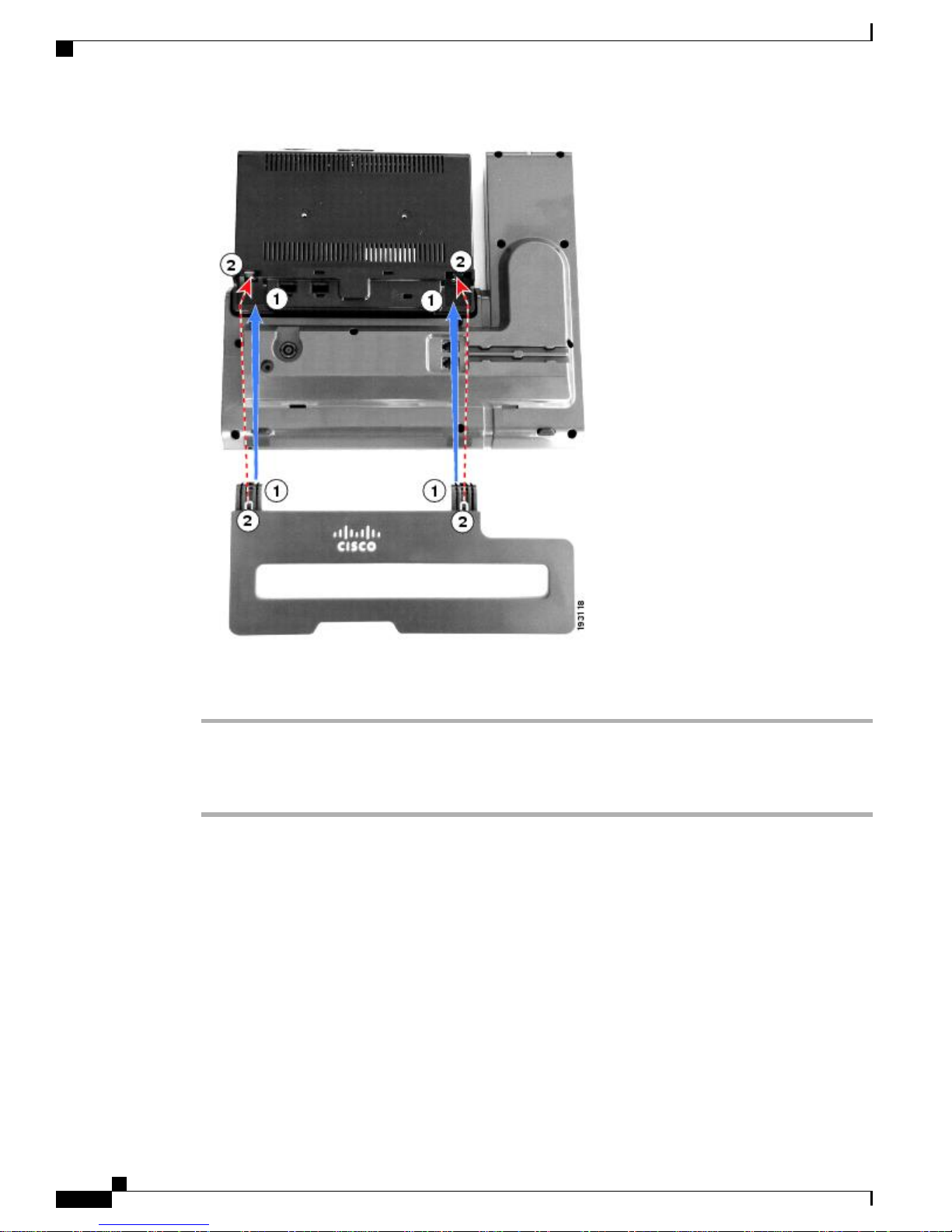

Step 1 Insert the curved connectors into the lower slots.

Step 2 Lift the footstand until the connectors snap into the upper slots.

Connecting and disconnecting the footstand may require a little more force than you expect.Note

Adjust Phone Display Viewing Angle

The viewing angle of the phone display can be adjusted according to your preference.

Procedure

Hold the handset and cradle with your left hand, hold the right side of the bezel (to the right of the display)

with your right hand, and then move your hands back and forth in opposite directions to adjust the angle.

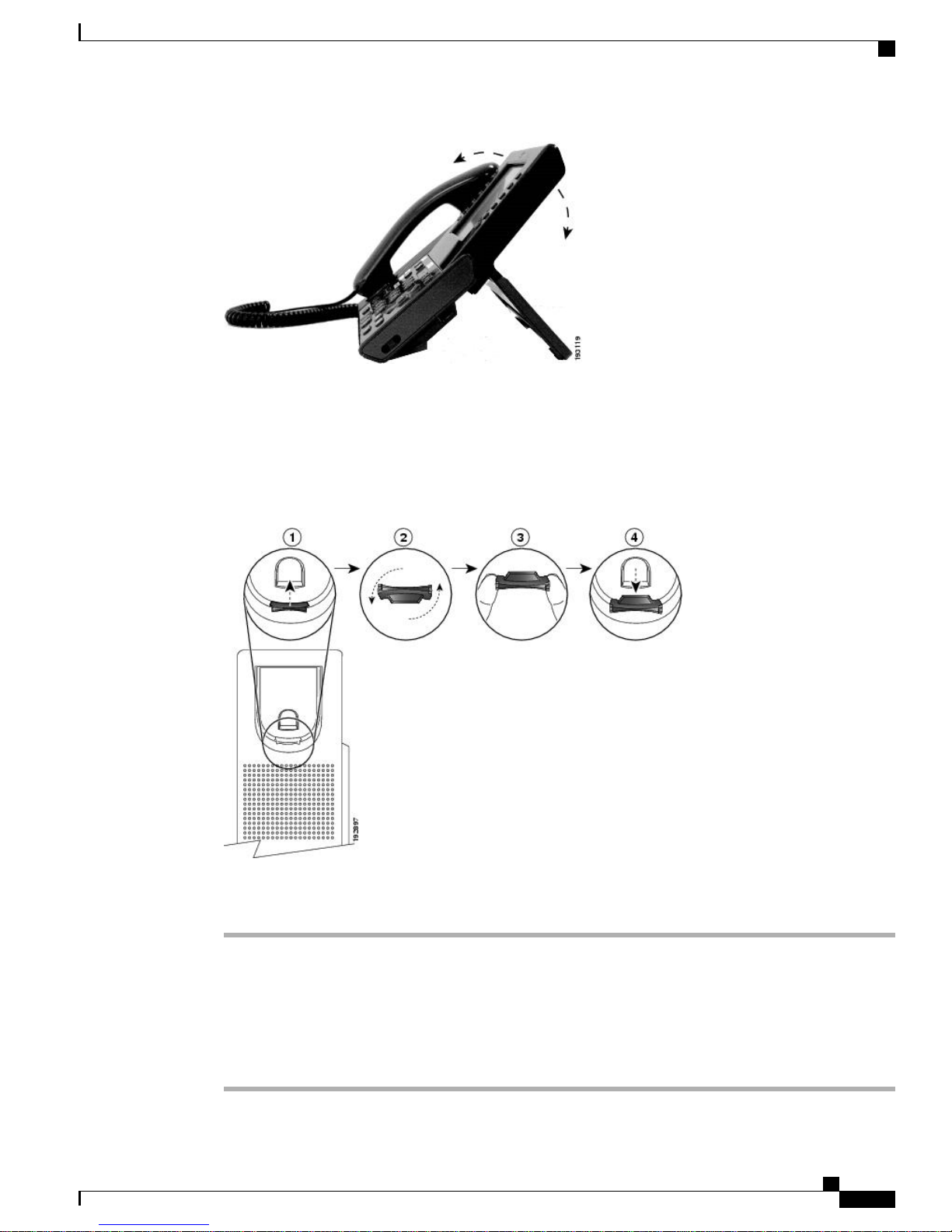

The following figure shows the display angle of the Cisco Unified IP Phone 9971.

Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 10.0 (SIP)

Phone Setup

Adjust Phone Display Viewing Angle

Adjust the Handset Rest

If your phone is wall-mounted, you may need to adjust the handset rest to ensure that the receiver does not

slip out of the cradle.

Procedure

Step 1 Remove the handset from the cradle and pull the plastic tab from the handset rest.

Step 2 Rotate the tab 180 degrees.

Step 3 Hold the tab between two fingers, with the corner notches facing you.

Step 4 Line up the tab with the slot in the cradle and press the tab evenly into the slot. An extension protrudes from

the top of the rotated tab.

Step 5 Return the handset to the handset rest.

Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 10.0 (SIP)

Phone Setup

Adjust the Handset Rest

Secure the Phone with a Cable Lock

You can secure the phone to a desktop with a laptop cable lock. The lock connects to the antitheft security

connector on the back of the phone and the cable can be secured to a desktop.

The security slot can accommodate a lock up to 20 mm wide. Compatible laptop cable locks include the

Kensington laptop cable lock and laptop cable locks from other manufacturers that can fit into the security

slot on the back of the phone.

Procedure

Step 1 Wrap the looped end of the cable lock and wrap it around object to which you want to secure your phone.

Step 2 Pass the lock through the looped end of the cable.

Step 3 Unlock the cable lock.

There are two kinds of cable locks: keyed and combination. Depending on the type of lock you have,

unlock it by using the key or the correct combination.

Note

Step 4 Press and hold the locking button to align the locking teeth.

Step 5 Insert the cable lock into the lock slot of your phone and release the locking button.

Step 6 Lock the cable lock.

For keyed locks, turn the key 90 degrees in the clockwise direction and pull the key out of the lock.

For combination locks, rotate the lock 90 degrees and then scramble the combination.

Note

Cisco Unified IP Phone 8961, 9951, and 9971 User Guide for Cisco Unified Communications Manager 10.0 (SIP)

Phone Setup

Secure the Phone with a Cable Lock
