Cisco SCE 2000 4/8xFE Manuale utente

Quick StartGuide

1 Documentation and Resources

2 Prepare for Installation

3 Rack-Mount the SCE 2000

4 Connect the Power Supply Units

5 Connect the Management Interfaces and Perform Initial System Configuration

6 Cable the Line Ports

7 Completing the Installation

8 Installing a Cascaded System

9 Troubleshoot Startup Problems

10 Obtaining Technical Assistance

Cisco SCE 2000 4/8xFE Quick Start Guide

Version 3.0.5

OL-7823-05

1 Documentation and Resources

Documentation for the SCE 2000 platform is online and orderable. For detailed hardware installation instructions, refer to

the online Cisco SCE 2000 4/8xFE Installation and Configuration Guide.

Obtaining Documentation

The following sections provide sources for obtaining documentation from Cisco Systems.

World Wide Web

You can access the most current Cisco documentation on the World Wide Web at the following sites:

•http://www.cisco.com

•http://www-china.cisco.com

•http://www-europe.cisco.com

Documentation CD-ROM

Cisco documentation and additional literature are available in a CD-ROM package that ships with your product. The

Documentation CD-ROM is updated monthly and may be more current than printed documentation. The CD-ROM

package is available as a single unit or as an annual subscription.

Ordering Documentation

Cisco documentation is available in the following ways:

•Registered Cisco Direct Customers can order Cisco Product documentation from the networking Products

MarketPlace:

http://www.cisco.com/cgi-bin/order/order_root.pl

•Registered Cisco.com users can order the Documentation CD-ROM through the online Subscription Store:

http://www.cisco.com/pcgi-bin/marketplace/welcome.pl

•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco

corporate headquarters (California, USA) at 408 526-7208 or, in North America, by calling 800 553-NETS(6387).

Documentation Feedback

If you are reading Cisco product documentation on the World Wide Web, you can submit technical comments

electronically. Click Feedback in the toolbar and select Documentation. After you complete the form, click Submit to

send it to Cisco.

You can e-mail your comments to [email protected].

To submit your comments by mail, use the response card behind the front cover of your document, or write to the

following address:

Attn Document Resource Connection

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-9883

We appreciate your comments.

2 Prepare for Installation

This section contains warnings, information about tools and parts, site preparation information, and information for

workbench or tabletop installation and rack-mount installation.

Warning This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any

equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for

preventing accidents. To see translations of the warnings that appear in this publication, refer to the translated safety

warnings that accompanied this device.

Warning Only trained and qualified personnel should install, replace, or service this equipment.

Warning Read the installation instructions before you connect the system to its power source.

Warning This unit is intended for installation in restricted access areas. A restricted access area is where access can only be

gained by service personnel through the use of a special tool, lock and key, or other means of security, and is

controlled by the authority responsible for the location.

Warning Voltage is present on the backplane when the system is operating. To reduce risk of an electric shock, keep hands

and fingers out of the power supply bays and backplane areas.

Warning Do not work on the system or connect or disconnect cables during periods of lightning activity.

Before beginning the installation of the SCE 2000, read the Regulatory Compliance and Safety Information for the Cisco

Service Control Engine document.

Site Preparation and Unpacking

•Lift the SCE 2000 platform safely out of the packing container.

•Ensure the power service at the site is suitable for the SCE 2000 platform.

•Check the packing slip to ensure that all the proper components are present.

•Locate and have accessible the Site Log for recording information about this installation.

Tools and Parts

Use the following list of tools and parts as a checklist for preparing for installing the SCE 2000 platform:

•Appropriate cables to connect the SCE 2000 to the network and console terminal

•Tape measure (optional)

•Level (optional)

•Number 1 Phillips screwdriver

•Number 2 Phillips screwdriver

•1/4-inch flat-blade screwdriver

•1/4-inch hex wrench

•Grounding kit (shipped with SCE 2000)

•12 AWG or 2.5 mm copper installation wire with hex or loop connectors for DC power leads (DC power only)

Ring terminals must be UL approved and suitable for 12 AWG wire.

•AC power cords (AC power only, shipped with SCE 2000)

•Rack-mounting kit (shipped with SCE 2000)

•Spare screws for changing bracket position

Prepare for Rack-Mount Installation

Before you begin the rack-mounting tasks, determine the type of rack—four-post or two-post—that you will be using.

Workbench or Tabletop Installation

Figure 1: Installing the System on a Flat Surface

For a workbench or tabletop installation, verify the following before installing the SCE 2000 platform:

•The SCE 2000 platform is off the floor and has adequate ventilation.

•An adequate chassis ground (earth) connection exists for the SCE 2000 platform.

•The SCE 2000 platform has at least 2 inches (5 cm) of clearance at each side and at least 5 inches (12.7 cm) of

clearance at the rear to allow proper air flow.

Step 1 Remove the adhesive strips from the four rubber feet and affix the feet onto the four marked locations on the

bottom panel of the unit.

Step 2 Place the SCE 2000 platform on the tabletop or workbench.

3 Rack-Mount the SCE 2000

This section provides information for rack-mounting the SCE 2000 platform.

There are two standard types of equipment racks, and the appropriate brackets for each are provided in the enclosed kit.

•19” rack with front rack posts — the mounting kit includes two mounting brackets as illustrated below:

•19” rack with front and back rack posts — in addition to the mounting brackets illustrated below, the mounting kit

includes two crossrail supports that the unit slides onto.

The SCE 2000 mounts to the two front rack posts with brackets that attach to the front of the SCE 2000 The inside width

between the two posts or mounting strips (left and right) must be at least 17.3 inches (44 cm).

Note Remember to leave a two-inch (5 cm) clearance on both sides of the SCE 2000 and at the rear for adequate airflow for the

inlet and exhaust vents.

Attach the Brackets to the SCE 2000

Before installing the SCE 2000 in the rack, you must first install an appropriate rack-mount bracket on each side of the

front of the SCE 2000, as illustrated in the following figures.

Figure 2: Attaching the Mounting Brackets (4-post)

Figure 3: Attaching the Mounting Brackets (2-post)

To install the rack-mount brackets on the SCE 2000 chassis, complete the following steps:

Before installing the SCE 2000 in the rack, you must first install a rack-mount bracket on each side of the front of the

SCE 2000.

Step 1 Align the rack-mount bracket to the side of the SCE 2000. Choose the proper bracket for your installation (2-

post rack or 4-post rack) as illustrated in Rack-Mount the SCE 2000 (on page 7).

Step 2 Insert and tighten three screws.

Step 3 Repeat steps 1 and 2 on the other side of the SCE 2000.

If mounting the SCE 2000 in a rack with only two posts, skip to Mounting the System to a Rack.

If mounting the SCE 2000 in a rack with four posts, proceed to the next step to attach the crossrail supports to the rack.

Installing the Crossrail Supports (Four-post rack only)

This section provides information for assembling the crossrail supports and attaching them to the rack.

When mounting in a rack with four posts (front and back) the two crossrail supports are mounted one on each side of the

rack. The SCE 2000 then slides into these crossrails, which support the weight of the unit.

Assemble the Crossrail Supports

Figure 4: Assembling the Slider Brackets

Assemble the two crossrail supports. Use three screws for each crossrail assembly.

Make sure that they are oriented so that both crossrails will support the SCE 2000 when they are attached to the rack.

Attach the Crossrail Supportsto the Rack

Figure 5: Attaching the Crossrails to the Rack

Step 1 Align the crossrail supports with the side of the rack, parallel to the floor.

Step 2 Insert and tighten two screws to the front posts or mounting strips of the rack

Step 3 Insert and tighten two screws to the Back posts of the rack.

Step 4 Repeat steps 2 and 3 on the other side of the rack, keeping the brackets flush against the posts and parallel to the

supporting bracket on first side of the rack.

Mount the System to the Rack

When the appropriate mounting brackets are securely installed, the SCE 2000 can be installed into the rack.

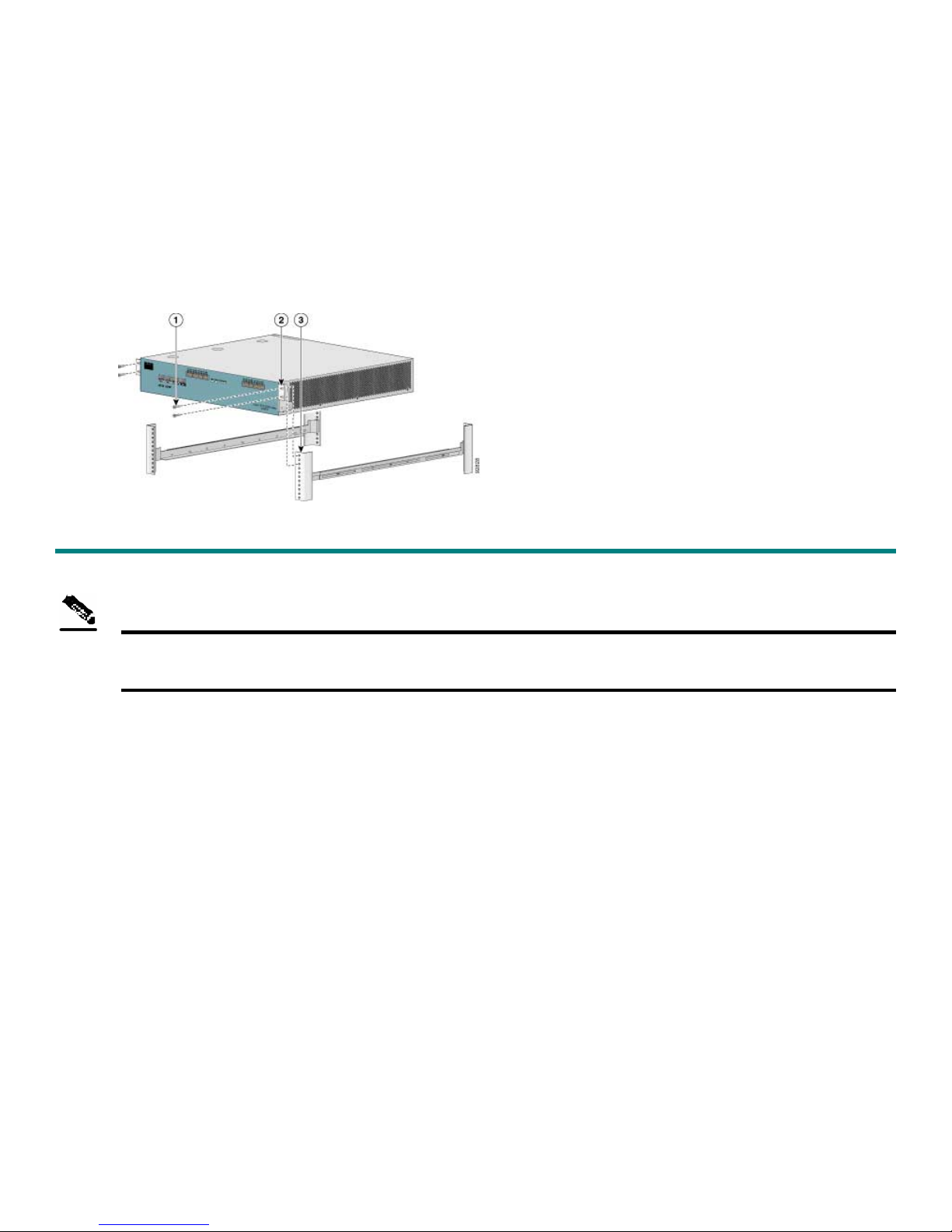

Figure 6: Sliding the SCE Platform into the Rack

Step 1 Make sure that the rack brakes are locked or that the rack is otherwise stabilized.

Step 2 Position the SCE 2000 so that the front end is closest to you, and lift it carefully to place it into the rack. To

prevent injury, avoid sudden twists or moves.

Step 3 Slide the SCE 2000 into the rack, pushing it back until the brackets (installed at the front of the SCE 2000) meet

the mounting strips or posts on both sides of the rack.

A rack with both front and back posts will have the crossrail supports installed. Slide the SCE 2000 onto these crossrails

and push it all the way back.

Step 4 While keeping the brackets flush against the posts or mounting strips, align the holes in the brackets with the

holes on the rack or mounting strip.

Figure 7: Securing the SCE Platform to the Rack

Step 5 For each bracket, insert and tighten two appropriate screws to the rack.

Note Since the brackets support the weight of the entire SCE 2000 chassis, be sure to use all four screws to fasten the two rack-

mount brackets to the rack posts.
