Cisco Catalyst 3560-8PC Manuale utente

Cisco Catalyst 3560

and Cisco Catalyst

2960 Compact

Switches

Networking Trends

Increasing number of IP-based devices and

applications requiring higher network performance,

security, and reliability

Companies with wiring constrained environments need

small density switches outside the wiring closet

Unintelligent hubs/switches cannot meet security,

performance, and reliability requirements

Cisco®Catalyst ®3560 and Cisco Catalyst 2960

Compact Switches enable advanced technology at the

network edge for deployments outside the wiring closet

Enable advanced technology at the network

edge for deployments outside the wiring closet.

Office workspaces, micro branch offices,

classrooms, cruise ships, and other wiring

constrained environments

Integrated with the existing Cisco Catalyst 3560

and Cisco Catalyst 2960 Series Switches

Cisco Catalyst 3560 and Cisco Catalyst

2960 Compact Switches

Product ID Product Family Access Ports Uplink Port Software

WS-C2960PD-8TT-L Cisco® Catalyst® 2960 8 10/100 1 10/100/1000 PoE Input LAN Base

WS-C2960-8TC-S Cisco Catalyst 2960 8 10/100 1 10/100/1000 or SFP LAN Lite

WS-C2960-8TC-L Cisco Catalyst 2960 8 10/100 1 10/100/1000 or SFP LAN Base

WS-C2960G-8TC-L Cisco Catalyst 2960 7 10/100/1000 1 10/100/1000 or SFP LAN Base

WS-C3560-8PC-S Cisco Catalyst 3560 8 10/100 PoE 1 10/100/1000 or SFP IP Base

WS-C3560-12PC-S Cisco Catalyst 3560 12 10/100 PoE 1 10/100/1000 or SFP IP Base

New

Cisco Catalyst 3560 and Cisco Catalyst 2960

Compact Switch Overview

Compact Form Factor

Durable, silent, and versatile design with a metal shell, no fan, small

size, magnet, cable guard, and rack mount.

Advanced Security

Network Admission Control, Enhanced 802.1x, Access Control Lists,

DHCP Snooping, Dynamic ARP Inspection (3560 only) and IP Source

Guard (3560 only)

Support Advanced Technology

Power over Ethernet (15.4W on all 8 ports) with superior QoS to

support Cisco® Unified Communications® (3560 only)

Gigabit Ethernet access for higher performance (2960G only)

Simplified Management

Cisco® Network Assistant®, Catalyst Device Manager, Smartports, and

CiscoWorks support

Investment Protection and Deployment Flexibility

Dual-purpose 10/100/1000Base-T and SFP uplink. IPv6 support in

hardware. Limited Lifetime Warranty.

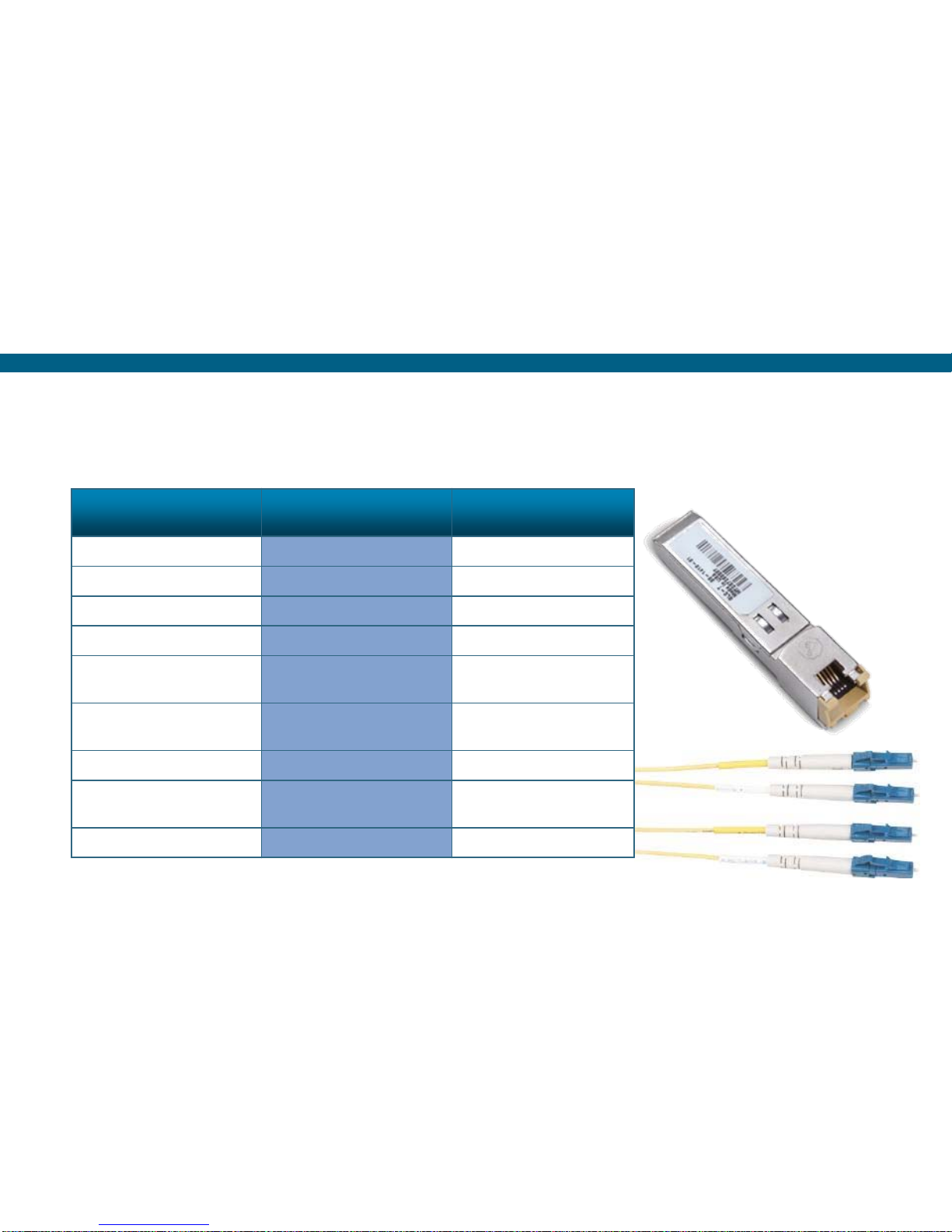

Supported Small Form-Factor

Pluggable Modules

GLC-T and GLC-GE-100FX are not supported on the

Cisco Catalyst 2960-8TC-S, 2960-8TC-L and 2960G-

8TC-L switches. For 100BASE-FX connectivity, use the

GLC-FE-100FX instead for the compact switches. LC Connectors

SFP

SFP Transceiver Cisco® Catalyst® 2960

LAN Base Switches Cisco Catalyst 2960

LAN Lite Switches

GLC-LH-SM= Yes Yes

GLC-SX-MM= Yes Yes

GLC-ZX-SM= Yes No

GLC-T= Yes* Yes

GLC-BX-D=

GLC-BX-U= Yes No

GLC-GE-100FX=

GLC-FE-100FX= Yes* Yes

GLC-FE-100LX= Yes No

GLC-FE-100BX-D=

GLC-FE-100BX-U= Yes No

CWDM SFPs Yes No

Accessories

Magnet included with switch

Cable guard and rack mount ordered separately

Product ID Description

CBLGRD-C3560-8PC= Cable guard for the Cisco® Catalyst® 3560-8PC

CBLGRD-C3560-12PC= Cable guard for the Cisco Catalyst 3560-12PC

CBLGRD-C2960-8TC= Cable guard for the Cisco Catalyst 2960-8TC

CBLGRD-C2960G-8TC= Cable guard for the Cisco Catalyst 2960G-8TC

PWR-A= Power Adaptor for the Cisco Catalyst 2960PD-8TT

RCKMNT-19-CMPCT= Rack mount for the Cisco Catalyst 3560 and 2960

Compact switches

Advantages of Cisco® Catalyst® 2960:

Access to future Cisco IOS enhancements

Dual-purpose GE uplink

Scalable and secure management with lower TCO

Improve QoS management

SSH, SSL support

Cisco Catalyst 2940 End-of-Sale Announcement:

October 2008 (One Year Transition Period)

Transition

2940-8TT-S

2940-8TF-S with 100FX port

2960 LAN Lite compact

2960 LAN Base compact

WS-C2960-8TC-L

WS-C2960-8TC-S

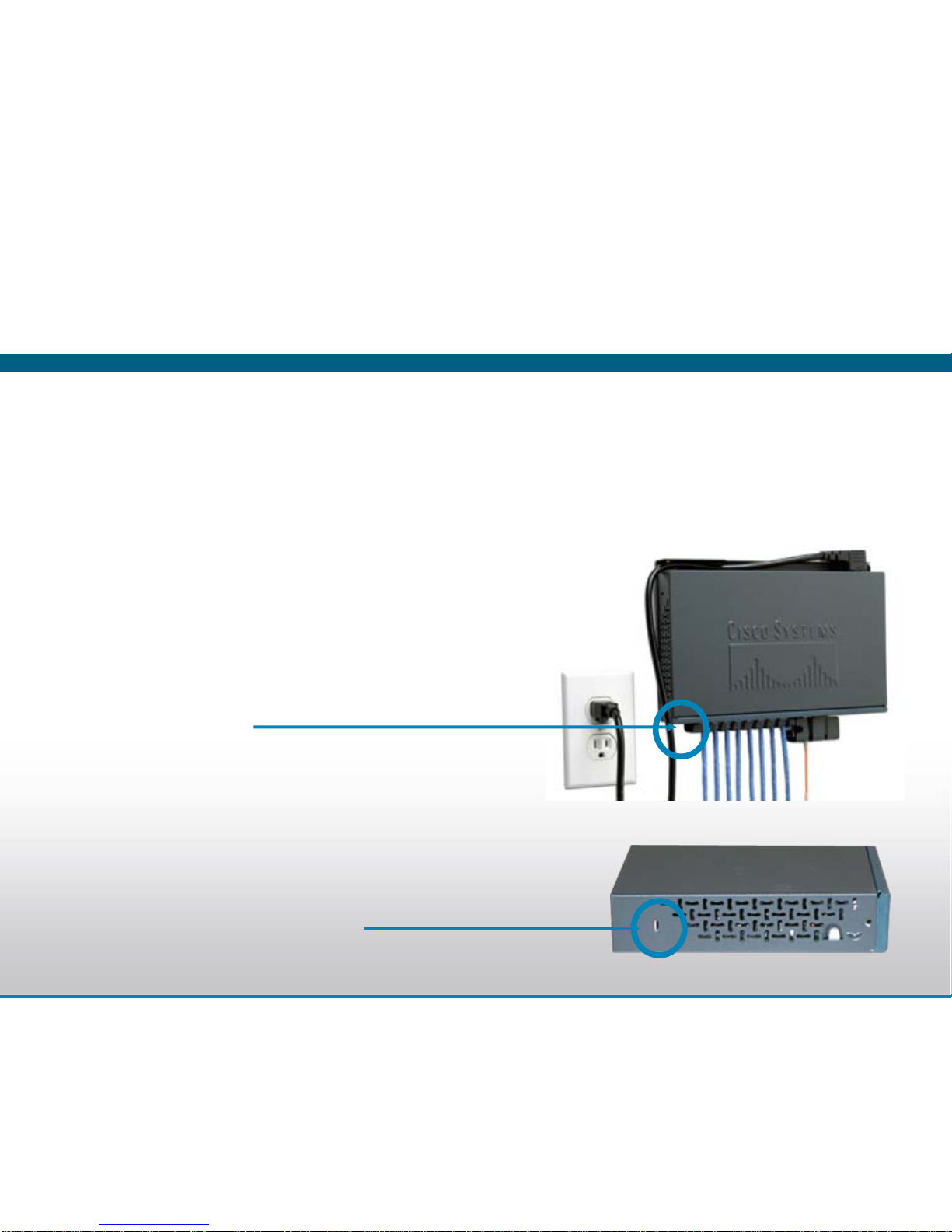

Small size (H x W x D)

4.4cm x 27cm x 16-23cm

Flexible wall and under the

desk mounting

Durable metal shell

Cable guard

Internal power supply and

right angle power cord

Passive cooling (no fan)

Magnet included

Security locking slot

19 inch rack mount option

Compact Design

Office Workspace Deployment Scenario

Cisco Catalyst

3560/3750 or 4500

in wiring closet

Cisco® Catalyst® 2960

series compact switch:

Desktop and Printer Fast

Ethernet Secure

Connectivity

Cisco Catalyst 3560-8PC:

Desktop, Printer, Wireless

LAN, and Unified

Communications

Si Si

Cisco Catalyst

6500 in core

Fast Ethernet or Gigabit Ethernet

Copper or Fiber uplink

Benefits for Office Workspace

Enable intelligent services in conference rooms, desk islands, and

other locations with limited cabling from the wiring closet

Improve application performance by removing hubs and

unmanaged switches from network

Deliver advanced security such as Network Admission Control to

the enterprise network edge

Provide PoE to IP phones and replace power bricks, power

injectors or PoE mid-span devices

Deliver Cisco®Unified Communications®with superior

Quality of Service

Provide Gigabit Ethernet to the end user
