Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Switch Installation

This chapter describes how to start your switch and how to interpret the power-on self-test (POST) that

ensures proper operation. It also describes how to install the switch.

Read the topics and perform the procedures in this order:

•Preparing for Installation, page 2-1

•Verifying Switch Operation, page 2-5

•Mounting the Switch, page 2-5

•Installing a Cover for the Reset Button (Optional), page 2-24

•Installing the Power Cord Retainer (Optional), page 2-25

•Installing the Cable Guard (Optional), page 2-28

•Connecting Devices to the Ethernet Ports, page 2-33

Preparing for Installation

•Warnings, page 2-1

•Installation Guidelines, page 2-3

•Equipment That You Supply, page 2-4

•Box Contents, page 2-4

•Powering the Switch, page 2-4

Warnings

These warnings are translated into several languages in the Regulatory Compliance and Safety

Information for the Catalyst 3560-C and the 2960-C Switches guide.

Warning

Before working on equipment that is connected to power lines, remove jewelry (including rings,

necklaces, and watches). Metal objects will heat up when connected to power and ground and can

cause serious burns or weld the metal object to the terminals.

Statement 43

2-2

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Preparing for Installation

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

Warning

Do not work on the system or connect or disconnect cables during periods of lightning activity.

Statement 1001

Warning

Read the installation instructions before connecting the system to the power source.

Statement 1004

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that

the protective device is rated not greater than:

20 A

Statement 1005

Warning

Class 1 laser product.

Statement 1008

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the

absence of a suitably installed ground conductor. Contact the appropriate electrical inspection

authority or an electrician if you are uncertain that suitable grounding is available.

Statement 1024

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Warning

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special

precautions to ensure that the system remains stable. The following guidelines are provided to

ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.

• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest

component at the bottom of the rack.

• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in

the rack.

Statement 1006

2-3

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Preparing for Installation

Warning

For connections outside the building where the equipment is installed, the following ports must be

connected through an approved network termination unit with integral circuit protection: 10/100/1000

Ethernet.

Statement 1044

Warning

To prevent the system from overheating, do not operate it in an area that exceeds the maximum

recommended ambient temperature of: 113°F (45°C)

Statement 1047

Note For Catalyst 3560CG-8PC-S, 3560CG-8TC-S, and 2960CG-8TC-L switches, the maximum

recommended ambient temperature is: 104°F (40°C).

Warning

No user-serviceable parts inside. Do not open.

Statement 1073

Warning

Installation of the equipment must comply with local and national electrical codes.

Statement 1074

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least:

3 in. (7.6 cm)

Statement 1076

Warning

Hot surface.

Statement 1079

Note Applies to the Catalyst 3560CG-8PC-S switch.

Installation Guidelines

Before installing the switch, these guidelines must be met:

•The operating environment must be within the ranges listed in Appendix A, “Technical

Specifications.”

•Cabling is away from sources of electrical noise, such as radios, power lines, and fluorescent

lighting fixtures. Make sure that the cabling is away from other devices that might damage the

cables.

•Airflow around the switch and through the vents must be unrestricted. We strongly recommend that

you allow at least 3 in. (7.6 cm) of clearance from the left, right, and top sides of the switch to avoid

any flow blockage. If you are installing the switch in a rack, allow at least 1.75 in.

(4 cm) of empty rack space above each switch.

•Catalyst 3560CG-8PC-S, 2960C-8PC-L, 2960C-12PC-L, 3560C-8PC-S, and 3560C-12PC-S

switches: Allow at least 1.75 in. (4 cm) clearance from the ends of the external heat sink fins.

2-4

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Powering the Switch

•Temperature around the unit does not exceed 113°F (45°C).

If the switch is installed in a closed environment or in a multirack assembly, the temperature around

it might be greater than normal room temperature.

•Humidity around the switch must not exceed 95 percent.

•Altitude at the installation site must not be greater than 10,000 feet (3,049 meters).

•Do not place any items on the top of the switch.

•Do not wall-mount the switch with its front panel facing up. Following safety regulations,

wall-mount the switch with its front panel facing down or to the side to prevent airflow restriction

and to provide easier access to the cables.

•Clearance to the switch front and rear panels meets these conditions:

–

You can easily read the front-panel LEDs.

–

Access to ports is sufficient for unrestricted cabling.

–

The AC power cord can reach from the AC power outlet to the connector on the switch

rear panel.

•For 10/100 and 10/100/1000 fixed ports, cable lengths from the switch to connected devices are not

more than 328 feet (100 meters).

•For cable lengths for small form-factor pluggable (SFP)-module connections, see the “SFP Module

Connectors” section on page B-2 and the module documentation.

Equipment That You Supply

You might need this equipment to install the switch:

•Number-2 Phillips screwdriver

•Drill with a #27 drill bit (0.144-inch [3.7 mm])

Box Contents

The switch getting started guide on Cisco.com describes the box contents. If any item is missing or

damaged, contact your Cisco representative or reseller for support.

Powering the Switch

Before installing the switch in a rack, on a desk, a shelf, or a wall, you should power on the switch and

verify that it passes POST.

Power the switch:

Catalyst 2960CPD-8PT-L and 2960CPD-8TT-L

•Connect a 10/100/1000 uplink port to a PoE or PoE+ switch, such as a Catalyst 3750-X.

•Plug the auxiliary power adapter cord into the switch AUX power connector and into an AC power

outlet.

2-5

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Verifying Switch Operation

Note You can use both the uplink port and the auxiliary power adapter. However, the auxiliary power

input takes precedence.

Catalyst 3560CPD-8PT-S

•Connect a 10/100/1000 uplink port to a PoE+ switch, such as a Catalyst 3750-X.

•Plug the auxiliary power adapter cord into the switch AUX power connector and into an AC power

outlet.

Note You can use both the uplink port and the auxiliary power adapter. However, the auxiliary power

input takes precedence.

All models (except the Catalyst 2960CPD-8PT-L, 2960CPD-8TT-L, and 3560CPD-8PT-S)

•Plug the AC power cord to the switch AC power connector and into an AC power outlet.

Verifying Switch Operation

As the switch powers on, it begins the POST, a series of tests that runs automatically to ensure that the

switch functions properly. LEDs blink during the test, which lasts approximately 1 minute. When the

switch begins POST, the System, Status, Duplex, and Speed LEDs turn green. The System LED blinks

green, and the other LEDs remain green.

When the POST completes successfully, the System LED turns green. The other LEDs turn off and then

reflect the switch operating status. If a switch fails POST, the System LED turns amber.

POST failures are usually fatal. Call Cisco technical support representative if your switch fails POST.

After a successful POST, unplug the power cord from the switch. Mount the switch in a rack on a desk

or shelf, under a desk or shelf, or on a wall, as described in the “Mounting the Switch” section on

page 2-5.

Mounting the Switch

•On a Desk or Shelf (without Mounting Screws)

•Desk, Shelf, or Wall (with Mounting Screws)

•With a Mounting Tray

•In a Rack

•On a DIN Rail

2-6

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Mounting the Switch

On a Desk or Shelf (without Mounting Screws)

Step 1 Locate the adhesive strip with the rubber feet in the accessory kit.

Step 2 Remove the four rubber feet from the adhesive strip, and attach them to the recessed areas on the bottom

of the unit. This prevents the switch from sliding on the desk or shelf.

Note We strongly recommend that you attach the rubber feet. Doing so helps prevent airflow

restriction and overheating.

Step 3 Place the switch on the desk or shelf.

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least:

3 in. (7.6 cm)

Statement 1076

After you mount the switch, see the “After Installing the Switch” section on page 2-31 for information

about the switch configuration.

Desk, Shelf, or Wall (with Mounting Screws)

You can use the mounting screws to mount the switch:

•On a desk or a shelf

•Under a desk or a shelf

•On a wall

Desk- or Shelf-Mounting

Step 1 Use the screw template to align the mounting screw holes and also as a guide to make sure that you install

the screws into the desk or shelf with proper clearance.

Step 2 Position the screw template on top of the desk or shelf so that the two side-by-side slots face the front of

the desk or shelf, as shown in Figure 2-1. This ensures that the power cord faces the rear of the desk or

shelf after the switch is installed.

Note Wait before you attach the screw template to the desk or shelf.

2-7

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Mounting the Switch

Figure 2-1 Installing the Mounting Screws on Top of a Desk or a Shelf

Step 3 Peel the adhesive strip off the bottom of the screw template, and attach it to the top of the desk or shelf.

Step 4 Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the three screw

template slots.

Step 5 Insert three screws in the slots on the screw template, and tighten them until they touch the top of the

screw template.

Step 6 Remove the screw template from the desk or shelf.

Step 7 Place the switch onto the mounting screws, and slide it forward until it locks in place. See Figure 2-2.

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least:

3 in. (7.6 cm)

Statement 1076

1Screw template 3Desk or shelf

2Screws

210096

2-8

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Mounting the Switch

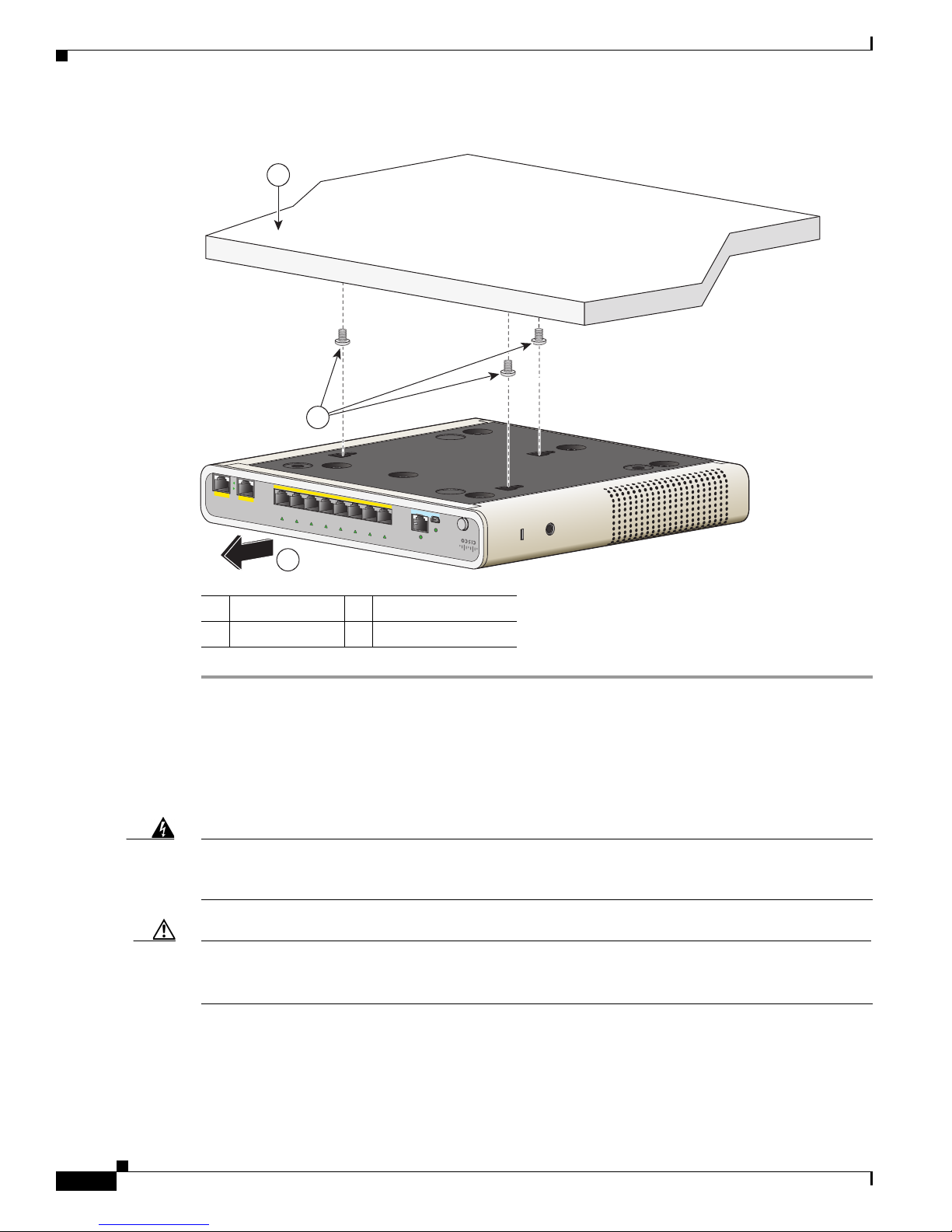

Figure 2-2 Mounting the Switch on Top of a Desk or Shelf

After you mount the switch, see the “After Installing the Switch” section on page 2-31 for information

about configuring the switch.

Under the Desk- or Shelf-Mounting

Step 1 Use the screw template to align the mounting screw holes and also as a guide to make sure the screws

are installed under the desk or shelf with proper clearance.

Step 2 Position the screw template underneath the desk or shelf so that the two side-by-side slots face the front

of the desk or shelf, as shown in Figure 2-3. This ensures that the power cord faces the rear of the desk

or shelf after the switch is mounted.

Step 3 Peel the adhesive strip off the bottom of the screw template, and attach it to the underside of the desk or

shelf.

1Slides on this way 3Desk or shelf

2Screws

MODE

CONSOLE

Series

POWER

OVER

ETHERNET

12345678

SPD

PoE

DPLX

STAT

SYST

282394

2-9

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Mounting the Switch

Figure 2-3 Installing the Mounting Screws Under a Desk or Shelf

Step 4 Use a 0.144-inch (3.7 mm) or a #27 drill bit to drill a 1/2-inch (12.7 mm) hole in the three screw

template slots.

Step 5 Insert three screws in the slots on the screw template, and tighten until they touch the top of the screw

template.

Step 6 Remove the screw template from underneath the desk or shelf.

Step 7 Place the switch upside down onto the mounting screws, and slide it forward until it locks in place. See

Figure 2-4.

Warning

To prevent airflow restriction, allow clearance around the ventilation openings to be at least:

3 in. (7.6 cm)

Statement 1076

1Desk or shelf 3Screws

2Screw template 4Adhesive

250146

2-10

Catalyst 3560-C and 2960-C Switch Hardware Installation Guide

OL-23803-02

Chapter 2 Switch Installation

Mounting the Switch

Figure 2-4 Mounting the Switch Under a Desk or Shelf

After you mount the switch, see the “After Installing the Switch” section on page 2-31 for information

about configuring the switch.

Wall-Mounting

Warning

Read the wall-mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people

and damage to the system.

Statement 378

Caution Do not wall-mount the switch with its front panel facing up. Following safety regulations, wall-mount

the switch with its front panel facing down or to the side to prevent airflow restriction and to provide

easier access to the cables.

1Desk or shelf 3Slides on this way

2Screws

MODE

SPD

PoE

DPLX

STAT

SYST

Catalyst2960-C

Series

12345678

CONSOLE

POWER

OVER

ETHERNET

282395

Altri manuali per Catalyst 3560-C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Cisco Interruttore

Cisco

Cisco WS-C3560E-24PD-E Manuale di installazione

Cisco

Cisco MGX 8950 Manuale utente

Cisco

Cisco SG 300-10 Manuale utente

Cisco

Cisco Nexus 9236C Guida rapida

Cisco

Cisco Catalyst 2960 Series Manuale operativo

Cisco

Cisco InfiniBand SFS 7000 Manuale utente

Cisco

Cisco Catalyst 2960 Series Manuale utente

Cisco

Cisco Linksys SFE2000 Manuale di istruzioni

Cisco

Cisco 2975 - Catalyst LAN Base Switch Manuale utente

Cisco

Cisco MGC Node Manager Manuale utente

Cisco

Cisco Nexus 7000 Series Manuale utente

Cisco

Cisco 2950 - Catalyst Switch Manuale utente

Cisco

Cisco MGX 8850 Manuale dell'operatore

Cisco

Cisco Catalyst 2960-XR Manuale utente

Cisco

Cisco Network Switch Cabling Manuale utente

Cisco

Cisco MERAKI MS425 Series Manuale utente

Cisco

Cisco Catalyst 3560-X Series Manuale di installazione

Cisco

Cisco 11503 - CSS Content Services Switch Manuale di istruzioni

Cisco

Cisco Catalyst 2900 Series XL Manuale dell'operatore

Cisco

Cisco AJ732A - MDS 9134 Fabric Switch Manuale utente

Cisco

Cisco WS-C6506 Guida rapida

Cisco

Cisco Catalyst X4232 Guida rapida

Cisco

Cisco Catalyst 2924M XL Manuale utente

Cisco

Cisco Nexus 7000 Series Manuale di istruzioni

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
