Cisco MDS 9148 Multilayer Fabric Switch Quick Start Guide

Date: February 2010

Text Part Number: OL-21517-01

1Overview

2Verifying Your Shipping Contents

3Installing the Switch

4Installing the SFPs

5Powering Up the Switch

6Setting Up a Network

7Connecting Devices

8Installing Cisco Device Manager

9Using the Quick Config Wizard

10 Creating VSANs

11 Need Help?

Send documentation comments to mdsfeedbac[email protected]

1 Overview

Cisco MDS 9148 Switch

The Cisco MDS 9148 Multilayer Fabric Switch has 48 Fibre Channel ports with speeds of 8, 4, 2, and 1 Gbps. The Cisco MDS

9148 Switch is a top-of-rack (TOR) Fibre Channel switch based on System-on-a-Chip (SOC) technology, which is a Cisco

innovation. The Cisco MDS 9148 Multilayer Fabric Switch has these features:

• 16, 32, or 48 default licensed ports and an 8-port on-demand license.

• 8-,4-, 2-, 1-Gbps full line rates.

• 128 buffers available as a shared pool to each port group: 32 buffers per Fibre Channel (FC) port. A maximum of 125

buffers per port in a port group.

• Fair bandwidth arbiters.

• Device Manager Quick Config Wizard for the Cisco MDS 9148 Switch.

• Redundant power supplies and fans.

• Enterprise class features such as In-Service Software Upgrades (ISSU), Virtual SANs (VSANs), security features, and quality

of service (QoS).

• Consistency with NX-OS.

The front of the Cisco MDS 9148 Switch contains the LEDs, the console and management ports, and 48 8-Gbps Fibre Channel

Ports. See Figure 1.

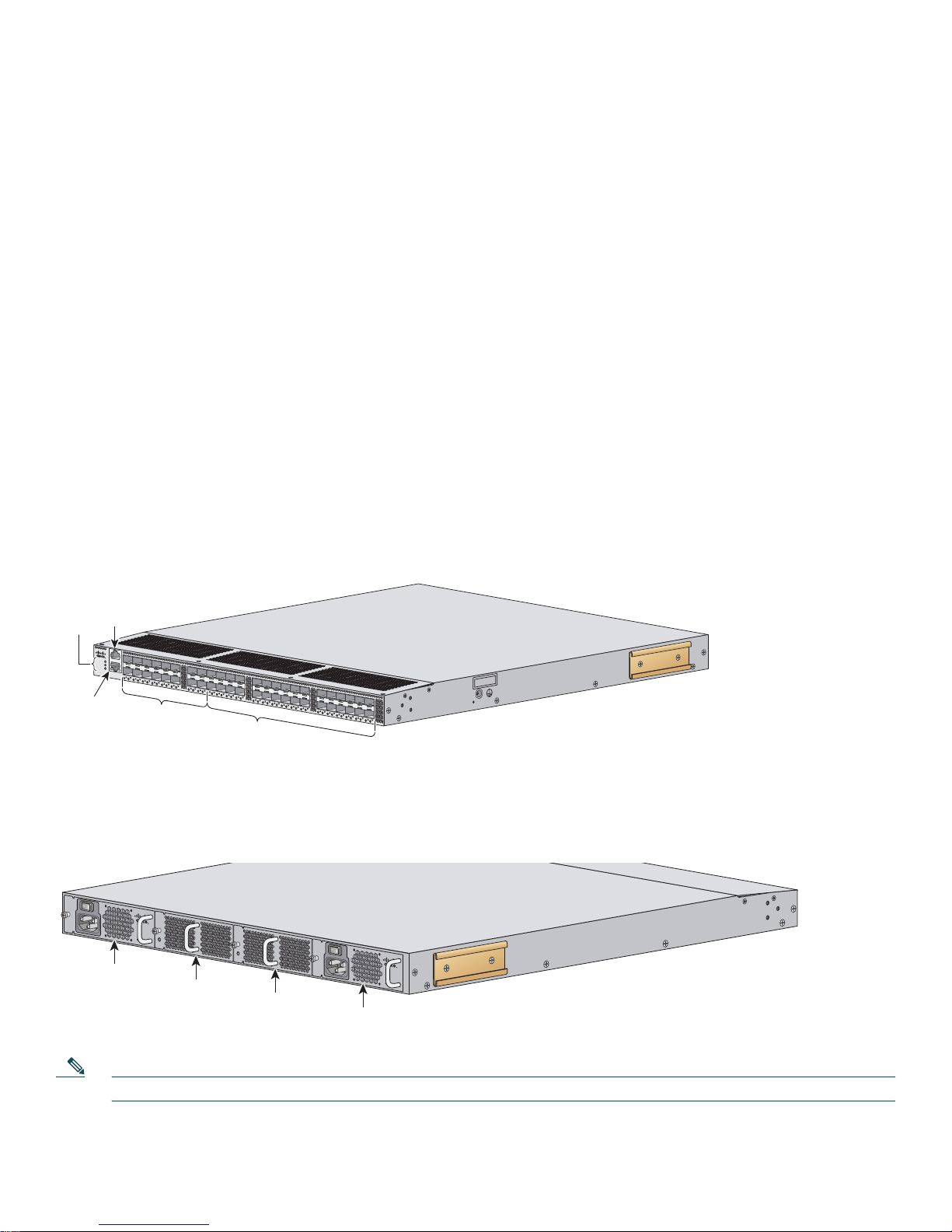

Figure 1 Front View of the Cisco MDS 9148 Switch

12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

DS-C9148-16p-K9

STATUS

P/S

FAN

CONSOLEMGMT 10/100/1000

LINK ACT

MDS 9148 Multilayer FabricSwitch

253458

LEDs

Console

port

Ethernet

anagement

port 16 default

licensed

ports 32 on-demand

ports

The rear of the Cisco MDS 9148 Switch contains the redundant power supplies, the AC power receptacle, and the fans.

See Figure 2.

Figure 2 Rear View of the Cisco MDS 9148 Switch

253459

DS - C48 - 300AC

100 - 240VAC

4 - 2 A

50 - 60 Hz

INPUT

OK OUTPUT

Power

module Fan

module

DS - C48 - 300AC

100 - 240VAC

4 - 2 A

50 - 60 Hz

INPUT

OK OUTPUT

Power

module

Note The on-demand ports can be activated in 8-port increments through software licensing.

Send documentation comments to mdsfeedbac[email protected]

2 Verifying Your Shipping Contents

Verify that you have received all items, including the following:

• Rack-mount kit

• ESD wrist strap

• Cables and connectors

• Any optional items ordered

3 Installing the Switch

Install the switch in one of the following enclosures:

• An open EIA rack

• A perforated or solid-walled EIA cabinet

• A two-post Telco rack

For an example of a rack mount, see Figure 3.

Figure 3 Example Rack Mount

181543

Note Before you install the switch in a rack, you will need to install the rack mount support brackets on the switch.

Send documentation comments to mdsfeedbac[email protected]

4 Installing the SFPs

Install one of the following SFPs in each empty port:

• A Fibre Channel Shortwave 1-, 2-, 4-, or 8-Gbps SFP transceiver, part number DS-SFP-FC8G-SW

• A Fibre Channel Long wavelength 1-, 2-, 4-, or 8-Gbps SFP transceiver, part number DS-SFP-FC8G-LW

• A Fibre Channel Short wavelength 1-, 2-, or 4-Gbps SFP transceiver, part number DS-SFP-FC4G-SW

For SFP installation, see Figure 4.

Figure 4 SFP Installation

13 1415

16 1718 1920 21 22 23 24

81666

5 Powering Up the Switch

To power up the switch, follow these steps:

Step 1 Ground the switch, as shown in Figure 5.

Send documentation comments to mdsfeedbac[email protected]

Figure 5 Switch Ground

81544

Grounding

lug

System grounding pad Wire

Screws (M4)

Grounding

pad location

Step 2 Connect the power cable to the AC power receptacle, and then plug it in (see Figure 6).

The Cisco MDS 9148 Switch supports only AC power supply. The power supply status is indicated on a front panel

LED.

The Cisco MDS 9148 Switch includes a front panel reset button that resets the switch without cycling the power.

Step 3 Power up the switch (see Figure 6).

Send documentation comments to mdsfeedbac[email protected]

Figure 6 Power Receptacle and On/Off Switch on Cisco MDS 9148 Switch

274885

AC power

receptacle

On/Off

switch

6 Setting Up a Network

To set up a network, follow these steps:

Step 1 Ensure that the Mgmt0 port is connected to the management network.

Step 2 Ensure that the console port is connected to the PC serial port (or to a terminal server), as shown in Figure 7. For

example, on a Windows PC used as a terminal emulator, you can use HyperTerminal. The default baud rate on the

console port is 9600.

Figure 7 Connection to Terminal Emulator.

Teminal

emulator

81541

Console port

Note See Figure 1 for the physical location of the Mgmt 0 port and console ports.

Send documentation comments to mdsfeedbac[email protected]

Step 3 Use the switch setup utility that appears on the console connection.

Step 4 Use the switch setup utility to do the following:

a. Set the admin password for the switch.

Caution Make sure that you configure a strong password. Short, easy-to-decipher passwords are not allowed by Cisco

NX-OS software. Strong passwords are at least eight characters long and contain numbers, uppercase letters,

and lowercase letters.

b. Assign an IP address and a netmask to the switch, as shown in Example 1.

Example 1 IP Address Step in the Setup Utility

Continue with Out-of-band (mgmt0) management configuration? {yes/no]: yes

Mgmt0 IPV4 address: 209.165.200.225

Mgmt0 IPV4 netmask: 255.255.255.224

c. Set up the default gateway.

Note The switch is now ready to be managed via the Mgmt port using Telnet or Device Manager or Fabric Manager.

7 Connecting Devices

To connect devices, follow these steps:

Step 1 Connect a server to the switch (see Figure 8).

Step 2 Connect a storage device to the switch (see Figure 8).

Figure 8 Server and Storage Connection

Web

browser

Storag

Server

253472

MDS 9148

Note For more information about switch installation and configuration, see the Cisco MDS 9100 Series Hardware

Installation Guide and the appropriate CISCO MDS 9000 Family NX-OS feature configuration guides.

Send documentation comments to mdsfeedbac[email protected]

8 Installing Cisco Device Manager

To install Cisco Device Manager, follow these steps:

Step 1 Enter the IP address you assigned to your switch in your Address field of you browser to begin the Cisco Device

Manager installation.

Step 2 Click the Device Manager link, shown in Figure 9.

Figure 9 Cisco Device Manager Installation

Step 3 Follow the onscreen instructions to install Cisco Device Manager.

Send documentation comments to mdsfeedbac[email protected]

9 Using the Quick Config Wizard

To enable ports and assign zone memberships, follow these steps:

Step 1 Click the Device Manager icon on your desktop to log in.

Step 2 Enter a password in the Password field (see Figure 10).

Step 3 Click Open (see Figure 10).

Figure 10 Device Manager Login

Step 4 Click FC, and then choose Quick Config.

Step 5 Enable two ports by checking the two corresponding check boxes in the Enable column, as shown in Figure 11.

Figure 11 Enable Zone Ports

Step 6 Select one of the two enabled ports that you want in a zone by checking its check box in the Ports Zoned To area.

When you check this check box, the second enabled port automatically becomes checked. Both ports are now members

of the same zone.

Step 7 Click Next.

You see a summary of your changes, as shown in Figure 12.

Send documentation comments to mdsfeedbac[email protected]

Figure 12 Confirm Changes

Step 8 Click Finish to save your changes.

Step 9 Repeat Steps 2 through 5 to create more zones.

Note A maximum of 12 zones with two ports each can be created with the Quick Config Wizard.

Note For more information about installing Cisco Device Manager and using the Quick Config Wizard, see the Cisco MDS

9000 Family Fabric Manager Configuration Guide.

10 Creating VSANs

To create VSANs, follow these steps:

Step 1 Click the Device Manager icon on your desktop to log in.

Step 2 Enter a password in the Password field (see Figure 13).

Step 3 Click the Open button (see Figure 13).
