MS410 Series Installation Guide

About this Guide

This guide provides instruction on how to install and configure your MS410 series switch. This guide also provides

mounting instructions and limited troubleshooting procedures. For more switch installation guides, refer to

the switch installation guides section on our documentation website.

Product Overview

Models

Model number Description

MS410-16

Layer-3 16-port 1Gbe SFP and 2-port

10Gbe SFP+ aggregation switch with 1

management interface and hot-swappable power

supplies / fans

MS410-32

Layer-3 32-port 1Gbe SFP and 4-port 10Gbe

SFP+ aggregation switch with 1 management

interface and hot-swappable power supplies / fans

Physical Specifications

MS410-16 MS410-32

1GbE SFP 16 32

10GbE SFP+ uplink 2 4

40G QSFP+ Stacking ports 2 2

Dedicated Mgmt Interface 1 1

Hot Swap Power Supply Yes, Dual Yes, Dual

Hot Swap Fans Yes, 2x Yes, 2x

Power Input 100 - 240 VAC, 47-63 Hz 100 - 240 VAC, 47-63 Hz

Power Consumption 50-85W 50-85W

Operating Temperature 32°F - 104 °F

0°C - 40 °C

32°F - 104 °F

0°C - 40 °C

Storage and Transportation Temperature -4°F - 158°F

-20°C - 70°C

-4°F - 158°F

-20°C - 70°C

Humidity 5% to 95% 5% to 95%

Mounting 1U Rack Mount 1U Rack Mount

Product View and Physical Features

Front Panel

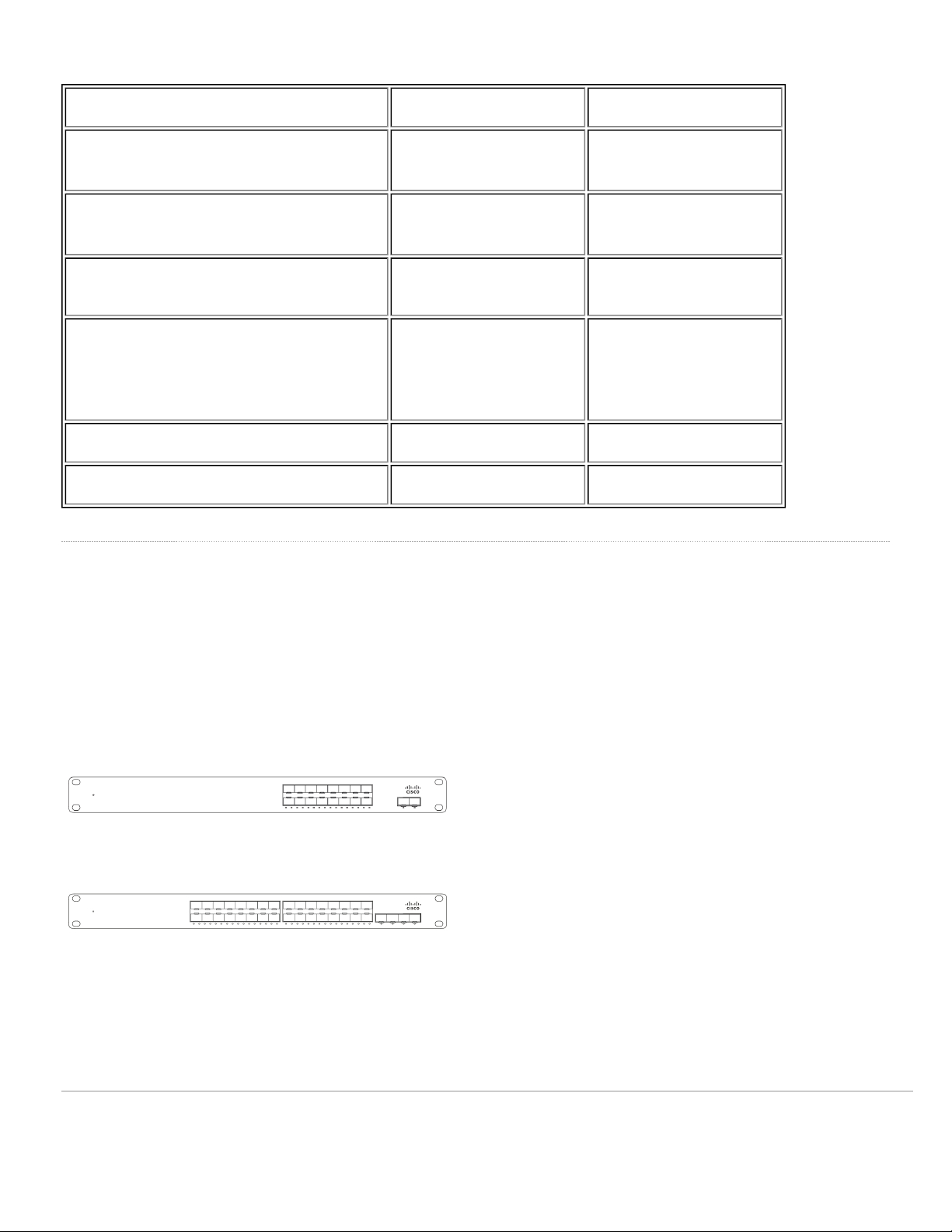

MS410-16 Series front panel

MS410-32 Series front panel

In addition, there is a RESTORE button available on the front panel.

Insert a paper clip if a restore is required.

• A brief, momentary press: To delete a downloaded configuration and reboot.

• Press and hold for more than 10 sec: To force the unit into a full factory restore.

Ports and Status Indicators

The MS uses LEDs to inform the user of the device's status. When the device powers on, the main LED will be amber.

Additional functions are described below, from left to right.

Item Function LED Status Meaning

1 Restore N/A

Restore button to clear

switch IP and local

configuration settings

2 Fan Orange

One or more of the

system fans has

malfunctioned or is

missing

3 Power (PSU) Orange

One of the system

PSUs (power supplies)

has malfunctioned or is

missing

2Status Orange

Switch is unable to or

has not yet connected

to the Meraki cloud

Flashing green Firmware upgrade in

process

White

Switch is fully

operational and

connected to the

Meraki cloud

Rainbow

Switch is booting,

searching for uplink to

Meraki Cloud

Off Switch does not have

power

3 Switch Port LEDs Off No client connected

Solid orange 1 Gbps on SFP+

Solid green

1 Gbps on SFP/10

Gbps on SFP+

Factory Reset Button

If the button is pressed and held for at least 10 seconds and then released, the switch will reboot and be restored to its

original factory settings by deleting all configuration information stored on the unit.

Insert a paper clip if a restore is required.

• A brief, momentary press: To delete a downloaded configuration and reboot.

• Press and hold for more than 10 sec: To force the unit into a full factory restore.

Back Panel

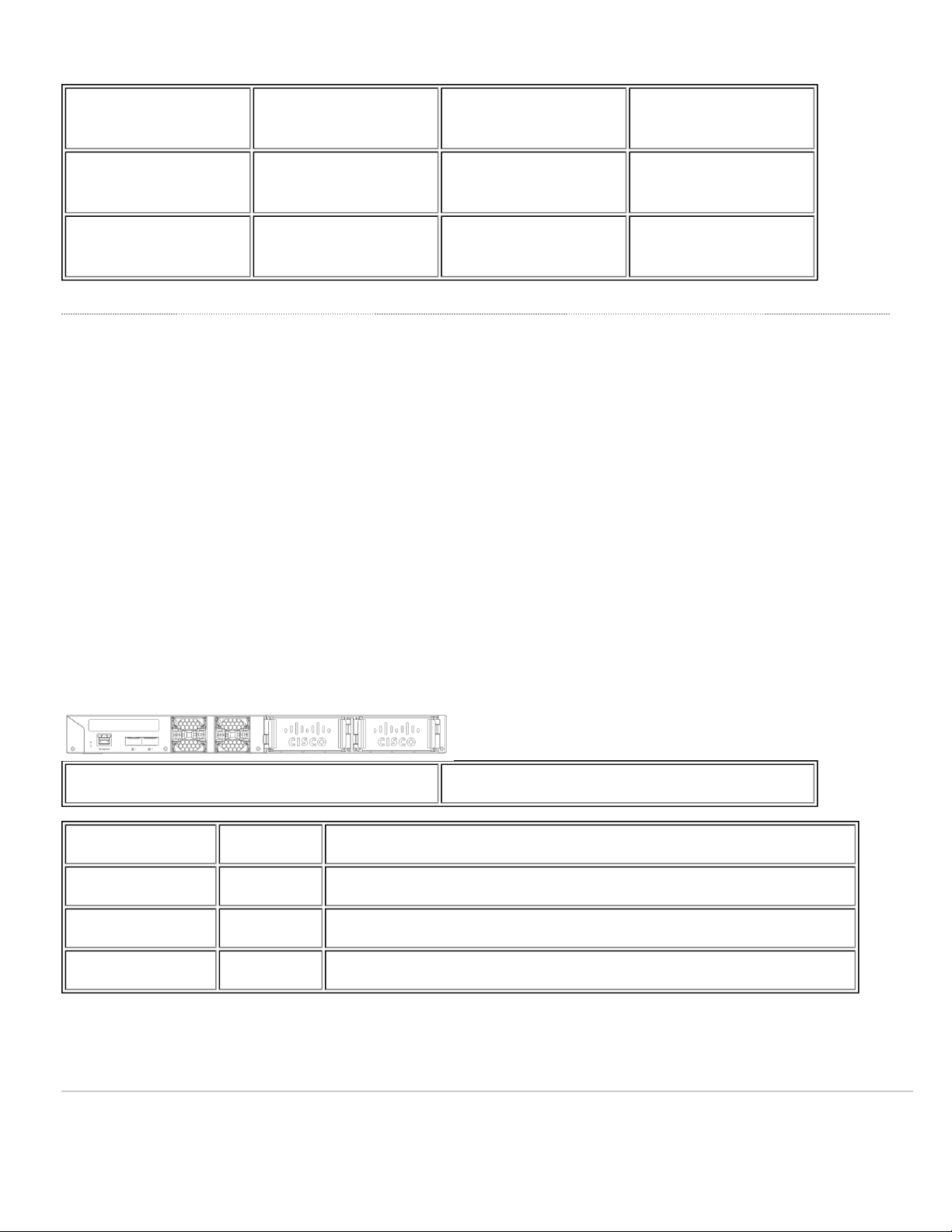

MS410 Series back panel

Power input Power cords may be ordered separately.

Function LED Status Meaning

Fan Orange One or more of the system fans has malfunctioned or is missing

Power (PSU) Orange One of the system PSUs (power supplies) has malfunctioned or is missing

Management Port Green Connected, used for easy access to the local status page

Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.

Package contents

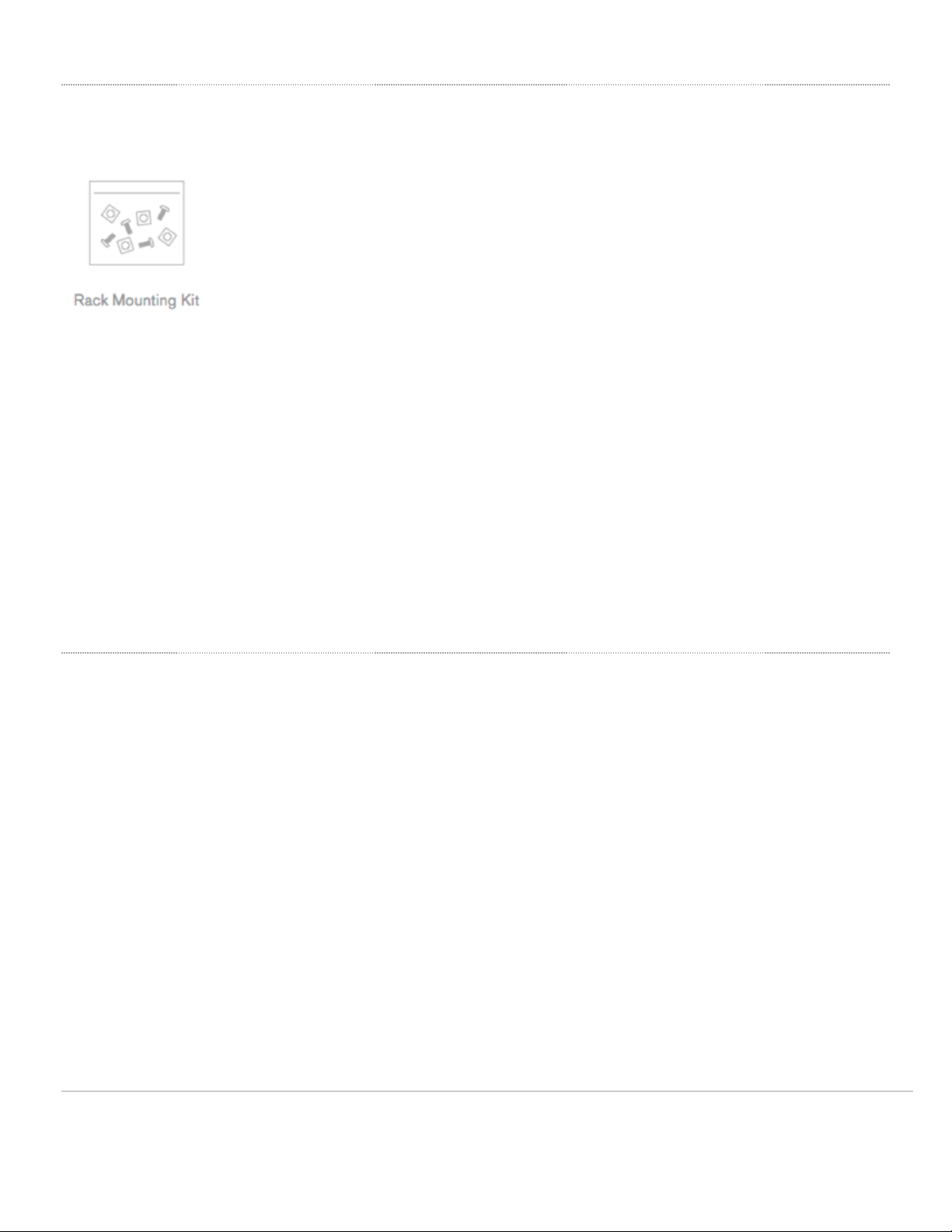

In addition to the MS switch, the following are provided (mounting kit provided with 1U models only):

Rack Mount it includes:

▪ US 12-24 mounting screws and cage nuts, 5 of each

▪ INTL M5 mounting screws and cage nuts, 5 of each

▪ INTL M6 mounting screws and cage nuts, 5 of each

▪ Mounting washers

The MS410 series will ship with all fans and a single power supply included, additional accessories including spare fans

and power supplies can be purchased separately.

Safety and Warnings

These operations are to be taken with respect to all local laws. Please take the following into consideration for safe

operation:

• Power off the unit before you begin. Read the installation instructions before connecting the system to the power

source.

• Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with

standard practices for preventing accidents.

• Read the mounting instructions carefully before beginning installation. Failure to use the correct hardware or to

follow the correct procedures could result in a hazardous situation to people and damage to the system.

• This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective

device is rated not greater than: 15 A, 125 Vac, or 10A, 240 Vac.

• Please only power the device with the provided power cables to ensure regulatory compliance.

Pre-install Preparation

You should complete the following steps before going on-site to perform an installation.

Configure your Dashboard Network

The following is a brief overview only of the steps required to add a switch to your network. For detailed instructions

about creating, configuring and managing Meraki networks, refer to the online documentation

(documentation.meraki.com).

1. Login to http://dashboard.meraki.com. If this is your ﬁrst time, create a new account.

2. Find the network to which you plan to add your switches or create a new network.

3. Add your switches to your network. You will need your Meraki order number (found on your invoice) or the serial

number of each switch, which looks like Qxxx-xxxx-xxxx, and is found on the bottom of the unit. You will also need

your Enterprise license key, which you should have received via email.

4. Go to the map / ﬂoor plan view and place each switch on the map by clicking and dragging it to the location where

you plan to mount it.

Check and Set Firmware

To ensure your switch performs optimally immediately following installation, it is recommended that you facilitate a

ﬁrmware upgrade prior to mounting your switch.

1. Attach your switch to power and a wired Internet connection.

2. The switch will turn on and the power LED will glow solid orange.

3. If the unit requires an upgrade, the power LED will begin blinking white until the upgrade is complete, at which

point the LED will turn solid white. You should allow at least a few minutes for the ﬁrmware upgrade to complete,

depending on the speed of your internet connection.

Check and Configure Upstream Firewall Settings

If a ﬁrewall is in place, it must allow outgoing connections on particular ports to particular IP addresses. The most

current list of outbound ports and IP addresses for your particular organization can be found on the firewall configuration

page in your dashboard.

Assigning an IP Address

All switches must be assigned routable IP addresses. These IP addresses can be dynamically assigned via DHCP or

statically assigned.

Dynamic Assignment

When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address

belonging to a Meraki switch. Other features of the network, such as 802.1X authentication, may rely on the property

that the switches have static IP addresses.

Static Assignment

Static IPs are assigned using the local web server on each switch. The following procedure describes how to set the

static IP:

1. Using a client machine (e.g., a laptop), connect to the switch over a wired connection.

2. Using a web browser on the client machine, access the switch’s built-in web server by browsing

to http://my.meraki.com. Alternatively, browse to http://1.1.1.100

3. Click on the “Uplink Conﬁguration” tab. Log in. The default login is the serial number (e.g. Qxxx-xxxx-xxxx), with no

password (e.g., Q2DD-551C-ZYW3).

4. Configure the static IP address, net mask, gateway IP address and DNS servers that this switch will use on its

management connection.

5. If necessary, reconnect the switch to the LAN.

Static IP via DHCP Reservations

Instead of associating to each Meraki switch individually to configure static IP addresses, an administrator can assign

static IP addresses on the upstream DHCP server. Through “DHCP reservations,” IP addresses are “reserved” for the

MAC addresses of the Meraki switches. Please consult the documentation for the DHCP server to conﬁgure DHCP

reservations.

Installation Instructions

Note: Each switch comes with a graphical instruction pamphlet within the box. This pamphlet contains detailed step by

step guides and images to assist in the physical install of the switch.

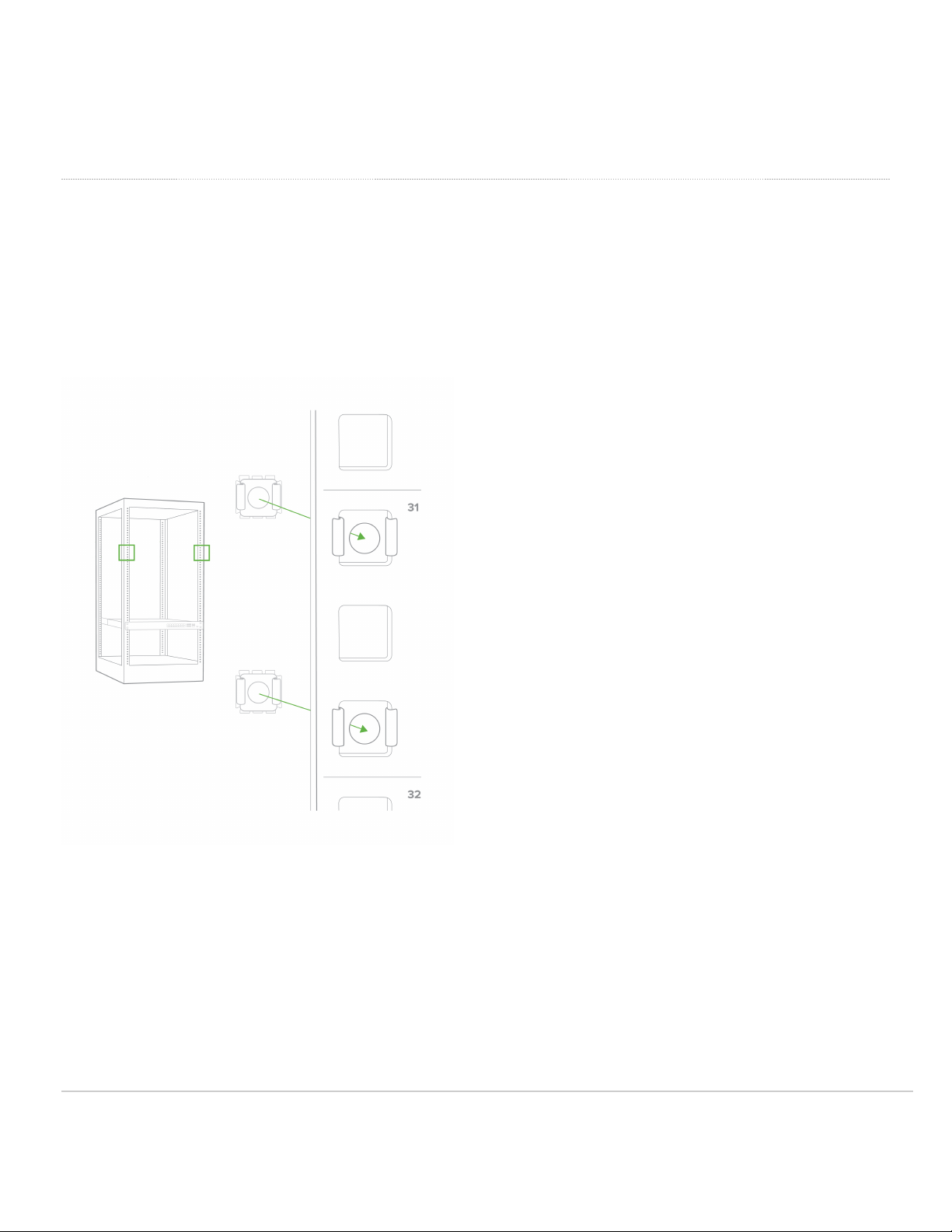

1. Install the mounting cage nuts in the rack being used for the switch.

2. Attach the switch face plate to the cage nuts on the rack.

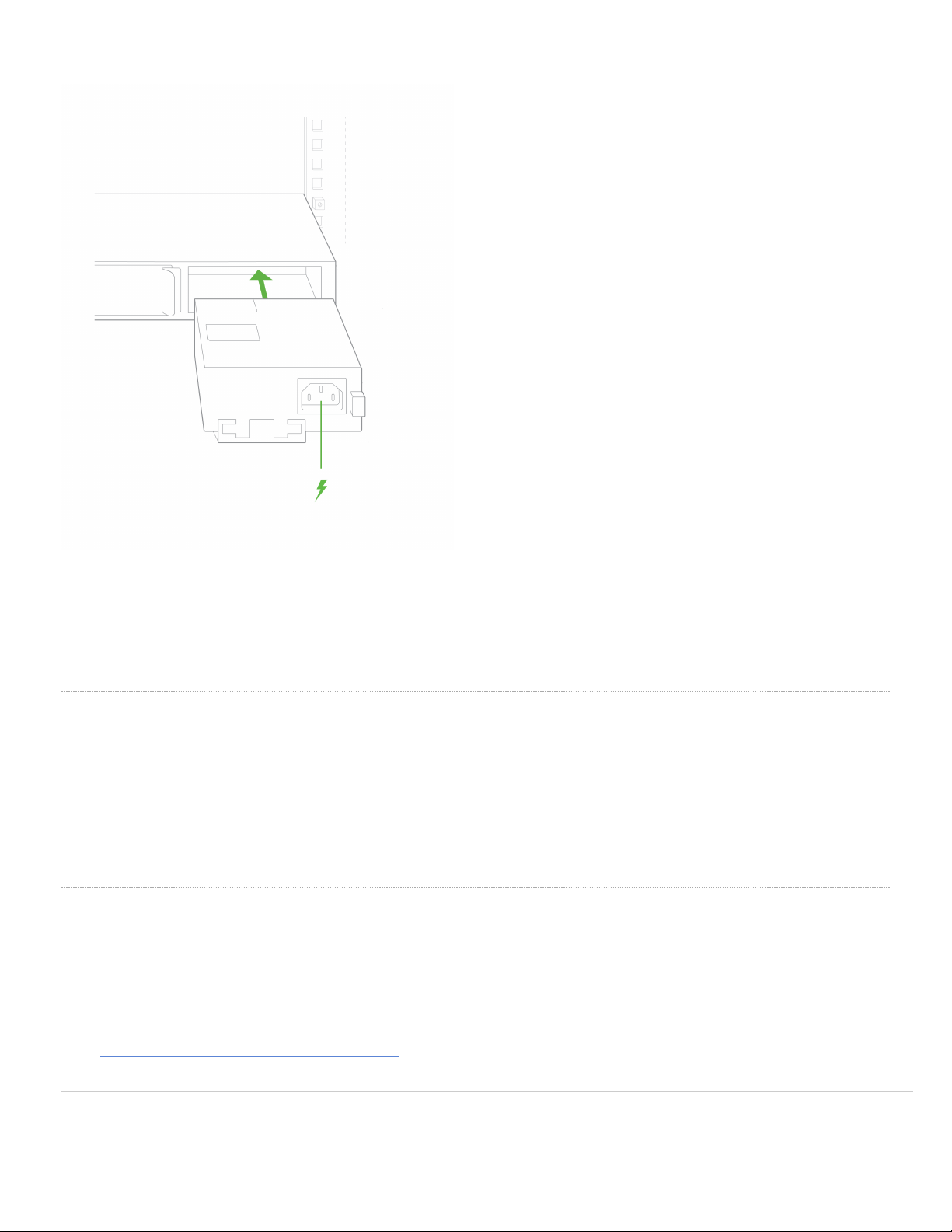

3. Insert the power supply unit into the back of the switch. After it has been securely installed, you can connect power to

the power supply unit.

Mounting hardware

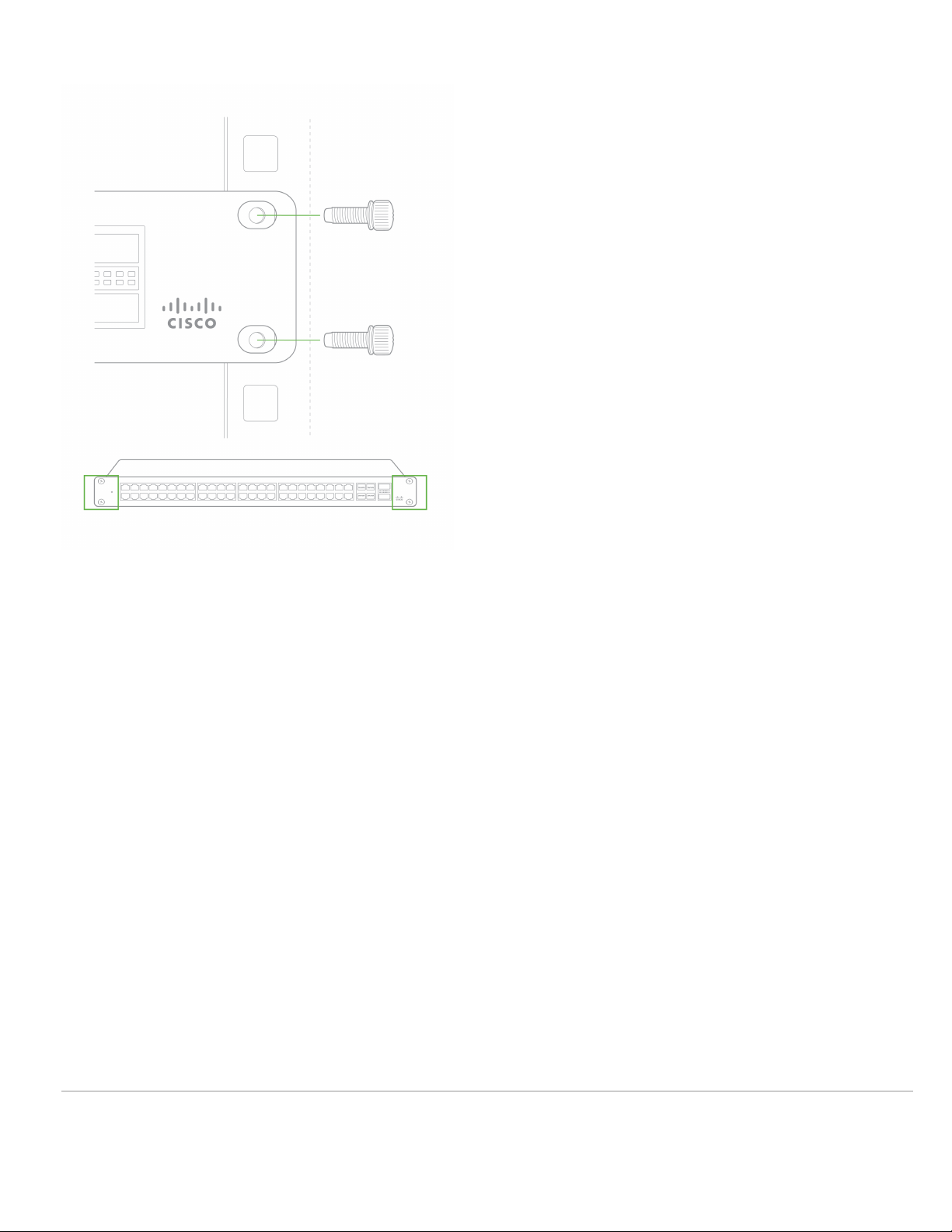

The mounting hardware includes integrated mounting ears for standard 1U racks. When installing the device, make sure

that there is sufficient space between the rear of the rack and other obstacles to ensure adequate airflow.

Bringing your Stack Online

The steps below explain how to prepare a group of switches for physical stacking, how to stack them together, and how

to configure the stack in Dashboard.

1. Add the switches into a Dashboard network. This can be a new Dashboard network for these switches, or an

existing network with other switches. Do not configure the stack in Dashboard yet.
