Cisco Nexus 9316D-GX Manuale

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation

Guide

First Published: 2018-03-12

Last Modified: 2019-12-23

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

CONTENTS

Preface vii

PREFACE

Audience vii

Documentation Conventions vii

Documentation Feedback viii

Obtaining Documentation and Submitting a Service Request viii

Overview 1

CHAPTER 1

Overview 1

Preparing the Site 5

CHAPTER 2

Temperature Requirements 5

Humidity Requirements 5

Altitude Requirements 5

Dust and Particulate Requirements 6

Minimizing Electromagnetic and Radio Frequency Interference 6

Shock and Vibration Requirements 7

Grounding Requirements 7

Planning for Power Requirements 7

Airflow Requirements 8

Rack and Cabinet Requirements 9

Clearance Requirements 9

Installing the Chassis 11

CHAPTER 3

Safety 11

Installation Options with Rack-Mount Kits, Racks, and Cabinets 12

Airflow Considerations 12

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

iii

Installation Guidelines 12

Unpacking and Inspecting the Switch 14

Installing the Switch Using the NXK-ACC-KIT-1RU Rack-Mount Kit 15

Grounding the Chassis 18

Starting the Switch 19

Connecting the Switch to the Network 23

CHAPTER 4

Overview of Network Connections 23

Connecting a Console to the Switch 23

Creating the Initial Switch Configuration 25

Setting Up the Management Interface 26

Connecting Interface Ports to Other Devices 27

Replacing Components 29

CHAPTER 5

Replacing a Fan Module 29

Removing a Fan Module 29

Installing a Fan Module 30

Replacing a Power Supply Module 31

Replacing an AC Power Supply 31

Replacing a High Voltage (HVAC/HVDC) Power Supply 32

Replacing a DC Power Supply 33

Rack Specifications 35

APPENDIX A

Overview of Racks 35

General Requirements for Cabinets and Racks 35

Requirements Specific to Standard Open Racks 36

Requirements Specific to Perforated Cabinets 36

Cable Management Guidelines 36

System Specifications 37

APPENDIX B

Environmental Specifications 37

Switch Dimensions 37

Switch and Module Weights and Quantities 38

Transceiver and Cable Specifications 38

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

Contents

Switch Power Input Requirements 38

Power Specifications 39

1100-W AC Power Supply Specifications 39

1100-W HVAC/HVDC Power Supply Specifications 40

1100-W DC Power Supply Specifications 40

Power Cable Specifications 41

AC Power Cables Supported by NX-OS Mode Switches 41

HVAC/HVDC Power Cables Supported by ACI-Mode and NX-OS Mode Switches 42

DC Power Cable Specifications 43

Regulatory Standards Compliance Specifications 43

LEDs 45

APPENDIX C

Switch Chassis LEDs 45

Fan Module LEDs 46

Power Supply LEDs 46

Additional Kits 49

APPENDIX D

Rack Mount Kit NXK-ACC-KIT-1RU 49

Rack Mount Kit N3K-C3064-ACC-KIT 50

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

Contents

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

Contents

Preface

•Audience, on page vii

•Documentation Conventions, on page vii

•Documentation Feedback, on page viii

•Obtaining Documentation and Submitting a Service Request, on page viii

Audience

This publication is for hardware installers and network administrators who install, configure, and maintain

Cisco Nexus switches.

Documentation Conventions

Command descriptions use the following conventions:

DescriptionConvention

Bold text indicates the commands and keywords that you enter literally

as shown.

bold

Italic text indicates arguments for which the user supplies the values.Italic

Square brackets enclose an optional element (keyword or argument).[x]

Square brackets enclosing keywords or arguments separated by a vertical

bar indicate an optional choice.

[x | y]

Braces enclosing keywords or arguments separated by a vertical bar

indicate a required choice.

{x | y}

Nested set of square brackets or braces indicate optional or required

choices within optional or required elements. Braces and a vertical bar

within square brackets indicate a required choice within an optional

element.

[x {y | z}]

Indicates a variable for which you supply values, in context where italics

cannot be used.

variable

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

vii

DescriptionConvention

A nonquoted set of characters. Do not use quotation marks around the

string or the string will include the quotation marks.

string

Examples use the following conventions:

DescriptionConvention

Terminal sessions and information the switch displays are in screen font.screen font

Information you must enter is in boldface screen font.boldface screen font

Arguments for which you supply values are in italic screen font.italic screen font

Nonprinting characters, such as passwords, are in angle brackets.< >

Default responses to system prompts are in square brackets.[ ]

An exclamation point (!) or a pound sign (#) at the beginning of a line

of code indicates a comment line.

!, #

Documentation Feedback

To provide technical feedback on this document, or to report an error or omission, please send your comments

to [email protected]. We appreciate your feedback.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service

request, and gathering additional information, see What's New in Cisco Product Documentation, at:

https://www.cisco.com/warp/public/687/Directory/DirTAC.shtml.

Subscribe to What's New in Cisco Product Documentation, which lists all new and revised Cisco technical

documentation as an RSS feed and delivers content directly to your desktop using a reader application. The

RSS feeds are a free service.

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

viii

Preface

Documentation Feedback

CHAPTER 1

Overview

•Overview, on page 1

Overview

The Cisco Nexus 9316D-GX switch (N9K-C9316D-GX) is a 1-RU, fixed-port switch designed for deployment

in data centers. This switch has 16 x 400/100-Gbps QSFP-DD ports.

To determine how to use and configure these ports, see the Cisco Nexus 9000 Series NX-OS Interfaces

Configuration Guide.

To determine which transceivers, adapters, and cables this switch supports, see the Cisco Transceiver Modules

Compatibility Information document.

This switch includes the following user-replaceable components:

• Fan modules (six) with the following airflow choices:

• Port-side exhaust airflow with blue coloring (NXA-FAN-35CFM-PE)

• Port-side intake airflow with red coloring (NXA-FAN-35CFM-PI)

Table 1: Fan Speeds for This Switch

Port-Side Exhaust

Fan Speed %

Port-Side Intake

Fan Speed %

80%60%Typical/Minimum

100%100%Maximum

Note

• Power supply modules (two—One for operations and one for redundancy [1+1]) with the following

choices:

• 1100-W AC power supply with port-side exhaust airflow (blue coloring) (NXA-PAC-1100W-PE2)

•1100-W AC power supply with port-side intake airflow (burgundy coloring) (NXA-PAC-1100W-PI2)

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

• 1100-W HVAC/HVDC power supply with port-side exhaust airflow (blue coloring)

(NXA-PHV-1100W-PE)

• 1100-W HVAC/HVDC power supply with port-side intake airflow (burgundy coloring)

(NXA-PHV-1100W-PI)

• 1100-W DC power supply with port-side exhaust airflow (blue coloring) (NXA-PDC-1100W-PE)

•1100-W DC power supply with port-side intake airflow (burgundy coloring) (NXA-PDC-1100W-PI)

Both power supplies use the same type of power source. Do not mix AC and DC

power sources.

Note

All fan modules and power supplies must use the same airflow direction during

operations.

Note

In the event that only one power supply is operating in an active system and a

second power supply is inserted, the system fan will slow down to 50% of Max

speed for 12 seconds. It can take up to 10 seconds for the second power supply

to become active. Please do not remove the first power supply during this

time-frame, in order to avoid system shutdown.

Note

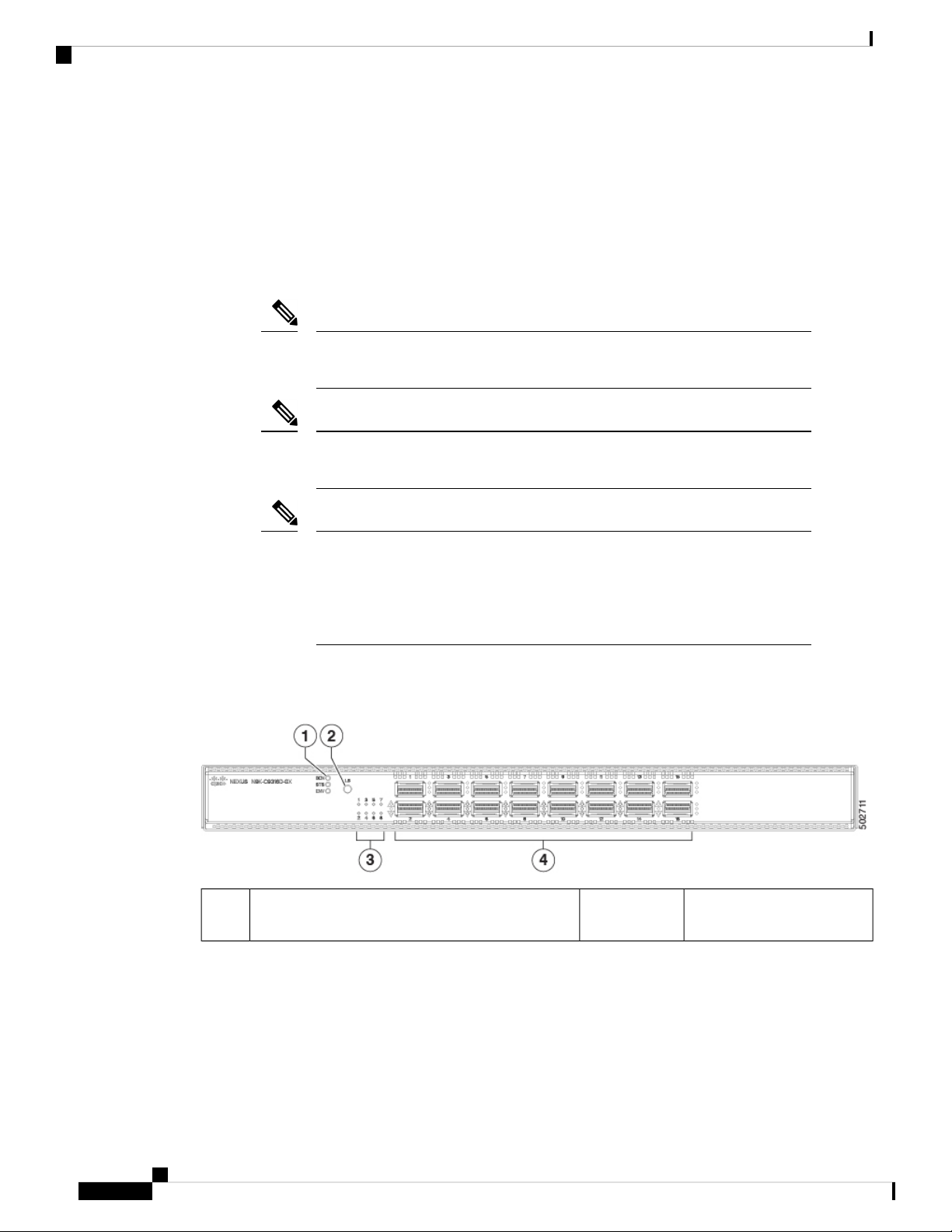

The following figure shows the hardware features seen from the port side of the chassis.

Figure 1: Port Side View of the Cisco Nexus 9316D-GX Switch

Lane selector LEDs3Chassis LEDs (Beacon [BCN], Status [STS], and

Environment [ENV])

Cisco Nexus C9316D-GX NX-OS Mode Switch Hardware Installation Guide

Overview
