Cisco Small Business

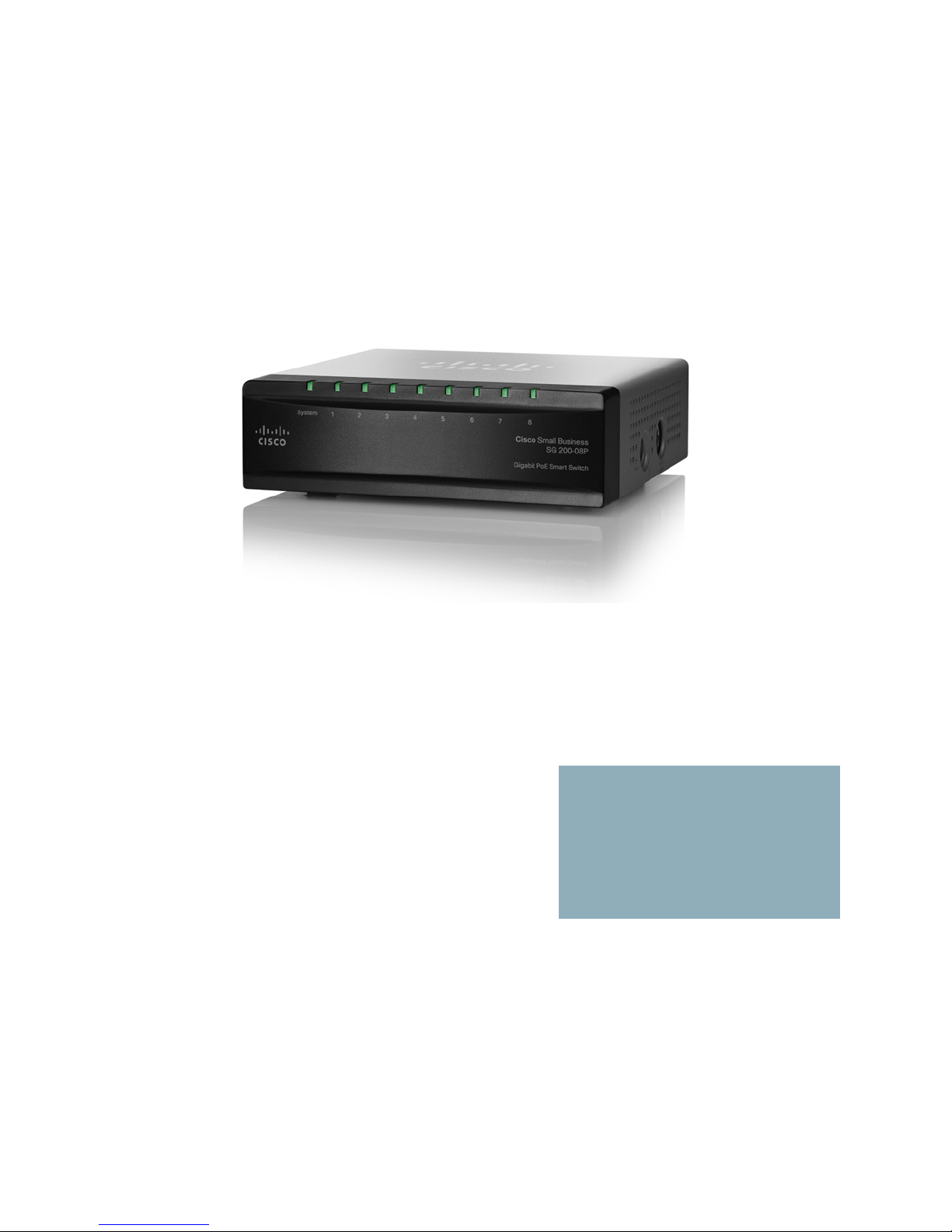

SG200 Series 8-port Smart Switch

ADMINISTRATION

GUIDE

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 2

Contents

Chapter 1: Getting Started 8

Starting the Web-Based Switch Configuration Utility 8

Launching the Utility 9

Logging In 9

Logging Out 10

Quick Start Device Configuration 10

Window Navigation 11

Application Header 11

Other Resources 12

Navigation Window 13

Management Buttons 13

Chapter 2: Viewing Statistics 16

System Summary 16

Displaying the System Summary 16

Configuring System Settings 19

Interface Statistics 20

Etherlike Statistics 21

802.1X EAP Statistics 22

IPv6 DHCP Statistics 23

RADIUS Statistics 24

Statistics 25

Logs 26

RAM Memory Log 27

Flash Memory Log 28

Chapter 3: Administration 30

Configuring System Settings 31

Management Interface 32

Configuring an IPv4 Management Interface 32

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 3

Contents

Configuring an IPv6 Management Interface 34

Adding IPv6 Addresses 34

IPv6 Default Router Table 35

Viewing and Adding IPv6 Neighbors 35

Managing User Accounts 36

Adding a User 37

Changing a User Password 38

Deleting a User 38

Enabling Management Services 38

Configuring the Idle Session Timeout 39

Time Settings 40

Setting System Time 40

Configuring the SNTP Setting 42

Configuring SNTP Authentication 46

System Logs 47

Configuring Log Settings 47

Configuring Remote Log Servers 49

File Management 50

Upgrading and Backing Up Firmware and Language Files 51

Downloading and Backing Up the Configuration and Log Files 53

Downloading a Configuration File to Restore Settings 53

Backing Up the Configuration File and Logs 54

Delete Configuration 56

Copying and Saving Configuration Files 56

DHCP Auto Configuration 57

Overview 57

DHCP Server Message Details 58

Alternate TFTP Server and File Name 59

Configuration File Download Details 59

Setting DHCP Auto Configuration 61

Firmware Recovery Over HTTP 63

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 4

Contents

Rebooting the Switch 65

Pinging Hosts 65

Configuring Control Packet Forwarding 66

Diagnostics 67

Testing Copper Ports 67

Configuring Port Mirroring 68

CPU/Memory Utilization 70

Enabling Bonjour 71

LLDP-MED 72

Configuring Global LLDP-MED Properties 72

Configuring LLDP-MED on a Port 73

LLDP-MED Port Status Details 75

LLDP-MED Neighbor Information 77

Configuring DHCP Client Vendor Options 79

Chapter 4: Port Management 80

Configuring Port Settings 80

Link Aggregation 81

Configuring LAGs 82

Configuring LAG Settings 83

Configuring LACP Settings 84

Configuring PoE 85

Configuring PoE Properties 85

Configuring PoE Port Settings 86

Green Ethernet 89

Configuring Green Ethernet Properties 89

Configuring Green Ethernet Port Settings 90

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 5

Contents

Chapter 5: VLAN Management 93

Creating VLANs 94

Configuring VLAN Interface Settings 94

Changing the Interface VLAN Mode 97

Configuring VLAN Membership 98

Configuring Port to VLAN 99

Configuring Port VLAN Membership 100

Setting the Default VLAN 101

Voice and Media 102

Displaying and Adding Telephony OUI 103

Configuring OUI Based Voice and Media 103

Configuring SIP/H323 Based Voice and Media 104

Media VLAN 105

Auto VoIP Sessions 107

Chapter 6: Spanning Tree 108

Overview of Spanning Tree 108

Configuring STP Status & Global Settings 109

Configuring Global and Bridge Settings 109

Configuring STP Interface Settings 111

RSTP Interface Settings 113

Chapter 7: MAC Address Tables 115

Configuring Static MAC Addresses 115

Configuring the Aging Time for Dynamic Addresses 117

Dynamic MAC Addresses 117

Chapter 8: Multicast 119

Multicast Properties 120

Configuring a Multicast Forwarding Mode on all VLANs 120

Configuring Multicast Properties on an Individual VLAN 121

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 6

Contents

Configuring MAC Group Addresses 121

Viewing the MAC Group Address Table 122

Adding a Static MAC Group Address Table Entry 122

Configuring MAC Address Group Port Membership 123

Configuring IGMP Snooping 123

Configuring MLD Snooping 125

Configuring IGMP Multicast Router Interfaces 127

Configuring MLD Multicast Router Interfaces 128

Chapter 9: IP Configuration 129

ARP Table 129

Domain Name System 129

Configuring DNS Servers 130

Configuring Global DNS Settings 130

Adding DNS Servers 131

Hostname Mapping 131

Configuring Static DNS Mappings 131

Viewing and Deleting Dynamic DNS Entries 132

Chapter 10: Security 133

RADIUS 133

Configuring Global RADIUS Settings 134

Adding a RADIUS Server 134

Password Strength 136

Management Access Profile Rules 137

Configuring an Access Profile and Rules 137

Modifying and Deleting Access Profiles and Rules 139

Authentication Methods 140

Storm Control 141

Port Security 142

Enabling Port Security 142

Viewing and Configuring Secure MAC Addresses 144

Cisco Small Business SG200 Series 8-port Smart Switch Administration Guide 7

Contents

802.1X 144

Defining 802.1X Properties 145

Modifying Port PAE Capabilities 146

Configuring Port Authentication 147

Configuring Supplicant Port Authentication 149

Displaying Authenticated Hosts 150

Chapter 11: Quality of Service 151

QoS Properties 152

Defining Queues 153

Queue Configuration Recommendations 154

Configuring Queues 154

Mapping CoS/802.1p Priorities to Queues 155

Mapping IP Precedence to Queues 156

Mapping DSCP Values to Queues 157

Defining Rate Limit Profiles 158

Applying Rate Limit Profiles to Interfaces 159

Traffic Shaping 160

Cisco Small Business SG200 Series 8-port Smart Switches Administration Guide 8

Getting Started

This chapter provides an introduction to the web-based switch configuration

utility, and includes the following topics:

•Starting the Web-Based Switch Configuration Utility

•Quick Start Device Configuration

•Window Navigation

Starting the Web-Based Switch Configuration Utility

This section describes how to navigate the web-based switch configuration utility.

Browsers have the following restrictions:

•If you are using Internet Explorer 8, open a browser window and configure

the following settings:

Click To ols > Internet Options and then select the Security tab. Select

Local Intranet and click Sites. Click Advanced and then click Add. Add the

intranet address of the switch (http://<ip-address>) to the local intranet

zone. The IP address can also be specified as the subnet IP address, so that

all addresses in the subnet are added to the local intranet zone.

•If you are using Internet Explorer 6, you cannot directly use an IPv6 address

to access the switch. You can, however, use the Domain Name System

(DNS) server to create a domain name that contains the IPv6 address, and

then use that domain name in the address bar in place of the IPv6 address.

•If you have multiple IPv6 interfaces on your management station, use the

IPv6 global address instead of IPv6 link local address to access the switch

from your browser.

•Screen resolutions at 800x600 or lower in Internet Explorer browsers and

Firefox 3.6 are not supported by the web-based switch configuration utility.

Getting Started

Starting the Web-Based Switch Configuration Utility

Cisco Small Business SG200 Series 8-port Smart Switches Administration Guide 9

Launching the Utility

To open the web-based switch configuration utility:

STEP 1 Open a web browser.

STEP 2 Enter the IP address of the switch that you are configuring in the address bar on

the browser, and then press Enter. The Login page opens.

NOTE When logging in by using HTTP or HTML, if you are provided an option to choose

from more than one network port, select the lowest number port.

Logging In

To log in to the web-based switch configuration utility:

STEP 1 Enter the username and password. The factory default user name is cisco and the

default password is cisco.

Note: When the switch boots with the factory default configuration, the web-

based switch configuration utility appears in the default language. After you log in,

you can download additional languages by using the Upgrade/Backup Firmware/

Language page.

STEP 2 If this is the first time that you logged on with the default user name (cisco) and the

default password (cisco) or your password has expired, the Change Admin

Password page opens. Enter the new password, confirm it, click Apply, and then

click Close. The new password is saved. (The characters ', ", %, and ? are not

supported.)

STEP 3 Click Login.

When the login attempt is successful, the Getting Started page opens.

If you entered an incorrect user name or password, an error message is displayed

and the Login page remains displayed on the screen.

Select Don’t show this page on startup to prevent the Getting Started page from

being displayed each time that you logon to the system. If you select this option,

the System Summary page is opened instead of the Getting Started page.

Getting Started

Quick Start Device Configuration

Cisco Small Business SG200 Series 8-port Smart Switches Administration Guide 10

Logging Out

By default, the application automatically logs you out after 10 minutes of inactivity.

See Configuring the Idle Session Timeout for instructions on changing the

default timeout period.

To log out at any time, click Logout in the top right corner of any page.

CAUTION Unless the Running Configuration is copied to the Startup Configuration file type,

all changes made since the last time the file type was saved are lost if the switch is

rebooted. We recommend that you save the Running Configuration to the Startup

Configuration file type before logging off to preserve any changes you made

during this session.

A red Xicon displayed to the left of the Save button indicates that Running

Configuration changes have been made that have not yet been saved to the Startup

Configuration file type.

When you click Save, the page displays (see Downloading and Backing Up the

Configuration and Log Files). Save the Running Configuration by copying it to the

Startup Configuration file type. After this save, the red Xicon and the Save button

no longer display.

Quick Start Device Configuration

To simplify device configuration through quick navigation, the Getting Started

page provides links to the most commonly-used pages.

Links on the Getting Started Page

Category Link Name (on the Page) Linked Page

Initial Setup Change Device IP Address IPv4 Interface

Create VLAN Create VLAN

Configure Port Settings Port Settings

Altri manuali per SG200 Series

Indice

Altri manuali Cisco Interruttore

Cisco

Cisco CSS 11501 - Content Services Switch Manuale utente

Cisco

Cisco MDS 9222i - Multiservice Modular Fabric... Come usare

Cisco

Cisco ME 3400G-2CS - Ethernet Access Switch Manuale utente

Cisco

Cisco Nexus 7000 Series Manuale di istruzioni

Cisco

Cisco ME 3400 Series Manuale di installazione

Cisco

Cisco MDS 9132T Manuale utente

Cisco

Cisco 2950SX 48 SI - Catalyst Switch Manuale utente

Cisco

Cisco 4948 Series Manuale utente

Cisco

Cisco Nexus 9408 Manuale

Cisco

Cisco MDS 9120 - Fabric Switch Manuale operativo e di manutenzione

Cisco

Cisco 400 Series Manuale utente

Cisco

Cisco WS-C2950-12 Manuale utente

Cisco

Cisco Nexus 3000 series Manuale utente

Cisco

Cisco Nexus 9372TX Manuale

Cisco

Cisco 500 Series Manuale di istruzioni

Cisco

Cisco Nexus 7000 Series Manuale di installazione

Cisco

Cisco WS-C2950T-48-SI Manuale

Cisco

Cisco 3750-24PS - Catalyst Switch - Stackable Manuale utente

Cisco

Cisco MDS 9124V-K9 Manuale

Cisco

Cisco Catalyst 2960 Series Manuale operativo

Cisco

Cisco 3524-PWR - Catalyst XL Enterprise Edition... Manuale

Cisco

Cisco BPX-BXM-T3-12 Manuale utente

Cisco

Cisco IAD2424-8FXS - IAD 2424 Router Guida utente

Cisco

Cisco Linksys SGE2000P Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
