Cisco 1130AG - Aironet - Wireless Access Point Manuale utente

Quick Start Guide Cisco Aironet 1130AG Access Point

Read This First

You should review this table and the instructions for opening the top cover.

The table contains important information you need to know so you can

successfully configure your access point.

Setting Default

Password Cisco (case sensitive)

IP address Determined by DHCP server. See

the “Obtaining an IP Address” on

page 16 for additional information.

Service Set Identifier (SSID) None assigned

Status LED Status Description

Blue Normal operating condition, and at

least one client device is associated

with the access point.

Light green Normal operating condition, no

client devices are associated.

Amber or red Error condition. See the “Checking

the Access Point LEDs” section on

page 38.

278-15955-02

Radio and IP Address Configuration

The access point ships with its radio disabled.You must enable them when

you configure the access point for the first time. Also, the access point no

longer is assigned an IP address. It is configured to obtain an IP address using

a DHCP server. If your network does not use a DHCP server, you must

connect to the access point’s console port and assign a static IP address (See

the “Assigning an IP Address Using the CLI” section on page 17.

How to Open the Top Cover

The top cover provides access to the cable and power connections.

Caution Do not open the access point top cover as you would a hatch or

door. You could damage the cover by doing so. An instruction

label is attached to the access point. Take time to read the label

before you open the access point cover.

When you have familiarized yourself with the opening procedure, we

recommend that you remove the label, putting it in a safe place, such as inside

the cover of this guide.

Quick Start Guide Cisco Aironet 1130AG Access Point

Note Status LED indications are not visible when the top cover is open.

Follow these steps to open the top cover:

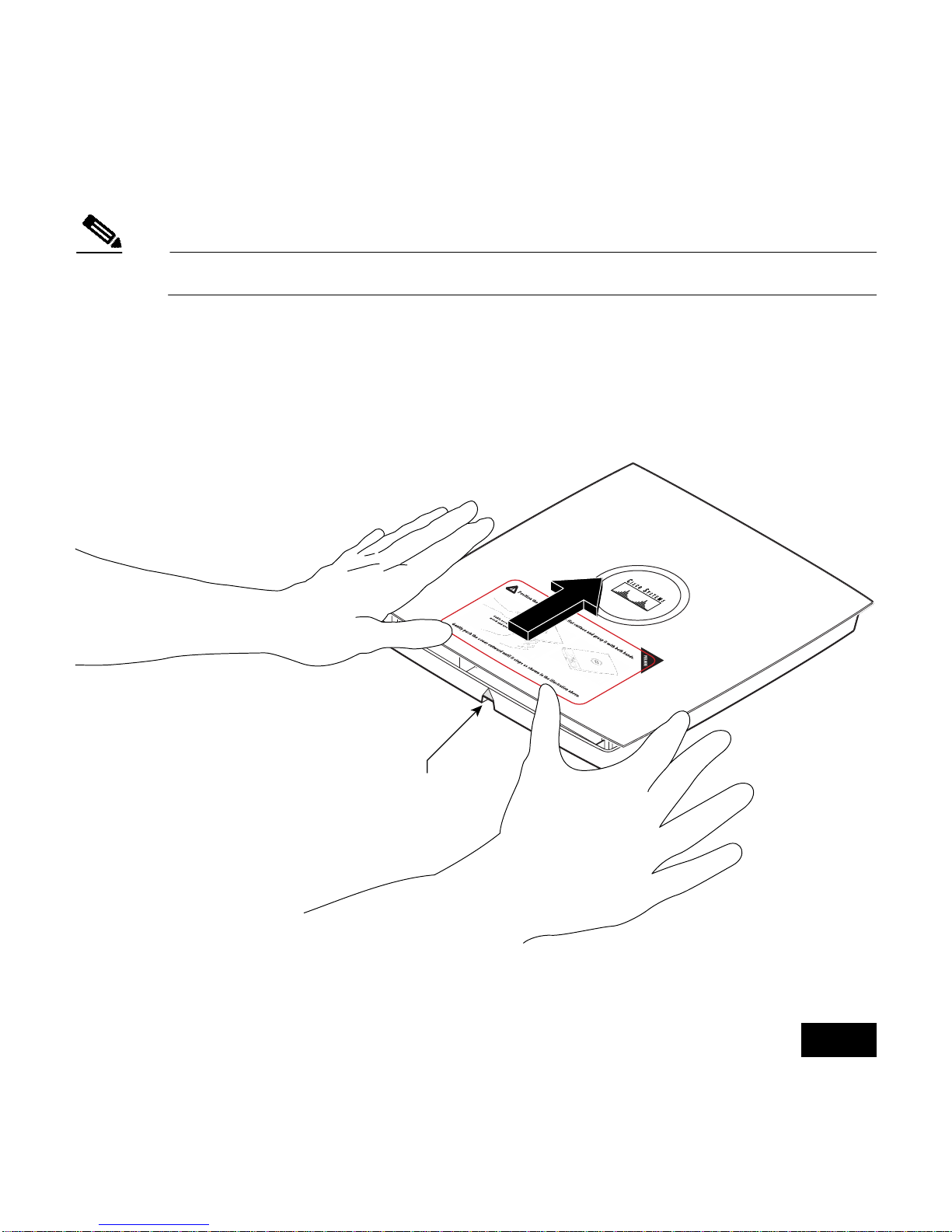

1. Put the access point on a flat surface, and grasp it with both hands, as

shown in this illustration.

121061

Cable access notch

and arrow

478-15955-02

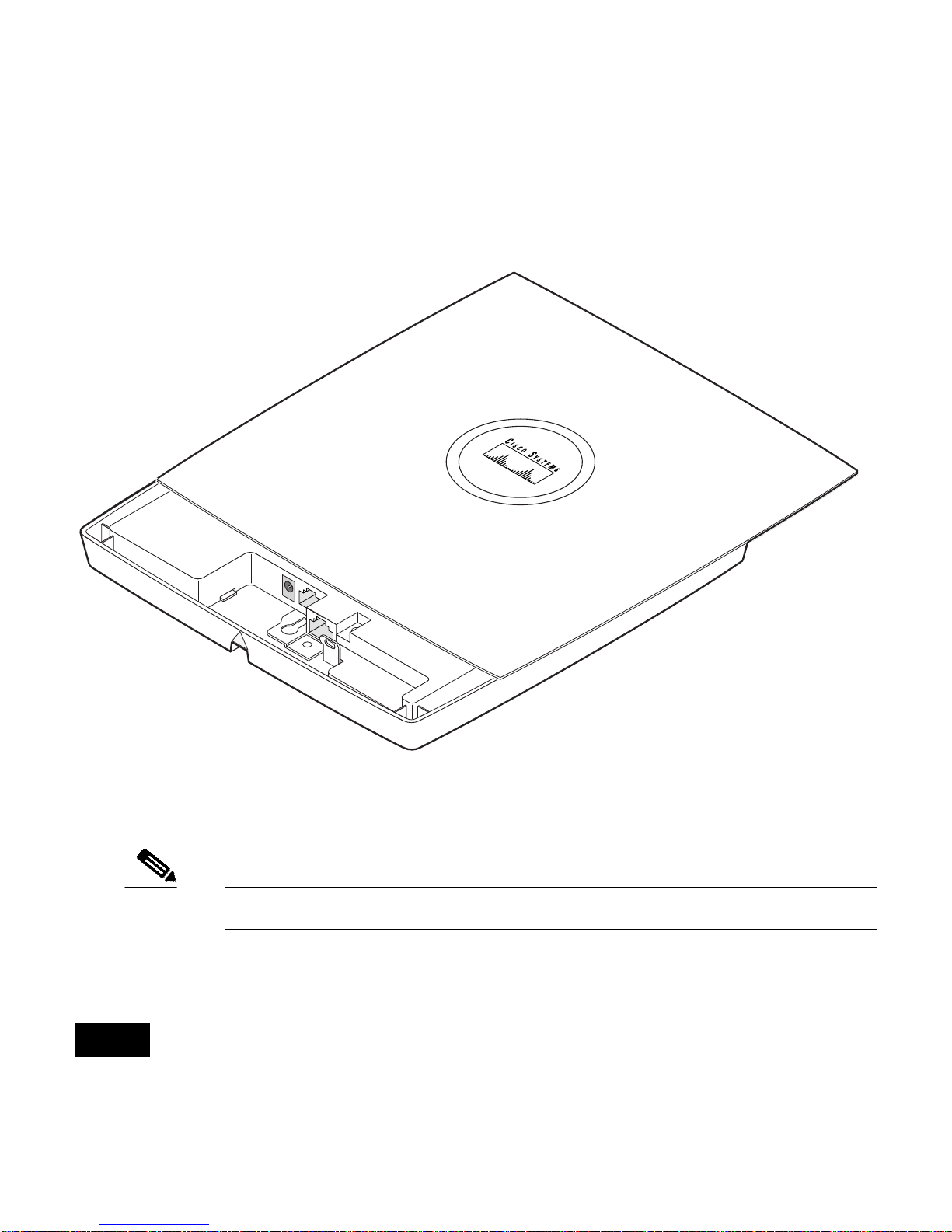

2. Gently push the cover away from you until it stops, as shown in this

illustration.

3. Remove the opening instruction label from the top cover.

Note We recommend that you save the label for reference.

121423

Quick Start Guide Cisco Aironet 1130AG Access Point

Safety Information

The FCC, with its action in ET Docket 96-8, has adopted a safety standard for

human exposure to RF electromagnetic energy emitted by FCC-certified

equipment. When used with approved Cisco Aironet antennas, Cisco Aironet

products meet the uncontrolled environmental limits found in OET-65 and

ANSI C95.1, 1991. Proper operation of this radio device according to the

instructions in this document and the installation and configuration guide will

result in user exposure substantially below the FCC recommended limits.

•Do not hold any component containing a radio such that the antenna is

very close to or touching any exposed parts of the body, especially the

face or eyes, while transmitting.

•The use of wireless devices in hazardous locations is limited to the

constraints posed by the safety directors of such environments.

Warnings

Translated versions of these safety warnings are provided in the Cisco Aironet

1130AG Series Access Point Hardware Installation Guide.

678-15955-02

Warning

This product must be connected to a Power-over-Ethernet

(PoE) IEEE 802.3af compliant power source or an IEC60950

compliant limited power source.

Warning

In order to comply with FCC radio frequency (RF) exposure

limits, antennas should be located a minimum of 7.9 in. (20cm)

or more from the body of all persons.

Warning

Do not operate your wireless network device near unshielded

blasting caps or in an explosive environment unless the

device has been modified to be especially qualified for such

use.

Warning

Do not work on the system or connect or disconnect cables

during periods of lightning activity.

Quick Start Guide Cisco Aironet 1130AG Access Point

Warning

Read the installation instructions before you connect the

system to its power source.

Warning

This product relies on the building’s installation for

short-circuit (overcurrent) protection. Ensure that the

protective device is rated not greater than: 20A.

Overview

This guide is designed to help you minimally configure a Cisco Aironet

1130AG Series Access Point using the access point graphical user interface

(GUI) through your web browser. The GUI is the primary-configuration tool.

Configuration can also be performed using the command line interface (CLI).

For instructions on using the CLI, see the Cisco IOS Software Configuration

Guide for Cisco Aironet Access Points.

878-15955-02

Note Configuring your access point using Cisco’s Structured

Wireless-Aware Network (SWAN) or Cisco’s Wireless LAN

Solution Engine (WLSE) is not covered in this guide. Refer to the

appropriate SWAN or WLSE documentation for configuration

information. These documents are also available on Cisco.com.

This guide provides an overview of the access point, but does not discuss

mounting it. Those instructions are in the Cisco Aironet 1130AG Series

Access Point Hardware Installation Guide, which is available on Cisco.com.

Note Do not attempt to connect a cable with a protective boot to the access

point Ethernet or console port. Because of limited space in the

connection area, booted connectors will not fit.

Quick Start Guide Cisco Aironet 1130AG Access Point

This table lists documents related to the 1130AG series access point.

These documents are on Cisco.com. Follow these steps to access them:

1. Browse to http://www.cisco.com.

2. In the Quick Links section, click Products & Solutions. The Cisco

Products page appears.

3. Click Wireless. A small window appears containing a partial listing of

wireless products.

4. Click All Wireless Products. The Wireless Products page appears.

Topic Document

Performing an advanced

configuration Cisco IOS Software Configuration Guide for

Cisco Aironet Access Points

Cisco Aironet Command Reference for Cisco

Aironet Access Points and Bridges

Mounting the access point Cisco Aironet 1130AG Series Access Point

Hardware Installation Guide

System requirements,

important notes,

limitations, and

last-minute updates

Release Notes for Cisco Aironet 1130AG

Series Access Points for Cisco IOS Release

12.3(2)JA (or later)

10 78-15955-02

5. Scroll down to the Product Portfolio section of the page and find the

Wireless LAN subsection.

6. Click Cisco Aironet 1130AG Series. A list of Cisco Aironet 1130AG

Series Access Points documents appears.

7. Click the appropriate document.

Unpacking the Access Point

Each access point package contains the following items:

•Cisco Aironet 1130AG Series Access Point

•Optional—Cisco Aironet 1130AG Series Power Module (universal

power supply)

•Mounting hardware kit

–

One mounting plate

–

Two suspended ceiling adjustable T-rail clips

–

One security hasp adapter

–

Four 6 x 32 x -inchflat head Phillips head machine screws

–

One 8 x 32 x3 /16-inch pan head Phillips head machine screws

–

2 #8 plastic wall anchors

–

2 #8 x 32 x 1-inch pan head screws
