CHAPTER
1-1
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
1
Cisco 850 Series and Cisco 870 Series
Access Routers Cabling and Setup
Quick Start Guide
Contents
•Cisco One-Year Limited Hardware Warranty Terms, page 1-2
•Locate the Product Serial Number, page 1-3
•Before Installation, page 1-3
•Connect the Antenna to the Wireless Router (Optional), page 1-7
•Connect the Power-over-Ethernet Module to the Cisco 870 Series Router
(Optional), page 1-9
•Typical Installations of the Cisco 850 Series and Cisco 870 Series Routers,
page 1-11
•Connect the Router, page 1-16
•Install SDM and Configure the Router, page 1-18
•Related Documentation, page 1-19
•Obtaining Documentation and Submitting a Service Request, page 1-20
English
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Cisco One-Year Limited Hardware Warranty Terms
1-2
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Cisco One-Year Limited Hardware Warranty Terms
The following are special terms applicable to your hardware warranty. Your
formal Warranty Statement, including the warranty applicable to Cisco software,
appears in the Cisco Information Packet that accompanies your Cisco product.
Duration of Hardware Warranty: One (1) Year
Replacement, Repair or Refund Procedure for Hardware: Cisco or its service
center will use commercially reasonable efforts to ship a replacement part within
ten (10) working days after receipt of the RMA request. Actual delivery times may
vary depending on Customer location.
Cisco reserves the right to refund the purchase price as its exclusive warranty
remedy.
To Receive a Return Materials Authorization (RMA) Number: Please contact
the party from whom you purchased the product. If you purchased the product
directly from Cisco, contact your Cisco Sales and Service Representative.
Complete the form below and keep for ready reference.
Product warranty terms and other information applicable to Cisco products are
available at the following URL:
http://www.cisco.com/go/warranty
Product purchased from:
Their telephone number:
Product Model and Serial number:
Maintenance Contract number:
1-3
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Locate the Product Serial Number
Locate the Product Serial Number
The serial number label for the router is located on the rear of the chassis, above
the Ethernet LAN ports. (See Figure 1-1.)

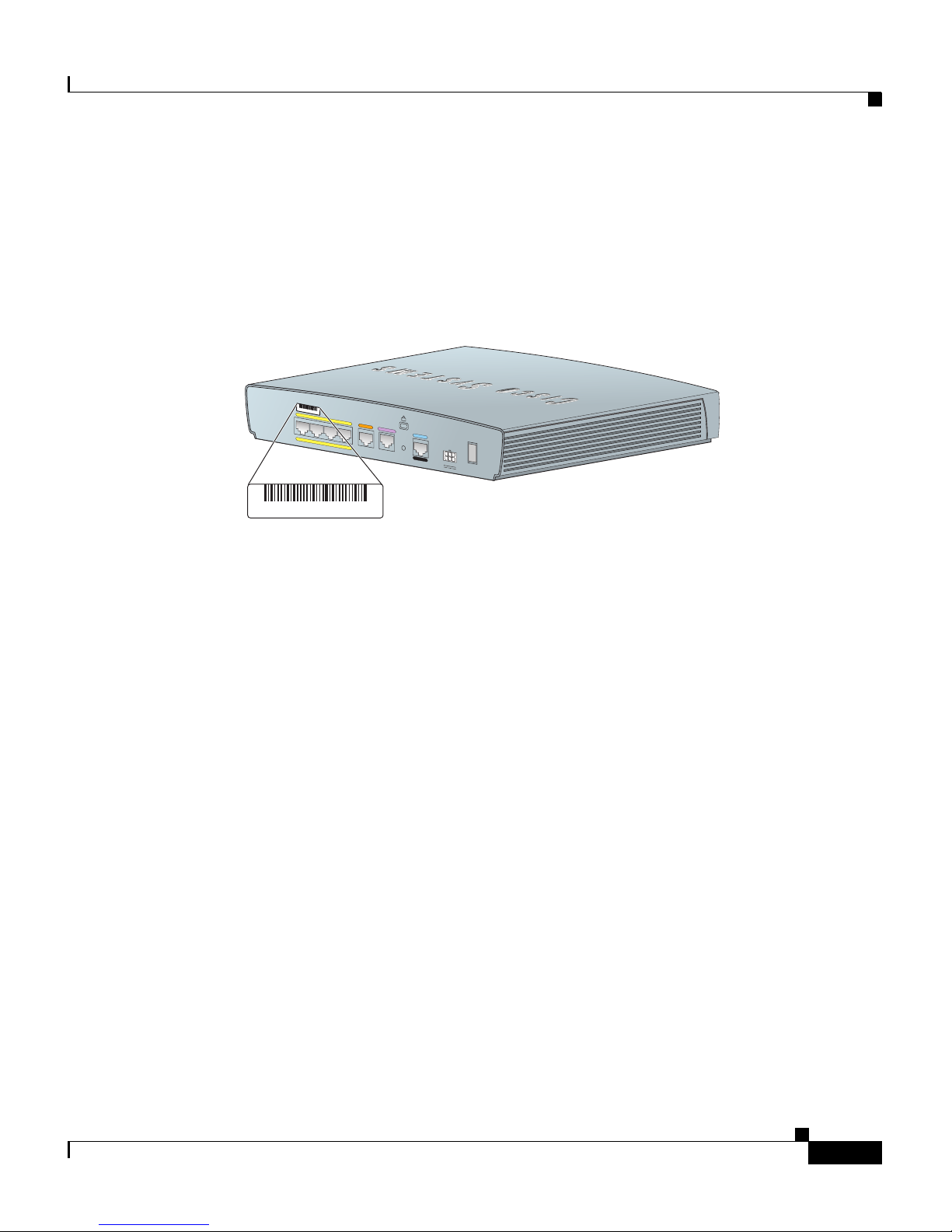

Figure 1-1 Product Serial Number Location
Before Installation
•Check Items Shipped with the Router
•Nonwireless Routers
•Read the Safety Warnings and Guidelines
•Remove the Caution Sticker
Check Items Shipped with the Router
Table 1-1 lists the quantity of the items that are shipped with each router model in
the Cisco 850 series and the Cisco 870 series routers. Figure 1-2 depicts the
items.
Verify that the items listed in Table 1-1 were shipped with the router. If any of the
items is missing or damaged, contact your customer service representative.
120729, 78-16262-01 Rev A0
G.SHDSL
ISDN S/T
LAN
FE0 FE1 FE2 FE3
Cisco 878
CONSOLE
AUX
RESET
+5,+9 VDC
SN: AAANNNNXXXX
SN: AAANNNNXXXX
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Before Installation
1-4
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Table 1-1 Items Shipped with Cisco 850 Series and Cisco 870 Series Routers
Item
Cisco 851 and
Cisco 871
Cisco 857 and
Cisco 877 Cisco 876 Cisco 878
Ethernetcable(straight-through)1111
DSL1cable
1. DSL = digital subscriber line. Used for an asynchronous digital subscriber line (ADSL) or multirate symmetrical
high-data-rate digital subscriber line (G.SHDSL).
Not applicable 12
2. An RJ-11-to-RJ-11 straight-through cable is shipped, unless an RJ-11-to-RJ-11 crossover cable is specified.
13
3. An RJ-11-to-RJ-11 straight-through cable is shipped, unless an RJ-11-to-RJ-11 crossover cable or an RJ-11-to-RJ-45 cable
is specified.
13
ISDN4S/T cable
4. ISDN = Integrated Services Digital Network.
Not applicable Not applicable Optional Optional
Consolecable 1111
Console-auxiliary5cable
5. Console-auxiliary cable is used to connect the router console port to an asynchronous modem for dial backup or remote
management.
Optional Optional Optional Optional
Poweradapter 1111
Power cord6
6. Power cords are ordered as applicable to country or geographic region.
1111
Cisco documentation7
7. Includes the Regulatory Compliance and Safety Information for Cisco 800 Series Routers document and the Cisco 850 Series
and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide (this document). Also includes the Declarations
of Conformity and Regulatory Information for Cisco Access Products with 802.11a/b/g and 802.11b/g Radios document for
wireless models.
1 1 1 1
Cisco Router and Security
Device Manager (SDM)
software CD
1111
Swivel-mount dipole antenna
(wireless router models only)
Cisco 851:
1 antenna
Cisco 871:
2 antennas
Cisco 857:
1antenna
Cisco 877:
2 antennas
22
1-5
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Before Installation

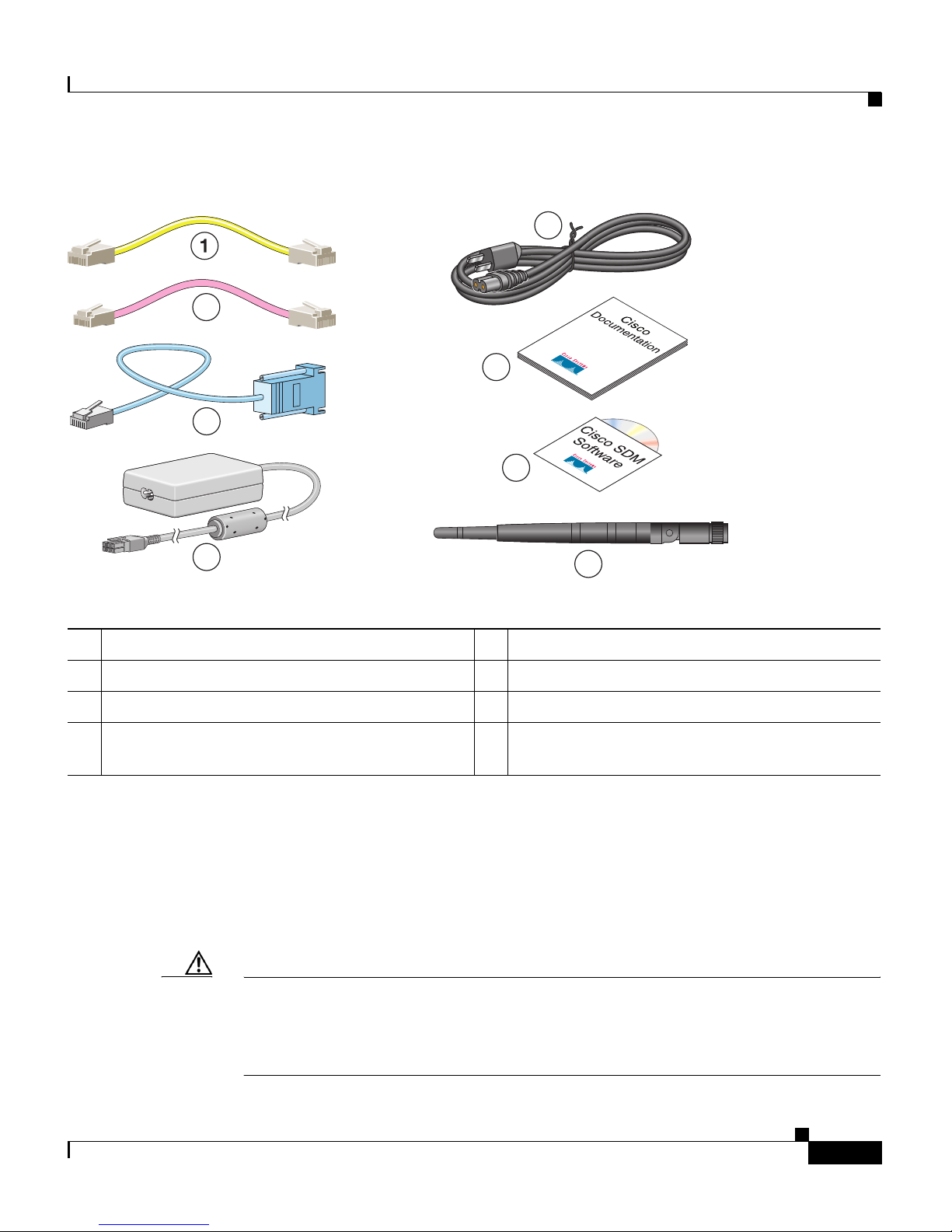

Figure 1-2 Items Included with the Cisco 850 Series and Cisco 870 Series Routers
The following cables are not included with the router. You need to order them
separately.
•Modem cable—For connecting the router console port to an asynchronous
modem for dial backup and remote management.
•Orange ISDN S/T cable—For connecting devices to the ISDN S/T port.
Caution Both LAN and WAN ports can use RJ-45 connectors. Use caution when
connecting cables to these connectors. To avoid damage to the router, do not
connect telephone-network voltage (TNV) circuits (such as ISDN or DSL
circuits) to safety extra-low voltage (SELV) circuits (such as LAN circuits).
1Yellow Ethernet cable 5Black power cord for adapter
2Lavender DSL cable (optional) 6Product documentation
3Light blue console cable 7Cisco SDM software CD
4Router power adapter 8Swivel-mount dipole antenna (wireless router
models only)
6
7
120730
5
2
3
48
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Before Installation
1-6
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Nonwireless Routers
Portions of this guide do not apply to nonwireless models of the Cisco 850 series
and Cisco 870 series routers. Some illustrations show the router with antennas
attached, whereas the nonwireless routers do not have antennas or antenna
connectors on the back panel. However, except for the “Connect the Antenna to
the Wireless Router (Optional)” section, the connection procedures are the same
for wireless and nonwireless router models.
Read the Safety Warnings and Guidelines
Before you begin to connect your router, read the Regulatory Compliance and
Safety Information for Cisco 800 Series Routers document that is shipped with the
router. This document provides important safety warnings and guidelines.
Remove the Caution Sticker
Locate the yellow caution label that covers the LAN ports. Simply peel off the
label and the LAN ports are ready for use. Be sure that you do not connect ISDN
telephone lines to these LAN ports.
1-7
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Connect the Antenna to the Wireless Router (Optional)
Connect the Antenna to the Wireless Router
(Optional)
The Cisco 850 series wireless routers support the use of a single 2.4-GHz antenna.
(See Figure 1-3.) The Cisco 870 series wireless routers support the use of two
2.4-GHz antennas. (See Figure 1-4.)

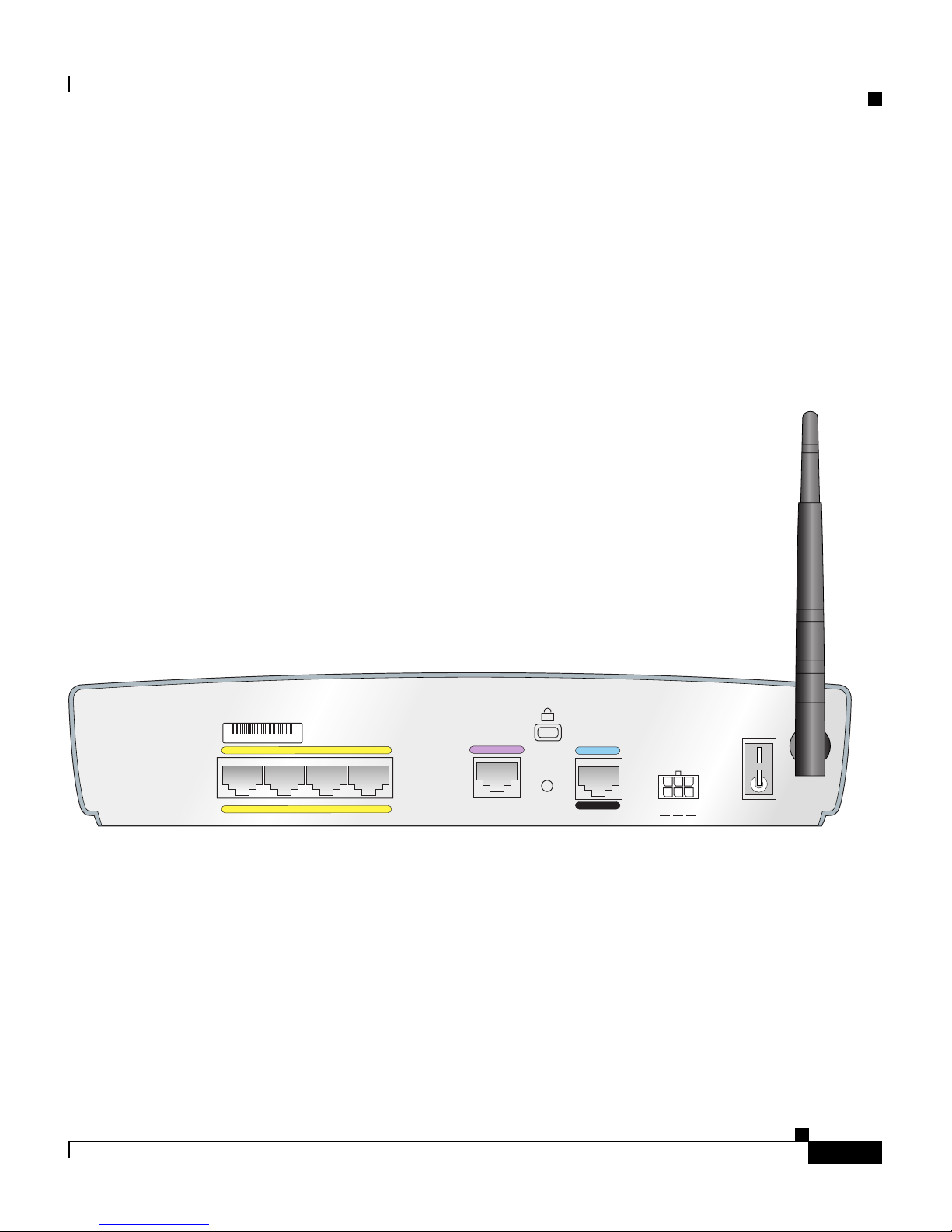

Figure 1-3 Cisco 857 Wireless Router with Single Antenna
ADSLoPOTS
LAN
FE0 FE1 FE2 FE3
Cisco 857W
CONSOLE
AUX
RESET
+5,+12 VDC
122242
SN: XXXNNNNXXXX
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Connect the Antenna to the Wireless Router (Optional)
1-8
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Figure 1-4 Cisco 871 Wireless Router with Two Antennas
To connect the antenna or antennas to a wireless router, follow these steps:
Step 1 Attach each antenna to a reverse-polarity threaded Neill-Concelman (RP-TNC)
connector on the back of the router and tighten the connector hand-tight.
Step 2 After you connect the antenna to the back of the router, orient the antenna so that
it is straight up.
LAN
FE0 FE1 FE2 FE3
Cisco 871W
CONSOLE
AUX
RESET
+5,+12 VDC
LEFT
RIGHT / PRIMARY
1
0
WAN
FE4
122241
SN: XXXNNNNXXXX
1-9
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Connect the Power-over-Ethernet Module to the Cisco 870 Series Router (Optional)
Connect the Power-over-Ethernet Module to the
Cisco 870 Series Router (Optional)
Power-over-Ethernet (PoE) is supported on the Cisco 870 Series routers only. If
you purchased a PoE module, connect all four Ethernet cables on the PoE module
to the four LAN Ethernet ports on the Cisco 870 Series router. (See Figure 1-5.)
Make sure that you connect all four Ethernet cables.
If the cables are too close together for easy insertion, move the plastic cable guard
away from the connector end of the cables.
Caution To ensure proper PoE module operation, do not connect the PoE module power
supply to the PoE module before you connect the PoE module to the router.
Although Figure 1-5 shows the Cisco 871 router connected to a PoE module, this
connection works for all router models in the Cisco 870 series.
Note When you connect a device (such as a PC or IP phone) to the PoE module, you
may notice a 1- to 2-second delay before the LED indicator for the port comes on.
Chapter 1 Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
Connect the Power-over-Ethernet Module to the Cisco 870 Series Router (Optional)
1-10
Cisco 850 Series and Cisco 870 Series Access Routers Cabling and Setup Quick Start Guide
78-16262-04

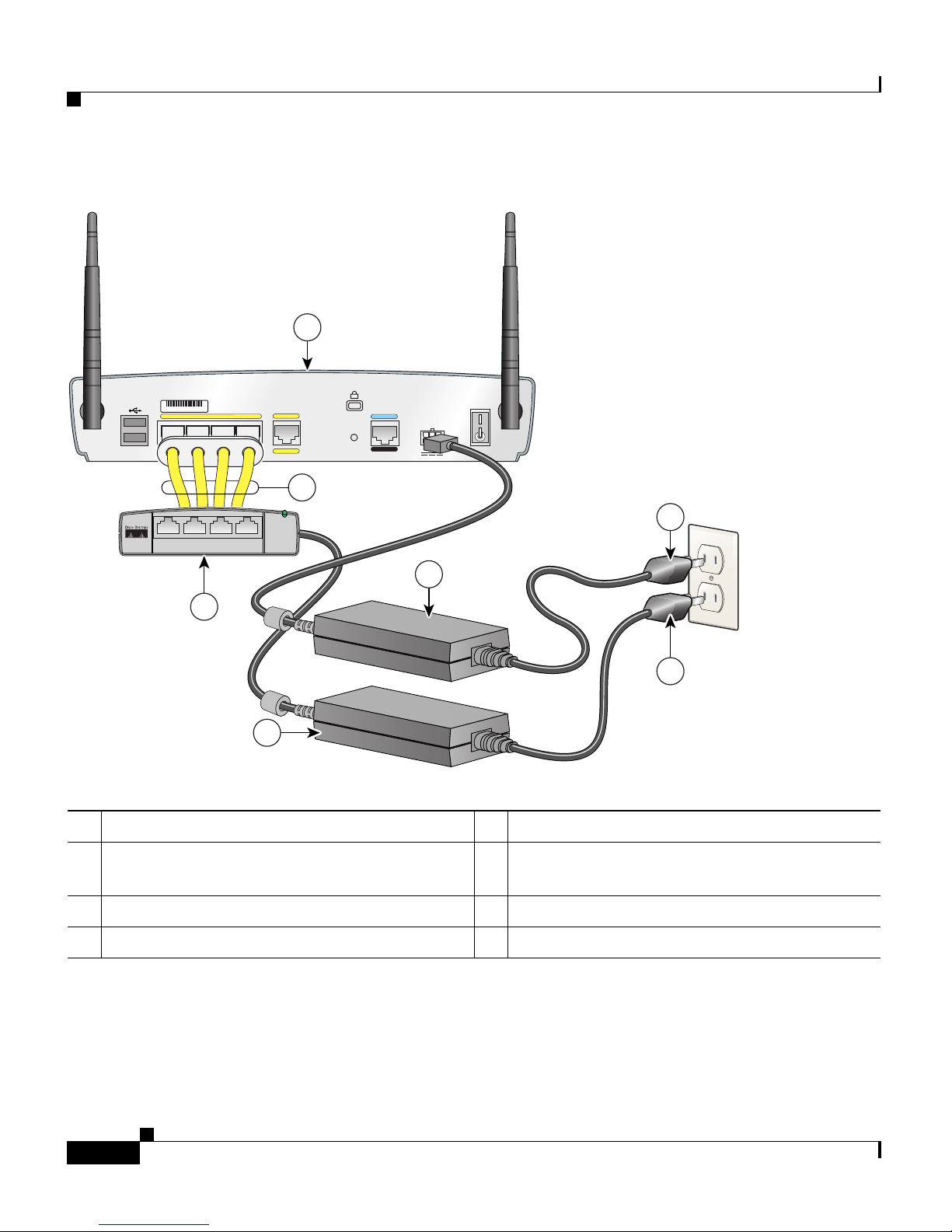

Figure 1-5 Connecting the PoE Module to the Router
1Cisco 870 series router 5Router power adapter
2Ethernet cables on the PoE module (four
RJ-45 connectors in series)
6PoE power plug
3PoE module 7Router power plug
4PoE power adapter
122351
+5,+12 VDC
LEFT
RIGHT/ PRIMARY
LAN
FE0F
E1F
E2FE3
Cisco 871W
CONSOLE
AUX
RESET
1
0
WAN
FE4
1
2
4
6
To LAN
3210
PWR
3
5
7
SN: XXXNNNNXXXX
Questo manuale è adatto per i seguenti modelli
6
Indice
Altri manuali Cisco Router wireless
Cisco
Cisco RV340W Manuale utente
Cisco
Cisco Linksys WAG54G2 Manuale utente
Cisco
Cisco Linksys SE1500 Manuale utente
Cisco
Cisco Linksys E4200 Manuale utente
Cisco
Cisco Linksys E3200 Manuale utente
Cisco
Cisco Linksys X-Series Manuale utente
Cisco
Cisco IR8140H Guida
Cisco
Cisco Linksys E2100 Manuale utente
Cisco
Cisco RB-WRT54GS2 - Wireless-G Broadband Router Manuale utente
Cisco
Cisco Small Business WRP400 Manuale utente
Cisco
Cisco Linksys WRT54G3G Manuale utente
Cisco
Cisco Catalyst IR1800 Rugged Series Manuale utente
Cisco
Cisco Linksys E1000 Manuale utente
Cisco
Cisco Universal Broadband Router Cisco uBR10012 Manuale utente
Cisco
Cisco WRT320N - Wireless-N Gigabit Router Wireless Manuale utente
Cisco
Cisco Linksys X1000 Manuale utente
Cisco
Cisco WRT610N - Simultaneous Dual-N Band Wireless... Manuale utente
Cisco
Cisco Linksys WRT54GS Manuale utente
Cisco
Cisco Valet Plus Manuale utente
Cisco
Cisco WRT54G2 Linksys Manuale utente
