3. APPEARANCE AND CONNECTORS

3.1. Appearance

Winder

Operation panel

Printer mechanism

PNE sensor

cDC Jack: Plug the AC adapter or DC output plug of the power supply.

dPower switch: When this Power switch is turned ON, power is supplied to the board

and initializing operation starts.

eConnector for mechanism

connection (CN2): Connected to MD910 (24 digits) or MD911 (40 digits).

fConnector for operation

panel (CN4): Connected to the operation panel. For the functions, refer to the

following descriptions.

a) POWER lamp: Lights when the Power switch is set to ON and goes off when the

Power switch is set to OFF.

Blinks while memory switch is set or at the occurrence of memory

error.

b) SEL lamp: Lights when this board is in the Select (online) state and goes off when

it is in the Deselect (offline) state. Printing occurs only when this lamp

is ON.

1) Blinks at intervals of 0.5 s at the occurrence of Paper End.

Goes off when the SEL switch is pressed after paper is set.

2) Blinks at intervals of 1/4 s at the occurrence of Alarm state

(blinking state) due to the cause other than Paper End. This lamp

goes off when the SEL switch is pressed after removing the cause

of the alarm or when printer power is reset.

c) LF switch: Pressing this switch causes a paper feed (only in Deselect state).

This switch is used when loading a paper or when using a space.

d) SEL switch: When this switch is pressed, this board is set to the Select (online)

state. Pressing this switch again causes the board to be set to the

Deselect (offline) state. This switch is also used when removing the

alarm state. When the printer is set to the Deselect state, all data, if

present in the input buffer, is printed.

gConnector for Paper Near

End sensor (CN5): Connector for Paper End (paper detection)

hConnector for winder

(CN6): Connector for connecting Winder (for controlling the motor for auto

paper winding device) (Option)

iConnector for Interface

(CN3): Either parallel or serial connector is present depending on the board

type.

Connects to each host through a cable. Before connecting the

connector, make sure the host and board are powered off.

3.2. Connector for Power Supply

Connector used: CN1: MOJ-D14 (Iizuka Electric)

Electrical Specifications

Input voltage: 7 to 15 V DC

Current at non printing: 0.15 A average

Current at printing: 0.80 A average (approx. 7.5 A at peak)

The above value is at temperature of 25°C and normal humidity.

Average current is the value with print rate of 12.5%.

The values vary with the printing condition, environment of use, operating conditions, etc.

Precautions

1. Before connecting or disconnecting a connector, make sure the printer power is turned off.

2. Always use the power voltage within the specified range.

Caution

•When the power supply other than specified is used, bad effect may occur on printing operation, etc.

When the printer is operated continuously, electronic components in the board may generate heat. Use

the printer paying full attention to heat dissipation.

•When the power supply with insufficient peak current is used, degradation of print quality may occur

depending on the printing state.

•Be sure to prepare for easy turning off the power supply in case of power failure.

•Power supply with various kinds of protective circuits such as overvoltage protection and overcurrent

protection is recommended.

•If any abnormality such as abnormal odor is sensed during operation, turn the power supply off

quickly.

3.3. Connecting Mechanism

Connector used: CN2: 5267-17A (Molex)

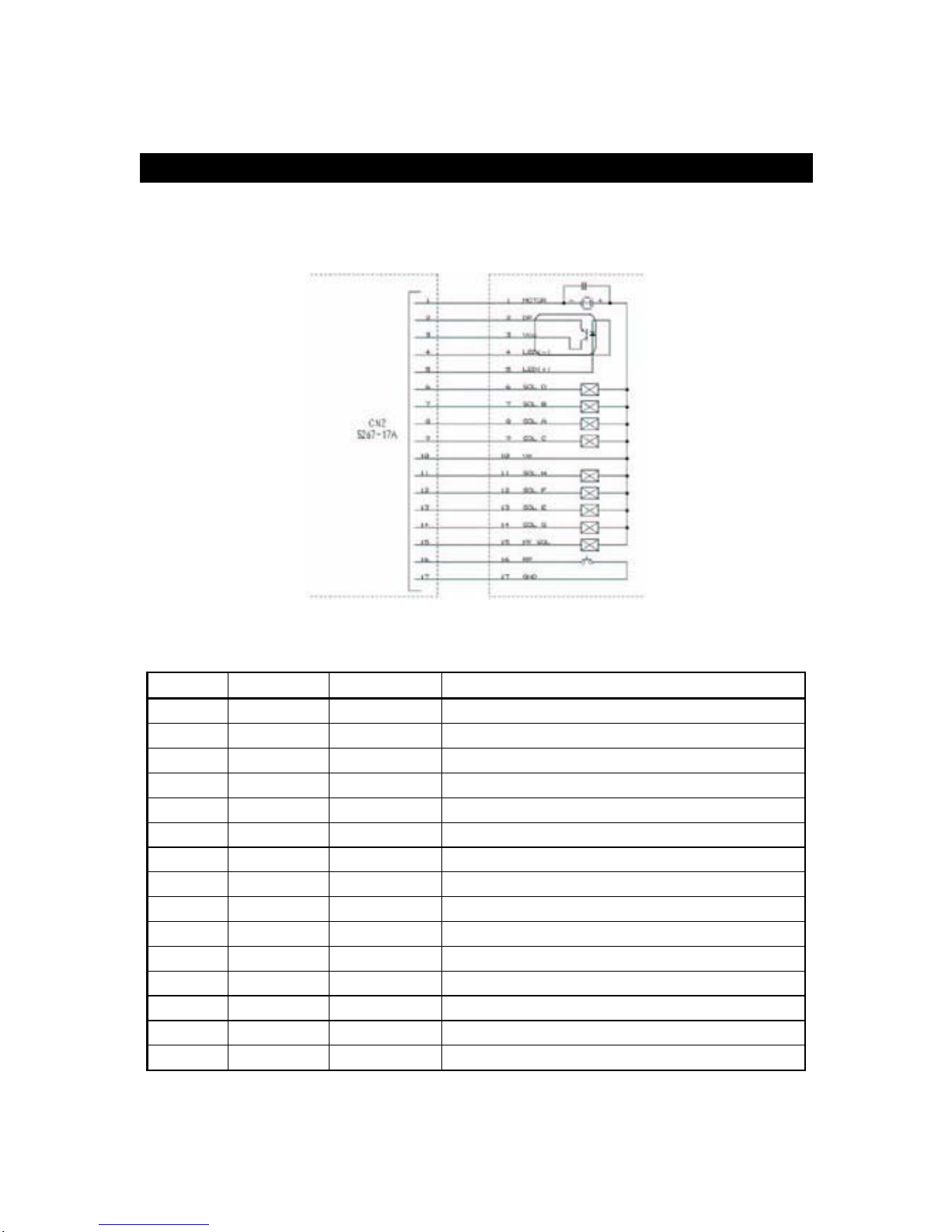

Cord Assy: Set up the connection shown in the following figure using CA2 (with connector 5264-17).

Control Board Printer Mechanism

DP detecto

Table: Head Driving Connector Pin Specifications

Pin No. Signal Name Input/Output Function

1 MOTOR Output Motor drive signal

2 DP Input Photo interrupter emitter (dot pulse detector)

3 Vccc — Photo interrupter connector (dot pulse detector)

4 LED (–) Output Photo interrupter LED control signal

5 LED (+) — Photo interrupter anode (dot pulse detector)

6 SOL D Output Printing solenoid D drive signal

7 SOL B Output Printing solenoid B drive signal

8 SOL A Output Printing solenoid A drive signal

9 SOL C Output Printing solenoid C drive signal

10 Vp — Power supply for driving

11 SOL H Output Printing solenoid H drive signal

12 SOL F Output Printing solenoid F drive signal

13 SOL E Output Printing solenoid E drive signal

14 SOL G Output Printing solenoid G drive signal

15 PF SOL Output PF solenoid drive signal

Pin No. Signal Name Input/Output Function

16 RP (HP) Input Reset pulse switch input signal

17 GND — GND

3.4. Connecting Operation Panel

Connector used: CN4: 5267-06A (Molex)

Cord Assy: Set up the connection shown in the following figure using CA4 (with connector 5264-06).

Operation PanelControl Board

Table: Operation Panel Pin Specifications

Pin No. Signal Name Input/Output Function

1 Vcc — Power supply for circuits

2 PWR/PE LED Output PWR/PE LED control signal

3 SEL LED Output SEL LED control signal

4 SEL SW Input SEL SW input signal

5 FEED SW Input FEED SW input signal

6 GND — GND

Caution

(1) For the POWER and SEL LEDs, a resistance of 330 Ωis provided at the circuit side to adjust the

current to 10 mA. Use the LED with forward voltage of about 2 V. Do not use LED exceeding 10

mA. Otherwise, the control may be damaged.

(2) The input terminals for LF-SW and SEL-SW have the above circuit. Though a ceramic capacitor is

inserted in the circuit for preventing chattering, large chattering may occur depending on the switch.

(3) Apply insulation processing to the terminal not in use to prevent the end of the cable from contacting

other terminal or parts.

3.5. Connecting Paper Near End Sensor

Connector used: CN5: 5267-03A (Molex)

Cord Assy: Set up the connection shown in the following figure using CA5 (with connector 5264-03).

SensorControl Board

Table: Paper Near End Pin Specifications

Pin No. Signal Name Input/Output Function

1 PNE PWR — Photo interrupter anode

2 PNE SIG Input Photo interrupter collector

6 GND — Photo interrupter cathode/emitter

Reference Circuit Diagram

When using photo interrupter

Control Board Photo Interrupter

GP2S24

When using switch Sensor Paper

* The above circuit is an example of reflection type photo interrupter.

When using the above sensor, allow a clearance of approx. 1 mm from paper.

As the sensor used is different in electrical characteristics, use the sensor after fully recognizing it.

* The voltage detection range of the board (between 2 and 3) is as follows:

0 to 0.4 V: With paper

1 V or more: Without paper

Detection status other than the above is out of warranty.

3.6. Connecting Winder

Connector used: CN6: B2B-XH-A (JST9

Set up the connection shown in the following figure.

Voltage for the winder motor is applied at the same timing as that for the motor for printer mechanism.

Printing deviation may be caused by the torque of winding.

Winder Connection

Example

Control Board WINDER (AW-5)
