Technical Manual

CLP-521

Thermal Label & Barcode Printer

JM74903-00

CLP-521 5-5

CLP-521

Drawing No. 1

Parts List & Location for General Assembly

Revision Up List

Sheet No.

Rev. No. Date

1/1 0 Dec. 12, 2003

CLP-521 5-6

DRAWING NO. 1 General Assembly (Rev. 0)

CLP-521 5-7

PARTS LIST for CLP-521 TITLE: General Assembly Sheet No. 1/1

DrawingNo.1 Rev.No.0

Location Part Name Part No. Q'ty/

Unit Remarks @

1-1 SA, Top Cover JM56703-0 1

-2 Screw, PH, M3.0x6 E00130-06 1

-3 Cover, Motor JM56210-0 1

-4 Screw, PHT (PT), M3.0x8 E11230-08 1

-5 Cover, Connector JM56205-0 1

-6 Cover, Front JM56206-0 1

-7 Screw, PHT (PT), M3.0x14 E11230-14 4

-8 Case U JM56202-0 1

-9 Label, FCC ICES JK99902-0 1 For CA

CLP-521 5-8

Revision Up List

Sheet No. Rev. No. Date

1/2 0 Dec. 12, 2003

2/2 0 Dec. 12, 2003

CLP-521

Drawing No. 2

Parts List & Location for Base Unit

CLP-521 5-9

18 5 (1/2)

821

DRAWING NO. 2 Base Unit (Rev. 0)

CLP-521 5-10

PARTS LIST for CLP-521 TITLE: Base Unit Sheet No. 1/2

DrawingNo.2 Rev.No.0

Location Part Name Part No. Q'ty/

Unit Remarks @

2-1 Screw, PHT (PT), M3.0x14 E11230-14 4

-2 Unit, Mechanism JM49801-0 1

-3 SA, Centro Cable JM67725-0 1

-4 Screw, PHT (ST), M3.0x5 E11130-05 7

-5 Unit, Main PCB (With ROM)-I JM66820-0 1 For CA

-5 Unit, Main PCB (With ROM)-M JM66800-0 1 For CSE

-6 Screw, PHT (PT), M3.0x8 E11230-08 7

-7 Plate, Main PCB JM44103-0 1

-8 Unit, Centro PCB JM66825-0 1

-9 Cable, Ope-Pane JM67900-0 1

-10 Unit, Control Panel JM56801-0 1

-11 Leg, Case L F JM59902-0 2

-12 Case L JM56201-0 1

-13 Leg, Case L R JM59901-0 2

-14 Unit, Power Supply (100V) JM66810-0 1 For CA

-14 Unit, Power Supply (200V) JM66815-0 1 For CSE

-15 Sheet, Earth L JM44115-0 1

-16 Sheet, Earth R JM44114-0 1

-17 Sheet, Main PCB JM44116-0 1

-18 Plate, Earth JM54101-0 1

CLP-521 5-11

PARTS LIST for CLP-521 TITLE: Base Unit Sheet No. 2/2

DrawingNo.2 Rev.No.0

Location Part Name Part No. Q'ty/

Unit Remarks @

2-19 SA, Core JM59701-0 1

-20 SA, Power Cable JM67745-0 1

-21 Screw, BHT (ST) (N), M3.0x5 E14330-05W 2

-22 Washer, EXT. T (N), 3 E51130-00 3

-23 Lock Screw (Inch) C6390-049 2 HFS-4S-B1W

-23 Lock Screw (M2.6) C6390-050 2 HFS-2.6S-B1W

-24 Nut, M4 E40140-00 2

-25 Wire, Tie C6701-202 1 8432 L=100

-26 Screw, BH (N), M4.0x4 E02040-04 2

-27 Washer, EXT. T (N), 4 E51140-00 2

-28 Screw, BH (N), M3.0x6 E02030-06 1

-29 Cushion, Ope-pane Cable JM59903-0 1

-30 Cushion, Ope-pane Cover JM59904-0 1

CLP-521 5-12

CLP-521

Drawing No. 3

Parts List & Location for Mechanism Unit

Revision Up List

Sheet No. Rev. No. Date

1/1 0 Dec. 12, 2003

CLP-521 5-13

16 14

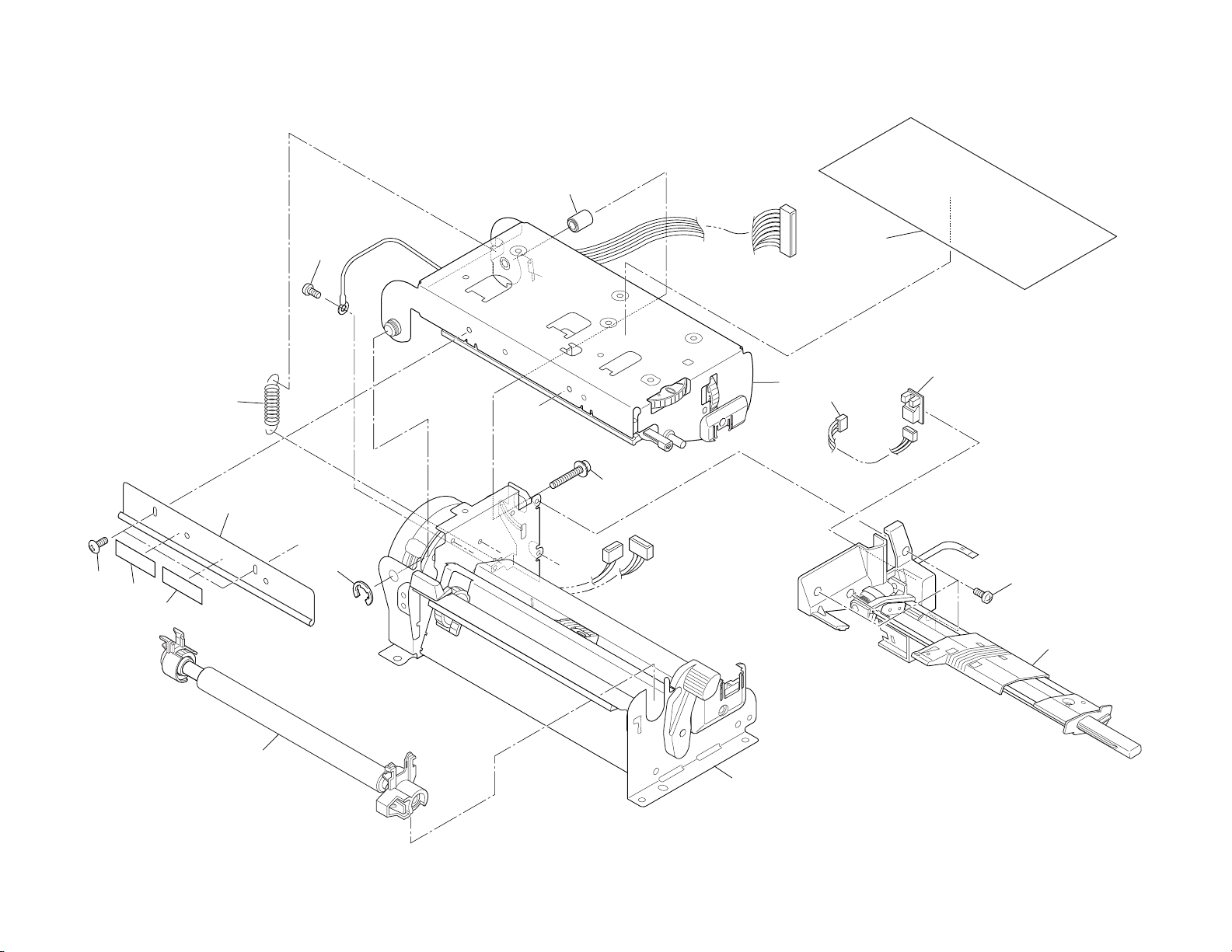

DRAWING NO. 3 Mechanism Unit (Rev. 0)
