FAMILIARISATION

EXTERIOR

Guide-me-home lighting

After the ignition has been switched off,

the headlamps remain on brieﬂ y to make

your exit from the vehicle easier when

the light is poor.

69, 70

ASR and ESP systems

These systems are linked to assure the

directional stability of the vehicle, within

the limits of the laws of physics.

96

Glass panoramic roof

This roof provides incomparable visibility

and light in the passenger compartment.

64

Rear parking sensors

This equipment warns you if an obstacle

is detected behind the vehicle when

reversing.

110

FAMILIARISATION

OPEN

Remote control key

A. Unfolding/Folding of the key.

Locking

(press; ﬁ xed lighting of the di-

rection indicators).

Panoramic glass roof

Lift the handle of the blind concerned

and release.

Each blind is ﬁ tted with a roller in which

it is stored when you release it.

Unlocking of the vehicle

(rapid ﬂ ashing of the direction

indicators).

55 64

Fuel tank

65

1. Opening of the fuel ﬁ ller ﬂ ap.

2. Opening and hooking of the fuel

tank cap.

Capacity of the tank: approximately

50 litres (petrol) or 48 litres (Diesel).

FAMILIARISATION

OPEN

Boot Movable boot ﬂ oor

This movable boot ﬂ oor with two posi-

tions allows you to:

- maximise the volume of the boot,

- partition the boot (storing of the rear

shelf...),

- obtain a ﬂ at ﬂ oor from the boot

opening to the front seats, when the

rear bench seat is in the retracted

position.

1. Unlocking of the vehicle.

2. Opening of the boot.

63 84

A. Interior release lever.

B. Exterior safety catch.

C. Bonnet stay.

113

Bonnet

FAMILIARISATION

INTERIOR

Dual-zone digital air conditioning

This system allows you to set a different

level of comfort for the driver and front

passenger. It then controls this level

automatically relative to the ambient

conditions.

46

Speed limiter/cruise control

These two functions allow you to

control the speed of the vehicle in

accordance with the value that you

have programmed.

106/108

Scented air freshener

This air freshener diffuses the fragrance

that you have selected throughout the

passenger compartment by means of

its location in the ventilation system.

48

Audio and communication systems

These systems beneﬁ t from the latest

technology: MP3 compatible audio

system, MyWay audio and navigation

system, auxiliary sockets.

151

FAMILIARISATION

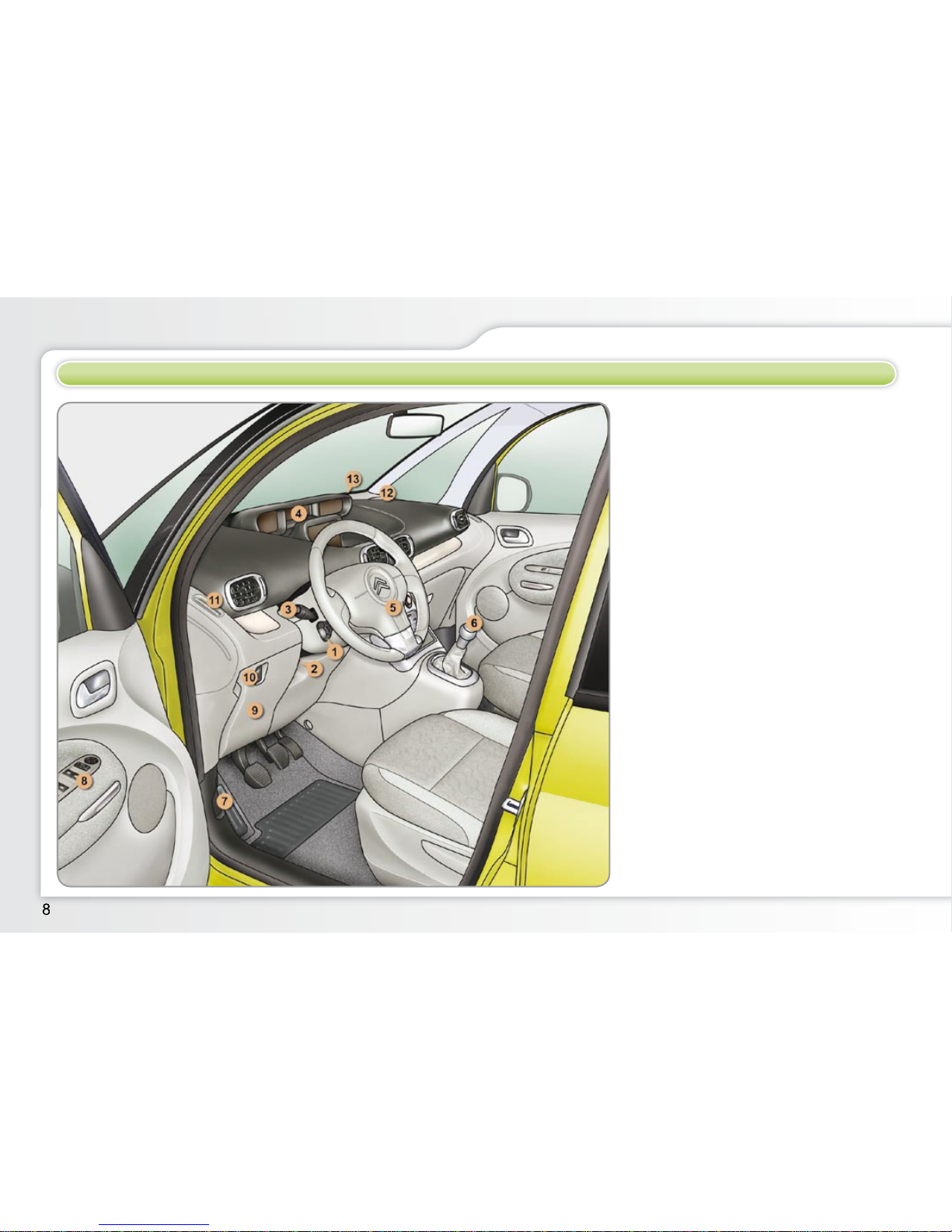

INSTRUMENTS AND CONTROLS

1. Cruise control/speed limiter switch.

2. Steering wheel adjustment control.

3. Lighting and direction indicator

control stalk.

4. Instrument panel.

5. Driver's airbag.

Horn.

6. Gear lever.

7. Bonnet release.

8. Door mirror controls.

Electric window controls.

Rear electric windows and doors

deactivation control.

9. Fusebox.

10. Manual headlamp height

adjustment.

11. Front side window demisting vent.

12. Speaker (tweeter).

13. Windscreen demisting vent.

FAMILIARISATION

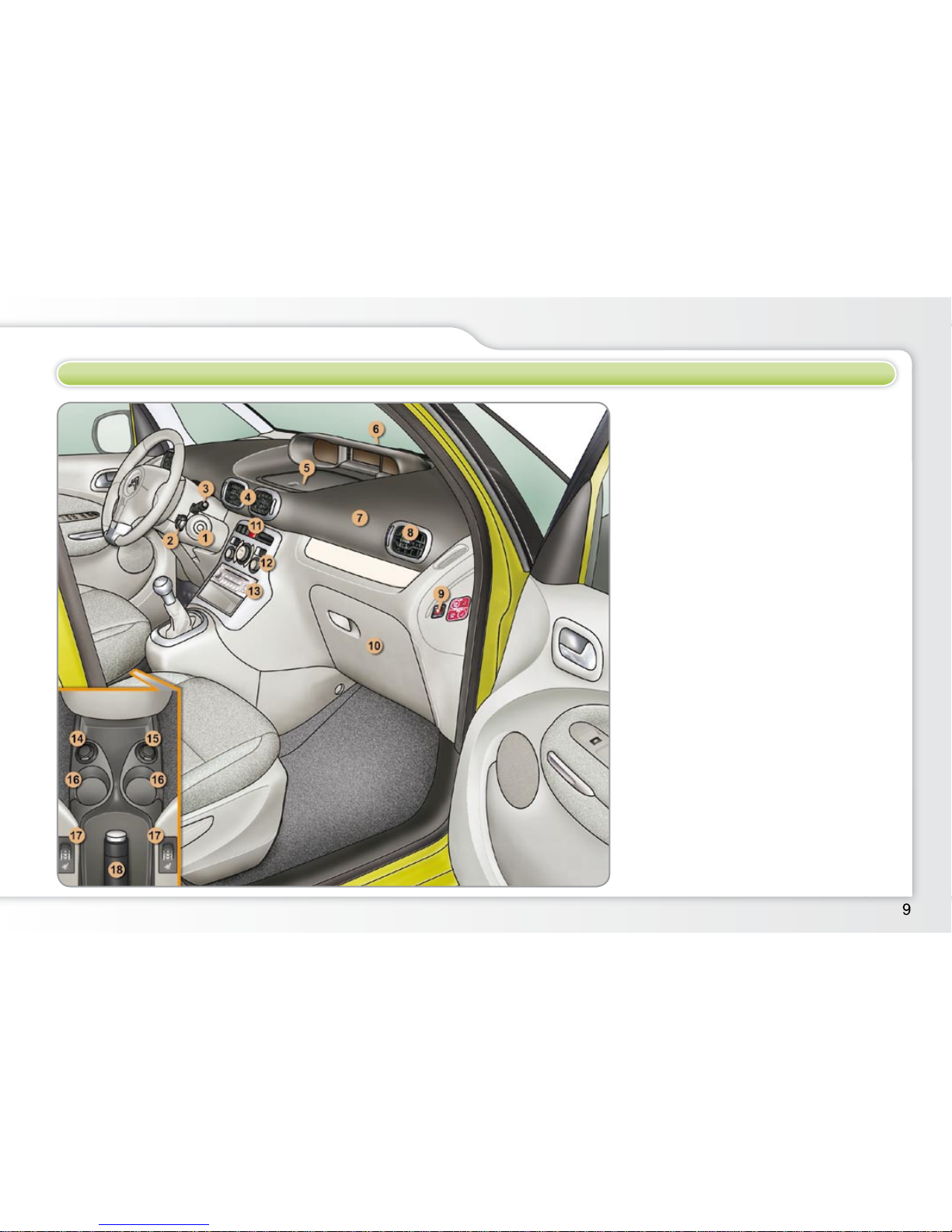

INSTRUMENTS AND CONTROLS

1. Steering lock and ignition.

2. Audio equipment steering mounted

control stalk.

3. Wipers/wash-wipe/trip computer

control stalk.

4. Central adjustable air vents.

5. Storage tray.

Scented air freshener.

6. Sunshine sensor.

7. Passenger air bag.

8. Side adjustable air vent.

9. Passenger airbag deactivation

switch.

10. Glove box.

11. Dynamic stability control

(ESP/ASR) button.

Parking sensors button.

Central locking button.

Hazard warning lamps button.

12. Heating/air conditioning controls.

13. Audio equipment.

14. 12 V socket (100 W max).

15. USB socket/auxiliary socket.

16. Cup holder.

17. Heated seat controls.

18. Parking brake.

FAMILIARISATION

SITTING COMFORTABLY

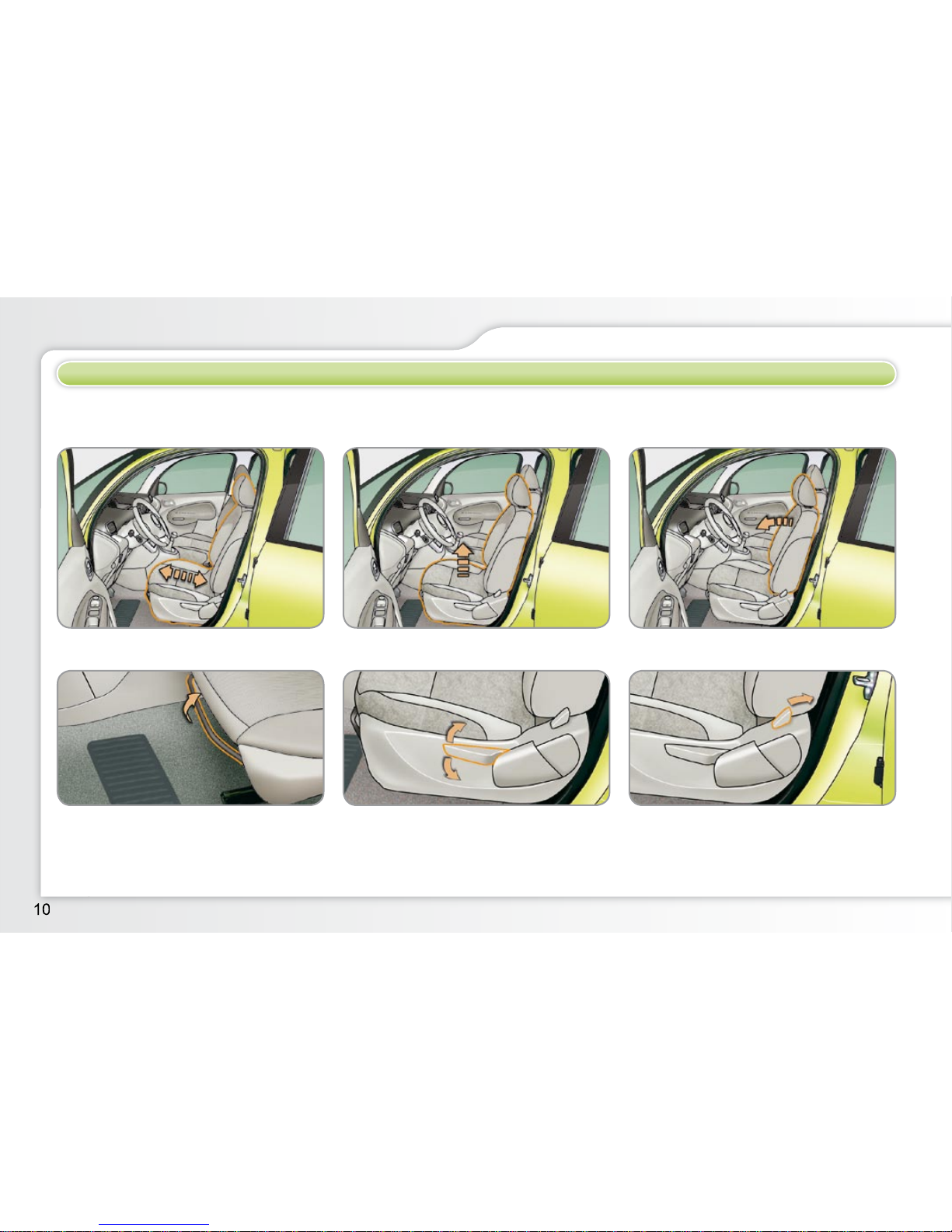

Driver's seat adjustment

Forwards-backwards

49

Seat back angleHeight

FAMILIARISATION

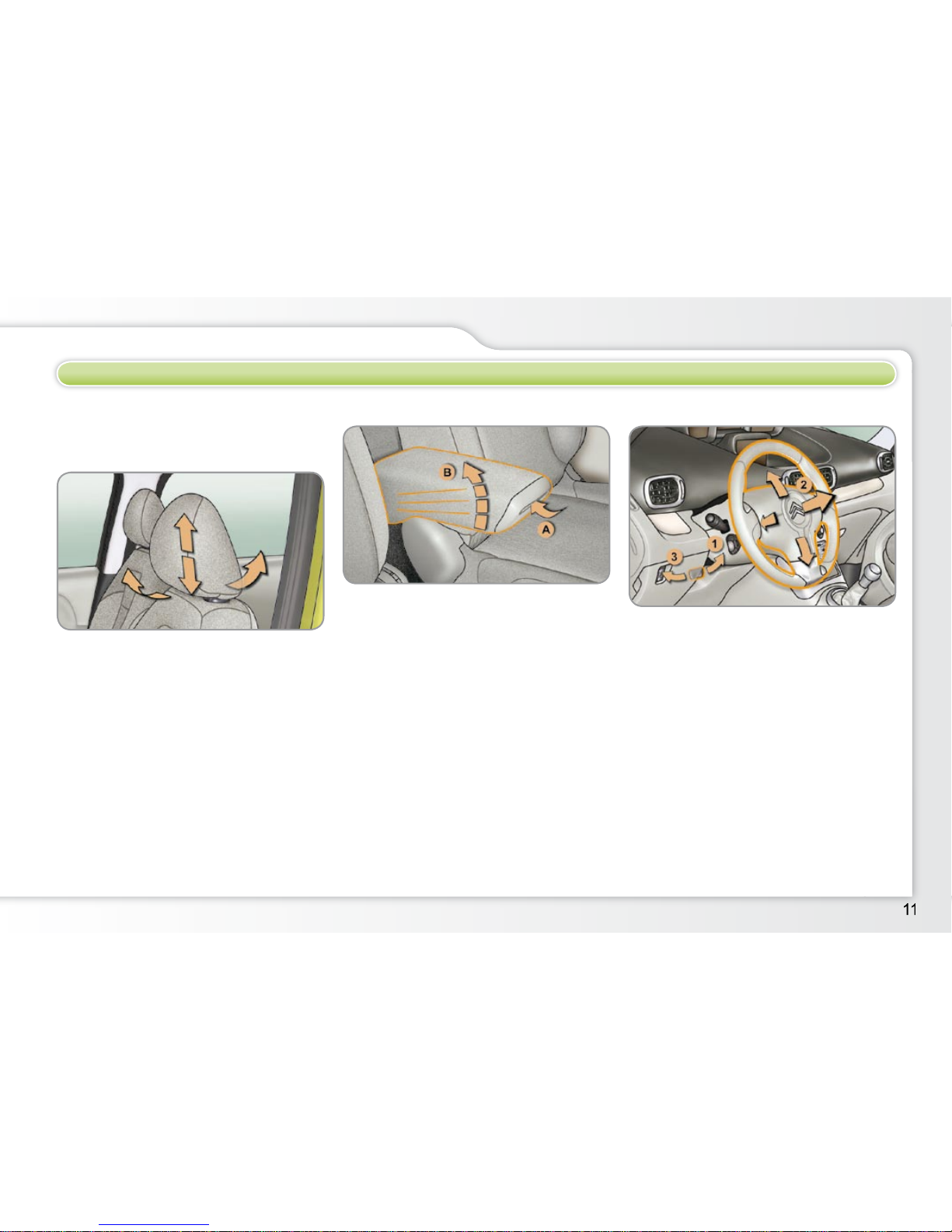

Steering wheel adjustment

1. Unlocking the adjustment mechanism.

2. Adjustment for height and reach.

3. Locking the adjustment mechanism.

SITTING COMFORTABLY

Front seat additional adjustments

Head restraint height

54

Armrest

A. Releasing the armrest.

B. Adjusting the armrest.

FAMILIARISATION

SITTING COMFORTABLY

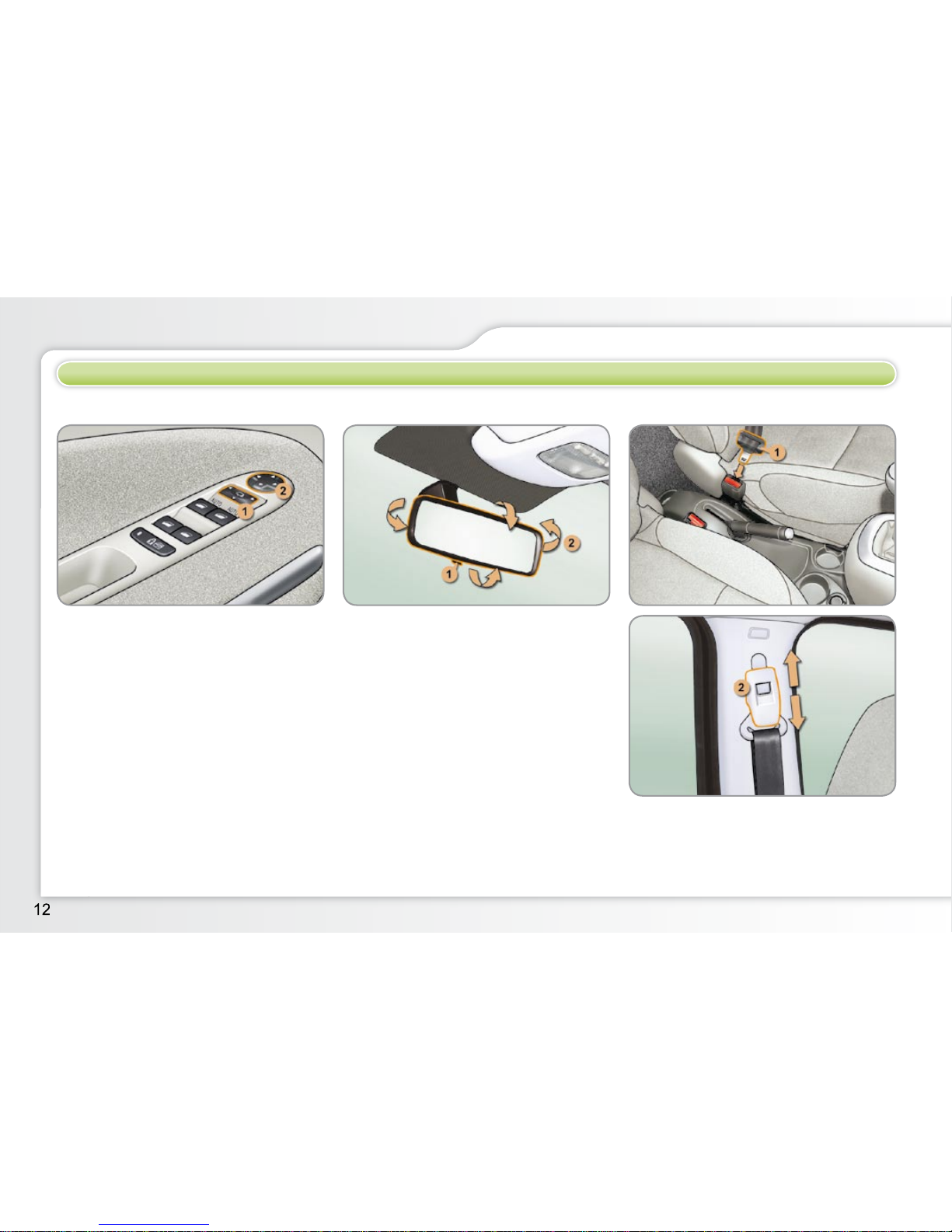

Door mirror adjustment

This operates when the ignition is on.

From the driver's seat, select the mirror

by moving the control 1, to the left or to

the right, then adjust the mirror in the

four directions using the control 2.

The demisting/defrosting of the mirrors

is linked with that of the rear screen.

Rear view mirror adjustment

1. Selection of the "day" position of the

mirror.

2. Mirror orientation.

Front seat belt

1. Fastening.

2. Height adjustment.

54 97

Folding the mirrors

When parked, the mirrors can be folded

manually or electrically.

53
