CITROEN C5 Manuale utente

PRIVATE CARS

C5 - C8

PRIVATE CARS

CAR 050014

Volume 2

2003

AC.QCAV/MTD

Méthodes Techniques Documentation



’’The intellectual property rights relating to the technical information contained in this document belong

exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part without

prior written authorisation from the manufacturer is forbidden.‘‘

«The technical information contained in this document is intended for the exclusive use of the trained personnel of the

motor vehicle repair trade. In some instances, this information could concern the security and safety of the vehicle. The

information is to be used by the professional vehicle repairers for whom it is intended and they alone would assume full

responsibility to the exclusion of that of the manufacturer».

«The technical information appearing in this brochure is subject to updating as the characteristics of each model in the

range evolve. Motor vehicle repairers are invited to contact the CITROËN network periodically for further information and

to obtain any possible updates».

2003

PRESENTATION

THIS HANDBOOK summarises the specifications, adjustments, checks and special features of CITROEN private vehicles, not including UTILITY

vehicles for which there exists a separate handbook.

The handbook is divided into nine groups representing the main functions :

GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES - ELECTRICAL -

AIR CONDITIONING.

In each section, the vehicles are dealt with in the following order : C5 and C8, or all models where applicable.

The information given in this handbook is based on vehicles marketed in EUROPE.

IMPORTANT

If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account

when preparing future publications. For example :

– INSUFFICIENT INFORMATION

– ISUPERFLUOUS INFORMATION

– INEED FOR MORE DETAILS

Please send your comments and suggestions to :

CITROEN U.K. Ltd.

221, Bath Road,

SLOUGH,

SL1 4BA.

U.K.

GENERALGENERAL

IDENTIFICATION OF VEHICLES

E1APO8RD

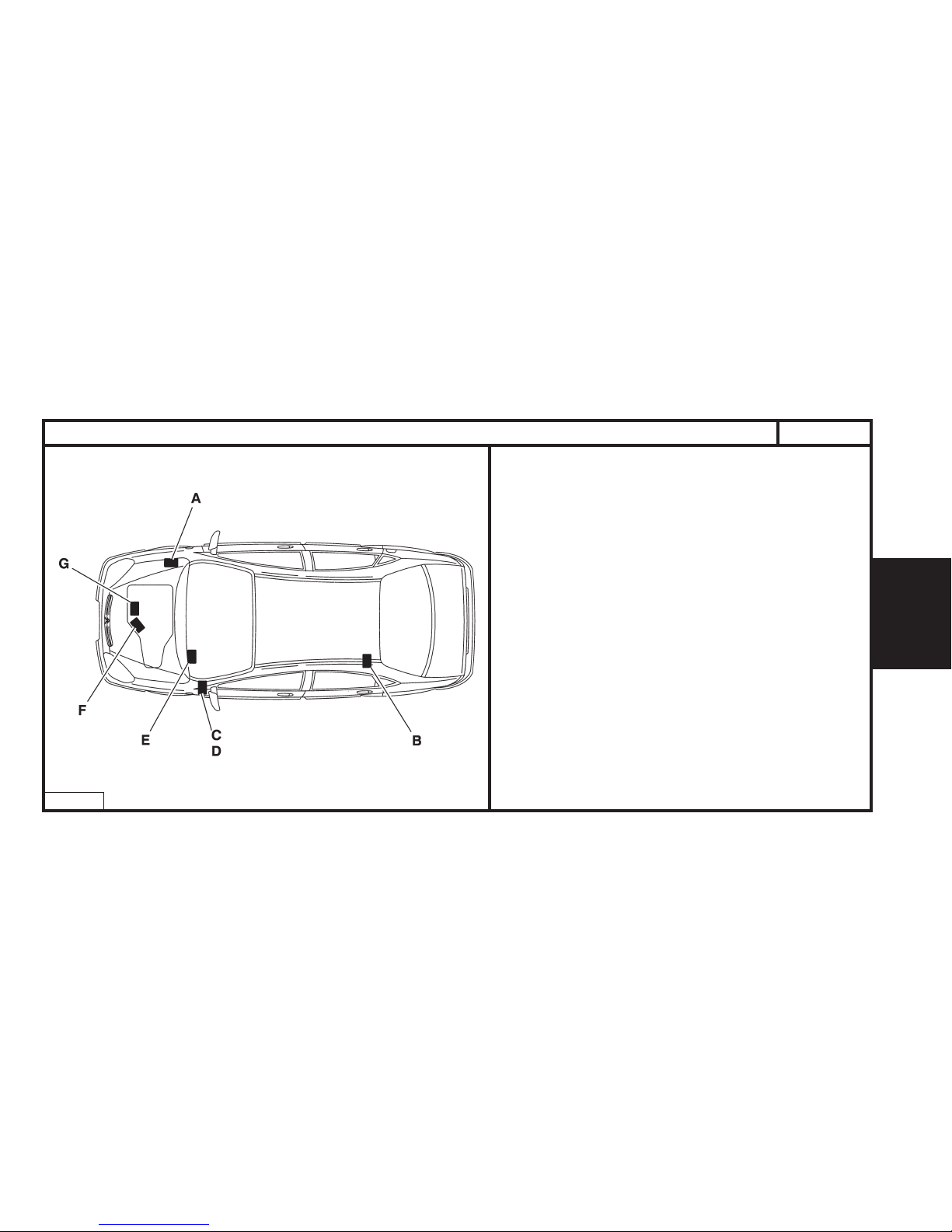

(A) Chassis stamp

(cold stamp on bodywork).

(B) Manufacturer’s data plate.

(under the rear bench seat)

(label on front pillar close to driver’s door).

(D) Inflation pressures and tyre references.

(label on front pillar close to driver’s door)

(E) Serial no. on bodywork.

(F) Gearbox reference – Factory serial no.

(G) Engine legislation type – Factory serial no.

GENERAL

DC 6FZB DC 6FZC/IF DC 6FZE DC RFNC/IF DC RFNB DC RFNE

6FZ RFN

1749 1997

78 9

BE4/5 AL4 BE4/5 AL4

20 DL 29 20 TP 44 20 BL 30 20 TP 42

Emission standard L4 L5 L4 L5 L4 L5

Type code

Engine type

Cubic capacity (cc)

Fiscal rating (hp)

Gearbox type

Gearbox ident. plate

C5 IDENTIFICATION OF VEHICLES

Petrol saloons

X-SX

1.8i 16V

X-SX-Exclusive

2.0i 16V

Auto.

GENERALGENERAL

L4 L5

DC RLZB DC XFXC/IF DC XFXF/IF

RLZ XFX

1997 2946

81314

BE4/5 ML/5C ML/5T 4 HP 20

20 DL31 20 LM 21 20 LE 95 20 HZ 13

IDENTIFICATION OF VEHICLES

Petrol saloons

2.0 HPi 30.i 24S V6

Exclusive

Auto.

Emission standard

Type code

Engine type

Cubic capacity (cc)

Fiscal rating (hp)

Gearbox type

Gearbox ident. plate

GENERAL

Emission standard L4

Type code DC RHYB DC RHSB DC RHSE DC RHZB DC RHZE

Engine type RHY RHS RHZ

Cubic capacity (cc) 1997

Fiscal rating (hp) 6767

Gearbox type BE4/5 ML/5C ML/5T (*) AL4 ML/5C ML/5T AL4

Gearbox ident. plate 20 DL 32 20 LM 18 20 LE 94 20 TP 43 20 LM 18 20 LE 94 20 TP 43

C5 IDENTIFICATION OF VEHICLES

Diesel saloons

2.0 HDi

XX-Exclusive

Auto. Auto.

(*) FAP = Particle filter

GENERALGENERAL

Auto.

Emission standard L4

Type code DC 4HXB DC 4HXE

Engine type 4HX

Cubic capacity (cc) 2179

Fiscal rating (hp) 8

Gearbox type ML/5C ML/5T 4 HP 20

Gearbox ident. plate 20 LM 17 20 LE 96 20 HZ 20

IDENTIFICATION OF VEHICLES

Diesel saloons

2.2 HDi

SX-Exclusive

GENERAL

Emission standard L4 L5 L4 L5

Type code DE 6FZC/IF DE 6FZB DE RFNC/IF DE RFNE DE RLZB DE XFX/IF DE XFXF/IF

Engine type 6FZ RFN RLZ XFX

Cubic capacity (cc) 1749 1997 2946

Fiscal rating (hp) 7981314

Gearbox type BE4/5 AL4 BE4/5 ML/5C ML/5T 4 HP 20

Gearbox ident. plate 20 DL 29 20 DL 30 20 TP 42 20 DL 31 20 LM 21 20 LE 95 20 HZ 13

IDENTIFICATION OF VEHICLES

Petrol estates

3.0i 24S V6

2.0 HPi

2.0i 16V1.8i 16V

Exclusive

X-SX

Auto.

GENERALGENERAL

Emission standard L4

Type code DE RHYB DE RHSB DE RHSE DE RHZB DE RHZE

Engine type RHY RHS RHZ

Cubic capacity (cc) 1997

Fiscal rating (hp) 6767

Gearbox type BE4/5 ML/5C ML/5T AL4 ML/5C ML/5T AL4

Gearbox ident. plate 20 DL 32 20 LM 18 20 LE 94 (*) 20 TP 43 (*) 20 LM 18 20 LE 94 20 TP 48 (*)

IDENTIFICATION OF VEHICLES

Diesel estates

2.0 HDi

XX-Exclusive

Auto. Auto.

(*) FAP = Particle filter
