CITROEN Saxo 2003 Manuale utente

PRIVATE CARS

SAXO-C3-XSARA

XSARA PICASSO-BERLINGO

PRIVATE CARS

CAR 050014

Volume 1

2003

AC.QCAV/MTD

Méthodes Techniques Documentation



’’The intellectual property rights relating to the technical information contained in this document belong

exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part without

prior written authorisation from the manufacturer is forbidden.‘‘

«The technical information contained in this document is intended for the exclusive use of the trained personnel of the

motor vehicle repair trade. In some instances, this information could concern the security and safety of the vehicle. The

information is to be used by the professional vehicle repairers for whom it is intended and they alone would assume full

responsibility to the exclusion of that of the manufacturer».

«The technical information appearing in this brochure is subject to updating as the characteristics of each model in the

range evolve. Motor vehicle repairers are invited to contact the CITROËN network periodically for further information and

to obtain any possible updates».

2003

PRESENTATION

THIS HANDBOOK summarises the specifications, adjustments, checks and special features of CITROEN private vehicles, not including UTILITY

vehicles for which there exists a separate handbook.

The handbook is divided into nine groups representing the main functions :

GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES - ELECTRICAL -

AIR CONDITIONING.

In each section, the vehicles are dealt with in the following order : SAXO - C3 - XSARA - XSARA PICASSO - BERLINGO (1) and all models where

applicable.

The information given in this handbook is based on vehicles marketed in EUROPE.

(1) NOTE : The BERLINGO familiale appears only in :

- The correspondance tables for petrol and diesel engines.

- The general chapter.

For all the other chapters, see the Mechanics’ Handbook for UTILITY vehicles.

IMPORTANT

If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account

when preparing future publications. For example :

– INSUFFICIENT INFORMATION

– SUPERFLUOUS INFORMATION

– NEED FOR MORE DETAILS

Please send your comments and suggestions to :

CITROEN U.K. Ltd.

221, Bath Road,

SLOUGH,

SL1 4BA.

U.K.

XSARA 2, all types

Operation to reconnect the battery after a vehicle repair

ATTENTION

If the battery has been disconnected, after reconnecting it is ESSENTIAL to wait 1 minute before switching on the ignition,

otherwise the engine ECU will lock up.

If the ECU has locked up :

- Switch off the ignition.

- Wait 1 minute.

- Switch the ignition back on, the ECU is unlocked.

GENERAL

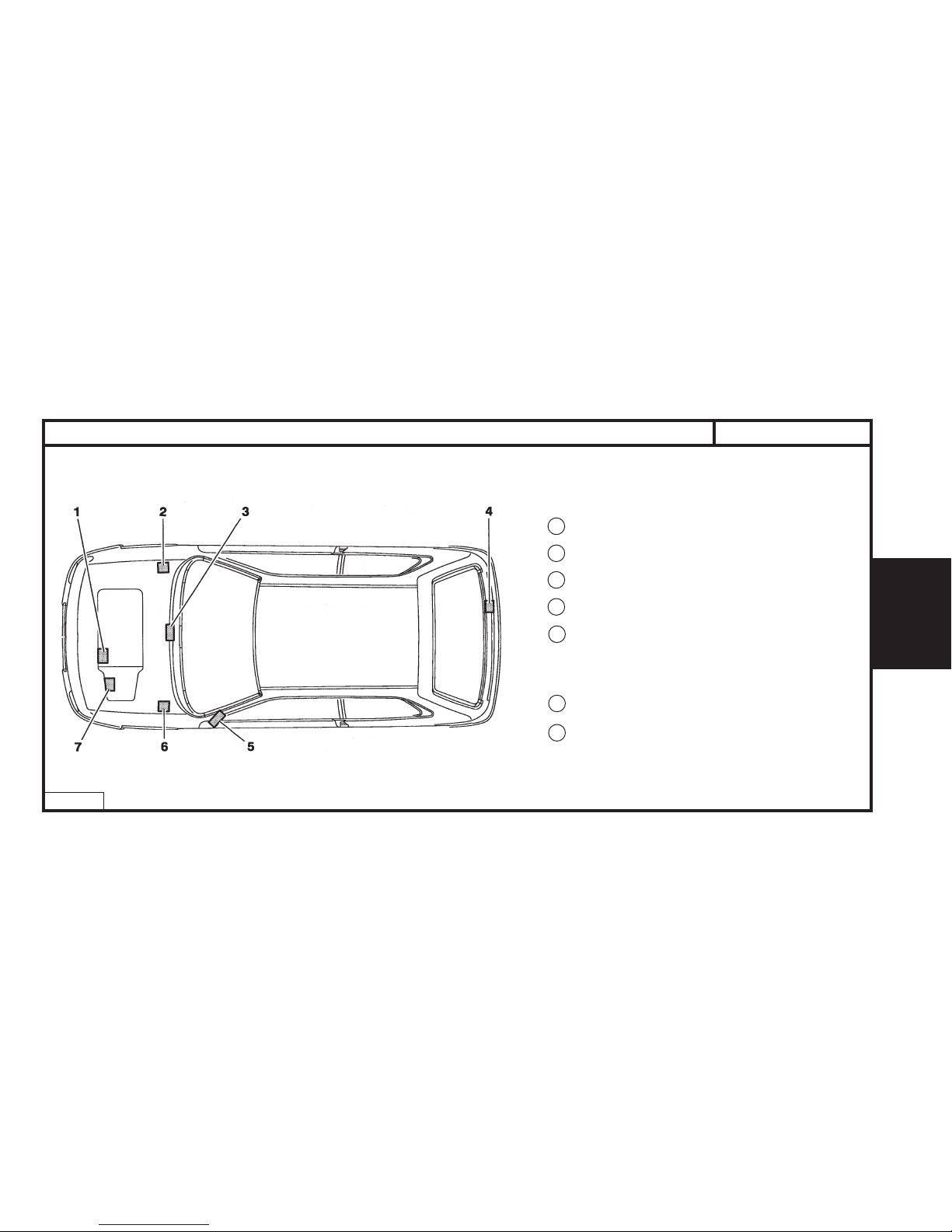

SAXO - All TypesIDENTIFICATION OF VEHICLES

E1AP07CD

1Engine legislation type

2RP organisation no.

3Chassis stamp

4Manufacturer’s name plate

501/02/99 # Label :

- Tyre pressures.

- RP organisation no.

- Paint code.

6Paint code.

7Gearbox ident. reference

GENERAL

Emission standard IFL5 L4 L4 L4 L4

Type code SO HFX1 SO HFXB SO KFWL S6 KFWB SO KFWB S6 NFTB N6 NFXB

Engine type HFX KFW NFT NFX

Cubic capacity (cc) 1124 1360 1587

Fiscal rating (hp) 465 58

Gearbox type MA/5 MB3 MA/5 MA/5

Gearbox ident. plate 20 CF 03 312 20 CF 12 20 CF 11 20 CN 05 20 CN 03

SAXO - All Types IDENTIFICATION OF VEHICLES

Saxo petrol 3-door

1.1 i 1.4 i 1.6 i 1.6i 16V

X-SX

A-X-SX

Administration

Exclusive SX

Exclusive VTS

Exclusive

VTS VTS VTS

Auto.

GENERAL

Emission standard IFL5 L4 L4

Type code S1 HFX1 S1 HFXB S1 KFWL S1 KFWB

Engine type HFX KFW

Cubic capacity (cc) 1124 1360

Fiscal rating (hp) 465

Gearbox type MA/5 MB3 MA/5

Gearbox ident. plate 20 CF 03 312 20 CF 12

SAXO - All TypesIDENTIFICATION OF VEHICLES

Saxo petrol 5-door

1.1i 1.4i

A-Administration

Driving school -x-SX

Exclusive SX-Exclusive

X-SX

Auto.

GENERAL

Emission standard L4 L4

Type code SO VJXB S1 VJXB S3 HFXB S3 VJXB

Engine type VJX HFX VJX

Cubic capacity (cc) 1527 1124 1527

Fiscal rating (hp) 466

Gearbox type MA/5 MA/5 MA/5

Gearbox ident. plate 20 CF 02 20 CF 03 20 CF 02

SAXO - All Types IDENTIFICATION OF VEHICLES

Diesel Entreprise

1.5 D

5-door3-door Diesel 3-doorPetrol 3-door

1.5 D1.1i

A-Administration

Driving school

X-SX-Exclusive

Administration

Poste-X-SX

Administration

Poste-X-SX

A- Administration

X-SX-VTS -Exclusive

GENERAL

E1AP09HD

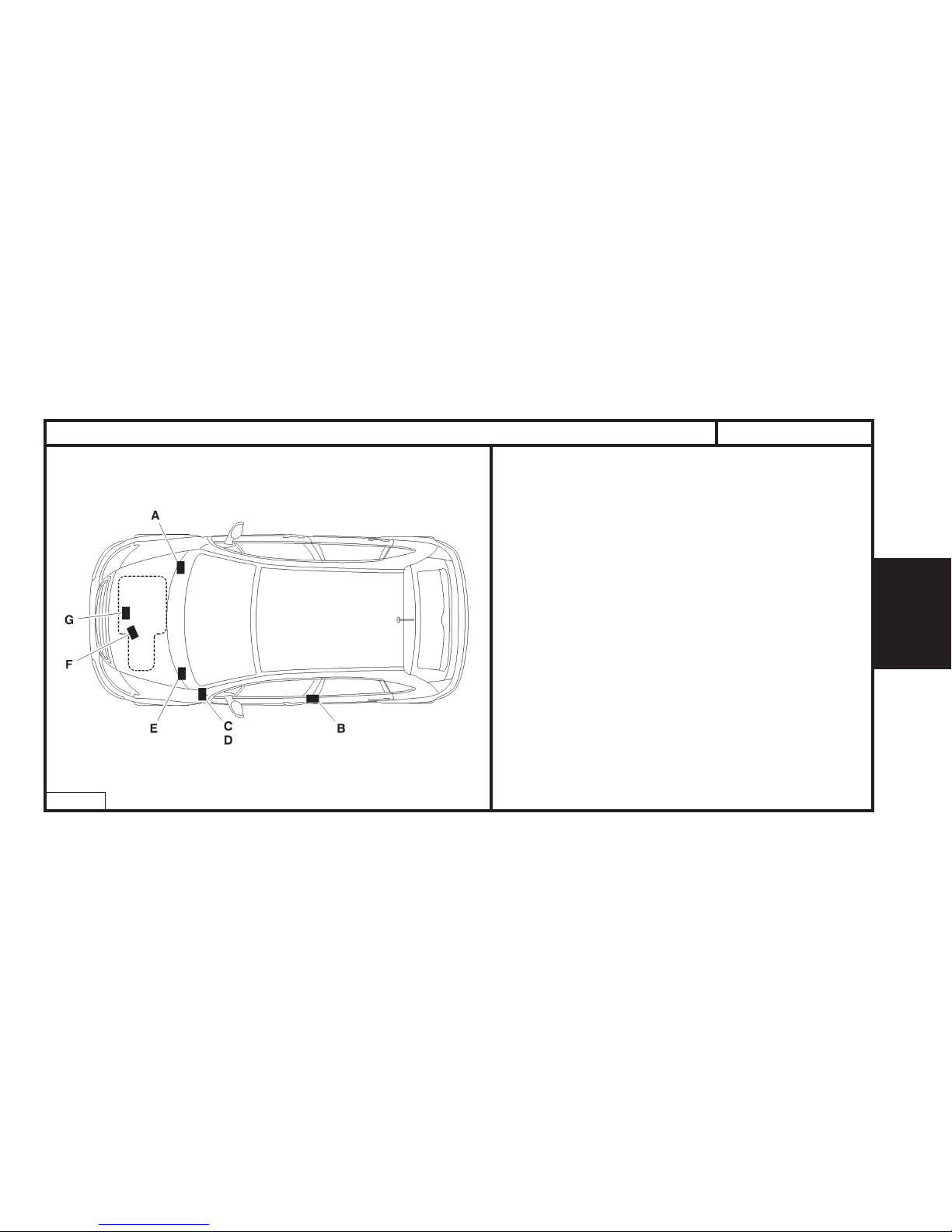

IDENTIFICATION OF VEHICLES

A:Cold stamp

(Cold stamp engraved on the bodywork).

B : Manufacturer’s name plate

(On the LH centre pillar)

C : AS/RP No. and RP paint code.

(label affixed to the front pillar on driver’s side)

D : Tyre pressures and tyre type.

(label affixed to the front pillar on driver’s side)

E : Serial number on bodywork.

F : Gearbox ident. reference – Factory serial no.

G : Engine legislation type– Factory serial no.

C3 - All Types

GENERAL

Emission standard L4 IFL5 L4/INF K’

Type code FC HFXB/T FR HFXB FN HFXB FC HFXB FN HFXC FC HFXC FC HFXB FC HFX5

/IF /IF /D

Engine type HFX

Cubic capacity (cc) 1124

Fiscal rating (hp) 4

Gearbox type MA/5N

Gearbox ident. plate 20 CF 14

IDENTIFICATION OF VEHICLES

PETROL

1.1i

X-SX X

C3 - All Types
