Clare Controls Mainline 2MP Manuale utente

Doc ID 2014-11-684 • REV 02

Network Camera

Installation Guide

Mainline 2MP PTZ Dome

Content

Description...1!

Safety instruction...1!

Overview...4!

Micro SD card instructions...5!

Installation...5!

Wall mounting...6!

In-ceiling mounting...10!

Setting the dome over the LAN...15!

Accessing via a web browser...20!

System requirements...20!

Specifications...24!

Regulatory information...27!

Contact information...29!

Description

The ClareVision Mainline 2MP PTZ Dome camera

(CV-M2PT10-OD) is integrated with a built-in pan/tilt unit and

a digital image receiver. The camera features highly sensitive

response and reliable performance, and it also ensures the

image clarity and stability.

Safety instruction

Follow these instructions to ensure that the product is used

correctly and to avoid danger or property loss. Serious injury

or death may occur if any of the warnings are ignored. Injury

or equipment damage may occur if any of the cautions are

neglected.

WARNINGS

•In the use of the product, you must be in strict compliance

with the electrical safety regulations of the nation and

region.

•Please refer to technical specifications for detailed

information.

•Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 24 VAC

or 12 VDC according to the IEC60950-1 standard. Please

refer to technical specifications for detailed information.

•Do not connect several devices to one power adapter as

adapter overload may cause over-heating or a fire hazard.

•Please make sure that the plug is firmly connected to the

power socket.

•When the product is mounted on wall or ceiling, the device

should be firmly fixed.

•If smoke, odor, or noise rise from the device, turn off the

power at once and unplug the power cable. Contact the

service center.

•If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not assume

any responsibility for problems caused by unauthorized

repair or maintenance.)

CAUTIONS

•Make sure the power supply voltage is correct before using

the camera.

•Do not drop the camera or subject it to physical shock.

•Do not touch CMOS modules with fingers. If cleaning is

necessary, use a clean cloth with a bit of ethanol and wipe

it gently. If the camera will not be used for an extended

period, replace the lens cap to protect the CMOS from dirt.

•Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur (which is not a

malfunction), and affect the endurance of CMOS at the

same time.

•The CMOS may be burned out by a laser beam, so when

any laser equipment is in use, make sure that the surface

of CMOS will not be exposed to the laser beam.

•Do not place the camera in extremely hot or cold

environments (the operating temperature should be

-30°C to +60°C), dusty or damp locations, and do not

expose it to high electromagnetic radiation.

•To avoid heat accumulation, good ventilation is required for

the operating environment.

•Keep the camera away from liquid while in use.

•When returning a camera, pack it in its original packing, or

similar packing materials.

•Regular part replacement: a few parts of the equipment

should be replaced regularly according to their average

enduring time. The average time varies because of

differences between operating environment and use history,

so regular checking is recommended for all users. Contact

your dealer for more details.

•Improper use or replacement of the battery may result in

hazard of explosion. Replace it with the same or equivalent

type only. Dispose of used batteries according to the

instructions provided by the battery manufacturer.

•If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. We do not assume any

responsibility for problems caused by unauthorized repair

or maintenance.

Overview

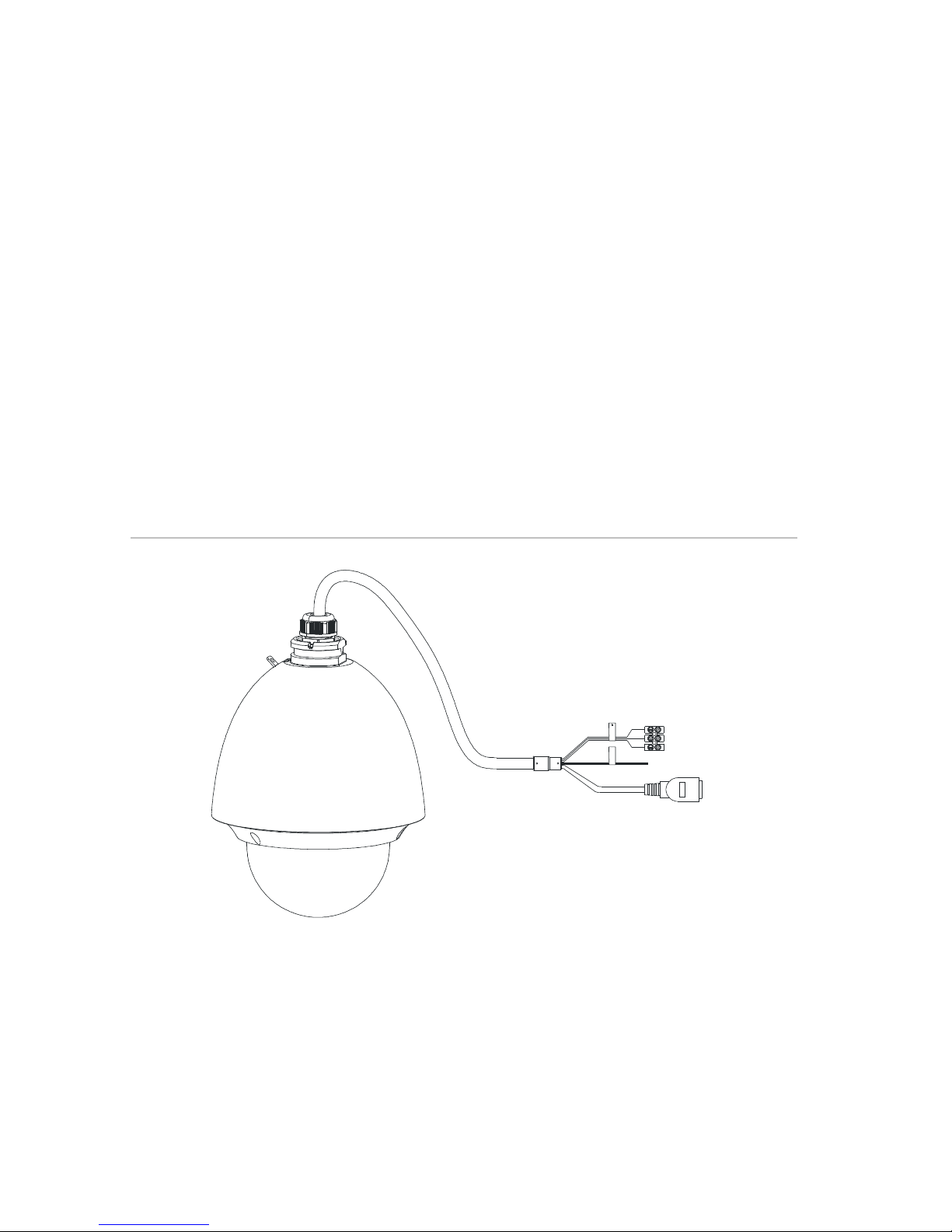

Figure 1: Mainline 2 MP PTZ Dome camera

(1) Power cables

(2) Audio cables

(3) Network cable

Micro SD card instructions

There are two kinds of SD card slot positions because of

different dome models. Refer to the following reference-only

figures.

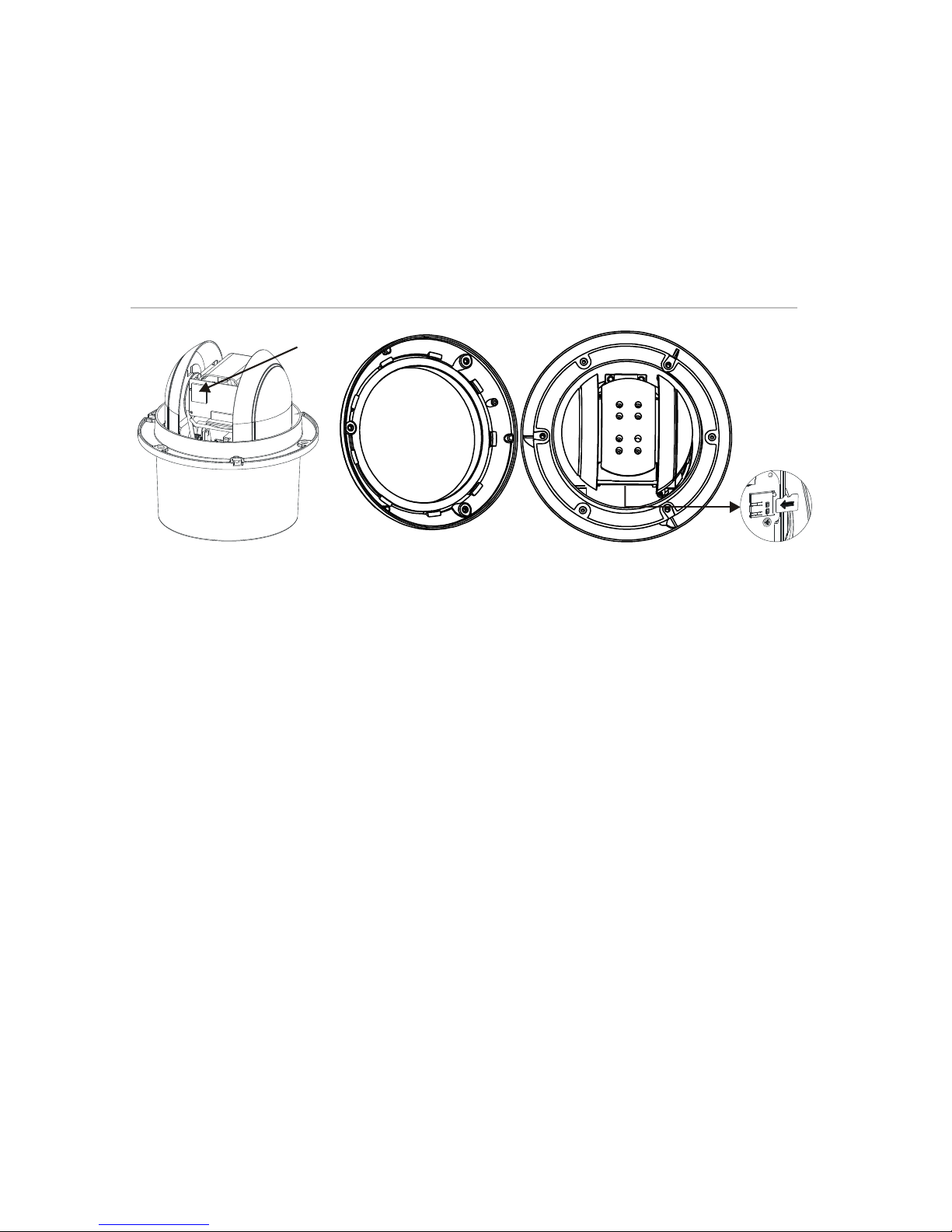

Figure 2: Install the SD card

Installation

Before you start, check the package contents and make sure

that the device in the package is in good condition and that all

the assembly parts are included.

Notes

•Do not remove the protective film from the lower dome until

after the installation is complete.

•Do not touch the bubble of the lower dome directly by hand.

The image blurs otherwise.

•Do not carry the camera by its waterproof cables (see

Figure 3), as this may affect its waterproof performance.

SD Card Slot

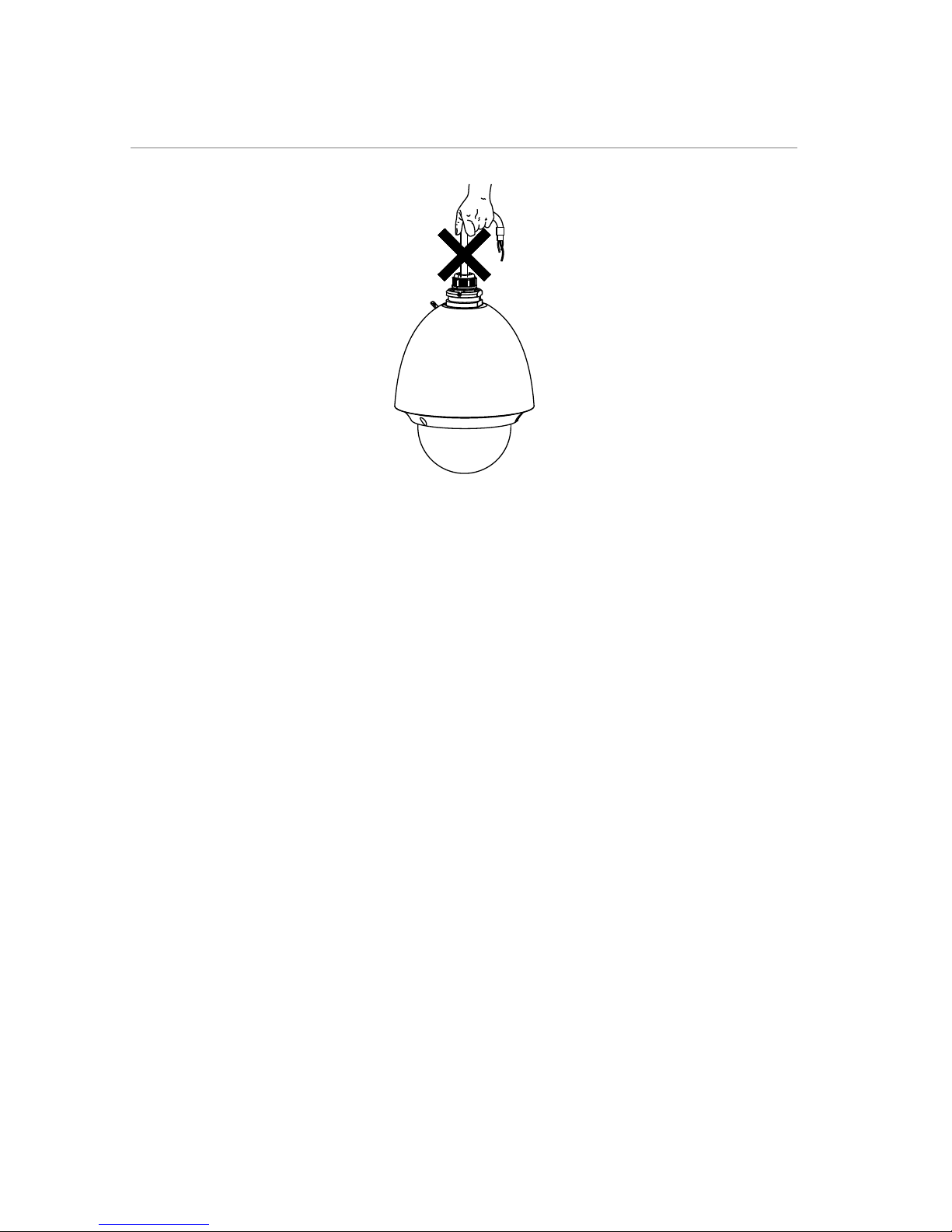

Figure 3: Do not carry the dome by its cables

Wall mounting

When mounting the dome to a wall, be sure that the wall is

thick enough to mount the expansion screws. The wall must

be strong enough to withstand more than four times the weight

of the dome and its accessories.

To mount the dome to a wall:

1. Drill screw holes as shown below.

a. Attach the wall mount to the wall where you need to

install the dome.

b. Drill four screw holes according to the screw holes on

the wall mount.

c. Hammer four M8 expansion pipes (not supplied) into

the screw holes.
