INTRODUCTION
Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATIONS
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
Model Number Devil 371SPD
Part Number 6920261
Weight 14.1 kg
Dimensions (LxWxH) mm 610 x 630 x 810
Rated Input Wattage 2.8 kW
Rated Input Amperage 21.8 A
Supply Voltage 110 V
Plug Rating 32 A
Insulation Class IP20
Max Heat Output 2.4 kW (2 x 1.2 kW elements)
Duty cycle Continuous
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 35%
Nominal heat output Pnom 2.4 kW
Minimum heat output (indicative) P min 1.2 kW
Maximum continuous heat output P max 2.4 kW
Auxiliary electricity consumption
At nominal heat output elmax n/a kW
At minimum heat output el min n/a kW
In standby mode elSB 0kW
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature feedback No
Electronic heat charge control with room and/or outdoor temperature
feedback
No
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
With mechanical thermostat temp control No
With electronic temperature control Yes
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection Yes
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation Yes
Room temperature control with black bulb sensor Yes
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY RULES
1. These heaters are for INDOOR USE ONLY.
2. DO NOT expose the heater or power cable to rain or wet conditions. Any
water entering the heater will increase the risk of electric shock. DO NOT
use this heater in a bathroom, shower room or any other wet environment.
3. NEVER locate the heater near combustible materials such as curtains,
furniture etc. Allow at least 1 metre distance.
4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a
distance of at least 1 metre from a wall or ceiling. Avoid placing the heater
directly below power socket outlets.
5. Take care to ensure that the wire guard cannot be covered.
6. DO NOT operate heater in explosive atmospheres such as in the presence
of flammable liquids, gases or dust such as in a paint spray booth or any
explosive environment.
7. NEVER stand the heater on a movable vehicle where it could tip over.
8. DO NOT allow the halogen tubes to become covered with dust which
could become a fire hazard. If used in a dusty workplace the heater should
be cleaned as described under Cleaning and Maintenance.
9. NEVER touch the halogen tubes for at least 15 minutes after switching off.
10. DO NOT leave the heater unattended.
11. If children are present always use with a fireguard.
12. Store the heater out of the reach of children and do not allow persons
unfamiliar with these instructions to operate it.
13. ALWAYS manoeuvre the heater using the handles provided and avoid
trapping the fingers between the handle and the heater body.
14. NEVER LEAVE THE HEATER UNATTENDED WHILE IN USE. TURN OFF AT NIGHT IF
UNATTENDED.
ELECTRICAL SAFETY
1. Electrical appliances must match the power outlet. Never modify the plug
in any way. Do not use adaptor plugs with earthed (grounded) appliances.
Correct plugs and outlets will reduce the risk of electric shock.
2. DO NOT use this product with an extension cable.
3. DO NOT abuse the electrical cable. Never use the cable for pulling or
unplugging the heater. Keep the cable away from sources of heat, oil,
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
sharp edges or moving parts. Damaged or tangled cables increase the risk
of electric shock.
4. Keep the power cable well away from machines and ensure an adequate
electrical supply is close at hand so that the operation is not restricted by
the length of the cable.
5. ALWAYS disconnect from the power supply before moving the heater or
performing any cleaning or maintenance tasks.
6. Inspect the power cable regularly for signs of damage. DO NOT use if it is
damaged, and ALWAYS keep it away from the source of heat.
7. Check the heater for damage before use. DO NOT use if the heater tubes
are damaged or broken. Any damage should be properly repaired or the
part replaced. If in doubt, DO NOT use. Consult your local CLARKE dealer.
SERVICE & REPAIRS
1. If necessary, have your heater repaired by a qualified person using
identical replacement parts. This will ensure that the safety of the product is
maintained.
Please keep these instructions in a safe place for future reference.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
This product contains valuable raw materials. Metal products should be
takento your local civic amenity site for recycling of metal products. Recycle
unwanted materials instead of disposing of them as waste. All unwanted
accessories and packaging should be sorted and taken to a recycling centre
for disposal in a manner which is compatible with the environment.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ELECTRICAL CONNECTIONS
DEVIL 371SPD (110V) UNIT
This 110V heater is fitted with a 32 amp, three pin industrial plug to EN 60309
and MUST be connected to a 110 volt, 1 phase 50 Hz supply through a suitably
fused isolator switch. On no account must a 230V, 13 amp (BS1363) plug be
used.
NOTE: If a portable 110V transformer is used, make sure it has a rated
capacity sufficient to take the load of the heater.
If the heater is hard wired into the electrical system all work must be carried
out in accordance with IEE regulations.
If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a 110v socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•TheBlue wire must be
connected to the terminal
which is marked Nor
Neutral.
•TheBrown wire must be
connected to the terminal
which is marked Lor Live.
•TheYellow wire must be
connected to the terminal
which is marked Eor Earth.
If in any doubt, consult a
qualified electrician. DO NOT
attempt any repairs yourself.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW = EARTH
Plug must be BS60309 approved.
Neutral
Live
Earth
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
UNPACKING AND ASSEMBLY
UNPACKING
When unpacking, please check contents against the following list and advise
your dealer immediately if any parts are missing.
1 x Heater
1x Lower base frame
2 x Handles
3 x Castors (one with brake)
1 x Fixings pack
1 x Remote control unit

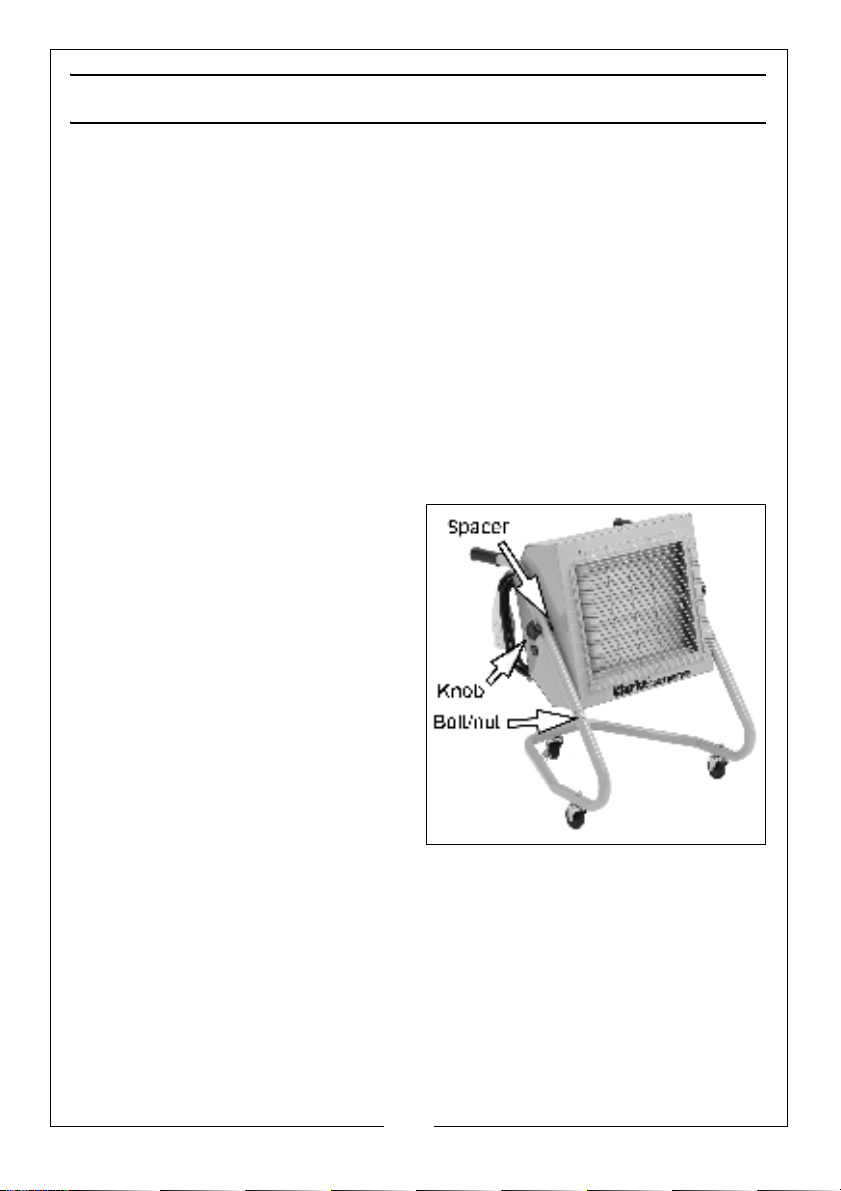

ASSEMBLY
1. Bolt the handles to the lower frame
using the two loose bolts &
locknuts noting the orientation of
the handles.
2. Lay the heater face down and
attach the complete frame to the
heater body using the securing
knobs and the spacers located
either side of the frame tubing.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
OPERATION
USING THE REMOTE CONTROL
All operations must be done using the
remote control.
• 2 x AAA batteries are required
and are installed as shown by
the diagram found inside the
control unit.
• The remote control must be
directed at the heater display
panel. It has a range of approx
2.5 metres and must be aimed
at the correct angle.
• The function of each button on
remote control is the same as
operation panel.
MANUAL OPERATION
1. Stand the heater on a firm, level surface and following all safety
precautions, connect to a suitable power supply.
• The heater is equipped with an anti-tilt switch that automatically
cuts the power off should the heater tip over. If this happens, stand
the heater upright and it will immediately re-set.
2. Switch on the power at the primary
switch on the side of the heater.
• The heater will be in Standby
with the display showing PO.
WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ
THESE INSTRUCTIONS BEFORE USE.
WARNING: PLEASE NOTE THAT THE HEATING ELEMENTS OF THIS PRODUCT
DO NOT GLOW WHILST IN OPERATION. ANY PICTURES SHOWING THIS IN
ADVERTISING MATERIAL ARE FOR ILLUSTRATION ONLY.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
3. Press to turn on the upper
heating lamp and the screen will
show P1.
4. Press to select the mode from P1-P6, referring to the different
temperature settings.
• During mode P2-P5 the upper element is working all the time and the
lower element will be turned off automatically according to the set
temperature.
5. The user can change from mode
P1 and P6 by pressing . The
screen will show a cascade effect
when in mode P6.
6. To power off the unit, press again, the heater stops working, and
returns to standby with the screen showing ‘PO’.
7. Then switch off the main switch and unplug the heater.
P1 Only the upper element is working
P2 24o
P3 26o
P4 28o
P5 30o
P6 Both elements are working
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

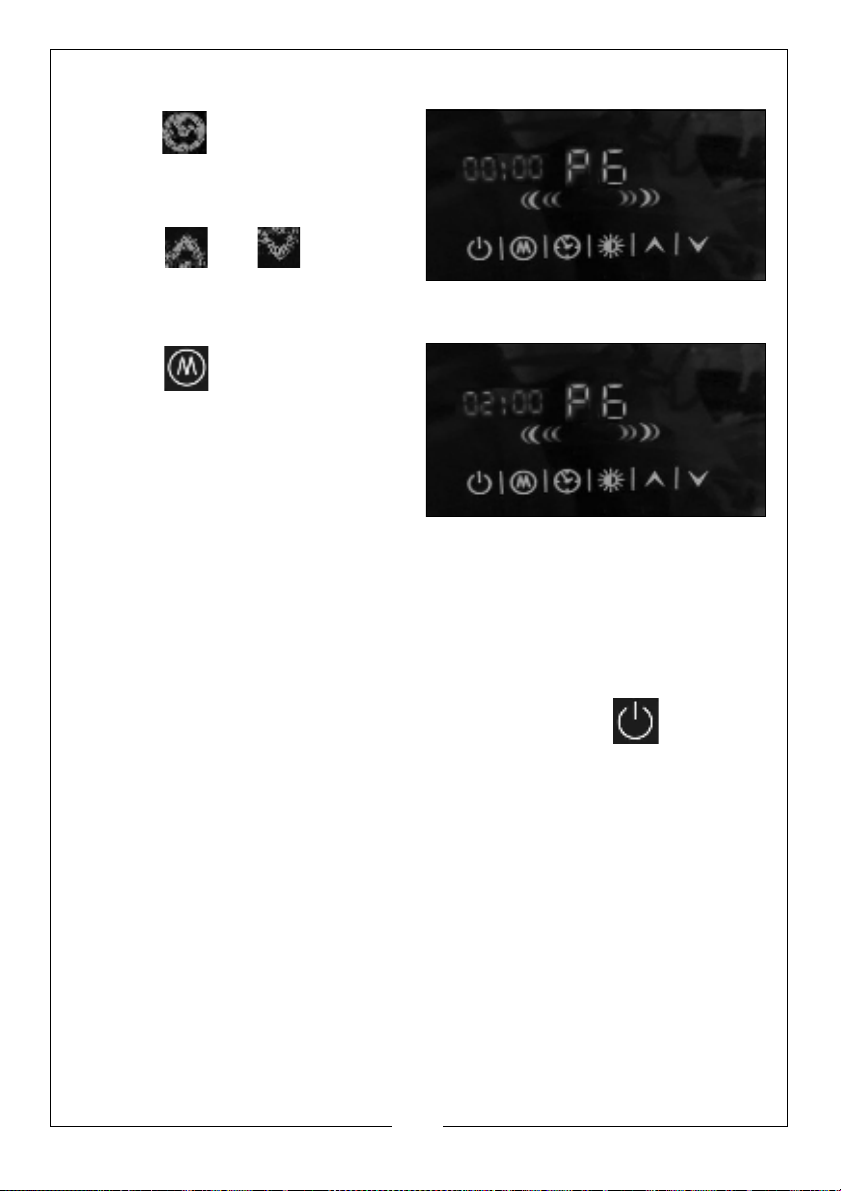

SETTING THE SHUTDOWN TIMER
1. Press to set the shutdown
timer. The time on the screen
flickers with initial status 00:00.
2. Press and to set the
time to turn the heater off.
• It increases/decreases 1 hour per press.
3. Press when you finish setting
and the heater will be in the
countdown mode.
• It will shut down 2 hours later.
4. When the time is up, the heater
turns off automatically and enters
the standby state P0.
FUNCTION FOR DETECTING OPENING WINDOWS
1. When the ambient temperature drops over 5oC within 10 minutes, the
heater will turns off automatically and enters a standby state with three
alarm beeps.
• Users need to turn on the heater manually by pressing-
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Clarke Stufa
Clarke
Clarke DEVIL 350 230V Manuale di installazione e funzionamento
Clarke
Clarke IQ2000S Manuale elenco delle parti
Clarke
Clarke DEVIL 350B 230V Manuale di installazione e funzionamento
Clarke
Clarke DEVIL 7030 Manuale di istruzioni
Clarke
Clarke OFR7 Manuale di istruzioni
Clarke
Clarke DEVIL 371PC Manuale di installazione e funzionamento
Clarke
Clarke DEVIL 2000PTC Manuale di istruzioni
Clarke
Clarke BR9/200 Manuale di istruzioni
Clarke
Clarke DEVIL 4035 Manuale di installazione e funzionamento
Clarke
Clarke DEVIL 4035 Manuale di installazione e funzionamento
Clarke
Clarke DEVIL 9000PTC Manuale di istruzioni
Clarke
Clarke CONTRACTOR DEVIL371PD Manuale di installazione e funzionamento
Clarke
Clarke DEVIL 370PC Manuale di installazione e funzionamento
Clarke
Clarke OFR 9 Manuale di istruzioni
Clarke
Clarke OFR 9/90 Manuale di istruzioni
Clarke
Clarke XR60B Manuale di istruzioni
Clarke
Clarke OFR 5/50 Manuale di istruzioni
Clarke
Clarke XRV100 Guida alla risoluzione dei problemi
Clarke
Clarke IQ2000 Manuale utente
Clarke
Clarke DEVIL 370PD Manuale di installazione e funzionamento
