OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 ISS2

DEVIL QUARTZ HALOGEN HEATER

MODEL NO: 371PC

PART NO: 6950020

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Quartz Halogen Infra-red Heater.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

SPECIFICATIONS

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

Model Number Devil 371PC

Part Number 6950020

Weight 15.7 kg

Dimensions (LxWxH) 550 x 490 x 875 mm

Wattage 2.8 kW

Amperage 25.5 A

Supply Voltage 110v/50hZ

Insulation Class IP20

Max Heat Output 2.8 kw

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE INFORMATION

REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 36%

Nominal heat output Pnom 2.8 kW

Minimum heat output (indicative) P min 1.4 kW

Maximum continuous heat output P max 2.8 kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB 0kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat No

Manual heat charge control with room and/or outdoor temperature

feedback

Electronic heat charge control with room and/or outdoor temperature

feedback

Fan assisted output No

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

Two or more manual stages, no temperature control No

With mechanical thermostat temp control No

With electronic temperature control No

Electronic temperature control with day timer No

Electronic temperature control with week timer Yes

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection No

Room temperature control with distance control option Yes

Room temperature control with adaptive start control No

Room temperature control with working time limitation No

Room temperature control with black bulb sensor No

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

1. These heaters are for INDOOR USE ONLY.

2. DO NOT expose the heater or power cable to rain or wet conditions. Any

water entering the heater will increase the risk of electric shock. DO NOT

use this heater in a bathroom, shower room or any other wet environment.

3. NEVER locate the heater near combustible materials such as curtains,

furniture etc. Allow at least 1 metre distance.

4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow a

distance of at least 1 metre from a wall or ceiling. Avoid placing the heater

directly below power socket outlets.

5. Take care to ensure that the wire guard cannot be covered.

6. Do not operate heater in explosive atmospheres such as in the presence of

flammable liquids, gases or dust such as in a paint spray booth or any

explosive environment.

7. NEVER stand the heater on a movable vehicle where it could tip over.

8. DO NOT allow the halogen tubes to become covered with dust which

could become a fire hazard. If used in a dusty workplace it should be

cleaned as described under Cleaning and Maintenance.

9. NEVER touch the halogen tubes for at least 15 minutes after switching off.

10. DO NOT leave the heater unattended.

11. If children are present always use with a fireguard.

12. Store the heater out of the reach of children and do not allow

persons unfamiliar with these instructions to operate it.

13. Use ONLY in an upright position.

14. ALWAYS manoeuvre the heater using the handles provided and avoid

trapping the fingers between the handle and the heater body.

15. NEVER leave the heater unattended while in use. Turn off at night if

unattended.

ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug

in any way. Do not use adaptor plugs with earthed (grounded) appliances.

Correct plugs and outlets will reduce the risk of electric shock.

2. DO NOT abuse the electrical cable. Never use the cable for pulling or

unplugging the heater. Keep the cable away from sources of heat, oil,

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

sharp edges or moving parts. Damaged or tangled cables increase the risk

of electric shock.

3. Keep the power cable well away from machines and ensure an adequate

electrical supply is close at hand so that the operation is not restricted by

the length of the cable.

4. DO NOT use this product with an extension cable.

5. ALWAYS disconnect from the power supply before moving the heater or

performing any cleaning or maintenance tasks.

6. Inspect the mains cable regularly for signs of damage. DO NOT use if it is

damaged, and ALWAYS keep it away from the source of heat.

7. Check the heater for damage before use. DO NOT use if the heater tubes

are damaged or broken. Any damage should be properly repaired or the

part replaced. If in doubt, DO NOT use. Consult your local Clarke dealer.

SERVICE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using

identical replacement parts. This will ensure that the safety of the

appliance is maintained.

Please keep these instructions in a safe place for future reference.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to

deal with the WEEE in accordance with the WEEE regulations in relation to the

treatment, recycling & recovery and environmentally sound disposal of the

WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

DEVIL 371PC (110V) UNITS

The 110V model is fitted with a 32 amp, three pin industrial plug to EN 60309

and MUST be connected to a 110 volt, 1 phase 50 Hz supply through a suitably

fused isolator switch. On no account must a 230V, 13 amp (BS1363) plug be

used.

NOTE: If a portable 110V transformer is used, make sure it has a rated

capacity sufficient to take the load of the heater.

If the heater is hard wired into the electrical system, all work must be carried

out in accordance with IEE regulations.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical

repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

UNPACKING AND ASSEMBLY

UNPACKING

Before assembling, please check contents against the following list and advise

your dealer immediately if any parts are missing.

1 x Heater

2 x Support Frames with castors (2 with brakes)

2 x Halogen tubes

1 x Handle

1 x Fixings pack

1 X Remote control unit

ASSEMBLY

1. Attach the support frames to the

heater body using 14mm securing

bolts supplied.

2. Attach the handle to each side of

the heater body using the 10 mm

bolts and plastic spacers. supplied.

3. Fit the halogen tubes (see detail

on page 11).

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

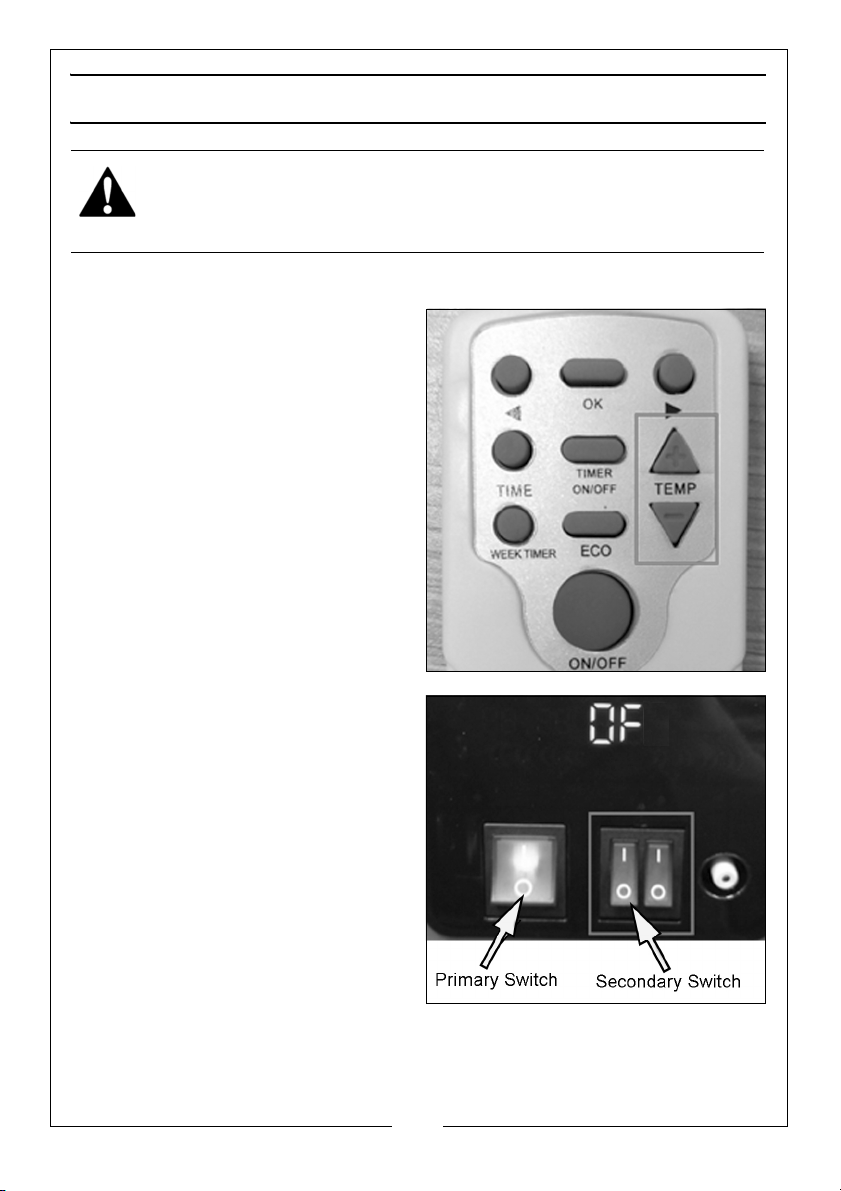

USING THE REMOTE CONTROL

All operations must be done using the

remote control.

• 2 x AAA batteries are required

and are installed as shown by

the diagram found inside the

control unit.

• The remote control must be

directed at the heater display

panel. It has a range of approx

2.5 metres and must be aimed

at the correct angle.

MANUAL OPERATION

1. Position the heater where required,

and lock the castors to prevent the

heater from moving. Always move

the heater using the handles.

2. Connect the power cable to a

suitable power supply.

• The heater is equipped with an

anti-tilt switch that

automatically cuts the power

off should the heater tip over. If

this happens, stand the heater

upright and it will immediately

re-set.

3. Switch on the power at the primary switch.

• The neon indicator will illuminate.

4. Set one or both secondary switches to the I (On) position as required.

WARNING: FOR SAFE OPERATION OF THIS HEATER IT IS ESSENTIAL TO READ

THESE INSTRUCTIONS BEFORE USE.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

• The left one controls the upper heating element and the right one

controls the lower.

5. Press the ON/OFF button on the

remote control to switch the

elements on.

• The secondary switches will

each illuminate to show that the

heating element is in use.

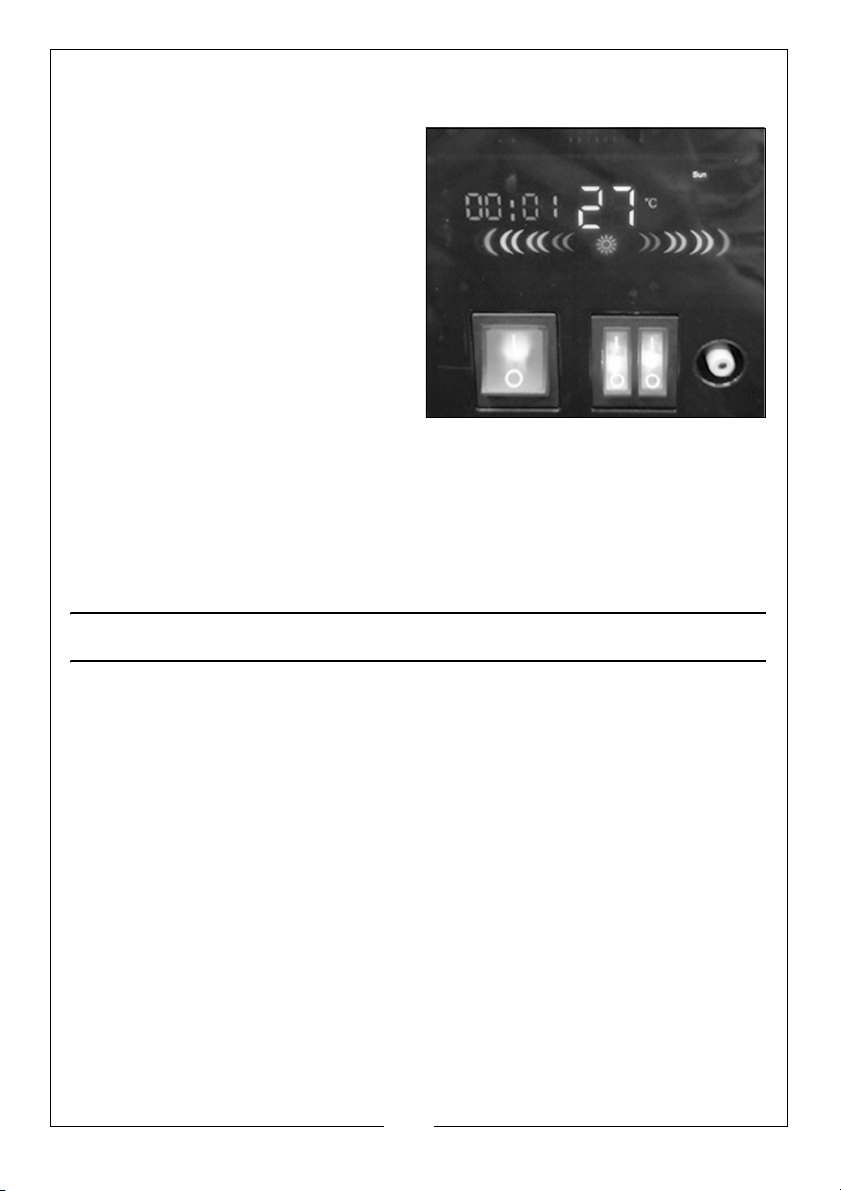

• The ambient room temperature

will be displayed.

6. Set the target temperature by

pressing the + and - arrow keys on

the remote control to a value

between 15°C and 45°C.

• During normal operation the bar below the temperature display

pulsates to indicate that the heater is operating.

• When the heater has reached the target room temperature, the bar

will become solid and the heater will automatically turn off. It will

resume working when the ambient temperature falls 2oC below the

target temperature.

PROGRAMMING THE TIMER

When programming, note that the selection will only remain actively

displayed for approximately 10 seconds before reverting to the beginning of

the process. If unsure what value you wish to enter, you can maintain the

display by making constant adjustments with the +/- buttons until making your

final selection.

SETTING CURRENT TIME

1. Switch the heater on with the remote control (on/off). The heating

elements can be either on or off.

2. Press the TIME button.

• SUN will flash repeatedly.

3. Use the left and right arrow buttons to choose a day.

4. Press the TIME button to go to the next step.

• The first 2 digits (HOUR) of the time display will flash.

5. Use the + and - buttons to scroll to the correct time (24 hr clock).

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. Press the TIME button to set the Minutes.

7. Use the + and - buttons to scroll to the minutes you require.

8. Press the TIME button to finish the time and day set up.

• The current time and day will show as a constant when the WEEK

TIMER is activated.

NOTE: The Time and Day setting will be lost and will need to be reset.

Once the heater is powered off completely, (either from the

power switch or wall supply) Follow steps 1 to 8 to reset the clock.

THE WEEK TIMER

• The Week Timer covers a 7 day week (Monday to Sunday). You can

program up to 3 individual “on/off” cycles each day.

• Each heating period can be set for a maximum of 24 hours in 10

minute increments. It is not possible for the program to span two

consecutive days e.g. Monday 10pm to Tuesday 2am.

If the user requires the heater to operate over the midnight period

they would have to set two programs, one for Monday and one for

Tuesday.

• The user can then also set two further programs for Tuesday if

required.

• Always ensure that the heating elements are switched to the ON

position when in Timer mode.

SETTING THE WEEK TIMER

SETTING THE DAY AND PROGRAM

1. Press the WEEK TIMER button on the remote control.

• Monday will start to flash.

2. Press the left and right arrow keys to select the day you want your program

to start and press the WEEK TIMER button to confirm.

• Program 1 [01] will now flash.

3. Use the + and - buttons to select the program you want to set and press the

WEEK TIMER button to confirm.

• The programs will be displayed as 01, 02 and 03.

• The first two digits of the clock will flash and the word ON will be

displayed.

4. Use the + and - arrow keys to select the starting hour and press the WEEK

TIMER button to confirm.

Indice

Altri manuali Clarke Stufa

Clarke

Clarke OFR 9 Manuale di istruzioni

Clarke

Clarke XR60 Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 370PD Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 370SPC Manuale di installazione e funzionamento

Clarke

Clarke OFR13/250 Manuale di istruzioni

Clarke

Clarke DEVIL 4035 Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 2800PTC-B Manuale di istruzioni

Clarke

Clarke DEVIL 7030 Manuale di istruzioni

Clarke

Clarke DEVIL 370PC Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 2000PTC Manuale di istruzioni

Clarke

Clarke OFR 5/50 Manuale di istruzioni

Clarke

Clarke Devil 370B Series Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 2000PTC-B Manuale di istruzioni

Clarke

Clarke 6933980 Manuale di istruzioni

Clarke

Clarke OFR7 Manuale di istruzioni

Clarke

Clarke Devil 6003 Manuale

Clarke

Clarke GRH15 Manuale di istruzioni

Clarke

Clarke CONTRACTOR DEVIL371PD Manuale di installazione e funzionamento

Clarke

Clarke OFR 9/90 Manuale di istruzioni

Clarke

Clarke DEVIL 2800PTC Manuale di istruzioni

Clarke

Clarke Devil 6003 Manuale di istruzioni

Clarke

Clarke DEVIL 9000PTC Manuale di istruzioni

Clarke

Clarke Devil 370P Manuale di installazione e funzionamento

Clarke

Clarke IRD40 6920415 Manuale di installazione e funzionamento

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente

iLO

iLO IHP2424 Manuale operativo
