OPERATION & MAINTENANCE

INSTRUCTIONS

GC03/23

ORIGINAL INSTRUCTIONS

2.8KW 230V PTC ELECTRIC FAN HEATER

MODEL NO: DEVIL 2800PTC-B

PART NO: 6925601

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Electric Fan Heater. Before attempting

to use this product, please read this manual thoroughly and follow the

instructions carefully. In doing so you will ensure the safety of yourself and that

of others around you, and you can look forward to your purchase giving you

long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

PRODUCT SPECIFICATIONS

Product: Depth x Width x Height 210 x 265 x 293 mm

Product weight 2.75 kg

Operating Voltage and Frequency: (V / Hz) 230 V / 50Hz

Required power; Fan only

Fan& heat setting 1

Fan& heat setting 2

0.11 A

6.78 A

12.2 A

Operating Temperature: (Min/Max) (°C): -15 to 25°C

Heat Output: (kW): Fan only

Fan& heat setting 1

Fan& heat setting 2

0.025 W

1.4 kW

2.8 kW

Max Air Output: (m3/h) 238m3/h

Safety Device: Thermal cut-out

Duty Cycle Classification: S1 Continuous duty

Electrical Insulation Class I

Ingress Protection rating IP20

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE

INFORMATION REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit

Heat output

Measured seasonal space heating energy efficiency 36%

Nominal heat output Pnom 2.8 kW

Minimum heat output (indicative) P min 1.4 kW

Maximum continuous heat output P max 2.8 kW

Auxiliary electricity consumption

At nominal heat output elmax n/a kW

At minimum heat output el min n/a kW

In standby mode elSB n/a kW

Type of heat input for electric storage local heaters only

Manual heat charge control with integrated thermostat No

Manual heat charge control with room and/or outdoor temperature

feedback

Electronic heat charge control with room and/or outdoor temperature

feedback

Fan assisted output No

Type of heat output/room temperature control (select one)

Single stage heat output, no temperature control No

Two or more manual stages, no temperature control No

With mechanical thermostat temp control Yes

With electronic temperature control No

Electronic temperature control with day timer No

Electronic temperature control with week timer No

Other control options (multiple selections possible)

Room temperature control with presence detection No

Room temperature control with open window detection No

Room temperature control with distance control option No

Room temperature control with adaptive start control No

Room temperature control with working time limitation No

Room temperature control with black bulb sensor No

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY ADVICE

Make sure that you read, understand and comply with the following.

The following symbols appear on the unit.

GENERAL SAFETY

• The heater must only be used by persons who have read these

instructions

•DO NOT operate when you are tired or under the influence of alcohol,

drugs or intoxicating medication.

•DO NOT stand on the heater.

•DO NOT use the heater with wet hands or when there is water on the

power cable.

• Turn the heater off when not in use and keep it in a safe, dry, childproof

location.

• The heater is designed to heat enclosed areas, such as workshops and

other industrial areas. DO NOT use the heater for any other function. It is

not suitable for drying clothes or laundry.

• Young children must be kept away unless continuously supervised.

•DO NOT touch the heater casing or grille during use.

ELECTRICAL SAFETY

• Regularly inspect the power cable / plugs to be used with this heater

and DO NOT use the heater if the power cable is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current

Circuit Breaker).

• Make sure that the voltage on the rating plate is the same as the

voltage of the power supply. If in doubt, consult a qualified electrician.

•DO NOT abuse any electrical cable used with this heater. NEVER use the

cable for pulling or unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving

parts. Damaged or tangled cables increase the risk of electric shock.

Hot

surface,-

do not

touch

Do not

cover

Read the

manual

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

•DO NOT obstruct the air inlet and outlet sections of the heater.

•DO NOT cover the heater.

•DO NOT touch the heater casing or grille when first switched off, as these

will be very hot and will take time to cool.

•DO NOT get the heater wet or use in areas of high condensation.

•DO NOT allow the power cable to touch hot surfaces.

•DO NOT connect other appliances to the same mains socket as the

heater.

•DO NOT use this heater with a programmable timer used to switch it on

automatically.

POSITIONING

• This heater is designed for indoor use only.

•DO NOT place the heater close to a bath, wash basin, shower, swimming

pool or any other water-filled area or wet surface. DO NOT place the

heater up against any surface such as a wall, door or furniture etc.

•DO NOT place the heater immediately below any electrical outlet.

•NEVER place the heater near combustible materials such as curtains,

furniture etc. Allow at least 2 metre clearance.

•DO NOT place the heater on a raised surface or anywhere where it

could topple over

•ALWAYS ensure that the grille cannot be blocked by curtains or other

fabrics.

•DO NOT operate in explosive atmospheres such as in the presence of

flammable liquids, gases or dust such as in a paint spray booth or any

explosive environment. Electric motors create sparks which may ignite

dust or fumes.

• DO NOT LEAVE THE HEATER UN-ATTENDED, FOR EXAMPLE, LEFT ON AT

NIGHT.

•ONLY use the heater on a level surface.

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,

LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity

supply is the same as that indicated on the rating plate. Connecting it to any

other power source may cause damage.

If it is necessary to change the fuse in the plug, the fuse cover must be refitted.

If the fuse cover becomes lost or damaged, the plug must not be used until a

suitable replacement is obtained.

If the plug has to be changed due to damage, a replacement should be

fitted, following the wiring instructions shown below. The old plug must be

disposed of as insertion into a mains socket could cause an electrical hazard.

If the colors of the wires in the power cable of this product do not correspond

with the markings on the terminals of your plug, proceed as follows.

•TheBlue wire must be

connected to the

terminal which is

marked Nor coloured

Black.

•TheBrown wire must

be connected to the

terminal which is

marked Lor coloured

Red.

•TheYellow/Green wire

must be connected to

the terminal which is marked Eor coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs

yourself.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY

BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

1. Put the heater in a level position

on a flat surface and at a safe

distance from flammable

materials. Keep a minimum of 2m

clearance all round.

2. Connect the heater to a suitable

power supply.

3. Set the thermostat control to the

maximum setting (fully clockwise).

4. Set the mode selector to one of

the 3 settings:

• The heater will take up to three minutes to reach optimum temperature.

5. Once the room reaches the required temperature, turn the thermostat

control slowly counter-clockwise until the thermostat clicks, leave the

control in this position.

• The room temperature will be maintained at this setting. The heater will

continue to operate until the power switch is turned to the OFF position.

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE

OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR

OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND

CAN CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE

CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

Off

Fan Only

Heat Setting 1

Heat Setting 2

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. For fan only operation, turn the

power switch to the fan only

setting and set the thermostat to

its minimum setting.

7. Adjust the angle by loosening

both adjusting knobs and setting

the required angle.

8. Retighten the adjusting knobs.

9. When not in use, disconnect the

heater from the mains supply.

Store it in a safe, dry, childproof

location.

MAINTENANCE.

• Check that the heater is in good working order. Take immediate action

to repair or replace damaged parts.

•DO NOT allow the heating elements to become covered with dust

which could become a fire hazard. If used in a dusty workplace it should

be cleaned after every use with a dust extractor.

•ONLY recommended parts should be used. Unapproved parts may be

dangerous and will invalidate the warranty.

•DO NOT attempt to repair a damaged heater, contact the CLARKE

service department.

• Clean the heater with a soft damp cloth once cold. DO NOT use solvents

or abrasives

• No other maintenance is required, should you discover any problem

with the heater, return it to the CLARKE service department for repair.

WARNING: SERVICING OR INTERNAL MAINTENANCE MUST ONLY BE

CARRIED OUT BY THE CLARKE SERVICE DEPARTMENT.

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW

THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY

MAINTENANCE TASKS.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SERVICE & REPAIRS

Have your heater repaired by a qualified person using identical replacement

parts. This will ensure that the safety of the heater is maintained.

TROUBLESHOOTING

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

Problem Possible Cause Remedy

Heater does not

operate, although

plugged in with the

switch and

thermostat

switched on.

Plug is loose/bad

connection.

Pull the plug out & check all

connections (cable/plug and socket).

Fuse blown or

circuit breaker

trips.

Replace if necessary and investigate

cause. If fuse blows repeatedly,

consult your CLARKE dealer.

No power at

socket outlet

Insert the plug in a suitable socket.

Heating element

glowing hot.

Input voltage too

high.

Use a power supply in accordance

with the rating on the label.

Air inlet grille is

blocked.

Ensure the heater is kept away from

any objects which could cover the air

inlet or be drawn into it.

The unit has failed

to heat up so only

the air fan has

operated.

Control switch not

set at a

“HEATING” level.

Turn switch to a heating level.

Thermal cut out

device is active/

thermostat has

tripped

Turn the thermostat and listen. If there

is no CLICK and the thermostat is not

damaged, the heater will

automatically switch ON when it has

cooled down.

Abnormal noise. Heater is not level. Stand heater on a level surface.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

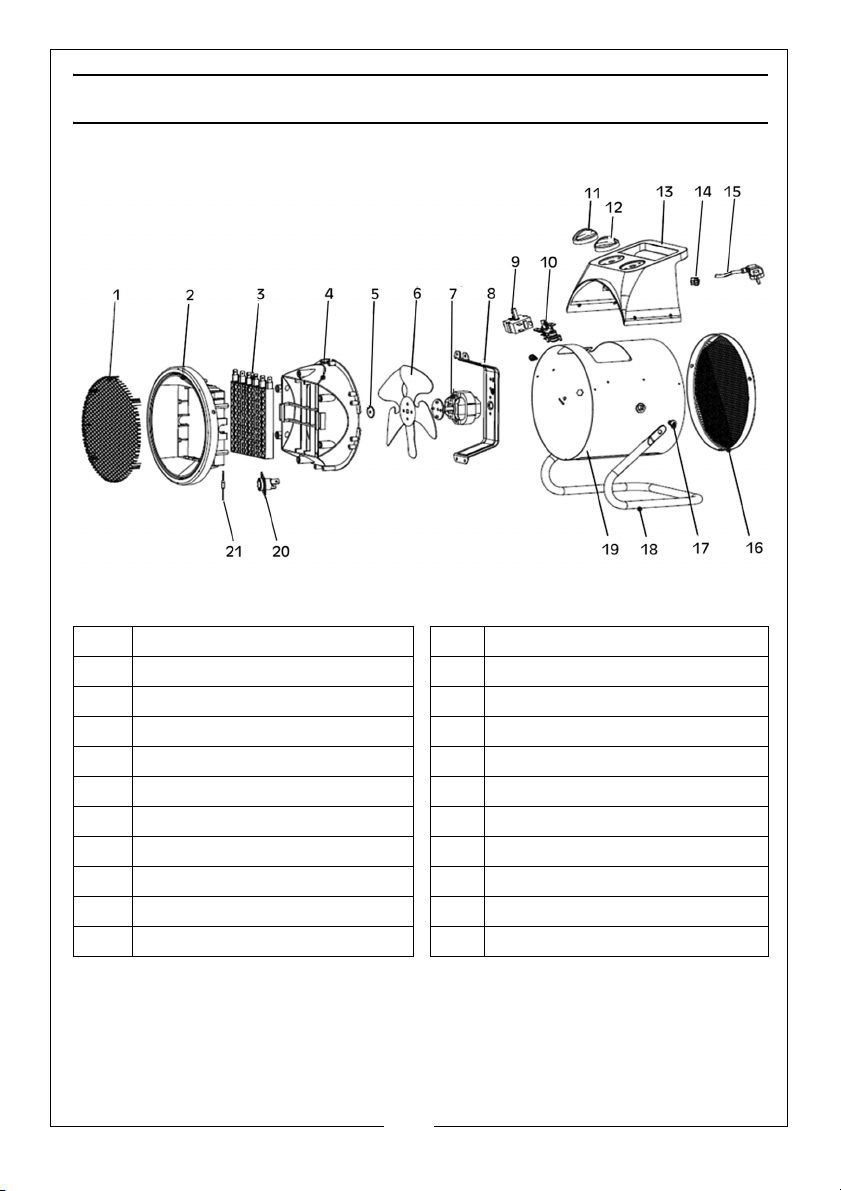

COMPONENT PARTS

1 Front Grille 12 Thermostat Knob

2 Air Outlet Shutter Fixed Ring 13 Control Box Cover

3 PTC Heating Element 14 Cable Clamp

4 Air Flue 15 Power Cable/Plug

5 Fan Plate 16 Back Grille

6 Fan 17 M6 x 16mm Screw

7 Motor 18 Steel Pipe Frame

8 Motor Support 19 Outer Casing

9 Rotary Switch 20 Self-Resetting Thermostat

10 Adjustable Thermostat 21 Temperature Probe

11 Mode Selector Knob

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Stufa

Clarke

Clarke CONTRACTOR GRH30 Manuale di istruzioni

Clarke

Clarke DEVIL 7030 Manuale di istruzioni

Clarke

Clarke IQ2000S Manuale elenco delle parti

Clarke

Clarke BR13/250 Manuale di istruzioni

Clarke

Clarke CONTRACTOR DEVIL 351C Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 7003 Manuale di istruzioni

Clarke

Clarke DEVIL 5000PTC Manuale di istruzioni

Clarke

Clarke DEVIL 6025 Manuale di istruzioni

Clarke

Clarke DEVIL 370PD Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 371SPD Manuale di installazione e funzionamento

Clarke

Clarke Devil 370P Manuale di installazione e funzionamento

Clarke

Clarke 6933985 Manuale di istruzioni

Clarke

Clarke 6933980 Manuale di istruzioni

Clarke

Clarke DEVIL155 Manuale

Clarke

Clarke DEVIL 9000PTC Manuale di istruzioni

Clarke

Clarke OFR 9 Manuale di istruzioni

Clarke

Clarke DEVIL 370SPC Manuale di installazione e funzionamento

Clarke

Clarke OFR 9 Manuale di istruzioni

Clarke

Clarke DEVIL 371SPC Manuale di installazione e funzionamento

Clarke

Clarke 6933990 Manuale di istruzioni

Clarke

Clarke DEVIL 350 230V Manuale di installazione e funzionamento

Clarke

Clarke OFR 5/50 Manuale di istruzioni

Clarke

Clarke DEVIL 370SPD Manuale di installazione e funzionamento

Clarke

Clarke Devil IRD20B Manuale di istruzioni

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente

iLO

iLO IHP2424 Manuale operativo
