Clarke DEVIL 4003 Manuale di istruzioni

Only suitable for well insulated areas and not designed

to be the primary heat source

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 ISS - 2

2.8KW WORKSHOP PTC HEATER

MODEL NO: DEVIL 4003

PART NO: 6925128

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, read this manual carefully. In doing so

you guarantee the safety of yourself and that of others around you, and you

can look forward to your purchase giving you long and satisfactory service

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused,

tampered with, or not used for the purpose for which it was intended. Faulty

goods must be returned to their place of purchase, no product can be

returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Operating Voltage / Frequency 230V / 50Hz

Operating Temperature Range -15 to +25°C

Input Wattage:

Fan only

Fan + Heat 1

Fan + Heat 2

0.02 kW

2 kW

2.8 kW

Heat output 2.8 kW

Max Air Output 312 m3/h

Safety Devices Thermal cut-out

Tip-over switch

Ingress Protection IP20

Depth x Width x Height 160 x 205 x 378 mm

Weight 3.5 kg

Sound Pressure Level 43 dB

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

THE FOLLOWING TABLE ADDRESSES THE INFORMATION

REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit Item Unit

Heat output Type of heat input for electric storage local

heaters only

Measured seasonal space

heating energy efficiency

36% Manual heat charge control with

integrated thermostat

Nominal heat

output

Pnom 2.0 kW Manual heat charge control with room

and/or outdoor temperature feedback

Minimum heat

output

(indicative)

P min 1.0 kW Electronic heat charge control with

room and/or outdoor temperature

feedback

Maximum

continuous

heat output

P max 2.0 kW Fan assisted output No

Auxiliary electricity consumption Type of heat output/room temperature control

(select one)

At nominal

heat output

elmax N/A kW Single stage heat output, no

temperature control

At minimum

heat output

el min N/A kW Two or more manual stages, no

temperature control

In standby

mode

elSB N/A kW With mechanical thermostat temp

control

Yes

With electronic temperature control No

Electronic temperature control with day

timer

Electronic temperature control with

week timer

Other control options (multiple selections

possible)

Room temperature control with

presence detection

Room temperature control with open

window detection

Room temperature control with

distance control option

Room temperature control with

adaptive start control

Room temperature control with working

time limitation

Room temperature control with black

bulb sensor

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

SAFETY RULES

Make sure that you read, understand and comply with the following.

SAFE WORKING PRACTICES

• DO NOT operate the heater when you are tired or under the influence of

alcohol, drugs or intoxicating medication.

• DO NOT stand on the heater.

• DO NOT use the heater with wet hands or when there is water on the

power cable.

• Turn the heater off when not in use and keep it in a safe, dry location.

The heater is designed to heat enclosed areas larger than 4m3, such as

workshops and other industrial areas. Do not use the heater for any other

function. It is not suitable for drying clothes or laundry.

ELECTRICAL SAFETY

• Regularly inspect the power cable / plug for signs of damage/looseness.

DO NOT use the heater it the power cable is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current

Circuit Breaker) and a suitable isolator into the main distribution board.

• Make sure that the voltage on the rating label is the same as the voltage

of the power supply. If in doubt, consult a qualified electrician.

• DO NOT abuse the electrical cable. Never use the cable for pulling or

unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving

parts. Damaged or tangled cables increase the risk of electric shock.

• DO NOT use extension cables with this heater.

WARNING: THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED AREAS

AND IS NOT DESIGNED TO BE THE PRIMARY HEAT SOURCE.

WARNING: THIS HEATER MUST BE EARTHED.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

POSITIONING

• This heater is designed for indoor use only.

• DO NOT place the heater close to any water-filled area or wet surface.

• DO NOT place the heater against any surface such as a wall, door or

furniture etc.

• DO NOT place the heater immediately below any electrical outlet.

• NEVER place the heater near combustible materials. Allow at least 2

metre clearance.

• DO NOT place the heater on a raised surface or anywhere where it

could topple over.

• ALWAYS ensure that the grille cannot be blocked.

• DO NOT operate fan heaters in explosive atmospheres such as in the

presence of flammable liquids, gasses or dust such as in a paint spray

booth or any explosive environment. Electric motors create sparks which

may ignite dust or fumes.

OPERATION

• The heater must only be used by people who have read these

instructions and have been trained in its use.

• DO NOT obstruct the air inlet and outlet sections of the heater.

• DO NOT cover the heater with anything that could restrict the air flow.

• DO NOT touch the heater casing or grille when first switched off, as these

will be very hot and will take time to cool.

• DO NOT get the heater wet or use in areas of high condensation.

• DO NOT allow the power lead to touch hot surfaces.

• DO NOT connect other appliances to the same mains socket as the

heater.

• ONLY use the heater in a level position.

• DO NOT use this heater with a programmable timer used to switch it on

automatically.

• DO NOT leave the heater unattended.

• ALWAYS switch the heater off at night.

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,

LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE.

• Check that the heater is in good working order. Take immediate action

to have any damaged parts repaired or replaced by the Clarke service

department.

• DO NOTallow the heating elements to become covered with dust which

could become a fire hazard. If used in a dusty workplace it should be

cleaned as described under Maintenance on page 10.

• Only recommended parts should be used. Unapproved parts may be

dangerous and will invalidate the warranty.

• Have your heater repaired by a qualified person using identical

replacement parts. This will ensure that the safety of the heater is

maintained.

SAFETY SYMBOLS

These safety symbols appear on the heater.

WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY BEFORE

ANY SERVICING OR MAINTENANCE. THIS MUST ONLY BE CARRIED OUT BY

THE CLARKE SERVICE DEPARTMENT.

Hot Surface,

Do not touch

Do not cover

WEEE Directive for the

disposal of Waste

Electrical & Electronic

Equipment

Read instruction

manual before use

Suitable for indoor use

only

Protect from splashing

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

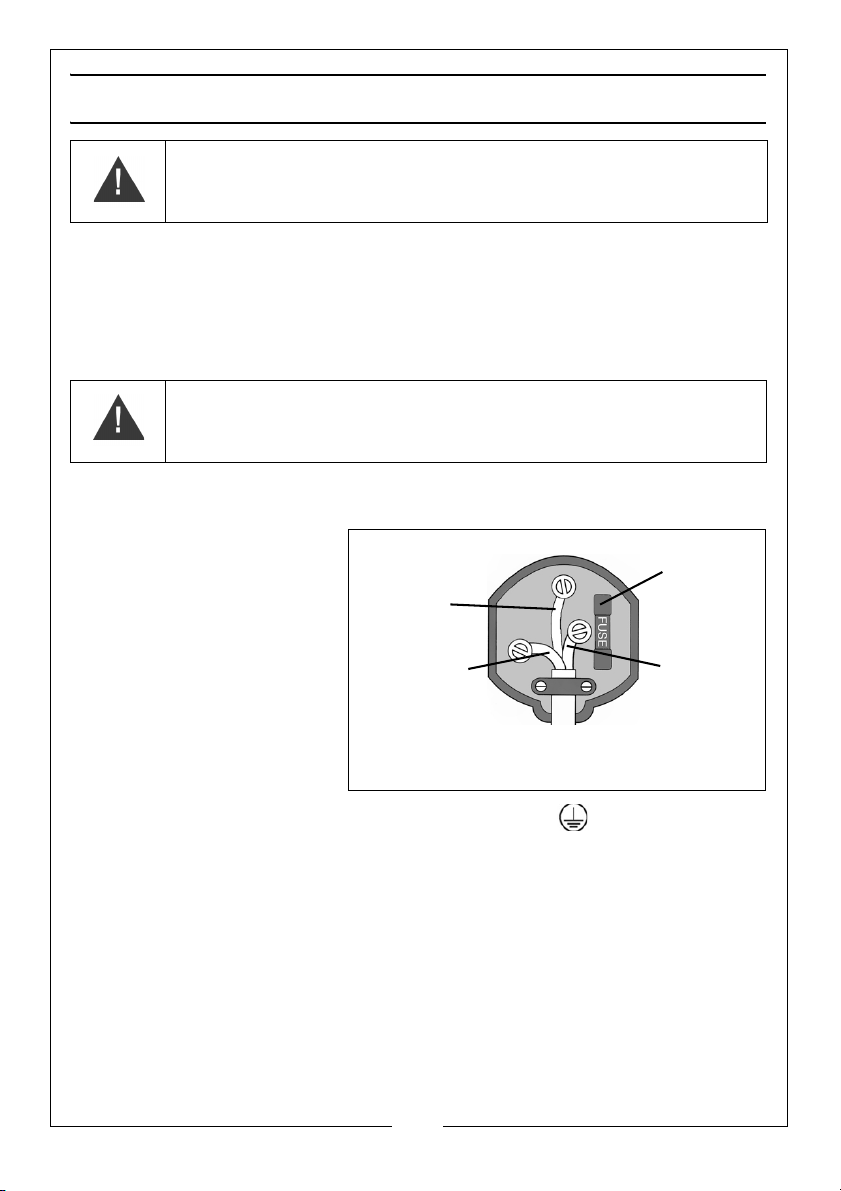

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply

through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or

because of damage, it must be removed and a replacement fitted, following

the wiring instructions shown below. The old plug must be discarded safely, as

insertion into a power socket could cause an electrical hazard.

If the colours of the wires in the power cable do not agree with the markings

on the plug:

• The BLUE wire must be

connected to the

terminal which is

marked N or coloured

black.

• The BROWN wire must

be connected to the

terminal which is

marked L or coloured

red.

• The YELLOW AND

GREEN wire must be

connected to the terminal which is marked E or or coloured green.

We strongly recommend that this machine is connected to the mains supply

through a Residual Current Circuit Breaker (RCCB).

If you are not sure, consult a qualified electrician.

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS

SUPPLY.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE

COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

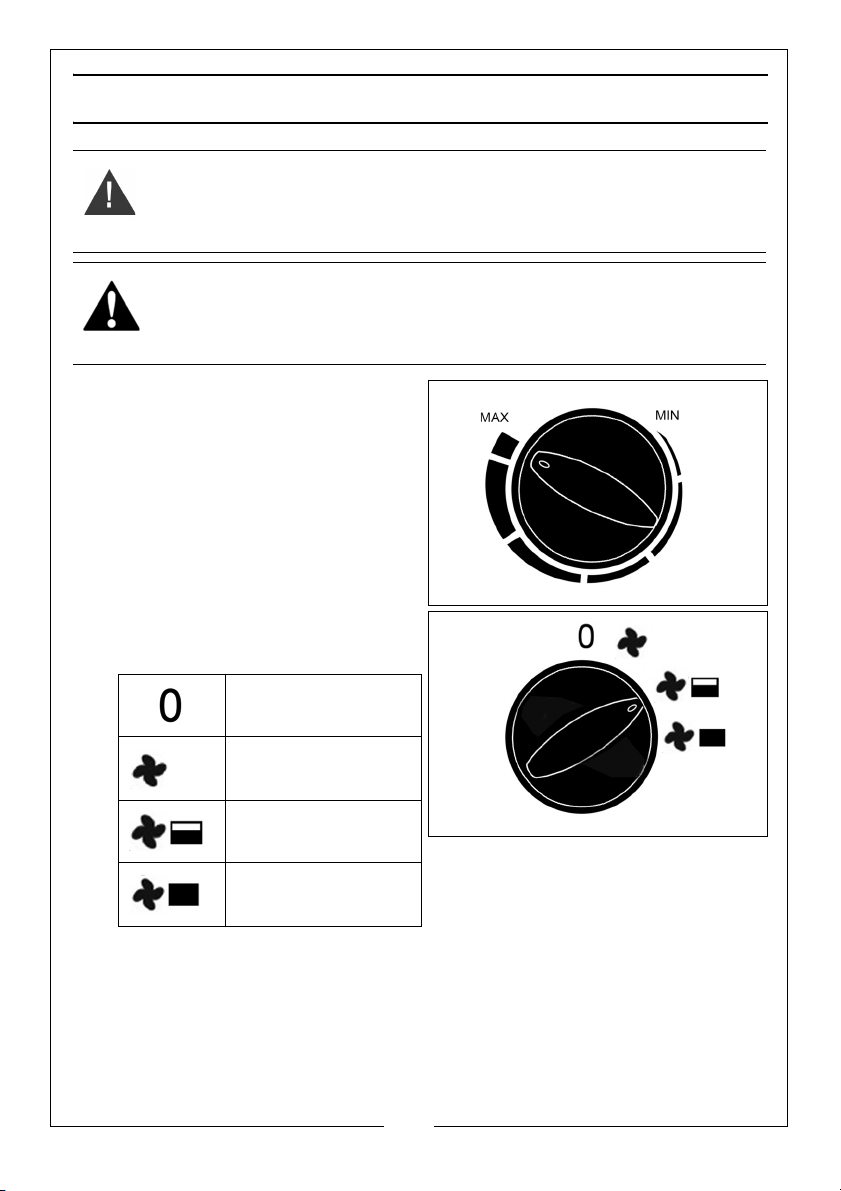

OPERATION

1. Put the heater in a level position

on a firm, flat surface and at a

safe distance from flammable

materials. Keep a minimum of 2m

clearance all round.

2. Connect the heater to a suitable

power supply.

3. Set the thermostat control to the

maximum setting (fully clockwise).

4. Set the mode selector to one of

the 3 settings:

• The heater will take up to three minutes to reach optimum temperature.

5. Once the room reaches the required temperature, turn the thermostat

control slowly counter-clockwise until the thermostat clicks. Leave the

control in this position.

• The room temperature will be maintained at this setting. The heater will

continue to operate until the power switch is turned to the OFF position.

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS IF OCCUPIED BY

PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS

CONSTANT SUPERVISION IS PROVIDED.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND

CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE

CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

Off

Fan only

Fan + Heat Setting 1

Fan + Heat Setting 2

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

6. When not in use, disconnect the heater from the mains supply. Store it in a

safe, dry, childproof location.

SAFETY SYSTEMS

The Devil 4003 has a thermal cut out to prevent the unit from overheating.

If the temperature of the front grille gets too high the thermal cutout will turn

off the heating elements. When the fan has cooled the unit sufficiently, normal

operation will resume.

In the event of the heater falling over, the tip-over switch will cut off the power

until it is set upright again.

FAULT FINDING

Problem Possible Cause Remedy

Heater does

not operate

although

plugged in with

the switch and

thermostat

switched on.

Plug is loose/bad

connection.

Check the connection of the plug and

socket.

Fuse blown or

circuit breaker has

tripped.

Replace if necessary and investigate

cause. If fuse blows repeatedly, consult

your Clarke dealer.

No power at

socket outlet

Insert the plug in a functioning socket.

Heating

element

glowing hot.

Input voltage too

high.

Use a power supply in accordance with

the rating on the label.

Air inlet grille is

blocked

Ensure the heater is kept away from any

objects which could cover the air inlet or

be drawn into it.

Heater has

failed to heat

up so only the

air fan has

operated.

Thermostat has

tripped.

Turn the thermostat and listen. If there is

no CLICK and the thermostat is not

damaged, the heater will automatically

switch ON when it has cooled down.

Abnormal

noise.

Heater is not level. Stand heater on a level surface

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

1. Clean the heater with a soft damp cloth, Do not use solvents or abrasives.

2. No other maintenance is required, should you discover any problem with

the heater, return it to the Clarke service department for repair.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

This means that this product must not be discarded with general household

waste. It must be discarded according to the laws governing Waste Electrical

and Electronic Equipment (WEEE) at a recognised disposal facility.

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW

THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY

MAINTENANCE TASKS.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Stufa

Clarke

Clarke DEVIL 350C Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 7003 Manuale di istruzioni

Clarke

Clarke CONTRACTOR GRH30 Manuale di istruzioni

Clarke

Clarke IQ2000S Manuale elenco delle parti

Clarke

Clarke DEVIL 371PC Manuale di installazione e funzionamento

Clarke

Clarke OFR7 Manuale di istruzioni

Clarke

Clarke DEVIL 370SPC Manuale di installazione e funzionamento

Clarke

Clarke Devil IRD20B Manuale di istruzioni

Clarke

Clarke Devil 370B Series Manuale di installazione e funzionamento

Clarke

Clarke Devil 6003 Manuale di istruzioni

Clarke

Clarke DEVIL 350B 230V Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 7030 Manuale di istruzioni

Clarke

Clarke DEVIL 2000PTC-B Manuale di istruzioni

Clarke

Clarke DEVIL 350 230V Manuale di installazione e funzionamento

Clarke

Clarke CFI 1800 Manuale di istruzioni

Clarke

Clarke XR55 Manuale di installazione e funzionamento

Clarke

Clarke GRH15 Manuale di istruzioni

Clarke

Clarke XR60DV Manuale di istruzioni

Clarke

Clarke DEVIL 370PC Manuale di installazione e funzionamento

Clarke

Clarke CONTRACTOR DEVIL 351C Manuale di installazione e funzionamento

Clarke

Clarke DEVIL 370SPD Manuale di installazione e funzionamento

Clarke

Clarke OFR 9/90 Manuale di istruzioni

Clarke

Clarke DEVIL 2800PTC-B Manuale di istruzioni

Clarke

Clarke Devil 6002 Manuale

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente

iLO

iLO IHP2424 Manuale operativo
