Clarke IG1200C Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1020 - REV 1

1100W INVERTER GENERATOR

MODEL NO: IG1200C

PART NO: 8877110

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INTRODUCTION

Thank you for purchasing this CLARKE Inverter Generator.

Before attempting to use this product, please read this manual thoroughly and

follow the instructions carefully. In doing so you will ensure the safety of yourself

and that of others around you, and you can look forward to your purchase

giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12

months from the date of purchase. Please keep your receipt which will be

required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation

to deal with its safe disposal in accordance with the Waste Electrical

and Electronic Equipment (WEEE).

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility. If disposing of this product or any damaged components, do not

dispose of with general waste. This product contains valuable raw materials.

Metal products should be taken to your local civic amenity site for recycling of

metal products.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY RULES

WORK AREA

•ALWAYS use in a well ventilated area.

•ALWAYS position the exhaust outlet away from people.

• Read these safety instructions before using the equipment.

• Keep children away from the generator.

POSITIONING THE GENERATOR

1. Keep the generator at least 1 m (3 ft.) from buildings or other equipment, or

the engine may overheat.

2. Place the generator on a solid, flat surface.

3. Make sure the surrounding area is free from any material that could burn or

be damaged by heat.

4. NEVER move or tilt the generator whilst it is switched on.

FIRE PREVENTION

1. ALWAYS switch the engine OFF when refuelling.

2. ALWAYS refuel in a well ventilated area.

3. NEVER overfill the tank, only fill to the level specified.

4. NEVER smoke whilst refuelling and avoid smoking or using a naked flame

near the generator.

5. NEVER start the engine if there is spilled fuel. Any spillage must be wiped

clean and the generator allowed to dry before attempting to start the

engine.

WARNING: EXHAUST FUMES CAN BE EXTREMELY DANGEROUS IF INHALED

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PREVENTION OF ELECTRIC SHOCK

1. NEVER use the generator in wet conditions unless it is well protected/

covered. Under these conditions, adequate ventilation MUST be provided

2. NEVER operate the generator with wet hands

3. NEVER use water or any other liquids to clean the generator.

4. Make sure you ground (earth) the generator.

ADDITIONAL SAFETY RULES FOR GENERATORS

1. ALWAYS make sure the applied load does not exceed the generator rating.

Overloading the generator is dangerous and could cause serious

damage.

2. ALWAYS

disconnect the generator when carrying out any maintenance.

3. ALWAYS allow the generator to reach operating speed before connecting

a load.

4. NEVER allow the generator to run out of fuel when a load is connected.

5. NEVER transport the generator with fuel in the tank.

6. NEVER connect the generator to a commercial or residential power supply;

e.g. ring main.

7. NEVER allow the generator air vents to become blocked.

SAFETY SYMBOLS

Read instruction

manual before use.

Hot surface - Do not

touch

Dangerous Voltage Poisonous fumes - Do

not use the generator in

an enclosed space.

Flammable Caution - The user

should be aware of a

general hazard.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERATOR OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Air Vent Knob 10 Earthing Point

2 Fuel Cap 11 Economy Control Switch

3 Fuel Valve Knob 12 AC Socket (230V)

4 Starting Handle 13 DC Socket (12V)

5 Side Maintenance Cover 14 DC Circuit Breaker

6 Top Maintenance Cover 15 Output Indicator

7 Muffler 16 Overload Indicator

8 Choke 17 Oil Alarm Indicator

9 Engine ON/OFF Switch 18 Primer Bulb

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

UNPACKING AND ASSEMBLY

Unpack your generator and check the following items are present. Should

there be any missing or damaged during transit contact your CLARKE dealer.

BEFORE USING THE GENERATOR

IMPORTANT: Generators should ALWAYS be earthed. Make sure you earth the

generator.

Before using your generator check that:

• The generator is in good condition and free from any damage.

• The generator is clean and free from fuel or oil spillage.

• The generator is correctly located for use (See page 3).

• There is no leakage.

NOTE: To avoid accidental spillage of fuel, always use a funnel to fill the

fuel tank. If fuel is spilled it must be removed from the unit before

attempting to start the engine.

EARTHING

An earth spike and cable can be purchased at your local camping supplier,

or alternatively an earth spike can be made and it is suggested you get

advice from a qualified electrician.

To make a spike use a copper tube or copper rod 12mm diameter, a minimum

length of 200 mm and with an M6 machine screw one end.

The cable used should be a maximum length of 1 metre and a minimum of

1.0mm2to carry a 10 amp load.

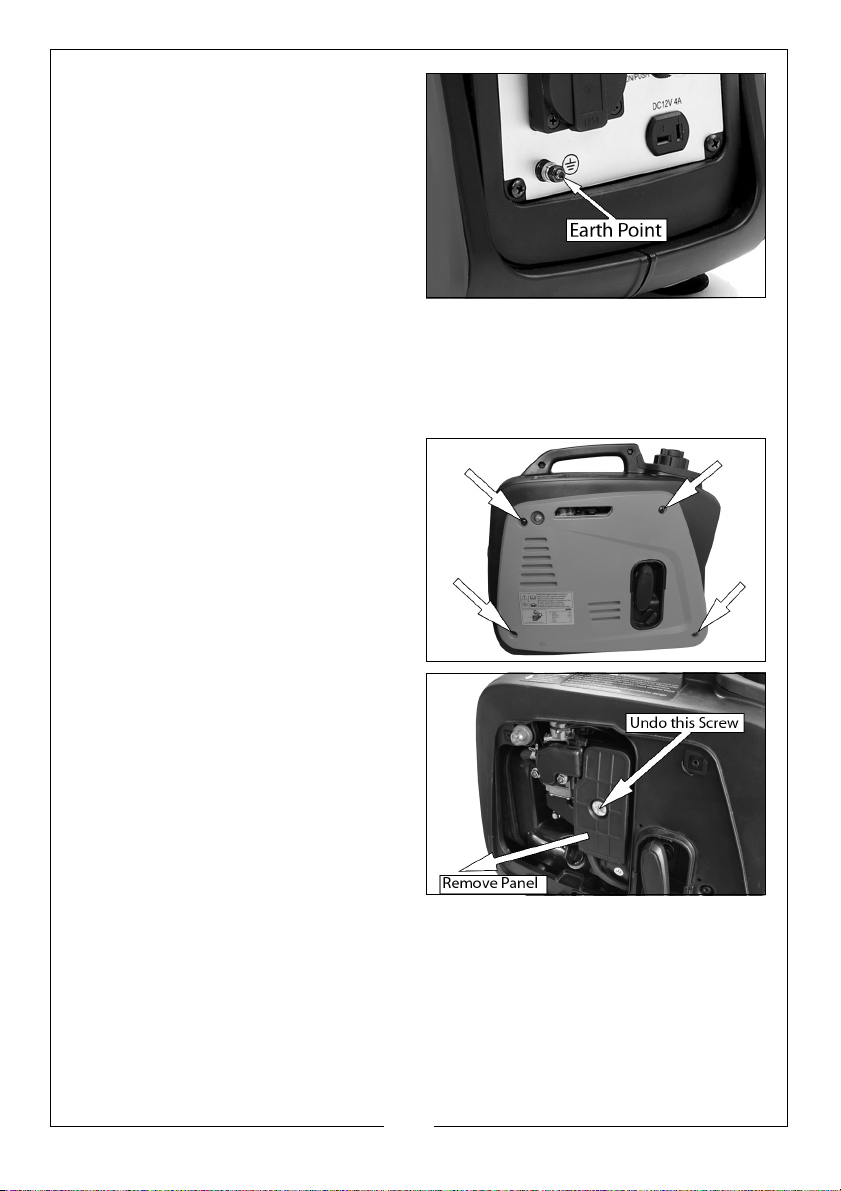

Attach the cable to the generator at the earth point (shown on the right).

1 x 1100 Watt Inverter Generator 1 x 12 Volt Connecting Lead Assembly

1 x Spark Plug Box Spanner 1 x CLARKE instruction manual

1 x Cross-head Screwdriver

WARNING: IT IS ADVISABLE TO PROPERLY EARTH YOUR GENERATOR

BEFORE STARTING USING A WIRE AND A SMALL METAL EARTH SPIKE. THE

WIRE AND EARTH SPIKE ARE NOT SUPPLIED WITH THE UNIT.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

Connect the other end to the spike

between a flat washer and the

copper rod with a lock washer under

the head of the M6 machine screw in

a similar fashion to the earth point

screw on the generator.

When pushing the spike into the

ground the generator must not be

running and it is suggested that the

spike is pushed into the ground by at

least 100 mm.

If you have doubt about earthing of generators in accordance with BS -

EN7430, consult a qualified electrician.

CHECKING THE AIR FILTER

1. Remove the side maintenance

panel.

2. Remove the air filter cover screw

shown on the right.

3. Slide out the air filter panel.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

4. Remove the air filter element.

5. If the air filter is damaged contact

the CLARKE spare parts

department for a replacement.

• If the filter is dirty, wash it in a

solution of warm water and

mild detergent and rinse

thoroughly. Leave the filter to

dry completely. Once it is dry

immerse the filter in clean

engine oil and squeeze the filter to remove excess oil.

6. Replace the filter into its original position and replace and secure the air

filter cover then replace the side maintenance panel.

CHECK THE ENGINE OIL LEVEL

1. Place the generator on a level

surface and check the oil level as

follows.

2. Remove the side maintenance

panel.

3. Turn the oil filler cap anti-

clockwise and remove from the oil

reservoir, wipe the dipstick with a

clean cloth.

4. Insert the dipstick back into the oil

filler tube and then remove it

again.

WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE

AIR FILTER.

WARNING: YOUR GENERATOR MAY NOT BE SUPPLIED WITH OIL - ALWAYS

ENSURE THERE IS SUFFICIENT OIL BEFORE USE.

CAUTION: ONLY CARRY OUT THIS CHECK WITH THE ENGINE OFF.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

5. If the oil is below the Min. level on

the dipstick, top up the oil

reservoir with fresh oil.

• Do not fill above the max level

mark (0.27 litres)

• We recommend the use of 1L

SAE10W/30 oil in this generator.

(CLARKE part number 3050845)

• Do not tilt the generator when

adding engine oil. This could

result in overfilling and damage to the engine.

6. Replace the oil filler cap and the left side maintenance panel.

CHECK THE FUEL LEVEL

1. To check the fuel level, open the

fuel filler cap.

2. Slowly add fuel to the fuel tank

(maximum 2.1 litres)

• Do not overfill the fuel tank.

3. Replace the fuel filler cap

securely.

RECOMMENDED FUEL

Your generator has been designed to use regular unleaded petrol with a

octane number of 86 or higher.

WARNING: MAKE SURE THERE IS FUEL IN THE TANK WHEN USING THE

GENERATOR. RUNNING OUT OF FUEL OR STOPPING THE ENGINE

SUDDENLY WITH A LOAD CONNECTED COULD CAUSE SERIOUS DAMAGE.

WARNING: FUEL IS HIGHLY FLAMMABLE AND POISONOUS.

WARNING: SEE “GENERAL SAFETY RULES” ON PAGE 3 AND READ THEM

CAREFULLY BEFORE REFUELING.

WARNING: DO NOT FILL ABOVE THE TOP OF THE FUEL FILTER OR IT MAY

OVERFLOW WHEN THE FUEL HEATS UP AND EXPANDS.

WARNING: WIPE UP ANY SPILLED FUEL IMMEDIATELY.

WARNING: AFTER REFUELING, MAKE SURE THE FUEL FILLER CAP IS

TIGHTENED SECURELY.

Max Level

Min. Level

Fuel filler cap

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

USING YOUR GENERATOR

STARTING THE ENGINE

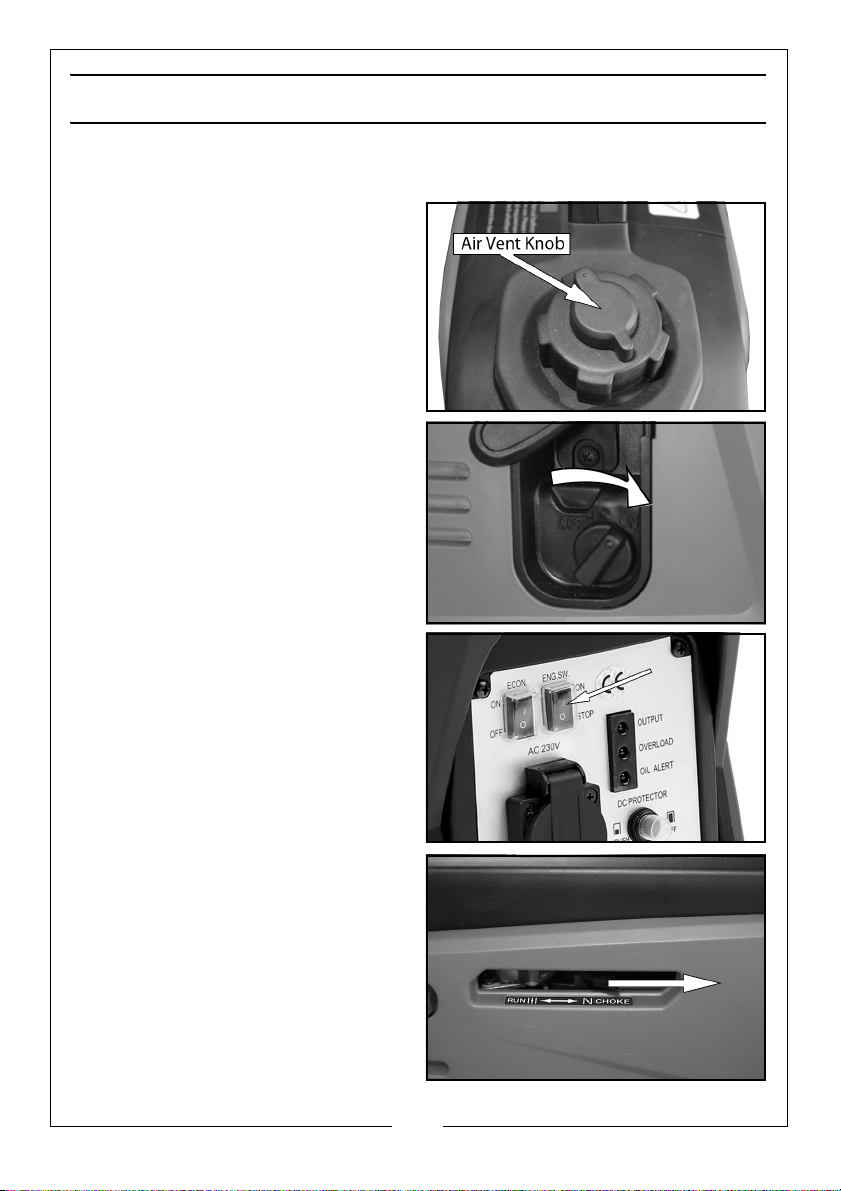

1. Remove all connections from the

AC sockets.

2. Hold the fuel tank cap so that it

will not move, and turn the air

vent knob to the ‘open’ position.

3. Turn fuel valve to the ON position

(pointing right).

4. Set the engine switch to ‘ON’.

5. Move the choke lever to the right,

to the ‘Choke’ position.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Generatore portatile

Clarke

Clarke POWER CP2850K Manuale

Clarke

Clarke FG5100ES Manuale di istruzioni

Clarke

Clarke PG3800A Manuale di istruzioni

Clarke

Clarke IG2200A Manuale di istruzioni

Clarke

Clarke FG3050 Manuale di istruzioni

Clarke

Clarke IG950C Manuale di istruzioni

Clarke

Clarke PG3800ADV Manuale di istruzioni

Clarke

Clarke FG3005 Manuale di istruzioni

Clarke

Clarke PG9500ADVES Manuale di istruzioni

Clarke

Clarke IG2000C Manuale di istruzioni

Clarke

Clarke FG3000 Manuale di istruzioni

Clarke

Clarke G1200 Manuale di istruzioni

Clarke

Clarke 1501ND Manuale

Clarke

Clarke PG2500A Manuale di istruzioni

Clarke

Clarke IG1700F Manuale di istruzioni

Clarke

Clarke G900 Manuale di istruzioni

Clarke

Clarke IG2000B Manuale di istruzioni

Clarke

Clarke WLD180 Manuale di istruzioni

Clarke

Clarke IG950D Manuale di istruzioni

Clarke

Clarke PG6500ADVES Manuale di istruzioni

Clarke

Clarke G700 Manuale

Clarke

Clarke FG2000 Manuale di istruzioni

Clarke

Clarke POWER LS0510 Manuale di istruzioni

Clarke

Clarke G950 Manuale di istruzioni

Manuali Generatore portatile popolari di altre marche

Kohler

Kohler 20EORZ Manuale di istruzioni

Powerhorse

Powerhorse 83171 Manuale utente

HURST

HURST ML-630-SI Manuale utente

ETQ

ETQ TG4000 Manuale utente

Briggs & Stratton

Briggs & Stratton 40265 Guida all'installazione

ConMed

ConMed 7550 Manuale utente

Owon

Owon Waveform Generator Manuale utente

evertz

evertz 7700 Series Manuale utente

Power Stroke

Power Stroke PS906025 Manuale utente

Firefly

Firefly Cygnus CYG2400/460/24 Manuale utente

Draper

Draper PG950S Aggiornamento firmware

PowerBoss

PowerBoss PowerBoss Manuale utente

SDMO

SDMO SH 4000 Manuale utente

EINHELL

EINHELL STE 5500 Manuale utente

Wanco

Wanco WI3000P Manuale utente

Full Boar

Full Boar FBT-3300 Manuale utente

Dwyer Instruments

Dwyer Instruments ASG Manuale utente

Westinghouse

Westinghouse WH1000i Series Manuale utente
