Clarke STRONG-ARM CSA12F Manuale di istruzioni

WARNING: Read these instructions before using the machine

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0220 - rev 4

12 TONNE HYDRAULIC PRESS

MODEL NO: CSA12F

PART NO: 7613020

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]

INTRODUCTION

Thank you for purchasing this CLARKE 12 Tonne Hydraulic Press.

Before attempting to operate the machine, it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the press giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission. This guarantee does not effect your

statutory rights.

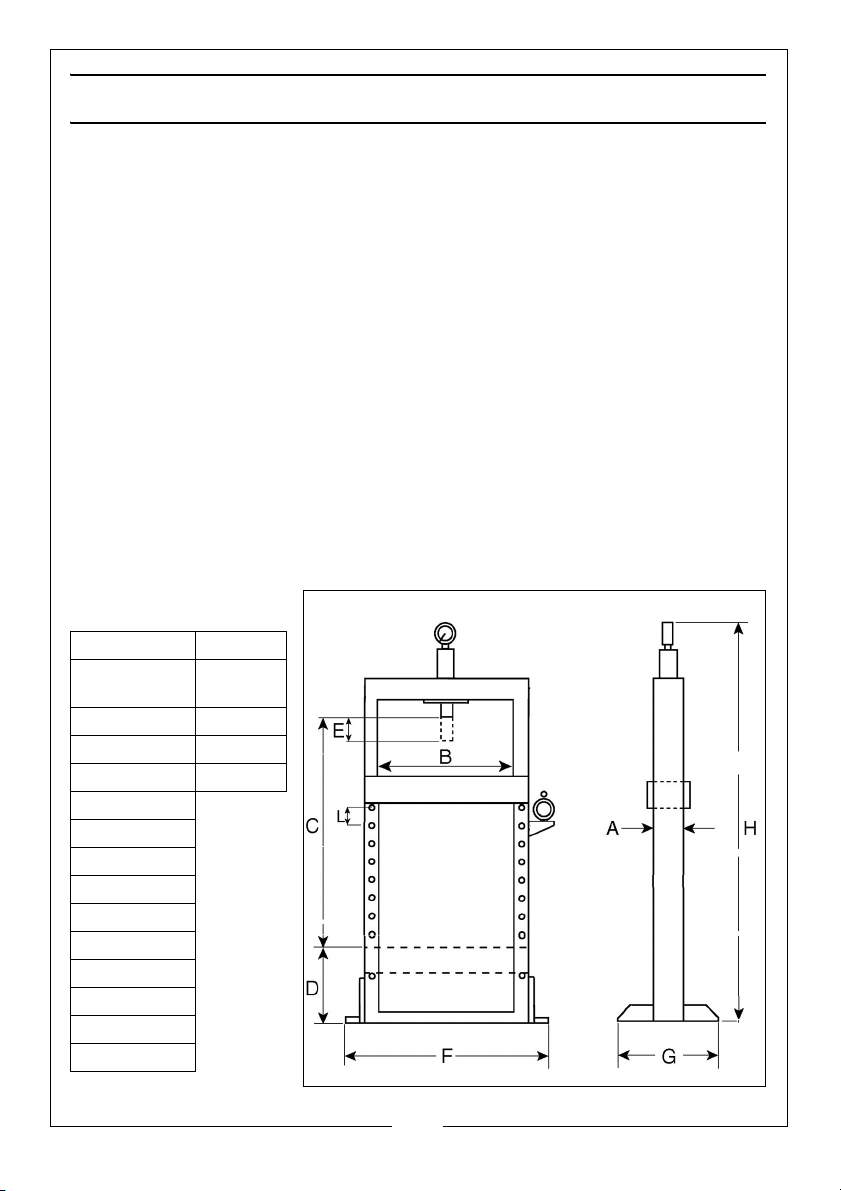

TECHNICAL SPECIFICATIONS

Capacity 12 tonne

Operating

pressure

10000psi

Ram stroke 184mm

Ram diameter 42mm

Net weight 85kg

Dimensions

A) 80mm

B) 515mm

C) 945mm

D) 205mm

E) 185mm

F) 695mm

G) 500mm

H) 1662mm

L) 152mm

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

SAFETY PRECAUTIONS

• The components of this press are specially designed to withstand the rated

capacity. Do not substitute bolts, pins, or any other components.

• During assembly or if the press is moved, always call for the help of an

assistant, do not manhandle single-handedly.

• Ensure the press is bolted down onto a solid, flat surface.

• Ensure the press is located on firm level ground with adequate light.

• Before applying a load, ensure all press bed support pins are fully engaged.

• Ensure that hydraulic hoses and couplings are completely sound.

• Before use, always ensure the workpiece is firmly secure and stable.

• Always clean spills of hydraulic oil immediately as this can be dangerous in a

workshop environment.

• Do not exceed the rated capacity of the press.

• Do not allow any person who is inexperienced in the use of hydraulic presses,

to use the press unless they are under direct supervision.

• Do not work directly in front of the press when it is in use.

• Never tamper with the press. The safety valve is calibrated and sealed at the

factory; do not attempt to change the setting.

• Use only the recommended hydraulic oil.

• Always apply the load under the centre of the ram. Offset loads can

damage the ram or ram mount and may cause the work piece to eject.

• Before use, check for signs of cracked welds, bent bed pins, loose or missing

bolts, or any other structural damage. Do not operate if any of these are

found. Have repairs made only by authorised service centre.

• Remove any load from press bed before attempting to adjust bed height.

• Press only on a work piece supported by the press bed.

• When using accessories such as pressing plates, be certain they are

centered below the ram and are in full contact with the bed.

• Parts being pressed may splinter or be ejected from the press. Due to varied

applications, it is your responsibility to always use adequate guards, wear

eye protection and protective clothing when operating this press.

• Keep hands and fingers away from parts that may pinch and shift.

• Do not use extension tubes on the pump handle. Excessive effort can cause

damage and/or accidents.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]

ASSEMBLY

Ensure the press and its components suffered no damage during transit and

that all components are present. Should any loss or damage become

apparent, please contact your CLARKE dealer immediately.

IMPORTANT: Due to the weight of the press components, we recommend

that you get assistance during assembly.

IMPORTANT: We strongly recommend that the press be firmly secured to a

firm and level floor using expansion bolts (not supplied). Holes are provided

in the base supports for this purpose.

IMPORTANT: Do not locate your press where it will be open to the elements,

as severe weather conditions will damage the hydraulic parts.

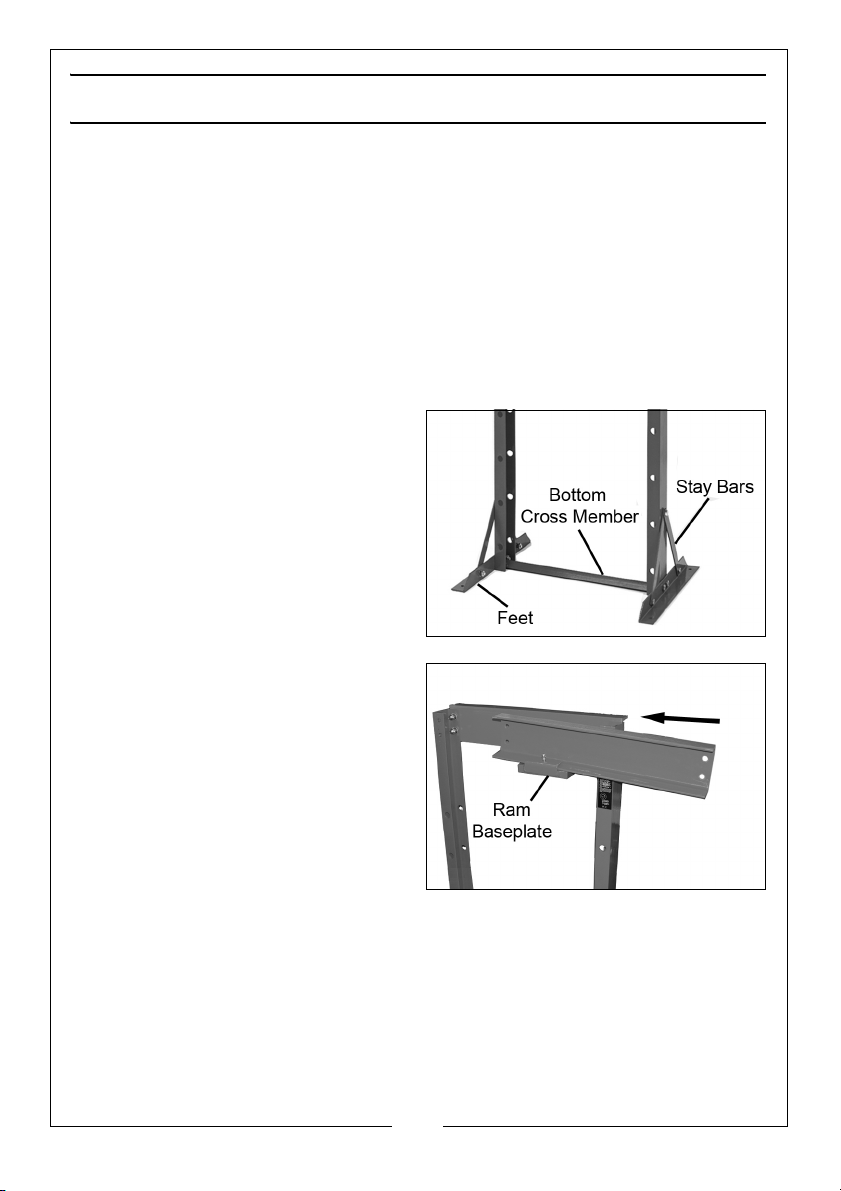

1. Attach the feet and the bottom

cross member to the side

supports, using the nuts, bolts and

washers.

2. Add the stay bars to each side

and bolt into place.

3. Bolt one of the cross beams to the

side supports, Attach the ram

baseplate to the cross beam,

securing it with the socket

headed bolt.

4. Add the other cross beam by

sliding it along the ram baseplate

from one end.

5. Assemble loosely before

tightening all the bolts at each

end with both spring and flat washers. Position the ram baseplate centrally

and lock in position.

6. With the help of an assistant, lift the frame assembly upright and

manoeuvre it to its intended location in the workshop.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

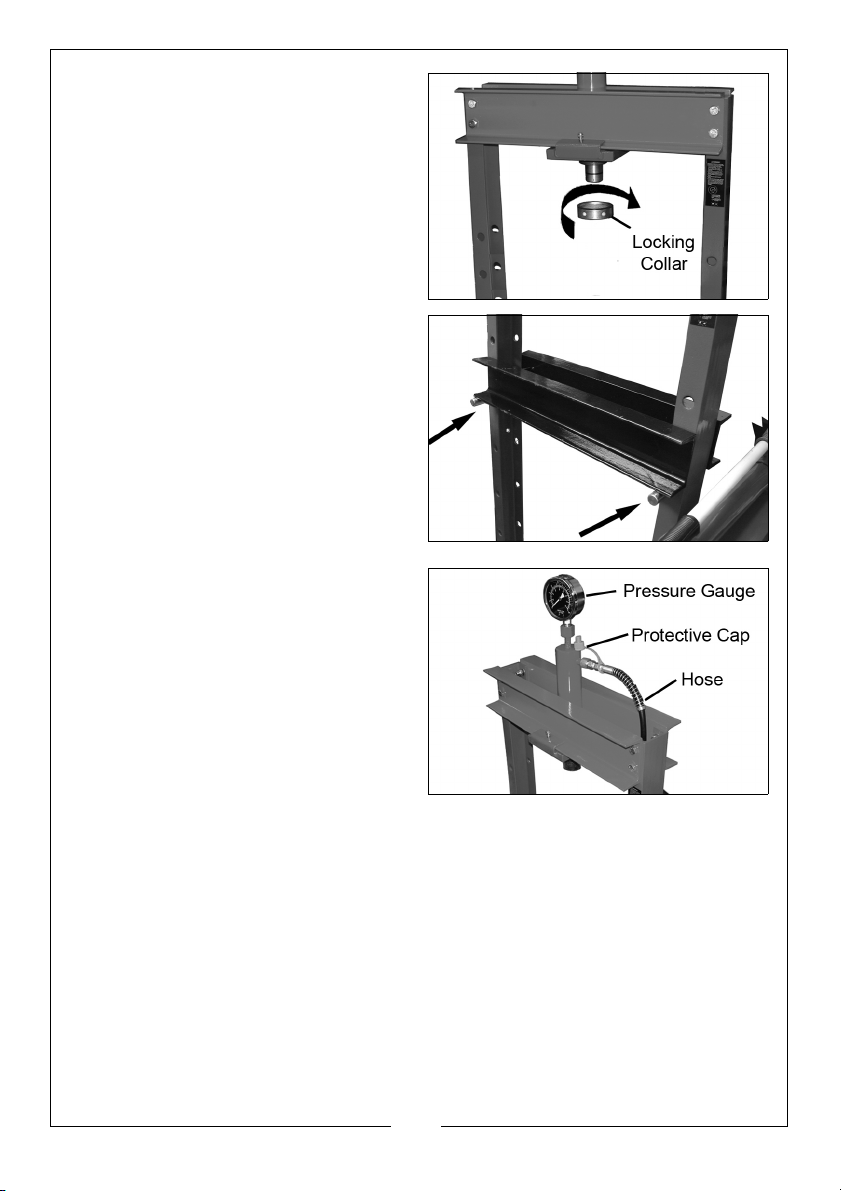

7. With the upper ring already

screwed home onto the ram

body as supplied, lower the ram

through the hole in the base plate

and secure in position using the

locking collar.

8. Insert the bed support pins into

the holes in the side support at a

height of your choosing. Then

lower the bed frame onto the

pins.

9. Screw the pressure gauge to the

connecting nut on top of the ram

cylinder. Seal the thread with PTFE

tape, ensuring it is tight when the

gauge is facing the front of the

press.

10. Pass the hydraulic hose through

the gap between the two cross

beams. Unfasten the protective

hose caps and screw the hose

onto the threaded connection of

the hydraulic ram.

11. We recommend sealing the thread with PTFE tape. Take care not to let any

oil escape while connecting the hose.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]

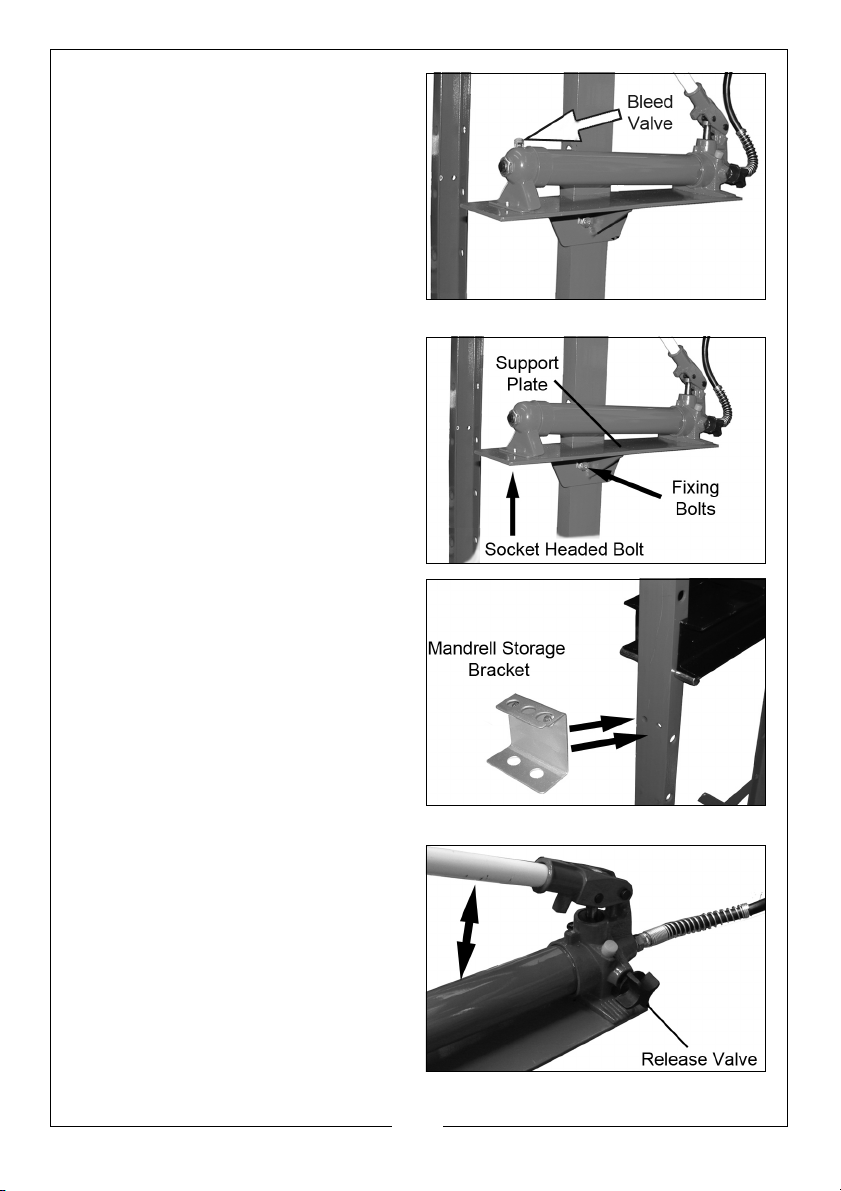

12. Unscrew the air bleed valve and

check that the pump is filled with

hydraulic oil up to a visible level.

13. If empty, the total capacity is

630ml.

14. Attach the pump support plate to

the right-hand side support using

the fixing bolts, nuts and washers,

ensuring it is level before

tightening the bolts.

15. Bolt the pump to the support

plate using the socket head bolts

from below, then screw the pump

handle into the pump actuating

lever.

16. A set of mandrels complete with

storage bracket is available from

your Clarke dealer. If this is

provided, bolt the mandrel

storage bracket to the side of the

frame using the bolts supplied.

17. If fitted, store the mandrels

(including the adaptor) in their

positions on the bracket.

PUMP/RAM OPERATION

1. Before using the press, purge any

air from the system by opening

the release valve (turning it anti-

clockwise) and pumping several

full strokes to eliminate any air

bubbles.

2. Check all parts are secure and

correctly aligned before using the

press.

• The press is now ready for use.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

POSITIONING THE BED

IMPORTANT: Due to the weight of the bed, we recommend that you get

assistance from another person when adjusting the bed height.

1. Position the bed at the desired height, so that it will be as close as possible

to the ram when the workpiece is mounted on it.

2. Raise one side of the bed and insert a supporting pin into the next locating

hole.

3. Repeat at the other end to level the bed.

4. Repeat until the bed is at the desired height, with the supporting pins fully

‘home’.

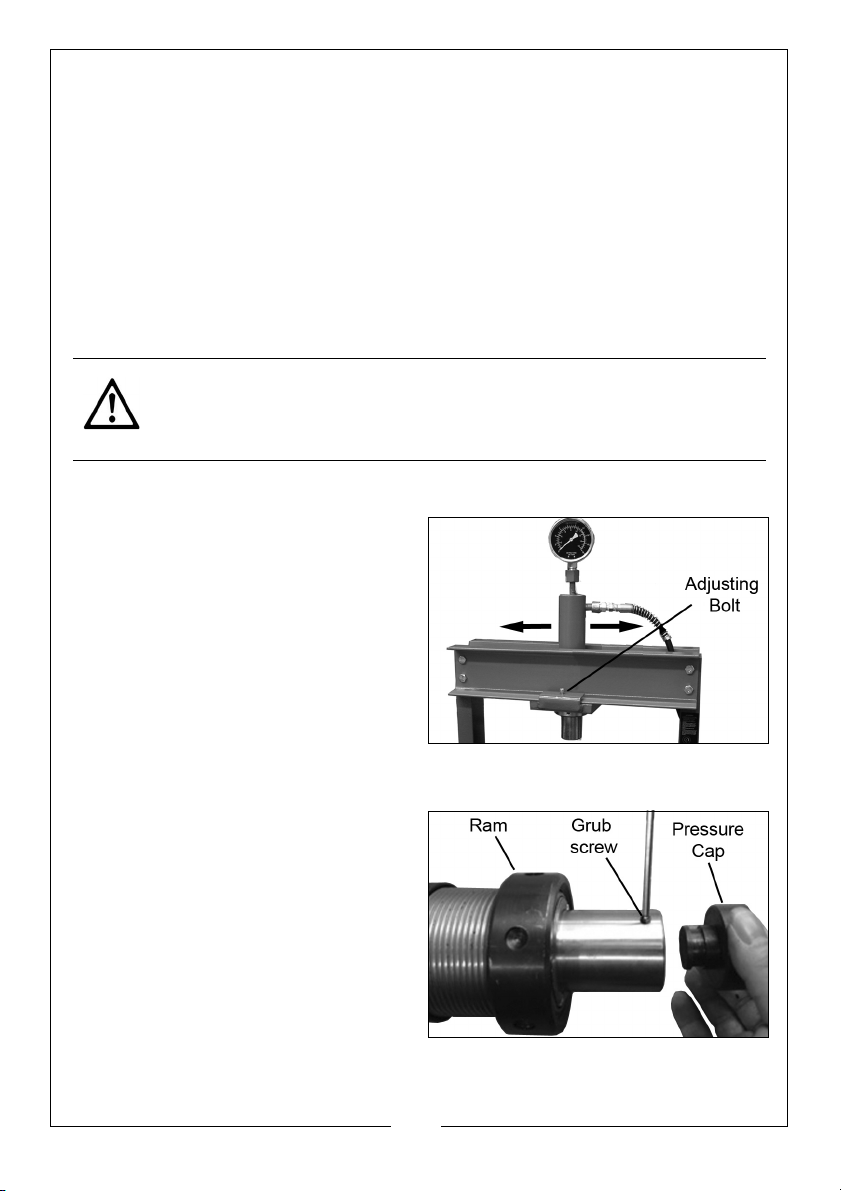

POSITIONING THE RAM

The ram can positioned as required

by sliding it along the cross-beam.

Lock it in position with the socket

head adjusting bolt on each side.

• Always position the ram directly

above the workpiece.

FITTING THE MANDRELS OR PRESSURE CAP

Four mandrels are provided, any of

which may be connected to the end

of the ram using the adaptor

supplied.

Alternatively, the basic ram pressure

cap can be fitted as shown. Secure

the pressure cap by tightening the

grub screw with a suitable hex key.

CAUTION: THE BED HEIGHT SHOULD ONLY BE RAISED OR LOWERED ONE

HOLE AT A TIME, WORKING ALTERNATELY FROM ONE SIDE AND THEN THE

OTHER, FAILURE TO WORK IN THIS WAY MAY CAUSE THE BED TO FALL

AND CAUSE INJURY TO THE OPERATOR.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]

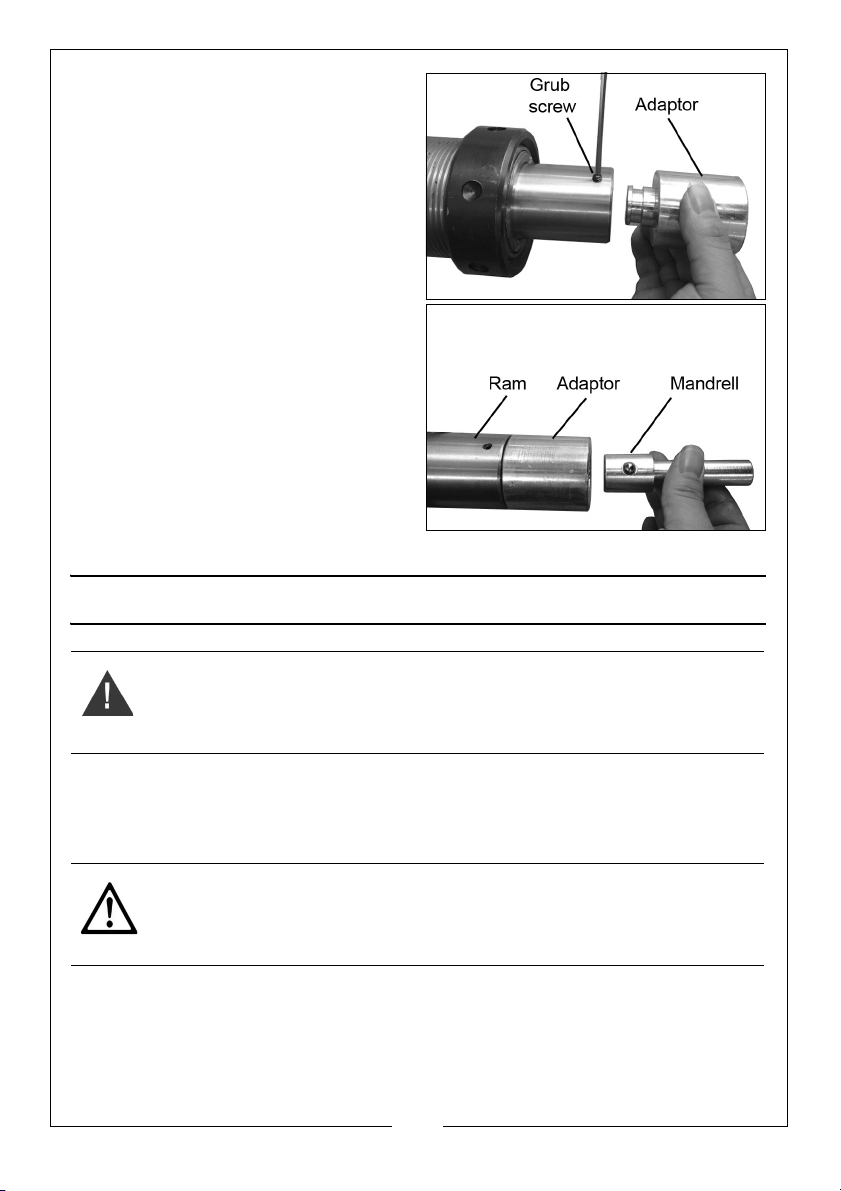

If one of the mandrels is required, the

adaptor must be fitted instead of the

pressure cap. Secure the adaptor by

tightening the grub screw with a

suitable hex key as previous.

Select your mandrell depending

upon the size of the workpiece

bearing surface.

The mandrell can then be pushed

into the adaptor where the built-in

spring clip will hold it in place.

Store the mandrels in their positions

on the mounting bracket when not in

use.

OPERATION

1. Place the workpiece on the bed. It must be completely stable and

supported by packing or shims where required. Steel pressing plates are

supplied, which locate on the bed. Place the workpiece on a combination

of these to give it stability.

NOTE: Any packing pieces or shims used MUST be capable of

withstanding the pressure that will be brought to bear, and MUST

be of sufficient size with sufficient surface area, so as to avoid the

possibility of slipping or springing out. Mating surfaces MUST be

horizontal so that the force being exerted will NOT be at an angle.

WARNING: FAILURE TO HEED THE WARNINGS ON PAGE 3 MAY RESULT IN

DAMAGE TO THE EQUIPMENT, OR FAILURE RESULTING IN PROPERTY

DAMAGE, PERSONAL, OR EVEN FATAL INJURY.

CAUTION: DO NOT POINT LOAD THESE ACCESSORIES AS THEY ARE NOT

DESIGNED TO TAKE THE FULL FORCE OF THE RAM IN ONE SPOT. ENSURE

THEY ARE ADEQUATELY SUPPORTED.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

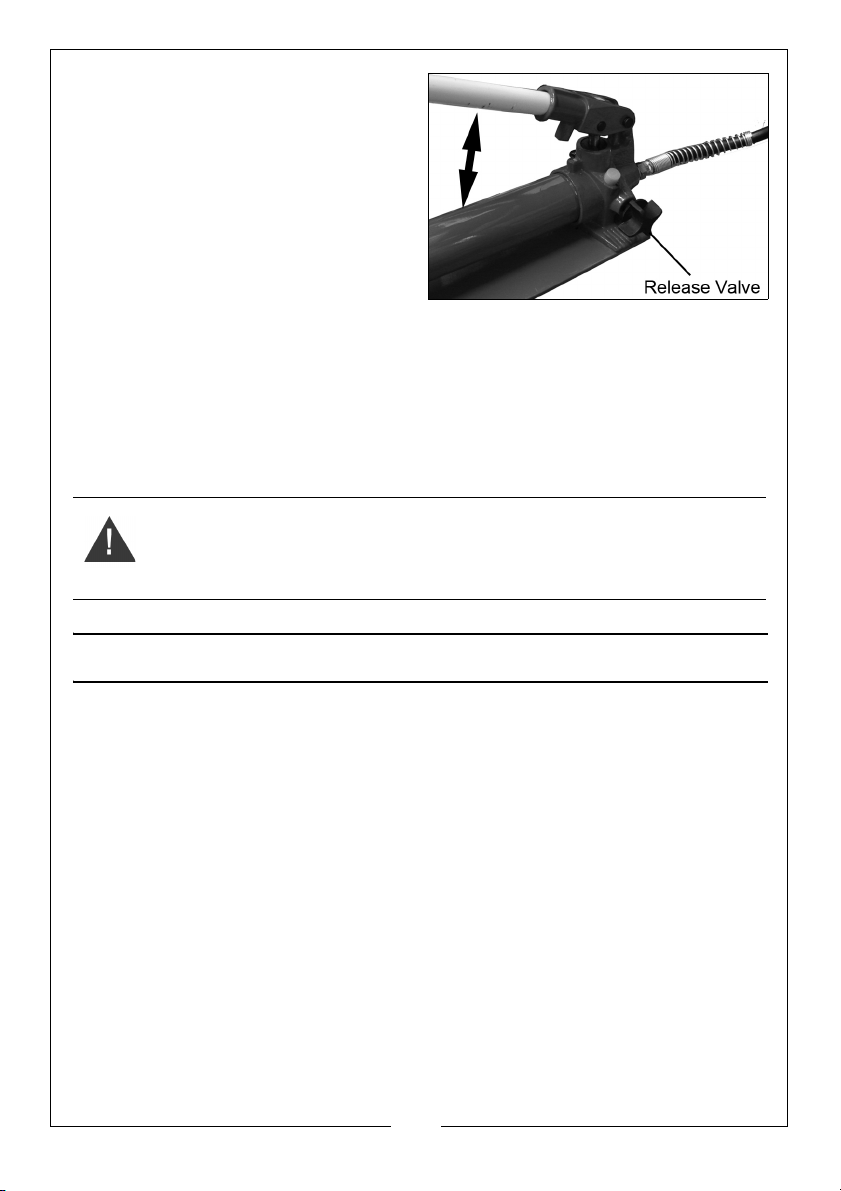

2. Close the release valve by turning

it clockwise until tightly closed.

3. Pump the handle to bring the ram

very lightly into contact with the

workpiece.

4. Manoeuvre the workpiece or slide

the ram to one side so that the

desired point of contact is directly

beneath the centre of the ram.

5. When satisfied that the workpiece

is correctly aligned and is completely stable in that position, slowly pump

the handle so that the ram begins to exert pressure on the workpiece.

Continue to pump the handle whilst standing to the side. Do NOT stand

directly in front of the work, and constantly monitor the process, ensuring

the ram and work remain completely in line and there is no risk of slipping.

6. When the process is complete, turn the release valve anticlockwise in small

increments to release ram pressure and allow removal of the workpiece.

MAINTENANCE

• A visual inspection must be made before each use of the press, checking for

leaking hydraulic fluid and damaged, loose, or missing parts.

• Owners and/or users should be aware that repair of this equipment requires

specialised knowledge and facilities. It is recommended that a thorough

annual inspection of the press be made and that any defective parts be

replaced with genuine Clarke parts.

• Any press which appears to be damaged in any way, is found to be badly

worn, or operates abnormally SHOULD BE REMOVED FROM SERVICE until the

necessary repairs are made.

• If the press is not to be used for any length of time, store it with the ram piston

withdrawn and the operating handle in the lowered position to protect the

moving parts.

PERIODICALLY

• Check the press frame to make sure all bolts are tight and inspect for

cracked welds, bent, loose or missing parts.

WARNING: NEVER USE EXTENSIONS TO THE RAM PUMPING HANDLE

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]

• Check the hydraulic connections for leaks. Replace or properly repair any

damaged or leaking hydraulic components before using. In the event of

leaking seals, oil can be topped up via the plug on the end of the pump. Oil

should be level with the bottom of the hole. If necessary top up with CLARKE

hydraulic oil, Part No. 3050830. This task is carried out with the ram fully

retracted.

• If any rust is apparent it must be removed completely and the paint restored.

DE-COMMISSIONING PRODUCT

Should the product become completely unserviceable and require disposal,

draw off the oil into an approved container and dispose of the product and

the oil according to local regulations.

TROUBLESHOOTING

ACCESSORIES

7-piece mandrell (adaptor) kit for CSA12F Press: part no 7615060.

(Also listed as items 14 & 34 -39 on the parts list (pages 12 & 13).

Problem Probable Cause Remedy

Pump unit will not work Dirt on valve seat/warn

seals

Bleed pump unit or have

unit overhauled with new

seals

Pump will not produce

pressure

Pump feels hesitant

under load

Pump will not lower

completely

Air-lock Open the release valve

and remove the oil filler

plug. Pump the handle a

couple of full strokes and

close the release valve.

Replace the filler plug.

Pump will not deliver

pressure

Reservoir could be over-

filled or have low oil level.

Check oil level by

removing the filler plug

and topping up to the

correct level.

Pump feels hesitant

under load

Pump cup seal could be

worn out.

Have the cup seal

replaced.

Pump will not lower

completely

Air-lock Release air by removing

the filler plug

Altri manuali per STRONG-ARM CSA12F

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Utensili elettrici

Clarke

Clarke X-Pro CAT199 Manuale di installazione e funzionamento

Clarke

Clarke STRONG-ARM CS4BRK Manuale di istruzioni

Clarke

Clarke METALWORKER CBS20 Manuale utente

Clarke

Clarke CBM 2 Manuale di installazione e funzionamento

Clarke

Clarke X-Pro CAT213 Manuale di installazione e funzionamento

Clarke

Clarke CAT209 Manuale di installazione e funzionamento

Clarke

Clarke Woodworker CJS2 Manuale di installazione e funzionamento

Clarke

Clarke CAT113 Guida all'installazione

Clarke

Clarke CBS16 Manuale di istruzioni

Clarke

Clarke Strong-Arm ARBOR PRESS Series Manuale utente

Clarke

Clarke CAT211 Manuale di installazione e funzionamento

Clarke

Clarke ZX-R Pro Series Manuale di istruzioni

Clarke

Clarke CIR18LiC Manuale di installazione e funzionamento

Clarke

Clarke DU8 Manuale utente

Clarke

Clarke CIR450B Manuale di installazione e funzionamento

Clarke

Clarke CSG1C Manuale di istruzioni

Clarke

Clarke X-Pro CAT205 Manuale di installazione e funzionamento

Clarke

Clarke METALWORKER CDP401B Manuale di installazione e funzionamento

Clarke

Clarke cp185 Manuale di installazione e funzionamento

Clarke

Clarke CIR18Li Manuale di installazione e funzionamento

Clarke

Clarke Strong-Arm CSA20F Manuale di istruzioni

Clarke

Clarke CIWLI300 Manuale di installazione e funzionamento

Clarke

Clarke ZX-R Pro Series Manuale di istruzioni

Clarke

Clarke MetalWorker CDP151B Manuale di installazione e funzionamento

Manuali Utensili elettrici popolari di altre marche

AEG

AEG OMNI-JS Manuale utente

SIP

SIP 01533 Manuale utente

Ribimex

Ribimex PRS499 Manuale utente

3M Fiber Optic Connector Crimp Tool Manuale utente

Ryobi

Ryobi P524 Manuale utente

ROJEK

ROJEK FSN 300A Manuale utente

Kemper

Kemper 1740PRO Manuale utente

WABCO

WABCO OptiTire Manuale utente

EINHELL

EINHELL TE-MS 18/210 Li Manuale utente

Orgapack

Orgapack OR-T 85 Guida rapida

TOUGHCUT

TOUGHCUT Diamond 400 Manuale utente

Yaros

Yaros PB-3603 Manuale utente

Fein

Fein BSS 2.0 E Guida all'installazione

Baileigh Industrial

Baileigh Industrial SS-2725 Manuale utente

Milwaukee

Milwaukee 2674-20 Manuale utente

Fein

Fein BLs 1.6 Manuale utente

Princess

Princess Electric Multi Sharpener Manuale utente

FOREDOM

FOREDOM K.1050 Manuale
