Clarke LVP1A Manuale di istruzioni

DIRTY WATER PUMP

MODEL No: LVP1A

Part No: 7260065

OPERATION & MAINTENANCE

INSTRUCTIONS

LS1109

INTRODUCTION

• Thank you for purchasing this CLARKE dirty water pump.

• This pump is designed for pumping dirty water only, that is water containing

solids in suspension.

It is NOT designed for pumping slurry, sludge, mud or

heavily polluted water, or any water containing chemicals or other

acidic contaminants including salt water.

GUARANTEE

• This product is guaranteed against faulty manufacture for a period of 12 months.

Please keep your receipt as proof of purchase.

• This guarantee is invalid if the product is found to have been abused or tampered

with in any way, or not used for the purpose for which it was intended.

• Faulty goods should be returned to their place of purchase, no product can be

returned to us without prior permission.

• This guarantee does not effect your statutory rights.

RECOMMENDED USES

The recommended uses for this pump are:

• Drainage after flooding

• The transfer of liquids

• Drainage of containers

• Taking water from wells and shafts

Liquids that CAN be pumped:

• Dirty water - That is water containing solids in suspension,

• Swimming pool water

Note: After pumping chlorinated water or other liquids containing

additives, the pump should be rinsed with clean water.

• Soapy water

Liquids that MUST NOT be pumped are:

• Corrosive substances including salt water

• Combustible or explosive substances (petrol, thinners etc.)

• Fats, oils or salts

• Waste from toilets or urinals

• Slurry, sludge, mud or heavily polluted water, or any water containing chemicals

Note: After pumping dirty water or other liquids the pump should be

rinsed with clean water

CONTENTS

Introduction .................................................................................................... 2

Guarantee ..................................................................................................... 2

Recommended uses ..................................................................................... 2

Contents ......................................................................................................... 3

Specifications ................................................................................................. 3

For your own safety ....................................................................................... 4

Electrical connections .................................................................................. 5

Parts identification ........................................................................................ 6

Preparation .................................................................................................... 7

Using the pump .............................................................................................. 8

Cleaning and maintenance ...................................................................... 9

Troubleshooting.............................................................................................. 10

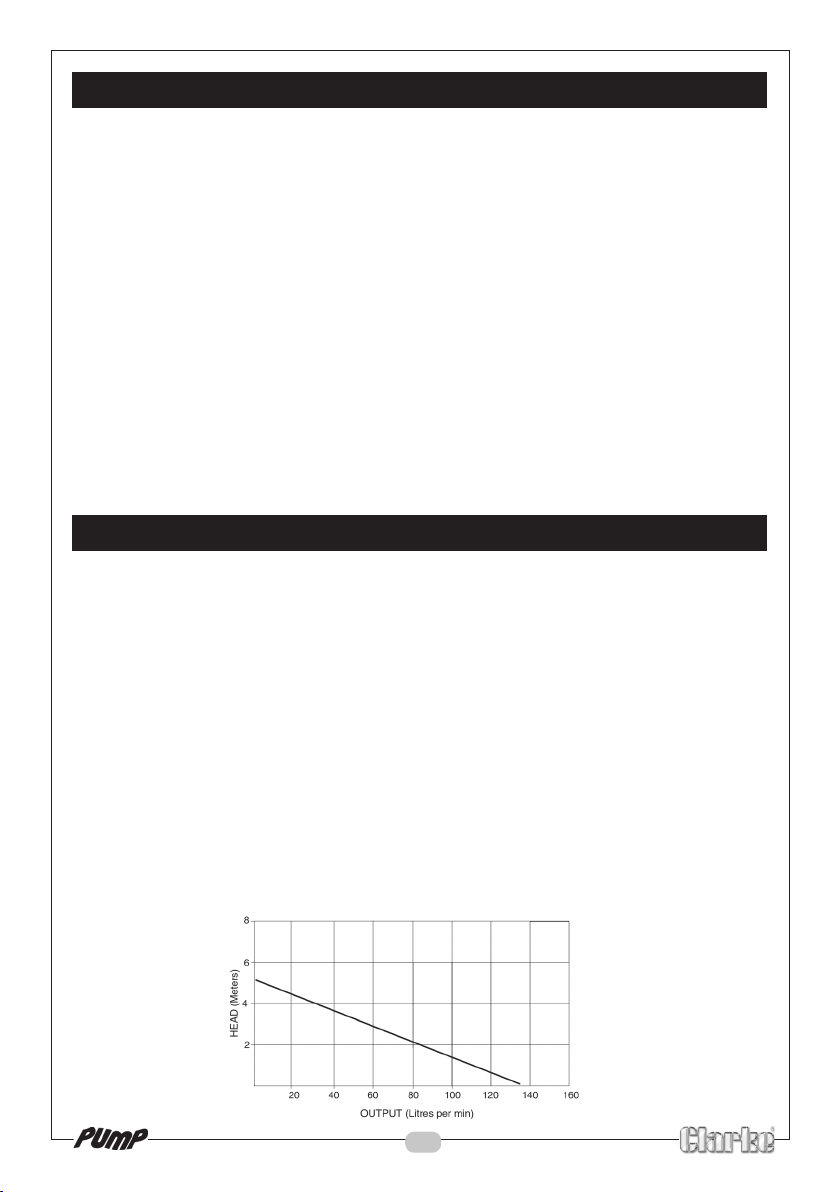

SPECIFICATIONS

Motor .......................................................... 230V 50Hz

Motor Output ............................................ 350W

Head Max .................................................. 5 m

Maximum Imersion Depth ....................... 5 m

Maximim Flow Rate .................................. 135 l/min

Outlet Size .................................................. 25 mm / 32 mm

Dimensions ( L x W x H ) ............................ 220 x 148 x 328 mm

Duty Cycle ................................................. S1

Maximum Solid Body Diameter ............... 30 mm

Part Number .............................................. 7260065

FOR YOUR OWN SAFETY

KEEP CHILDREN AWAY

• Do not allow children to touch the pump, cables or connections.

USE A RESIDUAL CURRENT DEVICE:

• The pump must be connected to a high sensitivity residual current device

(RCD) which has a tripping current of less than 30mA.

STORAGE

• When not in use, the pump should be stored in a dry, secure place out of the

reach of children.

WATER TEMPERATURE

• Do not use the pump if the water is liable to freeze, as this can cause damage

to the pump.

MAINS SUPPLY

• Disconnect the pump from the mains supply when not in use.

REPAIRS

• Have the pump repaired by a qualified person.

DO NOT ABUSE THE MAINS LEAD

• Never carry the pump by the mains lead.

• Never pull the mains lead to disconnect the pump from the mains socket.

• Keep the mains lead away from heat, oil and sharp edges.

• Always check the plug, mains cable and float switch cable for damage before

use. Do not use the pump if damaged. Refer to qualified service personnel for

repair.

• If you have to use an extension lead with this product, it must be designed for

outdoor use and incorporate a cable suitable for use with Class I appliances.

• Do not lower the pump using the mains lead, Always use the handle with a

rope or cord attached if necessary,.

DO NOT ABUSE THE FLOAT SWITCH

• Do not lift the pump by the mains or float switch cables.

ELECTRICAL CONNECTIONS

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an

approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with

the following code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible lead of this appliance may not correspond with the coloured

markings identifying terminals in your plug proceed as follows:

• Connect GREEN & YELLOW wire to terminal marked with a letter “E” or Earth

symbol “ ” or coloured GREEN or GREEN & YELLOW.

• Connect BROWN wire to terminal marked with a letter “L” or coloured RED.

• Connect BLUE wire to terminal marked with a letter “N” or coloured BLACK.

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non-

rewireable) please note:

1 The plug must be thrown away if it is cut from the electric cable. There is a danger of

electric shock if it is inserted into a mains power socket.

2 Never use the plug without the fuse cover fitted.

3 When replacing a detachable fuse carrier, ensure the correct replacement is used

(as indicated by marking or colour code).

4 Replacement fuse covers can be obtained from your local dealer or most electrical

stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this

replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply via a

Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.

PARTS IDENTIFICATION

Handle

Pump

Base

Float

Switch

Elbow

Multi Hose

Adaptor

May be supplied fitted to the pump

1” Hose

1” BSP

1¼” Hose

Air Bleed Valve

PREPARATION

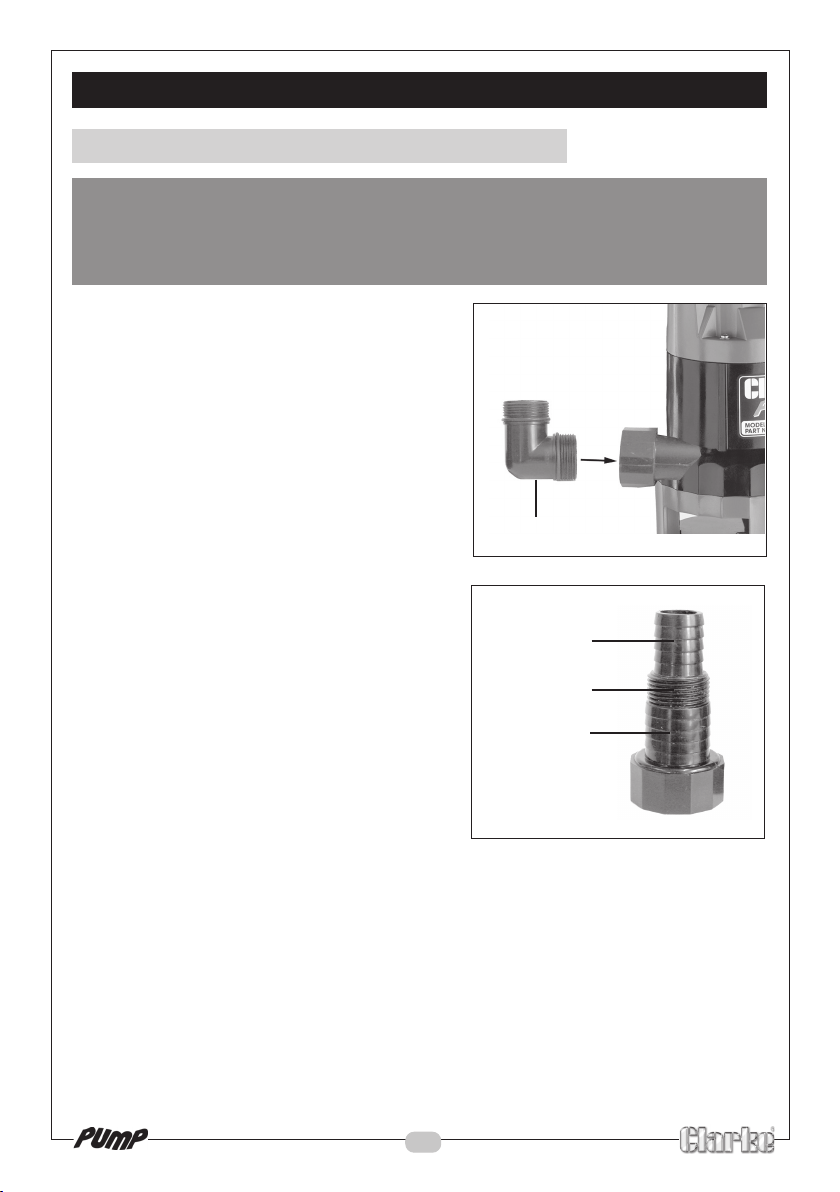

CONNECTING THE MULTI HOSE ADAPTOR

WARNING!

DISCONNECTED THE PUMP FROM THE MAINS POWER SUPPLY BEFORE

CONNECTING THE MULTI HOSE ADAPTOR

1 Fit the elbow adaptor to the pump outlet

as shown in the diagram opposite.

2 Screw the multi hose adaptor onto the

elbow,

• The multi hose adaptor is capable of

accepting 1” and 1¼” hoses and a 1”

BSB Thread.

3 Simply cut the multi hose connector to the

required size and attach a suitable hose

using with a worm drive clip.

• For maximum efficiency, we strongly

recommend that you connect a 1¼”

diameter hose to the multi hose

adapter,

• Alternatively, you may remove the multi

adapter altogether, and screw on a 1¼”

BSP hose adapter

The pump is completely submersible, and should be placed in a vertical position, on a

solid flat surface, Placing the pump on a couple of house bricks if required.

SUITABLE HOSES, and SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE

AVAILABLE FROM YOUR CLARKE DEALER

Elbow

1” Hose

1” BSP

1¼” Hose

USING THE PUMP

CAUTION!

CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS

DAMAGED IN ANY WAY

1 Place the pump on a flat surface in the area that you want to drain.

• If there is sediment in the operating area, the pump should be placed on

house bricks, or similar.

• Ensure the pump is positioned with adequate space so that the movement of

the float switch is not restricted - recommended minimum area of 40 x 40cm

• ALWAYS raise and lower the pump using a rope attached to the lifting handle.

• Take all necessary precautions as described on page 4 before plugging in, and

switching ON.

WARNING!

NEVER CARRY THE PUMP USING THE MAINS POWER CABLE. DAMAGE TO

ELECTRICAL CABLES CAN BE DANGEROUS. ALWAYS USE THE HANDLE WHEN

MOVING THE PUMP.

2 Connect the mains plug to a high sensitivity residual current device (RCD) which

has a tripping current of less then 30mA.

3 Switch the mains power supply on,

• The pump incorporates a float switch, which automatically switches the pump

ON when the water is above a pre-determined level.

4 The pump will begin to drain water.

• As the water level falls, so will the float switch, until it stops the pump.

5 When the pumping is finished, disconnect the pump from the mains power supply

• The pump is fitted with a thermal cut out to protect the motor from

overheating. If the thermal cut out activates, the motor will automatically

switch back on when it has cooled down sufficiently.

CAUTION!

DO NOT ALLOW THE PUMP TO RUN DRY.

CLEANING AND MAINTENANCE

WARNING!

MAKE SURE THAT THE PUMP IS DISCONNECTED FROM THE MAINS SUPPLY

BEFORE CLEANING, OR PERFORMING ANY MAINTENANCE.

• With the exception of replacing the impeller, these pumps should require no

maintenance other than regular cleaning. If the pump starts to show signs of

wear or damage, contact your CLARKE dealer for advice.

• Do not attempt any other repairs to the pump, any other repairs must be

carried out by your CLARKE dealer, or contact the CLARKE Service Department,

on 020 8988 7400.

• Check the pump regularly to ensure the base is clear of leaves or other debris.

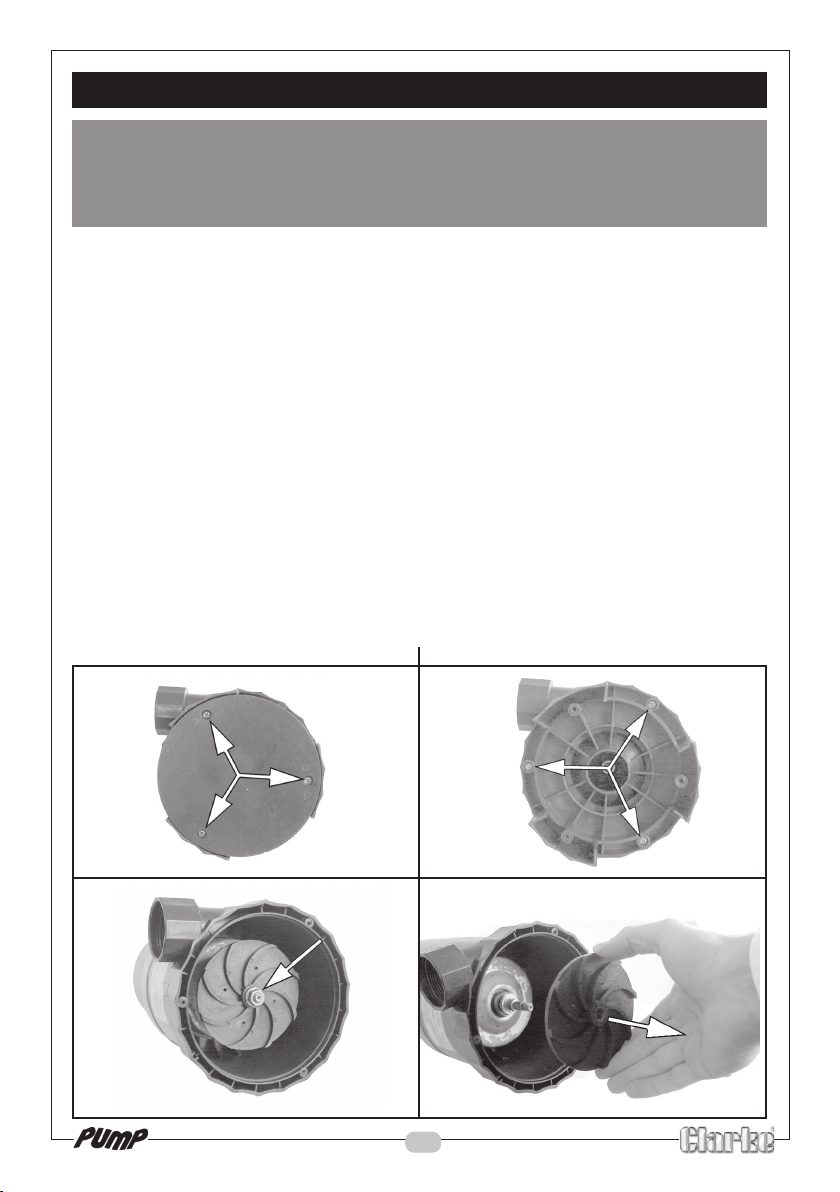

Replacing the Impeller

1 Remove the 3 screws on the base cover and pull off the base cover.

2 Remove the 3 screws from the impeller cover, and remove the impeller cover.

3 Use a 13mm spanner to remove the nut.

4 Remove the impeller from the shaft.

5 Replace with a new impeller and lock it in place using the nut removed in step 3.

6 Replace the impeller cover and then replace the base cover.

TROUBLE SHOOTING

MELBORP ESUACELBABORP

.tratstonlliwpmuP .noitisopFFOnihctiwstaolf-wolootlevelretaW

ro,llawedistsniagademmajebyam

hctiwstaolF

.gnivommorfdetneverp

tontubtratslliwpmuP

.pmup

.dekcolbtonsiesabehttahtkcehC

daehehT.detcurtsb

orodeggolcebutegrahcsiD

ehttfilotgniyrterauoy.e.i,taergootebyam

epocotpmupehtrofecnatsidataergootretaw

)3egaptrahcnoitacificepseeS(.htiw

.egnulpehtgniruddecudorp,pmupehtnikcolriA

tiekahsdna,elgnanata,niagap

mupehtegnulP

ehtnideppartriaynaevomerotgnirewoltslihw

.metsys

.rellepmIehtecalpeR-degamadebyamrellepmI

otstonlliwpmuP ehtotgnivommorfdetneverpebyamhctiwstaolF

.noitisopnwodylluf

EKRALCruoytlusnoC.ytluafebyam

hctiwstaolF

.ecivdarofrelaed

.gninnurspotspmuP noitidnocsihtfI.detareposahdaolrevolamrehT

.esuacehtetagit

sevni,stsisrep

.nitucsahhctiwstaolfro,yrdnursahpmuP

.rellepmiehtdemmajsahtcejbongierofA

For spare parts and service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: 020 8988 7400

or e-mail as follows:

PARTS: [email protected]

SERVICE: [email protected]

PARTS & SERVICE CONTACTS

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Pompa dell'acqua

Clarke

Clarke CFT230 Manuale

Clarke

Clarke SPE800 Manuale di installazione e funzionamento

Clarke

Clarke CFTP12 Manuale di istruzioni

Clarke

Clarke CPE30A1 Manuale di istruzioni

Clarke

Clarke HSEC651A Manuale di istruzioni

Clarke

Clarke CGP870 Manuale di istruzioni

Clarke

Clarke LEP1A 7260060 Manuale di istruzioni

Clarke

Clarke GSE1 Manuale di istruzioni

Clarke

Clarke PSV5A Manuale di istruzioni

Clarke

Clarke CBT1300SS Manuale di istruzioni

Clarke

Clarke CSP1530 Manuale di istruzioni

Clarke

Clarke PW50A Manuale di istruzioni

Clarke

Clarke PSV7A Manuale di istruzioni

Clarke

Clarke CPPRSS Manuale utente

Clarke

Clarke CPE Series Manuale di istruzioni

Clarke

Clarke CSE400A Manuale di istruzioni

Clarke

Clarke Strong Arm CS10PRH Manuale di installazione e funzionamento

Clarke

Clarke TAM101 Manuale di installazione e funzionamento

Clarke

Clarke PSV6A Manuale di istruzioni

Clarke

Clarke CSV1A Manuale di istruzioni

Clarke

Clarke HIPPO-3 Manuale

Clarke

Clarke HIPPO 2 Manuale di istruzioni

Clarke

Clarke BIP1500 Manuale di istruzioni

Clarke

Clarke CVPW Guida rapida

Manuali Pompa dell'acqua popolari di altre marche

Neptun

Neptun NPHW 5500 Manuale utente

Sensidyne

Sensidyne Gilian BDX-II Istruzioni per l'installazione e il funzionamento

Draper

Draper 47808 Manuale utente

Trolla

Trolla 12820 Manuale utente

Sunfab

Sunfab SVH Series Manuale utente

WilTec

WilTec 50740 Manuale utente

Fieldmann

Fieldmann FVC 5015 EK Manuale utente

Everbilt

Everbilt EFSUB5-122HD Manuale utente

Graco

Graco Husky 3300e Manuale utente

esotec

esotec 101018 Manuale utente

moyno

moyno 2000 CC Manuale utente

Becker

Becker BASIC VASF 2.80/1-0.AC230 Manuale utente

Sykes AmeriPumps

Sykes AmeriPumps GP100M Guida alla risoluzione dei problemi

DUROMAX

DUROMAX XP WX Series Manuale utente

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 Manuale utente

Franklin Electric

Franklin Electric IPS Manuale utente

Xylem

Xylem e-1532 Series Manuale utente

Milton Roy

Milton Roy PRIMEROYAL Manuale utente
