Clarke EASIARC 200 Manuale
WARNING: Read these instructions before using the machine
WARNING: A suitable welding headsheild must be worn during use
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0415
200 AMP ARC WELDER
MODEL NO: EASIARC 200
PART NO: 6010980
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
INTRODUCTION
Thank you for purchasing this CLARKE Welder.
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the welder giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. All
tools, accessories and packaging should be sorted, taken to a re-
cycling centre and disposed of according to the laws governing
Waste Electrical and Electronic Equipment.
ACCESSORIES
The following are some of the accessories available from your CLARKE dealer.
Please quote the part numbers shown below:
DESCRIPTION PART NUMBER
CWH6 Arc Activated Welding Headshield 6000671
2 mm Welding Electrodes 3050555
2.5 mm Welding Electrodes 3050560
3.25 mm Welding Electrodes 3050565
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GENERAL SAFETY INSTRUCTIONS
ELECTRIC SHOCK
• Remove the plug from the socket
and wait 5 minutes to allow the
capacitors to discharge before
carrying out servicing or
maintenance.
• Do not touch live electrical parts.
• Never use electrode holders or
cables which are damaged.
• Keep working environment,
equipment, cables and clothing
free from grease, oil, moisture and
dirt.
• Ensure welding machine has been
correctly earthed.
• The operator must be insulated
from the floor and work bench
using a dry insulation mat.
• Always ensure a second person is
present in case of accident.
• Never change electrodes with
bare hands or damp gloves.
• Keep welding cables away from
power cables.
• Regularly inspect the condition of
the cables for signs of damage.
• Remove plug from the mains
socket when not in use, do not
leave the machine unattended.
• Ensure earth clamp is secured to
bare metal adjacent to weld
seam, and when not in use is
insulated for safety. - Keep all
equipment well maintained.
• The operator shall prevent gas
cylinders in the vicinity of the work
piece from becoming part of the
welding circuit.
FUMES & GASES
• The welding process generates
hazardous fumes as a by-product.
Inhalation of these fumes is
hazardous to health.
• Keep your head away from the
weld to avoid breathing the fumes.
• If welding in confined spaces
ensure adequate ventilation and
use a fume extractor.
• By-products of welding can react
to create a toxic/explosive
environment.
FIRE OR EXPLOSION
Welding can cause fire and
explosions. Precautions should be
taken to prevent these hazards.
• Before starting work ensure the
area is clear of flammable
materials.
• Move any combustible materials to
a safe distance, especially
substances likely to generate a
dangerous vapour.
WARNING: WHEN USING ELECTRICAL TOOLS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK AND PERSONAL INJURY
WARNING: READ ALL THESE INSTRUCTIONS BEFORE ATTEMPTING TO
OPERATE THIS PRODUCT AND KEEP THESE INSTRUCTIONS IN A SAFE PLACE.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
• The welding arc can cause serious
burns. Avoid contact with skin.
• Sparks and molten metal are
ejected during welding. Take
precautions to prevent fires.
• Sparks and molten metal can pass
through gaps. Be aware that fire
can start out of sight.
• Do not weld pressurised containers.
or containers containing
flammable vapours e.g. fuel tanks.
• Always have appropriate fire
fighting equipment to hand
suitable for use in electrical
environments.
• Avoid carrying any fuels with you
e.g. cigarette lighters or matches.
PERSONAL PROTECTION
• The body should be protected by
suitable clothing.
• The use of neck protection may be
necessary against reflected
radiation.
• Arc machines generate a
magnetic field which is detrimental
to pacemakers. Consult your
doctor before going near active
welding equipment/operations.
• The UV and IR radiation generated
by welding is highly damaging to
the eyes, causing burns. This can
also affect the skin.
• Always use a suitable welding
shield equipped with appropriate
protective filters.
• Where there are pedestrians and
traffic ensure a protective screen is
used to avoid accidental arc glare.
• Do not weld in the vicinity of
children or animals and ensure no-
one is looking before striking an
arc.
• Wear hearing protection if
required.
• Allow the weld time to cool. Hot
metal should never be handled
without gloves.
• Take care when adjusting or
maintaining the torch, that it has
had time to cool sufficiently and
the welder is disconnected from
the mains supply.
• First aid facilities and a qualified first
aid person should be available
unless medical facilities are close
by, for immediate treatment of
flash burns of the eyes and skin
burns.
• A hard hat should be worn when
others are working overhead.
• Flammable hair sprays/gels should
not be used by persons intending
to weld or cut.
PROTECTIVE CLOTHING
• Wear gauntlet gloves designed for
use in welding,
• Wear an apron, and protective
shoes.
• Wear cuffless trousers to avoid
entry of sparks and slag.
• Avoid oily greasy clothing.
• Protective head and shoulder
coverings should be worn when
welding overhead.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
• Wear a helmet or safety goggles or
glasses with side shields
underneath, appropriate filter
lenses or plates (protected by clear
glass). This is a MUST for welding
(and chipping) to protect the eyes
from radiant energy and spatter.
Replace cover glass when broken,
pitted, or spattered.
NOTE: ALL protective wear inc. masks
& head shields MUST comply with PPE
Directive 89/686/EEC
ADDITIONAL SAFETY PRECAUTIONS
FOR ARC WELDERS
• NEVER attempt to remove any of
the panels unless the machine is
disconnected from the power
supply.
• NEVER use the machine with any of
the panels removed.
• NEVER attempt any electrical or
mechanical repair unless your are
a qualified technician. If you have
a problem with the machine
contact your local CLARKE dealer.
• NEVER use or store in a wet/damp
environment. DO NOT EXPOSE TO
RAIN.
• NEVER allow children or animals in
the vicinity of a welding operation.
• ALWAYS remove all flammable
materials from the welding area.
• ALWAYS ensure that there is full free
air circulating around the outer
casing of the machine, and that
the louvres are unobstructed.
• Welding arc can seriously damage
your eyes. Both the operator and
any spectators should always use a
proper welding face shield or
helmet, with suitable filter lenses.
Proper gloves and working clothes
should be worn at all times.
• ALWAYS wear a pair of safety
spectacles/goggles when
chipping away slag after welding.
Remember, ordinary eye glasses
are not safety gasses.
• ALWAYS ensure there is adequate
ventilation or extraction in the work
area as the welding process gives
off toxic fumes.
• ALWAYS ensure there is a fire
extinguisher on hand.
• ALWAYS ensure that a medical
supply is on hand, and that
treatment for burns is available.
SAFETY SYMBOLS
General Warning,
indicates that failing to
follow these instructions
could result in injury or
damage to the machine.
Recycle unwanted
materials instead of
disposing of them as
waste. All tools,
accessories and
packaging should be
sorted, taken to a recycling centre
and disposed of in a manner which is
compatible with the environment.
6
ELECTRICAL CONNECTIONS
230V SUPPLY
Connect the mains lead to a suitably fused 230 Volt (50Hz) electrical supply.
The fuse rating should correspond to that shown on the data plate on the rear
panel of the machine. For a full explanation of the rating plate, see page 15.
If the colours of the wires in the power cable of this product do not correspond with
the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked Nor coloured Black.
• The wire which is coloured Brown must be connected to the terminal
which is marked Lor coloured Red.
• The wire which is coloured Yellow and Green must be connected to the
terminal which is marked E or or coloured Green.
400V SUPPLY
For connecting to a 400V (Single Phase) supply, the colour codes of the wires
are as follows: Green and Yellow - Earth Blue - Live (L1) Brown - Live (L2)
If in any doubt, consult a qualified electrician.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE SUPPLY.
WARNING: NEVER FIT A STANDARD 230V, 13AMP (BS1363) PLUG TO
THESE MACHINES
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
UNPACKING
Any damage or deficiency should be reported to your CLARKE dealer
immediately.
The components include the following:
• 1 x 200 Amp AC Arc Welder
• 1 x Combination Wire Brush & Hammer
• 1 x Clarke Instruction Manual

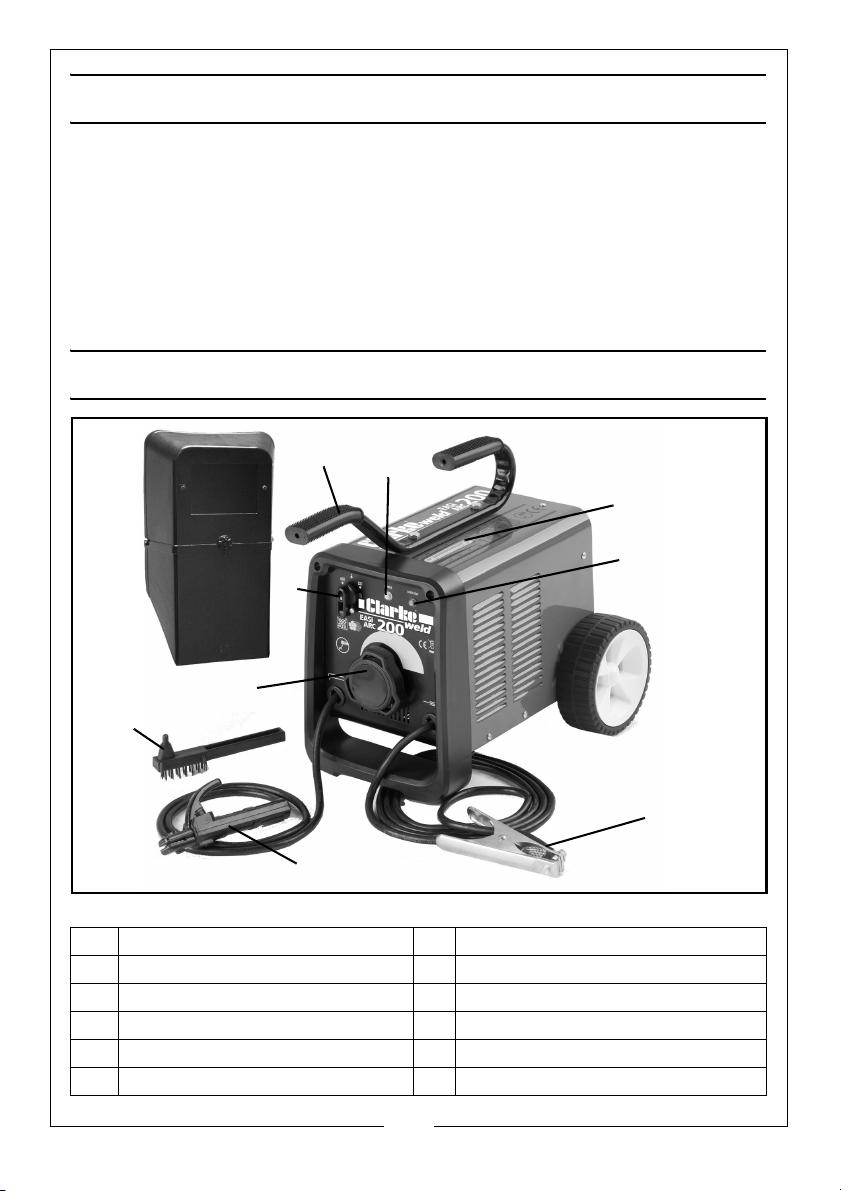

OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Handle 6 On/Off Switch / Voltage Selector
2 Overload Indicator 7 Earth Clamp
3 Welding Current Selector 8 Combination Wire Brush & Hammer
4 Welding Rod Electrode Holder 9 Power Indicator
5 Welding Current Scale
7
8
1
2
3
4
5
6
9
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

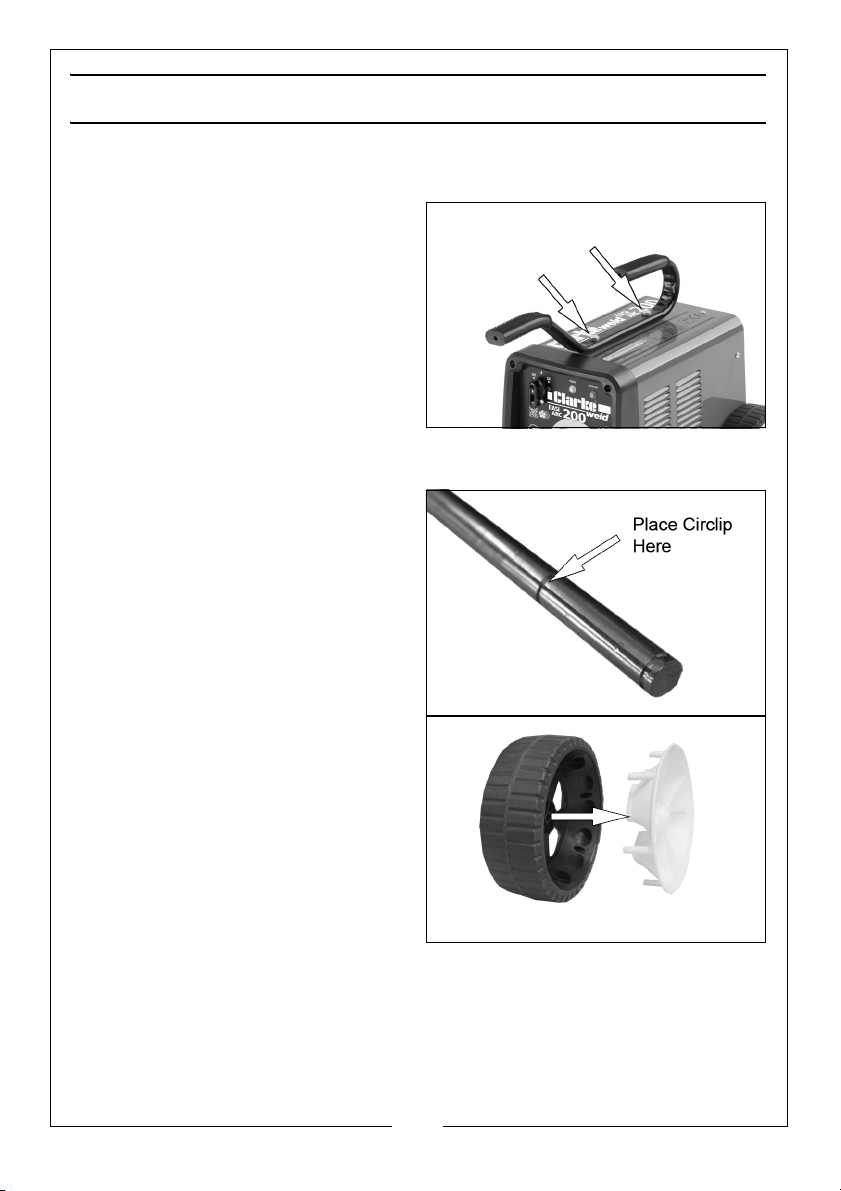

ASSEMBLY
FITTING THE HANDLE
1. Remove the two bolts at the top of
the welder.
2. Position the handle as shown and
secure with the two bolts.
FITTING THE WHEELS
1. Place a circlip on the inner groove
on the axle.
2. Carefully remove the wheel cover.
3. Slide the wheel onto the axle.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

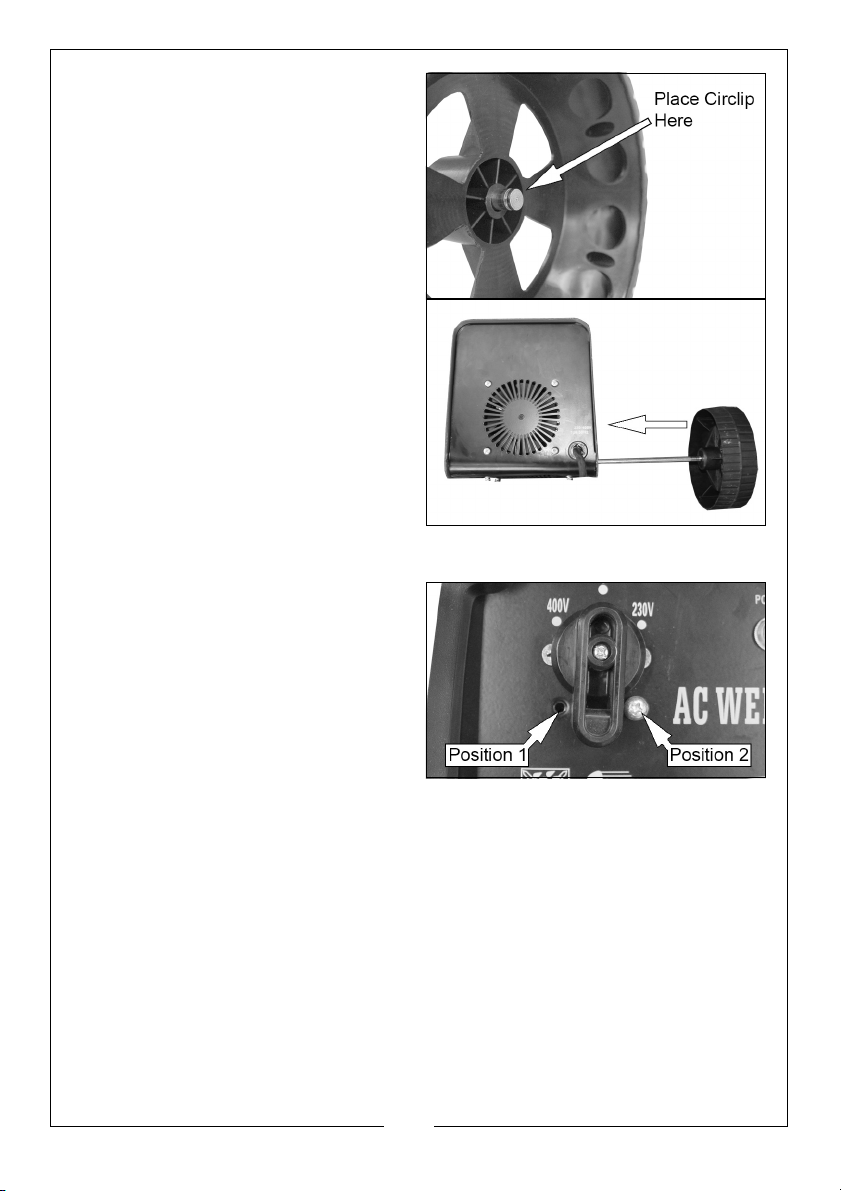

4. Place the second circlip on the
outer grove on the axle.
5. Replace the wheel cover
6. Slide the axle through the body of
the welder as shown.
7. Fix the second wheel to the other
end of the axle as described.
DUAL SUPPLY
This machine is capable of operating
on 230V or 400V (single phase), the
voltage selector is designed so that it
can select only one voltage.
The position of the screw,arrowed in
the illustration opposite will determine
the voltage selection.
With the screw in:
POSITION 1, the switch may be turned from O - OFF to 400V.
POSITION 2, the switch may be turned from O - OFF to 230V.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

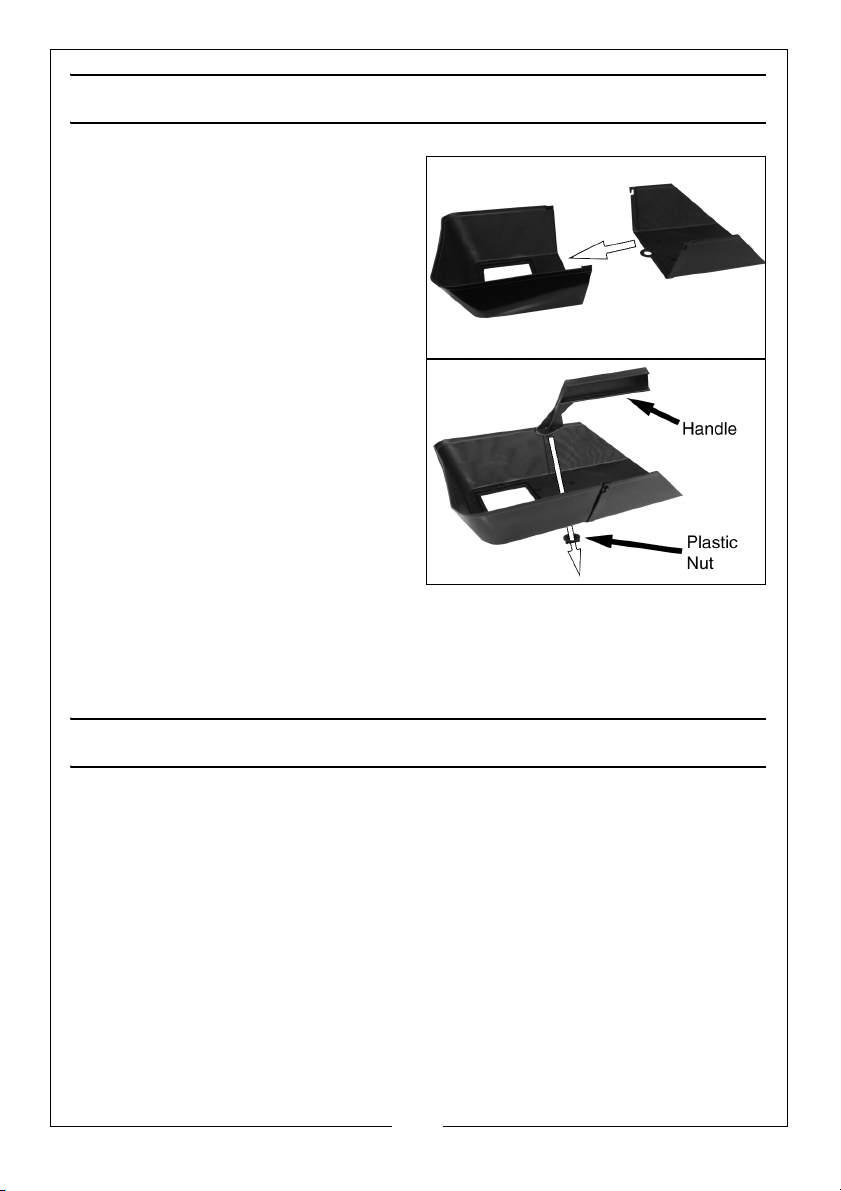

THE WELDING SHIELD
1. Push the two halves of the shield
together as shown, making sure
the hooks and pins on the side
engage correctly.
2. Place the handle into position
and secure using the plastic nut
provided.
3. Working from the inside of the
shield, insert the clear glass panel
into the recess in the shield,
followed by the dark glass panel.
• The clear glass must be inserted
first.
4. Insert the two plastic screws to
clamp the glass panels from the
inside of the mask.
When replacing the glass panels,
only use parts supplied by Clarke International. The dark panel is a certified,
specific optical class, and should not be exchanged for any other type.
The clear glass panel should be replaced when it becomes badly pitted.
PREPARATION FOR USE
FITTING THE WELDING ROD
1. Select the appropriate welding rod, and insert it into the welding rod
holder.
• It should be approximately the same thickness as the metal being
welded.
PREPARING THE WORKPIECE
The area being welded should be perfectly clean. Any coating, plating or
corrosion must be removed, otherwise a good weld will be impossible to
achieve.
Indice
Altri manuali Clarke Sistema di saldatura
Clarke
Clarke King 35 Manuale di installazione e funzionamento
Clarke
Clarke 195TEC Manuale di installazione e funzionamento
Clarke
Clarke MIG220TE Manuale di installazione e funzionamento
Clarke
Clarke weld MMA/TIG120 Manuale di istruzioni
Clarke
Clarke PLASMA KING 25-SI Manuale di istruzioni
Clarke
Clarke MIG165TE Manuale di installazione e funzionamento
Clarke
Clarke WE6495E Manuale di installazione e funzionamento
Clarke
Clarke 195TE Manuale di installazione e funzionamento
Clarke
Clarke ARC Manuale di installazione e funzionamento
Clarke
Clarke 6014011 Manuale di istruzioni
Clarke
Clarke weld MIG 90EN Manuale di installazione e funzionamento
Clarke
Clarke AT101 Manuale di istruzioni
Clarke
Clarke weld MIG103NG Manuale di istruzioni
Clarke
Clarke CSW6T Manuale di installazione e funzionamento
Clarke
Clarke MIG 240 Manuale di istruzioni
Clarke
Clarke Weld MIG 130 TE Turbo Manuale
Clarke
Clarke Fluxcore/MIG 135sg WE6441 Manuale utente
Clarke
Clarke WE6480 MIG 95 Manuale di installazione e funzionamento
Clarke
Clarke Weld MIG 130 TE Turbo Manuale
Clarke
Clarke MIG165TEM Manuale di installazione e funzionamento
