Clarke PLASMA KING 25-SI Manuale di istruzioni

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1121

PLASMA CUTTER

MODEL NO: PLASMA KING 25-SI

PART NO: 6015700

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

INTRODUCTION

Thank you for purchasing this CLARKE Plasma Cutter.

Before attempting to operate the machine it is essential that you read this

manual thoroughly and carefully follow all instructions given. In doing so you

will ensure the safety of yourself and that of others around you, and you can

also look forward to the product giving you long and satisfactory service.

Ensure the machine suffered no damage during transit and that all

components are present. Should any loss or damage be apparent, please

contact your CLARKE dealer immediately.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of

12 months from the date of purchase. Please keep your receipt as proof of

purchase.

This guarantee is invalid if the product is found to have been abused or

tampered with in any way, or not used for the purpose for which it was

intended.

Faulty goods should be returned to their place of purchase, no product can

be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the

obligation to deal with the WEEE in accordance with the WEEE

regulations in relation to the treatment, recycling & recovery and

environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general

household waste. It must be disposed of according to the laws governing

Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal

facility.

If disposing of this product or any damaged components, do not dispose of

with general waste. This product contains valuable raw materials. Metal

products should be taken to your local civic amenity site for recycling of metal

products.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

SAFETY AND GENERAL WARNINGS

1. Make sure that the unit is earthed and that the supply line has an

adequate earth connection.

2. Make sure that any workbench used has a satisfactory earth connection.

3. Avoid contact between the metal being cut and bare skin or damp

clothes.

4. DO NOT lean on the workpiece being cut or hold it in your hands.

5. DO NOT use in a damp environment or on wet surfaces.

6. DO NOT use the unit if the torch or cables appear damaged.

7. ALWAYS turn the unit off before replacing the electrode, the nozzle or the

spreader tip of the torch.

8. DO NOT allow debris to collect as this could obstruct air flow to the

machine.

9. ALWAYS switch the unit off and remove the power cable from the mains

socket before carrying out any maintenance on the unit.

10. All the panels of the unit should be correctly closed after carrying out

maintenance.

HARMFUL FUMES AND GASES

Harmful fumes and metallic powders are produced during the cutting

operation. Metals which are painted or coated or which contain mercury,

cadmium, zinc, lead and graphite may produce harmful concentrations of

toxic fumes during cutting. To protect the operator or other persons from

exposure to possible toxic fumes, fume respirators should be worn and work

areas should be adequately ventilated.

When working in enclosed environments, suction units should be fitted below

the cutting areas.

CAUTION: IF DURING THE CUTTING OPERATION A SLIGHT ELECTRIC

SHOCK IS FELT, STOP WORK IMMEDIATELY AND DO NOT USE THE UNIT

UNTIL THE FAULT HAS BEEN DISCOVERED AND RESOLVED.

CAUTION: WHEN HALOGENATED SOLVENTS OR DEGREASING AGENTS

ARE PRESENT, THE MATERIAL TO BE CUT SHOULD BE CLEANED PROPERLY

TO PREVENT THE FORMATION OF TOXIC GASES. SOME CHLORINATED

SOLVENTS MAY DECOMPOSE IN THE PRESENCE OF THE RADIATION GIVEN

OUT BY THE ARC AND MAY GENERATE PHOSGENE GAS.7

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

FIRE HAZARDS

1. Prevent sparks or hot scale from producing flames.

2. Remove inflammable or combustible materials from the cutting area.

3. Make sure that fire-fighting equipment is located near the work area.

4. Situate the unit in an area where the air can be sucked in and exhausted

from the grilles on the panel.

ELECTRO-MAGNETIC INTERFERENCE (EMI)

1. Make sure that there are no other power supply cables, control lines,

telephone leads or other equipment near the unit.

2. Make sure that there are no radio receivers or televisions.

3. Make sure there are no computers or other control systems.

4. Make sure that there is no-one with a pacemaker or hearing aid in the

area around the unit.

5. Check the immunity of any other equipment operating in the same

environment. In certain cases additional protective measures may be

required. Before installing the plasma cutting unit, carry out an inspection

of the surrounding area, observing the following guidelines:

Interference can be reduced in the following ways:

1. If there is interference in the power supply line, an E.M.I. filter should be

inserted between the mains and the unit.

2. The output cables of the unit should be shortened; these should be kept

close together and stretched along the ground.

PERSONAL PROTECTIVE EQUIPMENT(PPE)

One of the hazards during the cutting process is the emission of

electromagnetic waves due to the electric arc. The length of these waves

ranges from infrared to ultraviolet. If these rays hit the eyes they can cause

various complaints such as conjunctivitis, burns to the retina, deterioration of

sight, etc. Moreover a high concentration of ultraviolet rays can burn the skin.

It is, therefore, extremely important that the operator uses adequate safety

equipment and clothing, such as:

CAUTION: DO NOT CUT FUEL OR LUBRICANT CONTAINERS EVEN IF THEY

ARE EMPTY. DO NOT CUT CONTAINERS OR CASINGS WHICH CONTAIN

FLAMMABLE MATERIAL. NEVER CUT IN ENVIRONMENTS WHICH ARE

POLLUTED BY FLAMMABLE GAS OR COMBUSTIBLE LIQUID VAPOURS

(SUCH AS PETROL).

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

• Leather welding gauntlets (part no 8133492)

• Leather welding apron (part no 6000920)

•Safetyshoes

• Safety mask (or even better, a helmet) large enough to cover the whole of

the face, equipped with safety lenses able to filter all the radiation and

reduce the intensity of the light absorbed by the eye.

• Safety screens should be installed around the work area to protect other

people who may be working nearby, from the radiation given out by the

arc.

THE WORK AREA

The work area should be clean and well lit. Bystanders etc should be kept

away to prevent injury or distraction.

Arrange the power cable along a safe route so as to avoid a trip hazard.

Allow enough range of movement to facilitate movement while working

keeping the cutter within 2 metres of the workpiece to be cut.

• A barrier such as a welding curtain or screen e.g. CLARKE Welding Screen

(part no 6000945) should be put up to protect others from flashing and

sparks.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

SAFETY SYMBOLS

Read Instruction

manual before use

Flammable

Caution - The user

should be aware of a

general hazard

Hot Surface - Do not

touch

Dangerous voltage Poisonous fumes - Do

not use in an enclosed

space.

Plasma cutting Thermal protection

devices

Under pressure

protection device

Wear protective

gloves

Wear a dust mask Use a protective

eyewear

Appliance for indoor

use only

This appliance falls

under the WEEE

Directive for disposal

of waste electrical

equipment.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

ELECTRICAL CONNECTIONS

Before switching the product on, make sure that the voltage of your electricity supply is

the same as that indicated on the rating plate. This product is designed to operate on

230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the

fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or

damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to

damage, it should be cut off and a replacement fitted, following the wiring instructions

shown below. The old plug must be disposed of safely, as insertion into a mains socket

could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond

with the markings on the terminals of your plug, proceed as follows.

• The Blue wire must be connected to the terminal marked Nor

coloured Black.

• The Brown wire must be connected to the terminal marked Lor

coloured Red.

• The Yellow and Green wire must be connected to the terminal

marked E or or coloured Green.

We strongly recommend that this machine is connected to the mains supply

via a Residual Current Device (RCD). If in any doubt, consult a qualified

electrician. DO NOT attempt any repairs yourself.

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS

THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE

MAINS SUPPLY.

WARNING! THE WIRES IN THE POWER CABLE OF THIS PRODUCT

ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN =

EARTH

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

COMPRESSED AIR REQUIREMENTS

A source of clean, dry compressed air or nitrogen must be supplied to your

plasma cutting unit. An air regulator is incorporated into the unit. A male quick

release adapter is used to connect the air supply hose to the filter/regulator.

• The operating pressure must be between 3 and 3.5 bar (0.3 and 0.35Mpa)

• The supply must also have a flow rate of approximately 7.2 cfm.

Failure to operate within the limits could result in excessive operating

temperatures or damage to the machine.

A TYPICAL AIR LINE LAYOUT IS SHOWN BELOW

Never exceed the maximum operating pressure for the machine It is

recommended that air pressure to the plasma cutter does not exceed 90 psi

at the machine. Higher pressures are a possible safety hazard.

Use only clean, dry, oil-free compressed air.

Air compressors used with the cutter must comply with the appropriate

European Community Safety Directives.

A build-up of moisture in the air compressor will accelerate wear and corrosion

in the machine. Ensure any moisture is drained from the compressor daily and

the inlet filter is kept clean.

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU

ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF

COMPRESSORS AND COMPRESSED AIR SUPPLY.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or [email protected]

If an unusually long air hose is required, (over 8 metres), the line pressure or the

hose inside diameter may need to be increased.

NOTE: The air hose must be rated at least 150% of the maximum

operating pressure of the air tool or other machine.

PRINCIPLES OF OPERATION

PRINCIPLES OF PLASMA CUTTING

Plasma cutting is a fast, clean and distortion free, means of cutting through all

types of metal from mild and stainless steels to aluminium, brass and copper.

• An inert gas (compressed air) is blown at high speed out of the nozzle;

whilst at the same time an electrical arc travels through the gas, heating it

to an extremely high temperature, which ionizes the gas.

• The column of heated ionized gas is called “Plasma” and is a good

conductor of electricity.

• The cutting procedure utilises the plasma to transfer the electric arc to the

metal workpiece, which is melted by the heat and then blown out of the

way using the compressed air supply.

HOW THE PLASMA CUTTER WORKS

• The process is created by an arc which is struck between the electrode

(negative polarity) and the torch nozzle (positive polarity) due to the short

circuit between these two elements.

• When the torch is brought into direct contact with the workpiece

(connected to the positive polarity of the power source) the arc is

transferred between the electrode and the workpiece itself, thus striking a

plasma arc, also called cutting arc.

THERMAL PROTECTION DEVICE

• This is installed at the points most subject to high temperatures such as the

power transformers and the rectifying units. An amber light on the front

panel lights up when the thermal protection device intervenes and the

machine returns to service when it cools down.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Servi[email protected]om

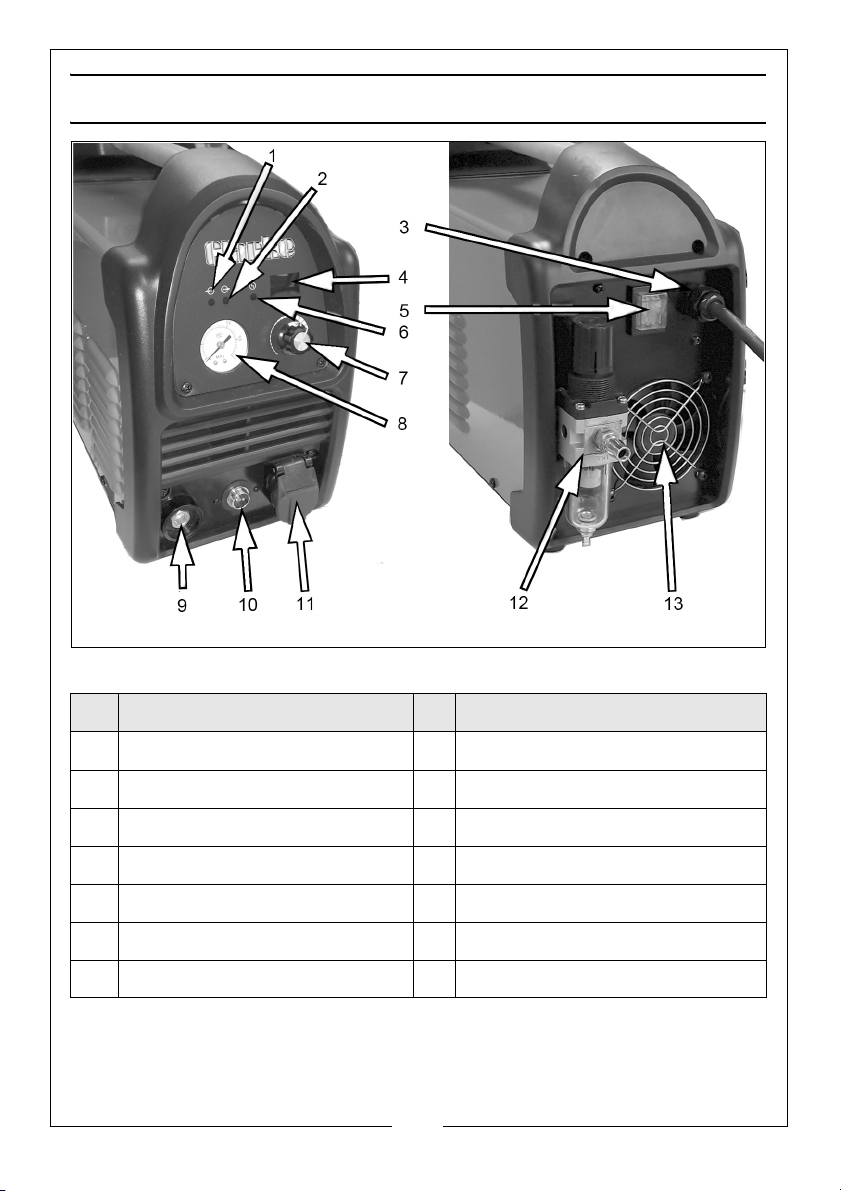

OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Green “Power On” LED 8 Air Pressure gauge

2 Red “Cutting in Progress” LED 9 Earth cable connection

3 Power supply cable 10 Torch (Trigger) connection

4 Digital power display (Amps) 11 Torch (Cutting nozzle) connection

5 On/Off switch 12 Compressed air filter/regulator

6 Yellow “Overheating” LED 13 Cooling Fan

7 Control Potentiometer

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Clarke Sistema di saldatura

Clarke

Clarke 195TEC Manuale di installazione e funzionamento

Clarke

Clarke MIG110E Manuale di installazione e funzionamento

Clarke

Clarke MIG165TE Manuale di installazione e funzionamento

Clarke

Clarke 195TE Manuale di installazione e funzionamento

Clarke

Clarke MIG165TEM Manuale di installazione e funzionamento

Clarke

Clarke MIG196 Manuale di istruzioni

Clarke

Clarke EASIARC 200 Manuale

Clarke

Clarke WE6442 Manuale utente

Clarke

Clarke King 35N Manuale di installazione e funzionamento

Clarke

Clarke 90EN Manuale di installazione e funzionamento

Clarke

Clarke MIG 240 Manuale di istruzioni

Clarke

Clarke CSW6T Manuale di installazione e funzionamento

Clarke

Clarke MIG85ENB Manuale di installazione e funzionamento

Clarke

Clarke EASIARC 165 Manuale di istruzioni

Clarke

Clarke MIG106 Manuale di istruzioni

Clarke

Clarke CSW6T Manuale di installazione e funzionamento

Clarke

Clarke MIG220TE Manuale di installazione e funzionamento

Clarke

Clarke weld MMA/TIG120 Manuale di istruzioni

Clarke

Clarke CGW1 Manuale utente

Clarke

Clarke MIG 160TM Manuale di installazione e funzionamento

Clarke

Clarke WE6480 MIG 95 Manuale di installazione e funzionamento

Clarke

Clarke Arc/Tig135 Manuale di installazione e funzionamento

Clarke

Clarke WE6494A Manuale utente

Clarke

Clarke weld MIG103NG Manuale di istruzioni

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

Lincoln Electric

Lincoln Electric HANDYMIG 170I Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Manuale utente

ESAB

ESAB Buddy Arc 145 Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente
