Clear MODEM with Wi-Fi Manuale utente
CLEAR MODEM
with Wi-Fi
USER GUIDE
1
GET TO KNOW YOUR CLEAR MODEM WITH WI-FI 3
WHAT’S IN THE BOX? 3
INFORMATIVE LED INDICATORS 3
USE WITH CARE 3
SET UP THE MODEM 4
PLACE THE MODEM ON A FLAT, STABLE SURFACE 4
PLUG IN THE POWER CORD 4
CONNECT TO CLEAR 4G 5
CONNECT TO THE WI-FI NETWORK 6
ALTERNATIVE TO WI-FI 6
CHANGE YOUR WI-FI NETWORK NAME AND PASSWORD 7
CONNECT TO THE INTERNET 8
MANAGE YOUR MODEM 9
MODEM HOME PAGE OVERVIEW 9
MODEM HOME PAGE / HOME TAB 10
MODEM HOME PAGE / DEVICE STATUS TAB 11
MODEM HOME PAGE / DEVICE STATUS TAB (CONTINUED) 12
MODEM HOME PAGE / BASIC / PASSWORD TAB 13
MODEM HOME PAGE / BASIC / TIME ZONE TAB 14
MODEM HOME PAGE / BASIC / DEVICE NAME TAB 15
MODEM HOME PAGE / BASIC / WI-FI TAB 16
MODEM HOME PAGE / BASIC / RESET FACTORY SETTINGS TAB 17
MODEM HOME PAGE / BASIC / LANGUAGE TAB 18
MODEM HOME PAGE / ADVANCED / FIREWALL TAB 19
MODEM HOME PAGE / ADVANCED / INTERNET PROTOCOL TAB 20
MODEM HOME PAGE / ADVANCED / DYNAMIC DNS TAB 21
MODEM HOME PAGE / ADVANCED / PORT FORWARDING / BASIC TAB 22
MODEM HOME PAGE / ADVANCED / PORT FORWARDING / FORWARDING TAB 23
MODEM HOME PAGE / ADVANCED / LOCAL ADDRESS / DHCP SERVER TAB 24
MODEM HOME PAGE / ADVANCED / LOCAL ADDRESS / LEASE STATUS TAB 25
MODEM HOME PAGE / ADVANCED / LOCAL ADDRESS / LEASE RESERVATION TAB 26
MODEM HOME PAGE / ADVANCED / CHECK UPDATES TAB 27
QUICK TIPS 28
UNDERSTANDING THE LED LIGHTS 28
TO MAXIMIZE SIGNAL STRENGTH 28
UNABLE TO BROWSE THE INTERNET? 28
ENSURE YOUR DEVICES RECOGNIZE YOUR MODEM 29
MAXIMIZE SECURITY OF THE MODEM 29
RESETTING YOUR USERNAME AND PASSWORD 29
2
IMPORTANT MESSAGE FROM CLEAR 29
IMPORTANT INFORMATION 30
TECHNICAL SPECIFICATIONS 30
FAQS AND LIVE CHAT SUPPORT 31
TELEPHONE SUPPORT 31
QUESTIONS ABOUT YOUR BILL? 31
IMPORTANT INFORMATION DOCUMENT 31
WARRANTY INFORMATION 31
LEGAL DISCLOSURES 31
3
Get to Know Your CLEAR Modem with Wi-Fi
What’s in the Box?
CLEAR Modem with Wi-Fi Modem Foot Power Cord Ethernet Cable Quick Start Guide
Informative LED Indicators
The LED indicators are located on the front and back of the CLEAR Modem with Wi-Fi (Modem).
The Signal Strength LEDs indicate the strength of the CLEAR 4G signal (five LEDS lit indicates
an excellent signal).
The Wi-Fi LED remains lit when wi-fi is available.
The Power LED indicates the Modem is turned on.
The Network LED indicates the Modem is connected to the CLEAR 4G signal and / or data is
being transmitted.
Use with Care
Do not throw, drop, or dismantle the Modem.
Keep the Modem out of direct sunlight.
Keep pets and children from playing with the Modem.
Do not immerse the Modem in water or other liquid.
Make sure your hands are dry before handling the Modem.
Signal Strength
Wi-Fi
Power
Network
Reset
Button
4
Set up the Modem
Place the Modem on a Flat, Stable Surface
Align the slots at the bottom of the Modem with the slots on the Modem Foot (Foot). Push gently on
the Modem to snap the Foot onto the Modem.
To remove the Foot, press both tabs outward at the same time and the Foot will release from the
slots.
Do not place the Modem on its side or block the top air vents. The preferred location is near a
window and away from obstructions.
Plug in the Power Cord
Follow the diagram below to plug in the Power Cord.
After you’ve plugged the Modem into a power outlet, the Modem will automatically search for a
CLEAR 4G signal.
Plug one end of the Power
Cord into the AC adapter
port on the Modem and plug
the other end into a power
outlet.
5
Set up the Modem (continued)
Connect to CLEAR 4G
As the Modem is searching for the CLEAR 4G signal, five LED lights, located on the front of the
Modem, will blink sequentially and then in unison. When the Modem is connected to the CLEAR 4G
signal, the LED lights will stop blinking and remain lit.
Note: The number of LED lights indicates the CLEAR 4G signal strength – the more lights, the
stronger the signal. For optimal signal strength, you should try different locations for the Modem to
ensure a minimum of two LED lights are lit. If at least two LED lights are not lit, try moving the
Modem to another room.
Move just the Modem (not your computer) to another room, and wait 15—20 seconds after the LED
lights are solid white, in order to obtain the most accurate reading of the CLEAR 4G signal.
To optimize the signal strength in the Modem’s current location, try turning the Modem by small 1/4‖
increments.
LED Lights
6
Set up the Modem (continued)
Connect to the wi-fi Network
With your device’s wi-fi turned on, view the list of available wireless networks.
Connect to the Modem’s wi-fi network. The default wi-fi network name is ―WiFiRSU-xx‖, where
―xx‖ are the last two digits of the MAC ID, which can be found on the label on the back of the
Modem. The MAC ID also might be referred to as WAN MAC ID.
Enter the default w-fi password. The default wi-fi password is comprised of the last eight digits of
the MAC ID, which can be found on the label on the back of the Modem. The MAC ID also might
be referred to as WAN MAC ID.
Your device should display a message indicating it has connected to your Modem’s wireless
network.

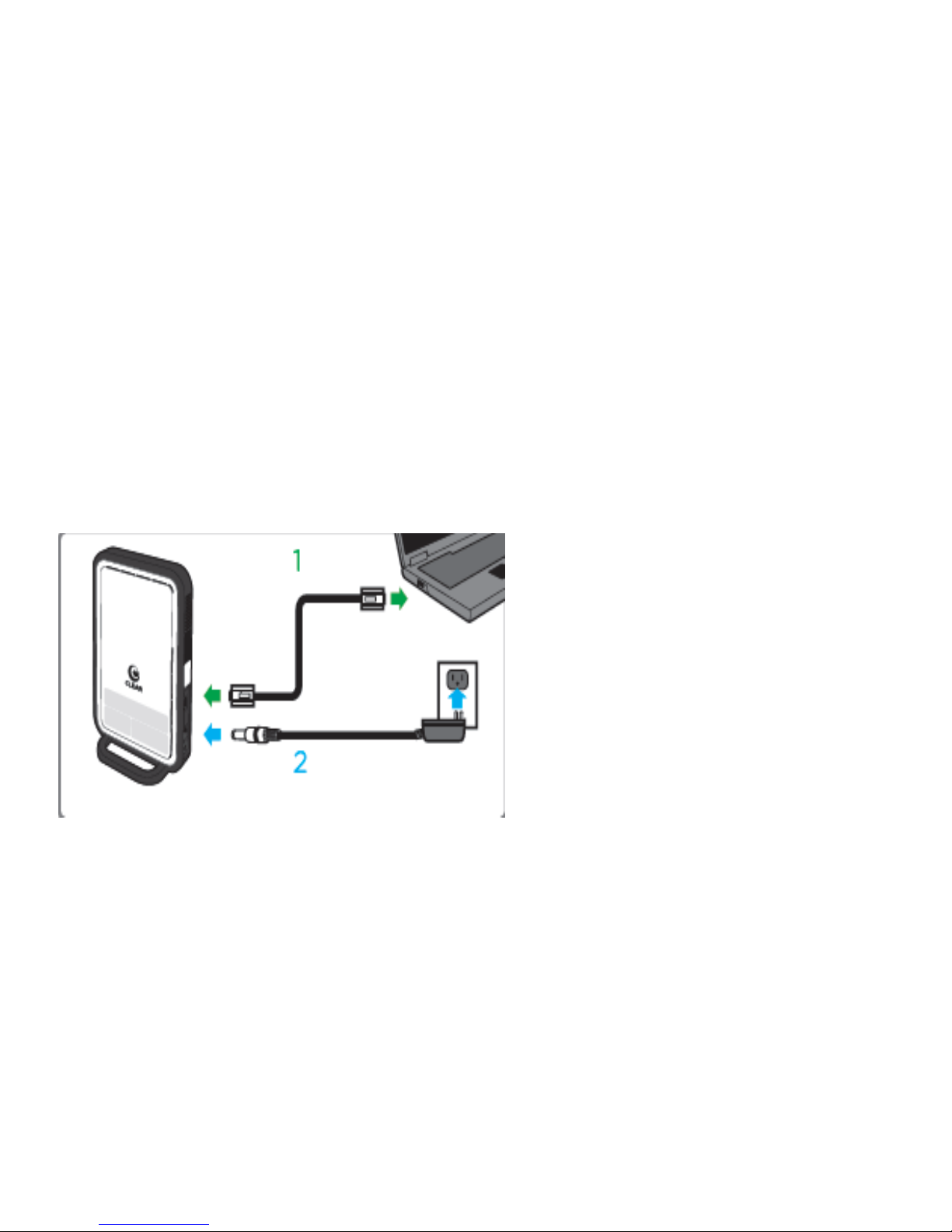

Alternative to wi-fi
As an alternative to wi-fi, you also can use the included Ethernet Cable to connect to the Modem.
Plug one end of the Ethernet Cable
into the ethernet port on the computer
and plug the other end into the
ethernet port on the Modem.
7
Set up the Modem (continued)
Change your wi-fi network name and password
Once you’ve set up your Modem and connected to the wi-fi network, you should change the Modem’s
wi-fi network name (SSID) and wi-fi password to something you can remember.
Log in to your Modem’s Home Page by entering http://192.168.15.1 into your web browser.
Enter the default Modem Password, which is ―CLEAR123‖.
Open the ―Basic‖ Tab and then click ―Wi-Fi‖.
Enter your new network name (SSID) and wi-fi password (the wi-fi password must be between 8
and 63 characters).
Click ―APPLY‖ to save the changes.
Use your computer’s wireless connection manager to find your new network name and connect
using the new wi-fi password.
Note: If you forgot your wi-fi network name or wi-fi password, you can connect to your Modem with
the Ethernet Cable and log in using the default Modem password, and then you’ll be able to view or
change the wi-fi network name and wi-fi password.
8
Set up the Modem (continued)
Connect to the internet
Every CLEAR customer gets an online account, so you easily can manage your account and view /
pay your bill.
The first time you connect to the internet with your Modem, you’ll be directed to a page to review your
rate plan information, complete your CLEAR online account, and read / accept the CLEAR Terms of
Service.
Congratulations!
You’re ready for INTERNET AWESOMENESS!
9
Manage Your Modem
Modem Home Page Overview
It’s easy to manage your Modem with the Modem Home Page.
Set up your Modem.
Change security settings.
Set up your wi-fi network.
View signal strength.
And more!
With your computer connected to the Modem, enter http://192.168.15.1 in your web browser in order
to open the Modem Home Page.
It is not required to log in to the Modem Home Page to access the internet. Logging in to the Modem
Home Page is required to manage the settings of your Modem.
To log in to the Modem Home Page, you’ll need to enter a password. The default password is
―CLEAR123‖.
We recommend bookmarking the Modem Home Page for easy reference.
If you’re using your Modem
and are connected to the
internet, click here to open
the Modem Home Page.
