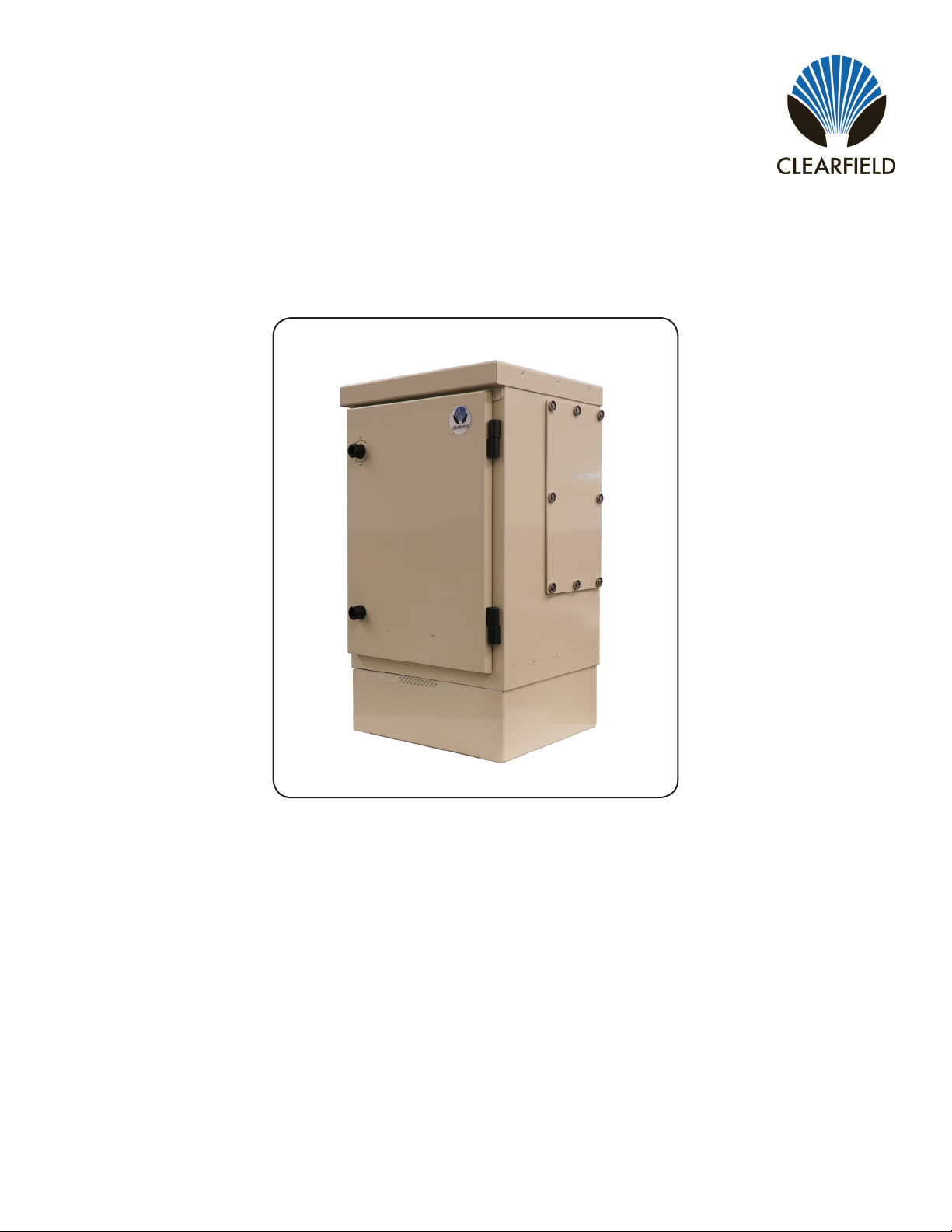

StreetSmart Pre-Terminated FDH Cabinet
Installation Manual ______________________________________________________
Manual 021814 REV A - Jan 2021
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
2
StreetSmart Pre-Terminated FDH Cabinet
Installation Manual _________________________________________________________
Manual 021814 REV A - Jan 2021
Table of Contents
Application 3
Description 3
Technical Specications 3
Mounting Base to Vault Lid 4
Mounting Cabinet to Base 6
Pole Mount Installation 7
Pre-Loaded Splitters 10
Connector Cleaning Procedure 11
Standard Warranty 16
Proprietary Notice 17
Technical Support 17
3
StreetSmart Pre-Terminated FDH Cabinet
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 021814 REV A - Jan 2021

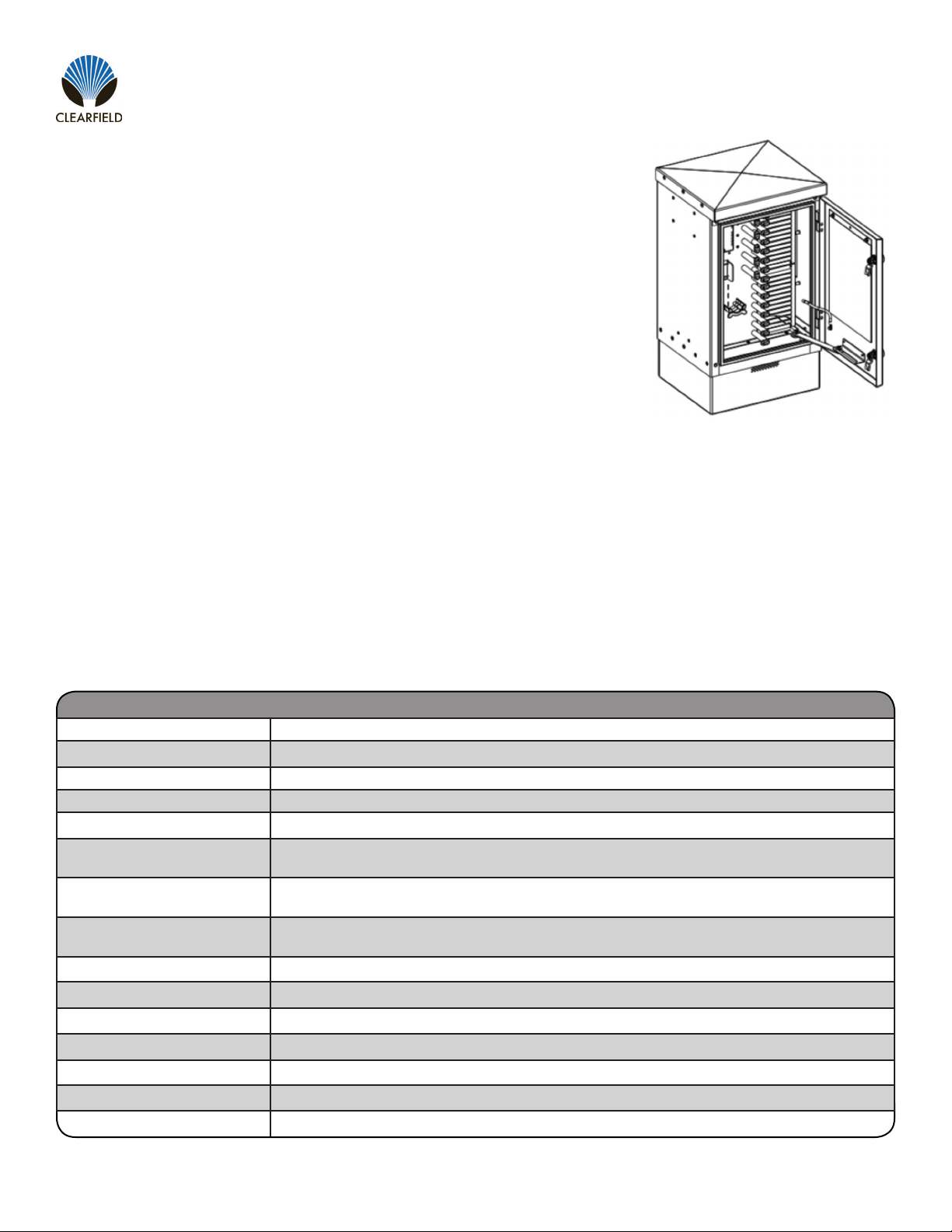

Application
Technical Specications
StreetSmart Pre-Terminated FDH Cabinet
Dimensions 22.72” T x 15.47” W x 14.18” D (577.08mm T x 393.94mm W x 360.17mm D) * Without Riser
Weight 40 lbs. (18.14 kg)
Dist. Port Density 144 or 288
Max. Feeder/Express Ports 12 or 24
Cable Entrances 4
Mounting Options (Hoist kits
included with each cabinet) Vault mount; pole mount; pad mount
Riser Base 6”; 8 lbs (127 mm; 2.72 kg)
12”; 12 lbs. (304.80 mm; 5.44 kg)
Pre-loaded WaveSmart High
Density Splitters with 900um Legs 4 or 8
Splitter Staging Capacity 72
Connector Modules 12 Pack Adapter Modules
Connector Types SC/UPC, SC/APC
Cable Types Indoor/Outdoor, Outdoor, Outdoor Armored, Ribbon and Loose Tube
Door Locks 2 per door
Venting Built-in Replaceable Roof Vent
Material 0.90 (2.286 mm) Aluminum with almond powder coating
Cleareld’s StreetSmart Pre-Assigned FDH PON Cabinet provides an interconnect
environment from the feeder network through the passive optical splitter to the
distribution network.
Designed for rapid PON Network deployments, these cabinets provide a single
distribution point to deploy FTTH in large scale MDU’s, urban or dense neighbor-
hoods. Pre-Assigned WaveSmart High Density 1 x 32 Splitters are loaded into the
cabinet with a pre-terminated ber tail, making installation and deployment very
cost and time effective.
Description
The StreetSmart Pre-Assigned FDH PON Cabinet provides a turn-key solution for up to 288 distribution bers for an outside
plant FTTx PON application. WaveSmart High Density 1 x 32 Splitters are installed and pre-assigned into Cleareld’s 12
pack SC/APC module adapters, allowing the service provider to instantly turn-up revenue-generating circuits.
The StreetSmart 288 PON Cabinet incorporates a cross-cut roof designed to shed water and includes a roof/solar shield
and a reusable/replaceable venting feature, providing additional protection for deployed ber. The outer shell of the cabinet
is replaceable, allowing the cabinet to be repaired if damaged. Mounting options include pad, pole or vault mounted with
either a 6” or 12” riser.
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
4
StreetSmart Pre-Terminated FDH Cabinet
Installation Manual _________________________________________________________
Manual 021814 REV A - Jan 2021

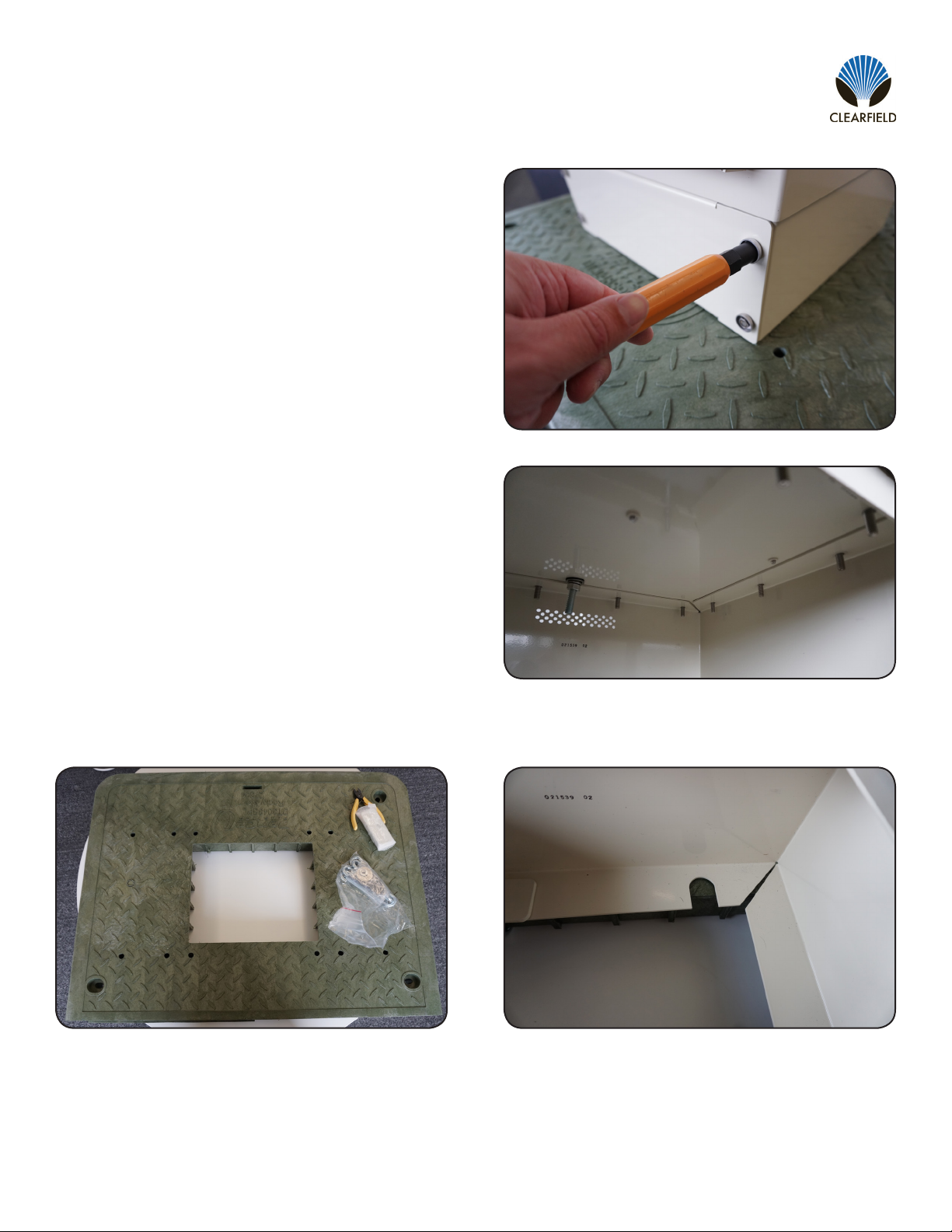

Mounting Base to Vault Lid
1.
2.
3.
Remove the access door from the back of the cabi-
net base with a 7/16” socket or can wrench.
Remove the nuts from the threaded studs holding
the cabinet to the base and lift the cabinet from the
base.
Place the cabinet base over the hole in the vault lid.
5
StreetSmart Pre-Terminated FDH Cabinet
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 021814 REV A - Jan 2021

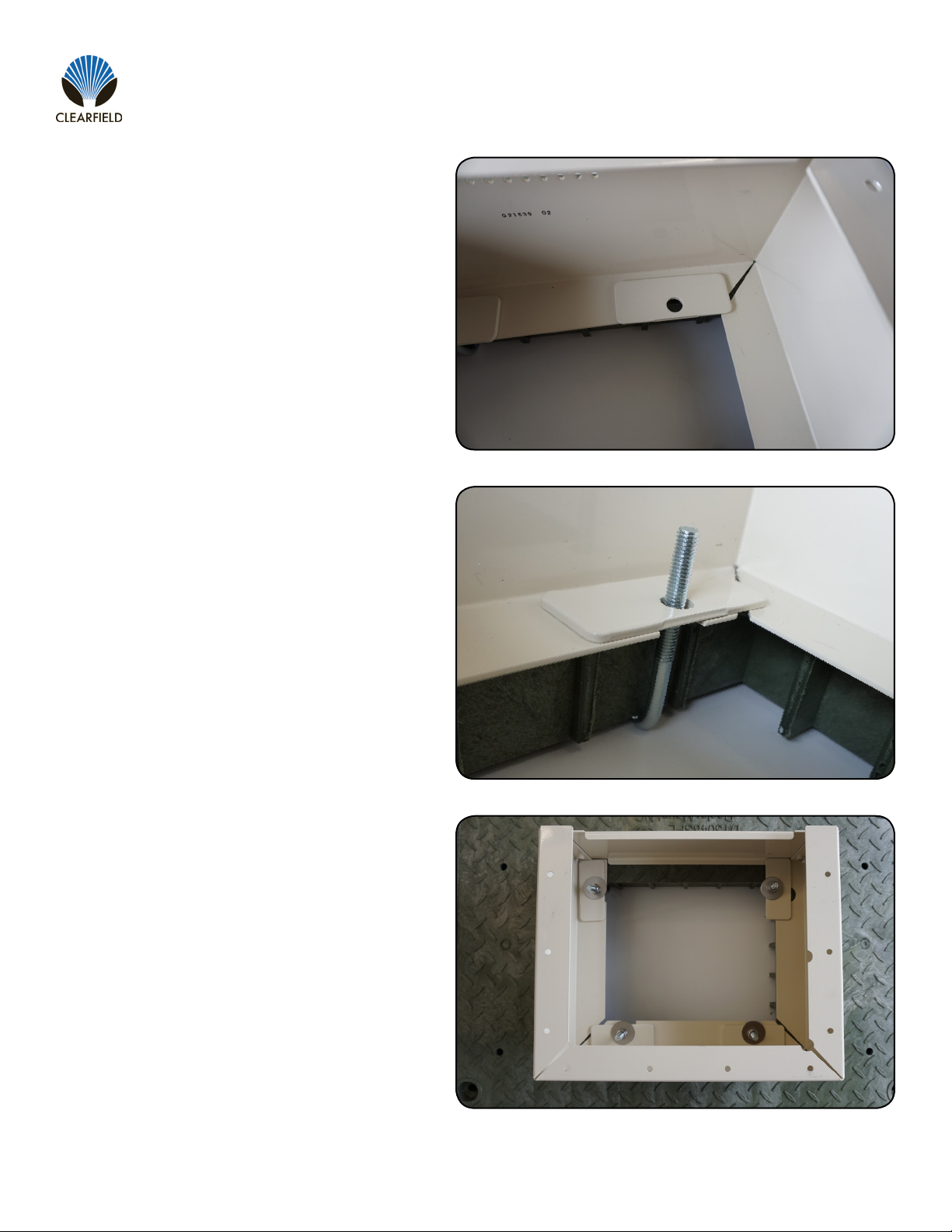

4.
5.
6.
Place the rectangular washer plates over the
round cutouts in the cabinet base.
Insert the J-bolts through the base of the
rectangular washer plates, ensuring that the
J hook is hooked under a rib of the vault lid
underneath.
Using the washers, lock washers, and nuts
provided, secure the cabinet vase to the
vault lid.
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
6
StreetSmart Pre-Terminated FDH Cabinet
Installation Manual _________________________________________________________
Manual 021814 REV A - Jan 2021

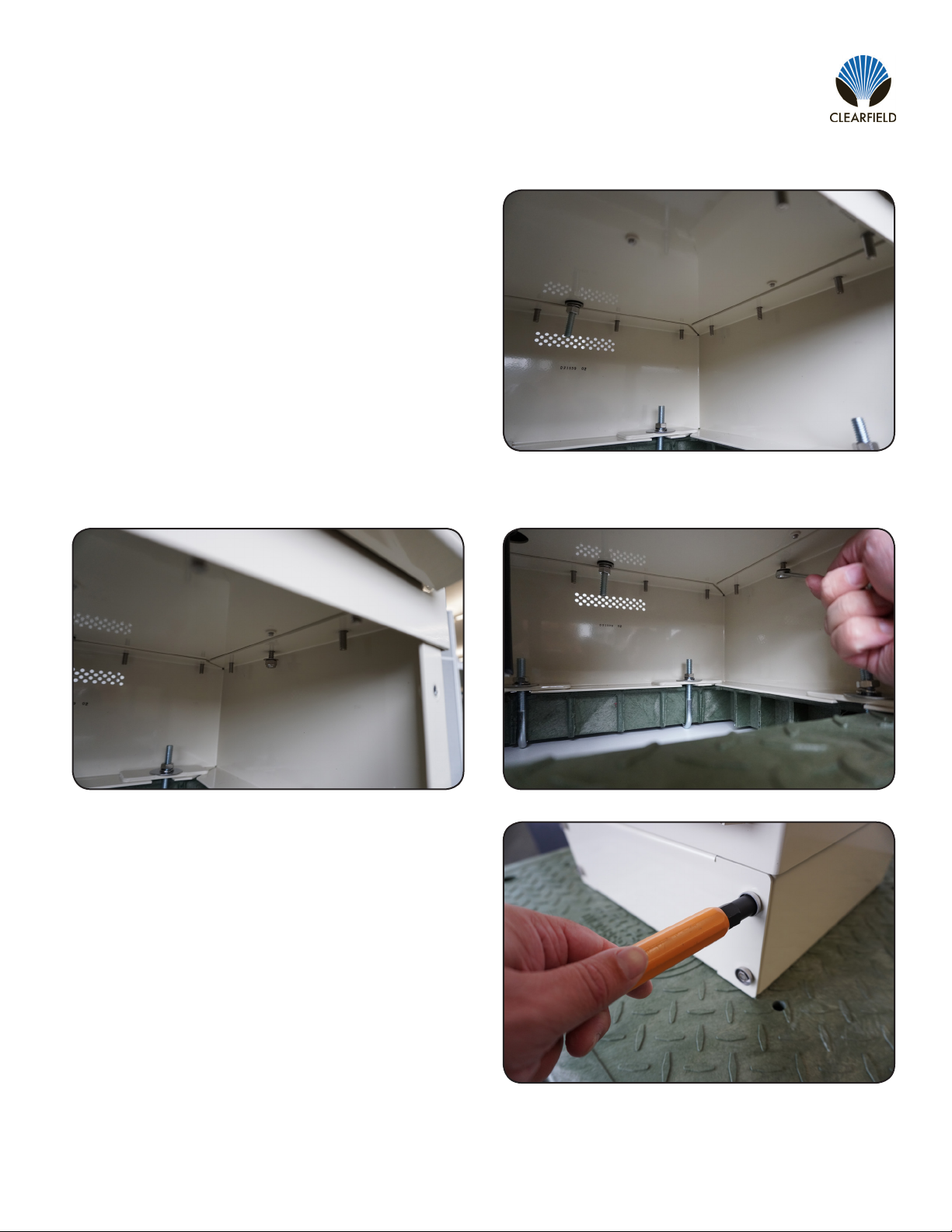

Mounting Cabinet to Base
1.
2.
3.
Feed the cables through the cabinet base and vault
lid as you lower the cabinet onto the base. Carefully
align all the threaded studs on the bottom of the
cabinet with the holes in the top of the base as you
seat it into place.
Using the provided washers and nuts, rmly secure the cabinet to the base.
Reinstall the base access door
7
StreetSmart Pre-Terminated FDH Cabinet
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 021814 REV A - Jan 2021

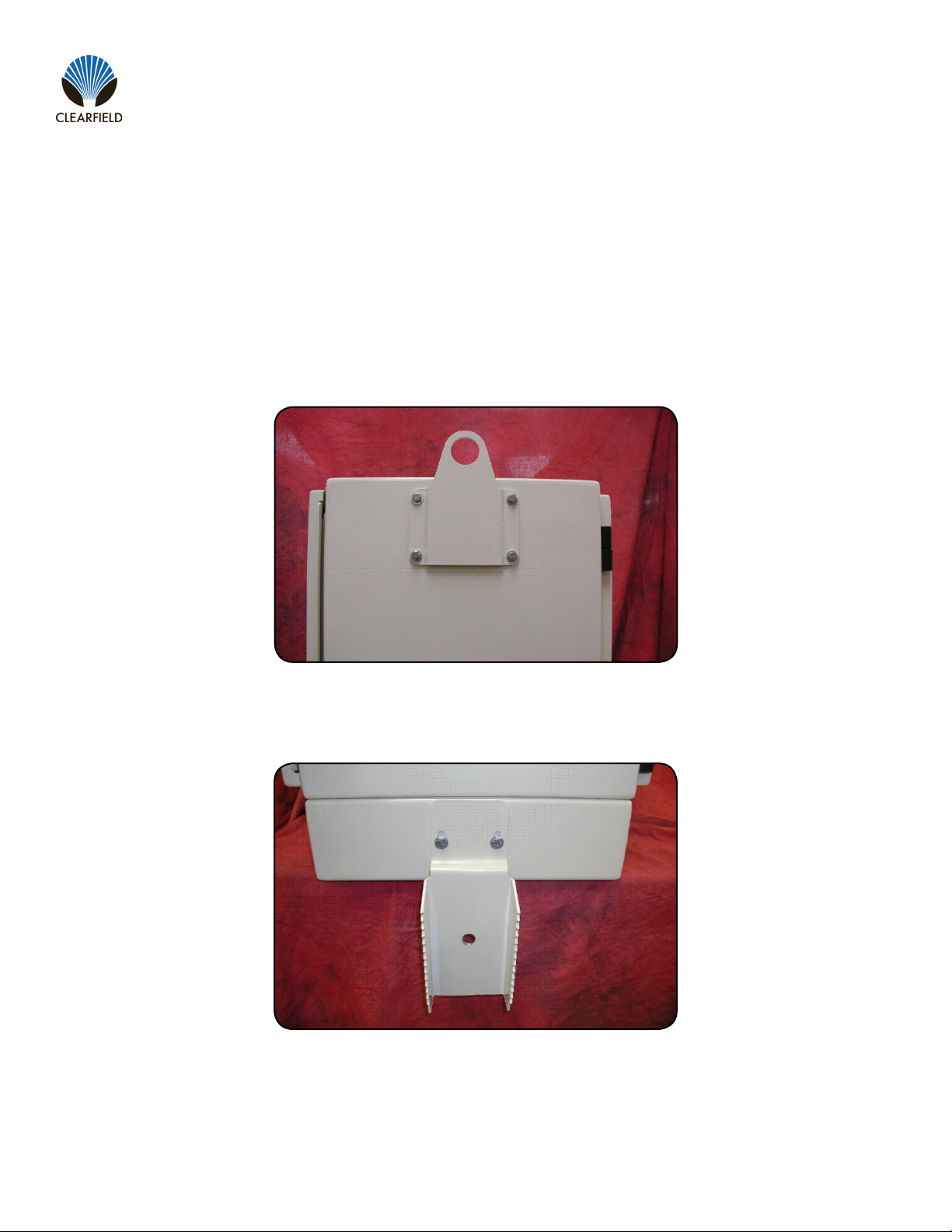

Pole Mount Installation
1. Locate the hoist plate and install, using the included hardware, to the top of the cabinet on the side that will be
closest to the pole.
2. Locate the toothed bracket that has the mounting holes in the ange and mount it to the cabinet (below the previously
installed hoist plate) using the included hardware.
3. Determine the top height of the cabinet. Drill a 5/8” hole 8 inches below the anticipated height of the cabinet, all the way
through the pole.
Note: Cleareld does not provide the mounting hardware. Required hardware includes a 5/8” threaded rod (3” longer than
pole diameter), washers, lock washers, nuts and Lock Tight (red).
Note: 288 PON FSC cabinet shown for reference. Pre-Terminated FDH cabinet will be mounted to the pole using the same
method.
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
8
StreetSmart Pre-Terminated FDH Cabinet
Installation Manual _________________________________________________________
Manual 021814 REV A - Jan 2021

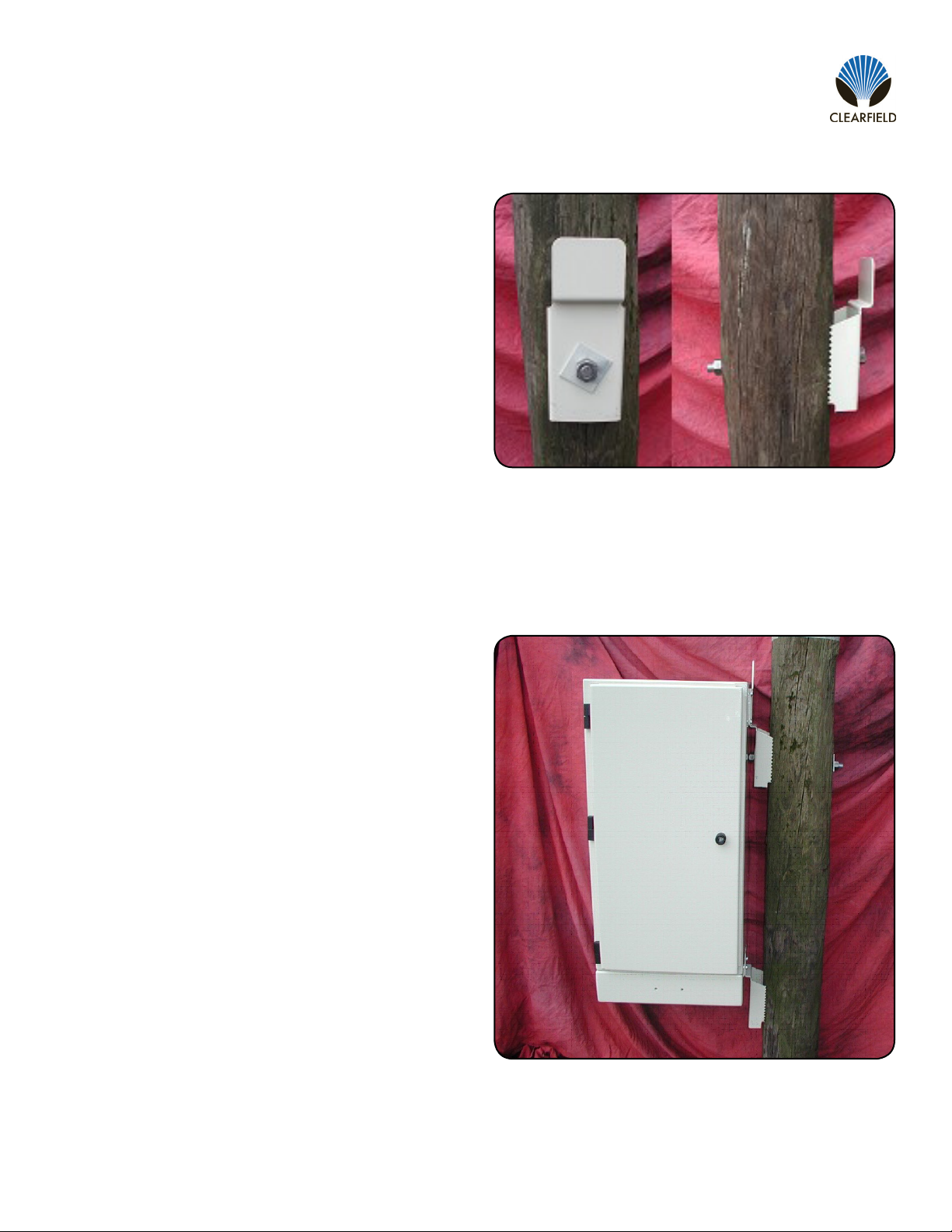

4. Mount the loose toothed bracket to the pole using
threaded rod, washers avnd nuts on either side of
the pole. Rod length will depend on the diameter of
the pole. It is suggested to add 3” to the diameter
of pole for rod length.
Note: Cleareld does not recommend using lag bolts to mount cabinet to pole. Cleareld recommends using hardware with
a minimum of 5/8” diameter. Care should be taken to avoid over-tightening and deforming the hoist plate. Lock tight (red)
should be used on nuts to prevent loosening of nuts. Make sure the thread rod/nut does not exceed the top bend in bracket
or it will interfere with cabinet.
5. Lower the cabinet onto the pole mounted toothed
bracket until the hoist plate is over the ange of the
toothed bracket.
9
StreetSmart Pre-Terminated FDH Cabinet
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 021814 REV A - Jan 2021

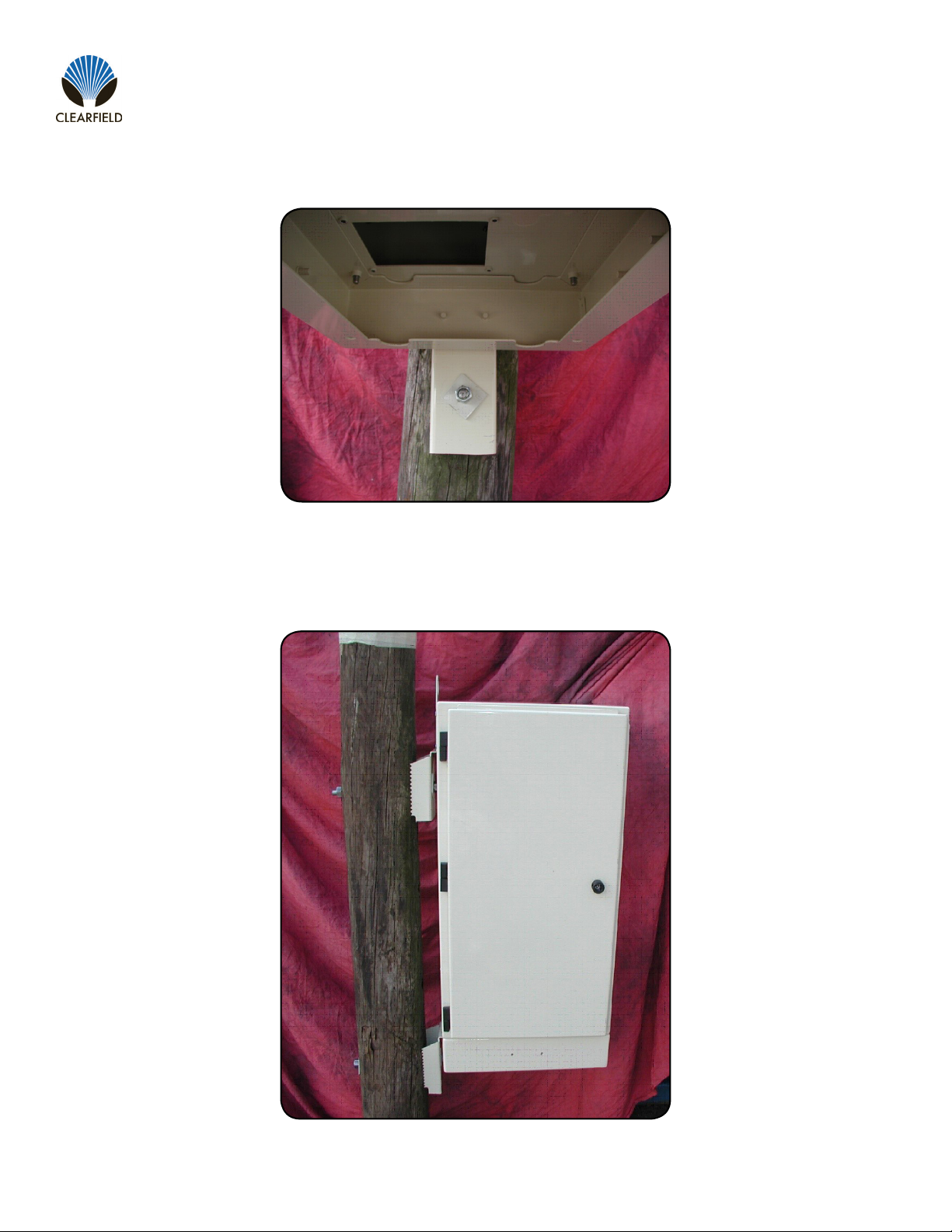

6. Level cabinet and drill 5/8” hole through lower bracket and pole, and install 5/8” rod, washers and nuts.
Note: Care should be taken to avoid over-tightening and deforming the hoist plate.
7. Cabinet Fully Mounted
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
10
StreetSmart Pre-Terminated FDH Cabinet
Installation Manual _________________________________________________________
Manual 021814 REV A - Jan 2021

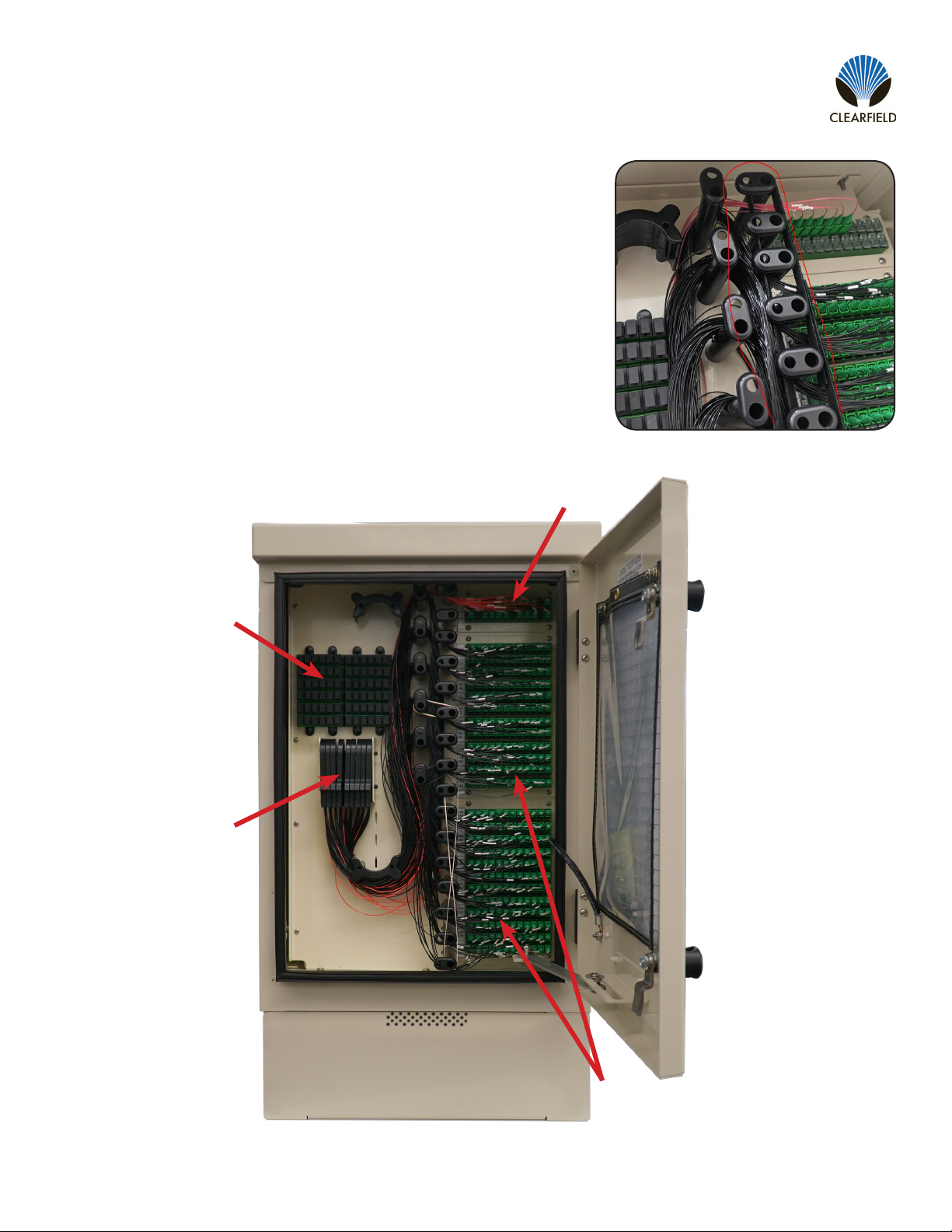

Pre-Loaded Splitters
The StreetSmart Pre-Terminated FDH Cabinet will come with 1x32 WaveSmart
HD Splitters pre-insttalled. Splitter 1’s feeder leg will be connected to feeder
port 1, and its distribution legs will be connected to distribution ports 1-32.
Splitter 2 will connect to feeder port 2, and distribution ports 33-64, and so on,
for the number of splitters pre-installed in the ordered conguration.
If you wish to pull service from a pre-installed splitter leg, the connector can be
installed into one of the adapters in the provided staging plates.
Note: Splitter legs will be secured in place with a velcro strap around the radius
ngers.
Staging
Plates
Splitter
Cage
Distribution
Ports
Feeder
Ports
