FieldSmart®Fiber Distribution Hub (FDH)
144, 288, 576 & 864 Port PON Cabinets
Installation Manual ______________________________________________________
Manual 019703 REV B - March 2019
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
2
FieldSmart®Fiber Distribution Hub (FDH)
Installation Manual _________________________________________________________
Manual 019703 REV B - March 2019
Table of Contents
Cabinet Packaging 3
FDH Cabinet Component Views 4
Vault Installation 12
Cabinet Mounting 13
Preparing the Enclosure Base for Installation 13
Mounting Base to CraftSmart HDPE Lids 14
Mounting Base to Polymer Concrete Lid 16
Mounting Base on Concrete Pad 19
Mounting Enclosure on Base 20
Pole Mount Installation 21
FieldSmart FSC Pole Mount Under Plate Kit 24
Cable Installation and Splicing 25
Grounding the Enclosure 33
Optical Splitter Routing 34
Cabinet Accessories 37
Mid-Span Opening Feed-Trough Plate Kit 37
Ground/Locate Box 41
Connector Cleaning Procedure 42
Standard Warranty 45
Proprietary Notice 46
Technical Support 46
3
FieldSmart®Fiber Distribution Hub (FDH)
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 019703 REV B - March 2019
Cabinet Packaging
All cabinets are packaged for protection for shipment to our customers, depending on the application, packaging may vary.
144 and 288 patch and splice cabinets are typically bubble wrapped and put inside of a cardboard box.
Patch only cabinets with pre-terminated ber tails, as well as the 576 and 864 patch and splice cabinets, will be bubble
wrapped and attached to a pallet.
Risers, if ordered, will typically ship separately (on the top of the cabinet). This is done for installation purposes.
Note: There are multiple items and small parts packaged with every cabinet. When unpackaging cabinets, make sure to
inspect all packaging materials for these items.
Note: 288 cabinet shown in images. 144, 576 and 864 cabinets will be packaged in a similar manner.
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
4
FieldSmart®Fiber Distribution Hub (FDH)
Installation Manual _________________________________________________________
Manual 019703 REV B - March 2019
3
2
1
5
6
FDH Cabinet Component Views
1. Designation Card
2. Feeder Cassettes
3. Distribution Cassettes
4. Fiber Management Rods and Spools
5. Fiber Splitter Storage
6. Staging Plate Area
7. Vent/Filter*
8. Riser (Available in 4” or 12”)
*Remove foam lter and rinse with water every 6 months
4

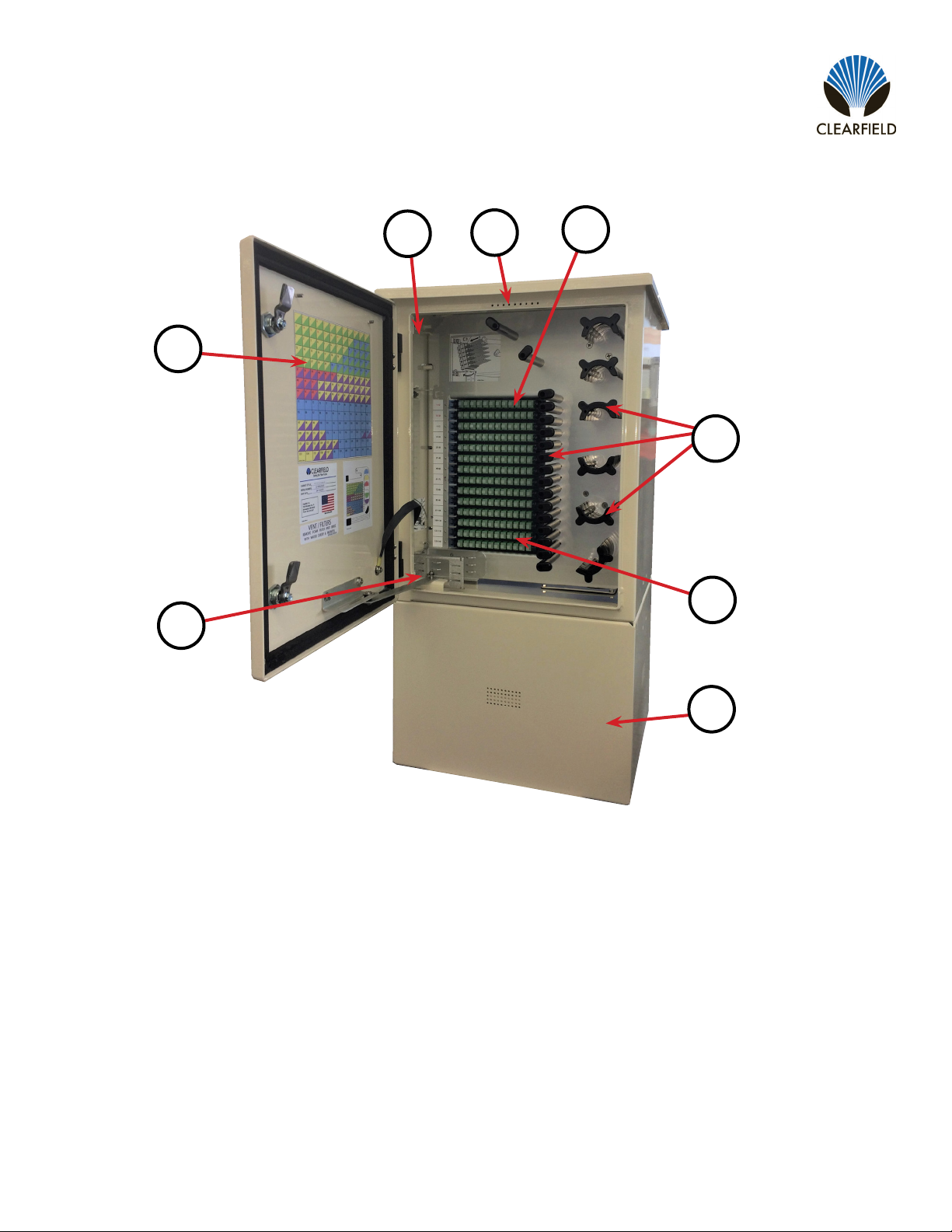

144 Front View
8
7
5
FieldSmart®Fiber Distribution Hub (FDH)
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 019703 REV B - March 2019
2
3
1. Distribution and Feeder Cassettes
2. Distribution and Feeder Cable Ports
3. Grounding Bar
4. Fiber Management Spools
5. Vent/Filter*
6. 12” Riser with Access Door
*Remove foam lter and rinse with water every 6 months
41

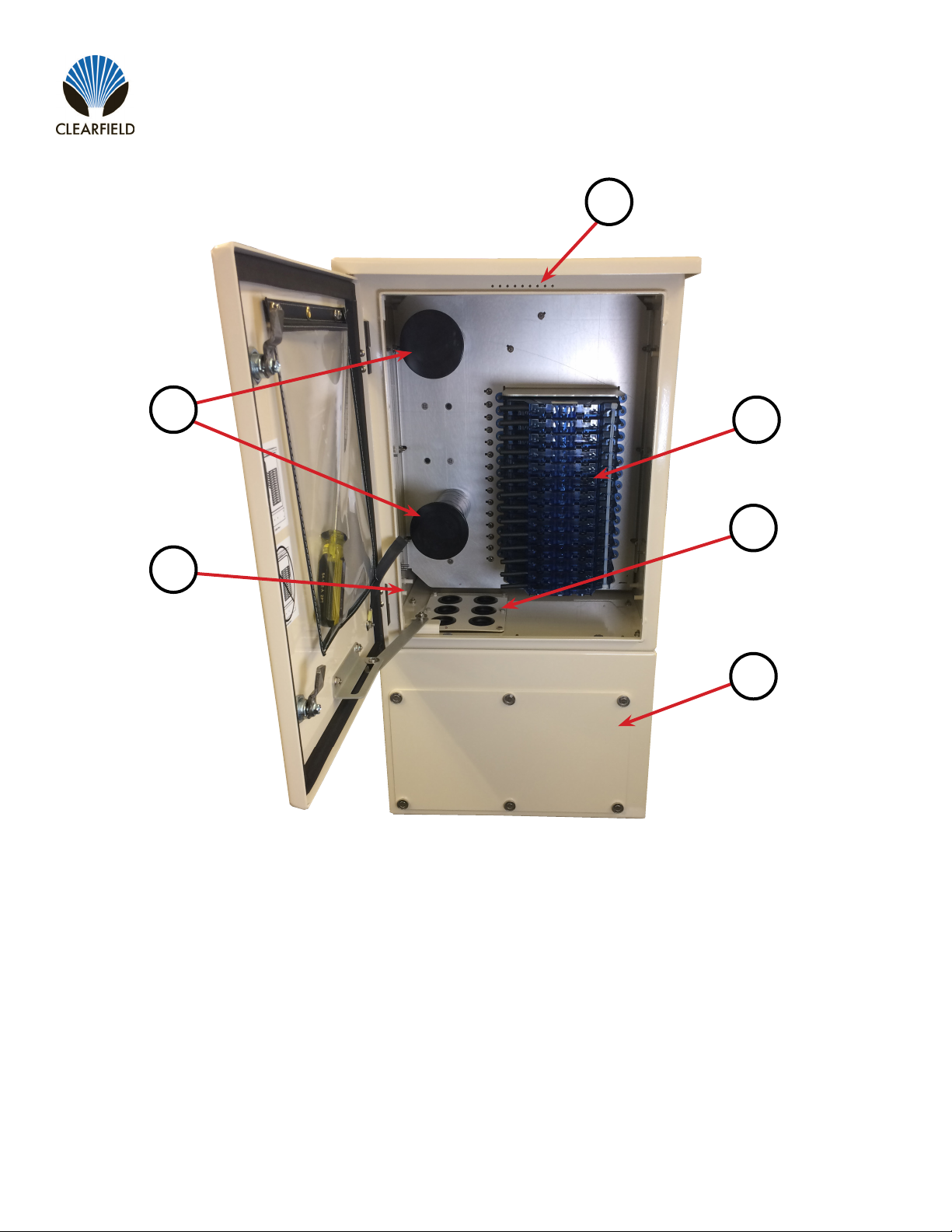

144 Back View
5
6
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
6
FieldSmart®Fiber Distribution Hub (FDH)
Installation Manual _________________________________________________________
Manual 019703 REV B - March 2019
288 Front Views
1. Designation Card
2. Feeder Cassettes
3. Distribution Cassettes
4. Fiber Management Rods and Spools
5. Fiber Splitter Storage
6. Staging Plate Area
7. Vent/Filter*
8. Riser (Available in 4” or 12”)
*Remove foam lter and rinse with water every 6 months
1
3
2
5
6
4
8
7
7
FieldSmart®Fiber Distribution Hub (FDH)
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 019703 REV B - March 2019

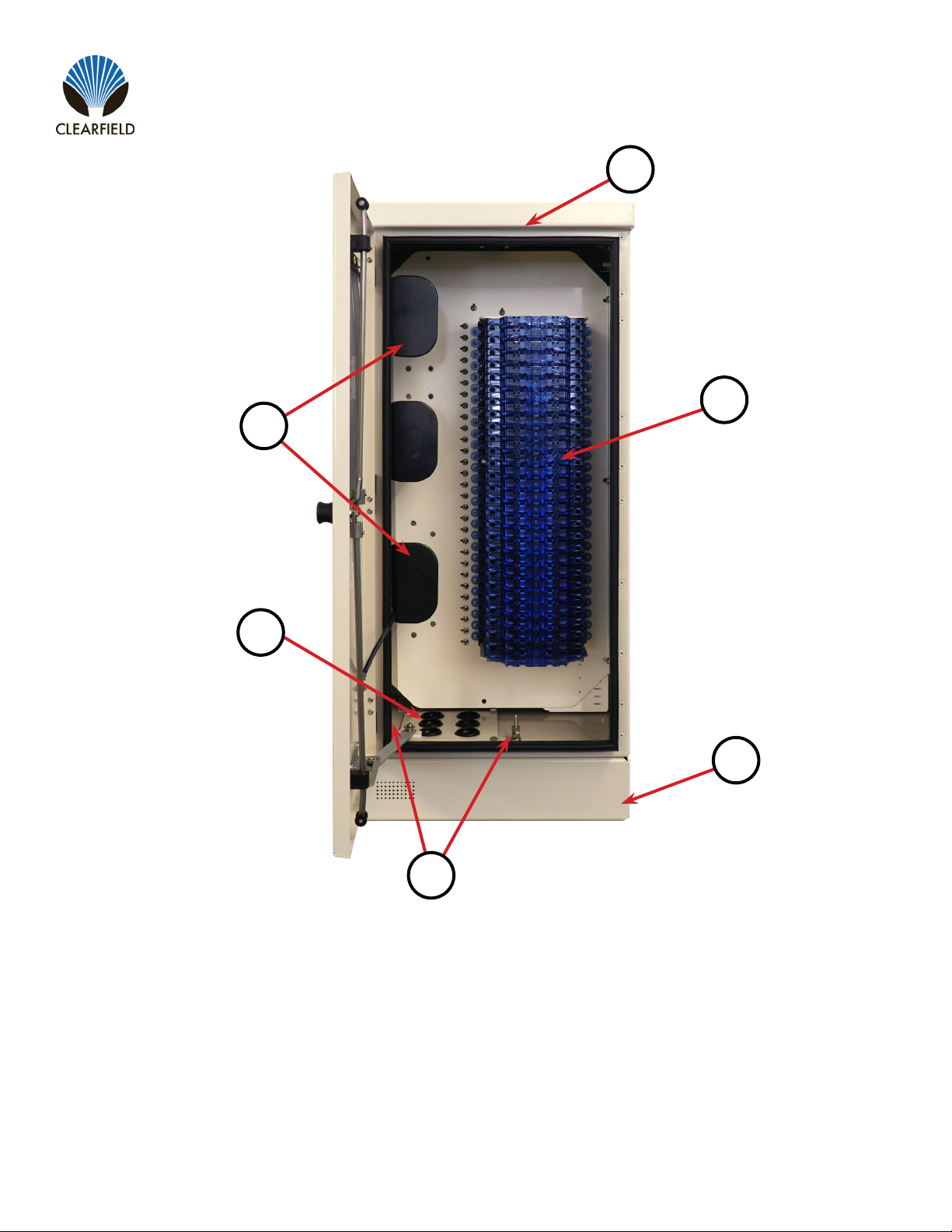

288 Back View
1. Distribution and Feeder Cassettes
2. Distribution and Feeder Cable Ports
3. Grounding Bar and Lug
4. Fiber Management Spools
5. Vent/Filter*
6. Riser (Available in 4” or 12”)
*Remove foam lter and rinse with water every 6 months
2
41
5
6
3
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
8
FieldSmart®Fiber Distribution Hub (FDH)
Installation Manual _________________________________________________________
Manual 019703 REV B - March 2019

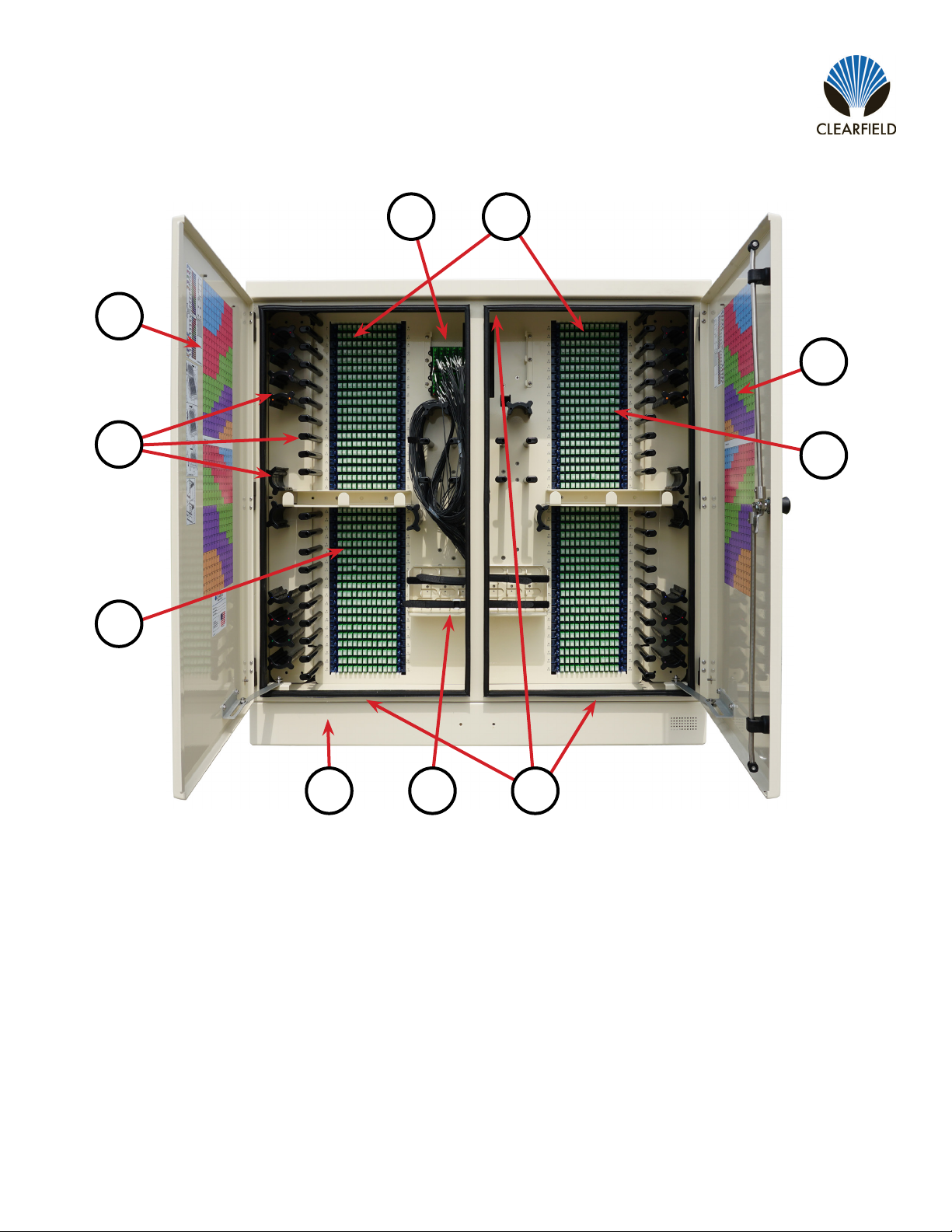

576 Front View
1
26
3
4
58
7
1. Designation Card
2. Feeder Cassettes
3. Distribution Cassettes
4. Fiber Management Rods and Spools
5. Fiber Splitter Storage
6. Staging Plate Area
7. Vent/Filter*
8. Riser (Available in 4” or 12”)
*Remove foam lters and rinse with water every 6 months
9
FieldSmart®Fiber Distribution Hub (FDH)
__________________________________________________________ Installation Manual
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
Manual 019703 REV B - March 2019
576 Back View
1. Distribution and Feeder Cassettes
2. Distribution and Feeder Cable Ports
3. Grounding Bar
4. Fiber Management Spools
5. Vent/Filter*
6. 4” or 12” Riser (12” with Access Door shown)
*Remove foam lter and rinse with water every 6 months
1
2
3
4
5
6
Direct: 763.476.6866 • National: 800.422.2537 • www.SeeCleareld.com • [email protected]
10
FieldSmart®Fiber Distribution Hub (FDH)
Installation Manual _________________________________________________________
Manual 019703 REV B - March 2019
864 Front View
1. Designation Card
2. Feeder Cassettes
3. Distribution Cassettes
4. Fiber Management Rods and Spools
5. Fiber Splitter Storage
6. Staging Plate Area
7. Vent/Filter*
8. Riser (Available in 4” or 12”)
*Remove foam lters and rinse with
water every 6 months
1
26
3
3
4
58 7
