CleverMic 300-U3S Manuale utente

PTZ CleverMic 300-U3S

User Manual

Version V1.0

（English）

CONTENTS

SAFE GUIDES.…………………...………………………………….........…....…....................................…3

ACCESSORIES……………………………………………………………………....…...................................4

QUICK START....................................................................................................................................................4

PRODUCT HIGHLIGHTS....................................................................................................................................5

PRODUCT SPEC................................................................................................................................................5

CAMERA INTERFACE........................................................................................................................................6

CAMERA DIMENSION......................................................................................................................................6

IR REMOTE CONTROLLER................................................................................................................................7

VISCA IN(RS232) PORT.....................................................................................................................................9

VISCA PROTPCOL............................................................................................................................................10

PELCO-D PROTOCOL.......................................................................................................................................17

PELCO-P PROTOCOL........................................................................................................................................18

OSD MENU.....................................................................................................................................................19

IR TRANSFER(IR PASS) & UVC CONTROL.........................................................................................................22

SAFETY GUIDES

1.Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this

manual with the camera.

2.The camera power input range is 100-240VAC(50-60Hz),ensure the power supply input within this rate before

powering on.

3.The camera power voltage is 12VDC, rated currency is 2A. We suggest you use it with the original power supply

adapter supplied by the factory.

4.Please keep the power cable, video cable and control cable in a safe place. Protect all cables especially the

connectors.

5.Operational environment: 0-50, humidity less than 90%.To avoid any danger, do not put anything inside the

camera, and keep away from the corrosive liquid.

6.Avoid stress, vibration and damp during transportation, storage and installation.

7.Do not detetch the camera housing and cover. For any service, please contact authorized technicians.

8.RF cable and control cable should be individually shielded, and cannot be substituted with other cables. Do not

direct the camera lens towards strong light, such as the sun or the intensive light.

9.Use a dry and soft cloth to clean the camera housing. Applied with neutral cleaning agent when there is need to

clean. To avoid damage on the camera lens, never use strong or abrasive cleaning agents on the camera housing.

10.Do not move the camera by holding the camera head. To avoid mechanical trouble, do not rotate the camera

head by hand.

11.Put the camera on fixed and smooth desk or platform, avoid leaned installation.

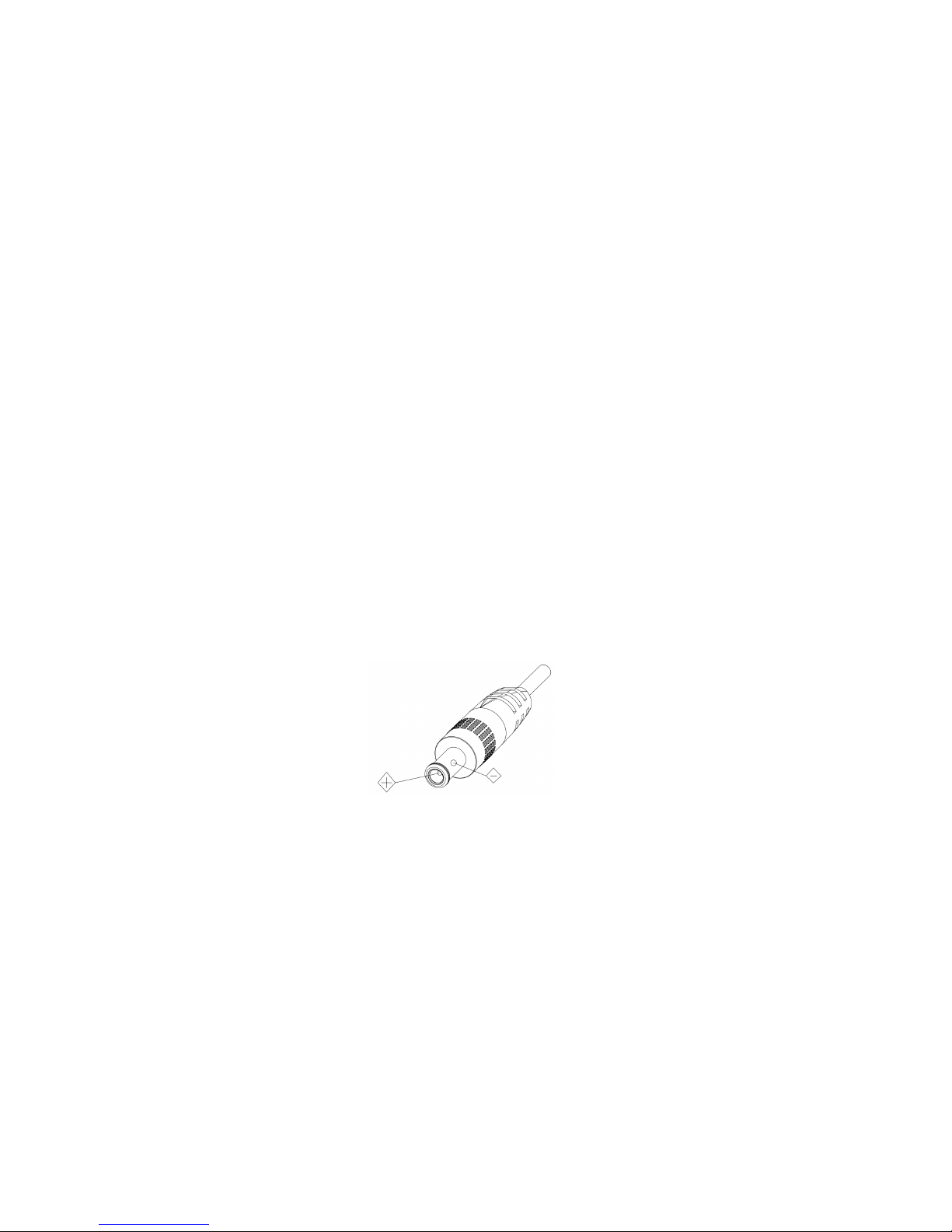

12. Power Supply Polarity(Drawing)

ACCESSORIES

Check all bellow items when open the package:

Camera ··········································································· 1

Power Adapter ·································································· 1

Power Cable ···································································· 1

RS232 Control Cable ·························································· 1

USB3.0 Cable………………………………………………………. 1

Remote Controller ····························································· 1

User Manual ···································································· 1

Double-sided Adhesive…………………………………………….. .1

QUICK START

1.Check all cable connections before power on.

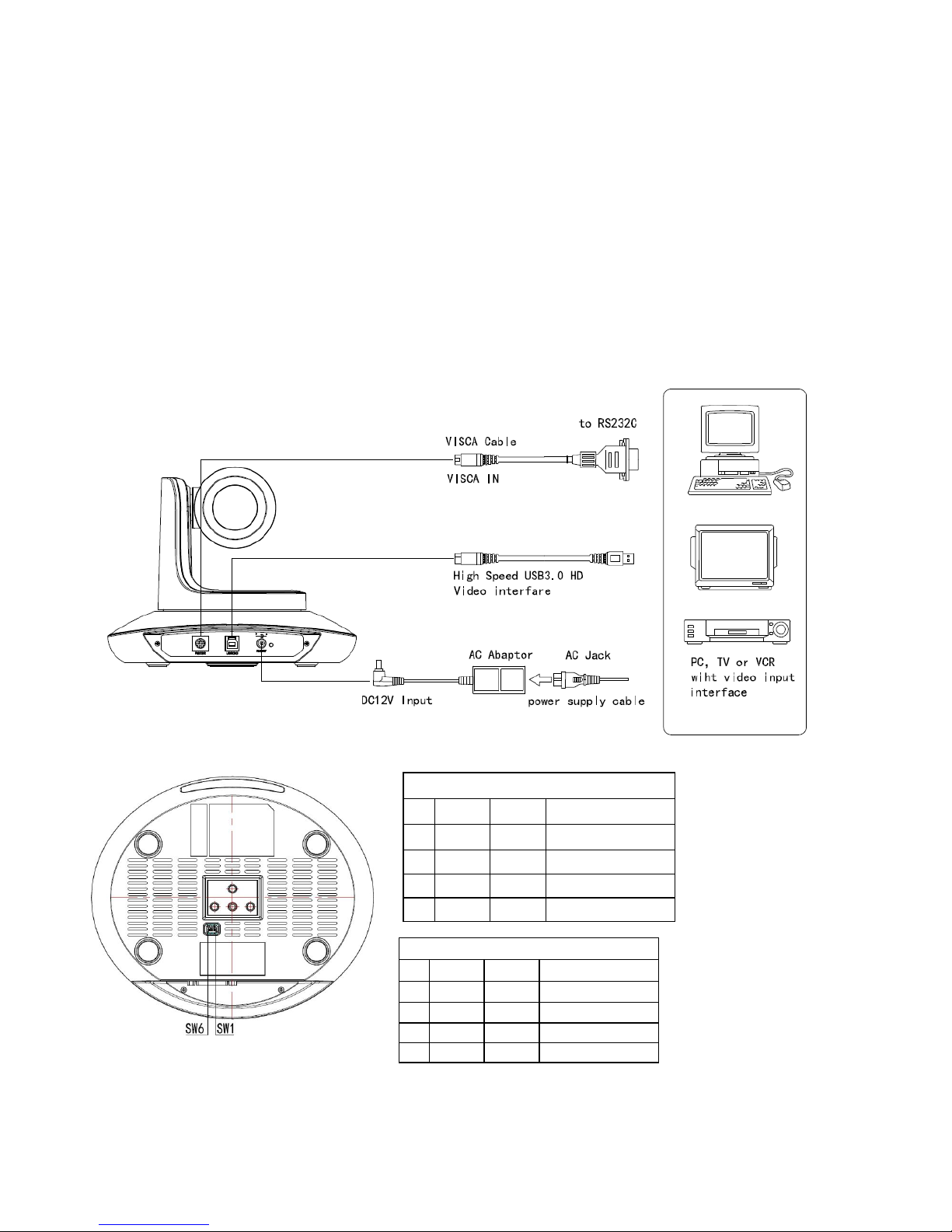

2. Dial Switch Setting (at the bottom of the camera):

Dial Switch（ARM）

SW-1 SW-2 Function

OFF OFF Updating mode

ON OFF Debugging mode

OFF ON Undefined

ON ON Working mode

Dial Switch（USB）

SW-5 SW-6 Function

1 OFF OFF Undefined

2 ON OFF Working mode

3 OFF ON Updating mode

4 ON ON Undefined

PRODUCT HIGHLIGHTS

 Smart and fashion design, ideal for cloud-based conferencing

 Adopts advanced Ambarella DSP，1/2.8 inch 5MP image sensor, and high quality 12X 72.5degree FOV

optical lens, provides fluent and crystal image quality

 Fast switching between different video formats: less than 1 second

 12X Optical Zoom + 12XDigital Zoom

 Fast and accurate focus performance

 Easy firmware upgrade-(field-upgradable)

 USB3.0 super speed output, USB2.0 compatible

 Effective RS232/485 serial control

 Up to 128 presets

 Compatible with the majority of videoconferencing software (UVC1.5 protocol standard)

 With powerful functional remote controller

 IR transfer/IR pass function: except receiving the camera remote controller signal, the camera can

also receive other codec’s IR remote control signal, and pass these IR control signal to the codec’s

IR receiver (via VISCA IN port).

 Multi-language OSD menu: English, Chinese, Spanish, Russian

PRODUCT SPEC

Video Format

USB3.0

1080P60/50/30/25, 720P60/50/30/25, 1024*768P30, 800*600P30, 1024*576P30,

960*540P30, 704*576P30, 640*480P30, 576*448P30, 768*448P30, 640*360P30,

512*288P30, 352*288P30, 176*144P30

USB2.0

720P25, 1024*768P30, 800*600P30, 1024*576P30, 960*540P30, 704*576P30,

640*480P30, 576*448P30, 768*448P30, 640*360P30, 512*288P30, 352*288P30,

176*144P30

Video Port USB3.0, USB2.0

Sensor 1/2.8 inch high quality 5MP CMOS sensor

Lens F3.92～47.32mm(10X), F1.8 – 14, Field of view: 72.5°(wide)-6.3°(tele)

Pan/tilt Rotation Pan:±170°; Tilt:-30°~+90°, support up-side down installation

Pan/tilt Speed Pan: 0.1°-120°/s; Tilt: 0.1°-80°/s

Preset 10 via IR remote setting, 128 via VISCA control, preset accuracy :0.1°

Control Port RS232/RS485 , USB3.0/USB2.0

Min. Lux 0.01 Lux

White Balance Auto/Manual

Focus Auto/Manual

Iris Auto/Manual

Shutter Auto/Manual

WDR Supported

BLC Supported

2D Noise Reduction Supported

3D Noise Reduction Supported

Input Voltage 12VDC

Dimension 220mm×173mm×117mm

Net weight 1.25KGS（2.8LBS）

CAMERA INTERFACE

1.Camera Lens 5.Dial Switch 9.USB3.0 Port

2.Camera Base 6. Tripod Screw Hole 10.DC12V Power Input

3.IR Receiver Panel 7.Installation Hole 11.Power Indicator light（red）

4.Indicator Light 8.RS232(VISCA IN) Port

CAMERA DIMENSION(MM)

IR REMOTE CONTROLLER

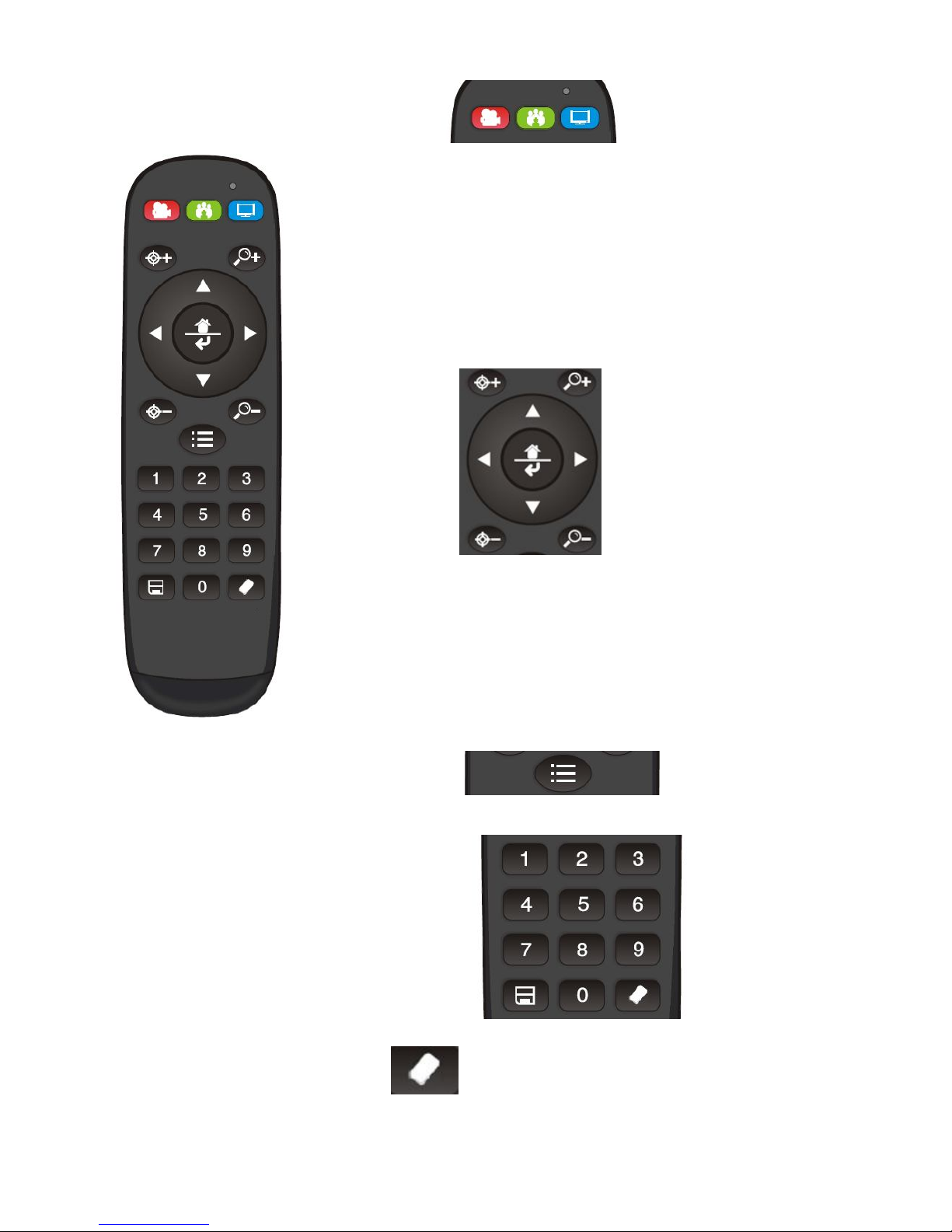

LED Function Instruction

Press any button and shows in red color: Current selection is to control the camera;

Press any button and shows in green color: Current selection is to control the codec;

Press any button and shows in blue color: Current selection is to control the TV;

Power button

Red button: in normal work mode, short press one time, camera will enter standby

mode; short press again, the camera will start self-configuration and go to HOME

position; it will go to No.0 preset position if that was set;

Green button: Codec power button(need to learn the button coding);

Blue button: TV power button( need to learn the button coding);

Focus (Left): +/-

Manual focus, only valid under manual focus model;

Zoom (Right): +/-

Control the lens zoom rate;

Navigate : Up/Down/Left/Right

In normal working mode, use navigate key to control pan/tilt;

Confirm/Home button:

In normal working mode, short press to let the camera go back to Home position.

Menu button:

Enter the OSD menu

Number buttons

Set Preset: Long press(3seconds) the number button to save preset;

Clear Preset: +number button to clear the relative preset;

Long press(3seconds) the Clear button to clear all preset;

Run Preset: Short press the number button to run the relative preset.

LEARNING FUNCTION：

1. Press the green button, the LED indicator light will show in green color for 1 second, means switch to video

terminal/codec control mode;

2.Single Button Coding: long press(3seconds) Home +number"1" button simultaneously, the green indicator LED

will light, enter button learning mode, press the buttons which need to be learned, LED will start flickering(1HZ),

now can start button learning: get the codec remote point to the camera remote’s infrared tube( about 10cm

distance), then press the button which need to be learned, the LED re-flickering when learning finishes ; press other

buttons which also need to be learned; Press the Home+"0" buttons simultaneously to exit and save all remote data.

If the button learning fails, the camera will enter normal working mode after 15seconds, LED will extinguish.

3. All Button Coding: long press (3seconds) Home+number"2" button simultaneously, the green indicator LED

will start flickering(1HZ), to enter all button learning mode: get codec remote point to the camera remote’s infrared

tube( about 10cm distance), to start all button coding mode, the LED will extinguish when learning finished.

If the button learning fails, the camera will enter normal working mode after 15seconds, LED will extinguish.

4. All Button Sending Mode: long press (3seconds) the Menu+ number "3" button simultaneously, the remote will

enter all button sending mode.

5. Similar operation for the TV control mode learning.

VISCA IN (RS232) PORT

SERIAL PORT CONFIGURATION:

No. Function

1 DTR

2 DSR

3 TXD

4 GND

5 RXD

6 A

7 IR OUT

8 B

VISCA IN &RS485 Connection

Camera VISCA IN RS485

DTR

DSR

TXD

GND

5 RXD

A(+)

7 IR OUT

8 B(-

)

B(-)

VISCA IN &DB9 Connection

Camera VISCA IN Windows DB-9

DTR

6 DSR

DSR

4 DTR

TXD

2 RXD

GND

5 GND

5 RXD

3 TXD

A(+)

7 IR OUT

8 B(-

)

Parameter Value Parameter Value

Baud rate 2400/4800/9600/115200 Stop Bit 1bit

Start Bit 1 bit Verify Bit None

Date Bit 8 bit

VISCA PROTOCOL

Part1 Camera Return Command

Ack/Completion Message

Command Packet Note

ACK z0 41 FF Returned when the command is accepted.

Completion z0 51 FF Returned when the command has been executed.

z = camera adderss+8

Error Messages

Command Packet Note

Syntax Error z0 60 02 FF Returned when the command format is different or when a

command with illegal command parameters is accepted

Command Not

Executable z0 61 41 FF

Returned when a command cannot be executed due to current

conditions. For example, when commands controlling the focus

manually are received during auto focus.

Part2 Camera Control Command

Command Funnation Command Packet Note

AddressSet Broadcast 88 30 01 FF Address setting

IF_Clear Broadcast 88 01 00 01 FF I/F Clear

CommandCancel 8x 21 FF

CAM_Power

On 8x 01 04 00 02 FF

Power ON/OFF

Off 8x 01 04 00 03 FF

CAM_Zoom

Stop 8x 01 04 07 00 FF

Tele(Standard) 8x 01 04 07 02 FF

Wide(Standard) 8x 01 04 07 03 FF

Tele(Variable) 8x 01 04 07 2p FF

p = 0(low)~7(high)

Wide(Variable) 8x 01 04 07 3p FF

Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position (0(wide)

~0x4000(tele))

CAM_Focus

Stop 8x 01 04 08 00 FF

Far(Standard) 8x 01 04 08 02 FF

Near(Standard) 8x 01 04 08 03 FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position

One Push AF 8x 01 04 18 01 FF

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s

0t 0u 0v 0w FF

pqrs: Zoom Position (0(wide)~

0x4000(tele))

tuvw: Focus Position

CAM_WB

Auto 8x 01 04 35 00 FF

Indoor 8x 01 04 35 01 FF
