Clevertronics L10 LIFELIGHT PRO Manuale

1942485

V1.1

10 June 2021

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI luminaire, please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress

LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND”

Fitting goes into emergency mode for 10 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network. DALI

connections are marked as Da Da.

To confirm operation of the fitting the Lighting Control System can only use the status query type

command. To “test” the sign this status query will need to be synchronised with the formal test of the

UPS from its battery source. The sign will report a fault if the LED lamp bar is not illuminated.

DO NOT run a Start Function Test or Start Duration Test command. If either of these is run, the

fitting will go into test mode and the fitting will switch off as it will be internally disconnected from main

power and there is no battery so the LED lamp won’t run – the unit will report a failed test. This

condition cannot be rectified, and the fitting will report this forever as it can never pass a test of this type.

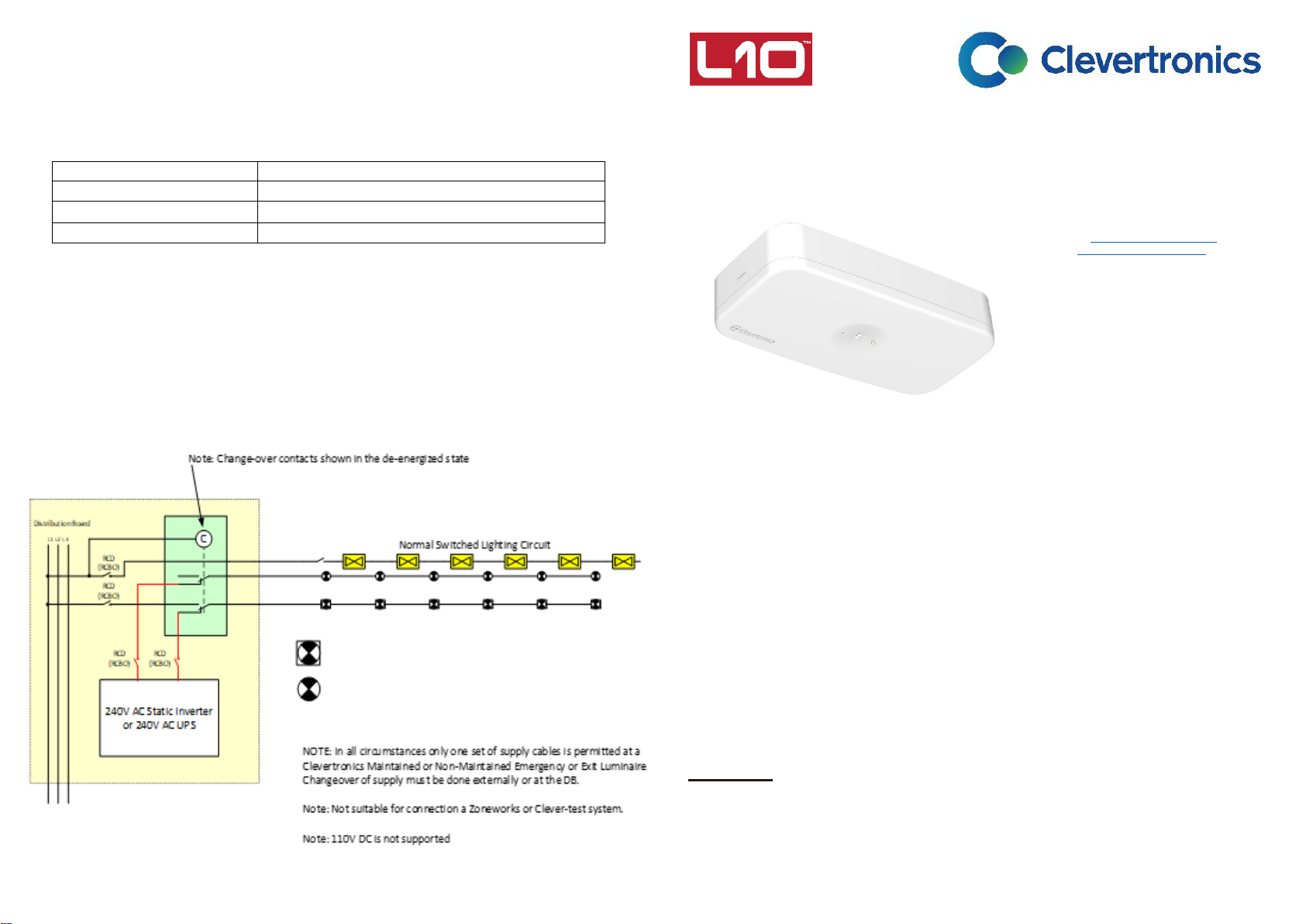

UPS Wiring and Connecting arrangements

L10TM LIFELIGHT PRO Surface Mount Emergency

Luminaire

Installation & Maintenance Instruction Leaflet

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9207 0000

Fax: +61 8 9207 0088

New Zealand

Phone: +64 800 548 448

Designed in Australia to comply with the requirements of

AS2293.3: 2005 and AS/NZS CISPR15: 2017

Models:

LLIFEx-PRO-SM-UPS-yy

Testing:

Options:

Manual Test

xx = Blank

yy = BLK

Colour, Black

DALI

xx = DALI

x = M

Maintained

Spare Parts:

8003081

PCA: LLPRO HEAD Alum #CT10640-D4 - GW CSHPM

8002924

PCA: xLIFEPro #CT10142-L9 2C250/550 CTP AU

Important:

It is illegal for anyone, exceptfor a licensed electrician to install or maintainthis product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1942485

V1.1

10 June 2021

Installation:

The LLIFEx-PRO-SM-UPS is a Surface Mount (SM) fitting that can be attached directly to any solid

surface (use appropriate fixings to suit the mounting surface). Please follow the steps below to install the

LLIFEx-PRO-SM-UPS:

•Remove the Lid from the Base by using a flat screwdriver to release the snap fits (see below)

•Cut/Drill out Cable Entry points (see image below)

•Drill out the required fixing holes on the Base (see image below)

•Mark holes on mounting surface (use drilled out holes on the Base as a template)

•Mount Base using appropriate fixings to ensure a secure installation (pre-drill holes if required)

•Insert Mains Cables through Cable Entry

•Terminate the Mains Cables into terminal block. Ensure Active, A & Neutral, N wires are connected

as per Terminal Block Label.

•Re-attach Lid Assembly, ensuring to align Mains Connector Pins into Terminal Block

•The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer

than 350mm is not expected.

Note:

This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-

user replaceable light source - to be replaced (if required, refer installation instructions) by Clevertronics

service personnel/agents or a registered electrician.

Networking:

When installing the product on a monitored network, (DALI) simply insert the relevant Smart Node PCA.

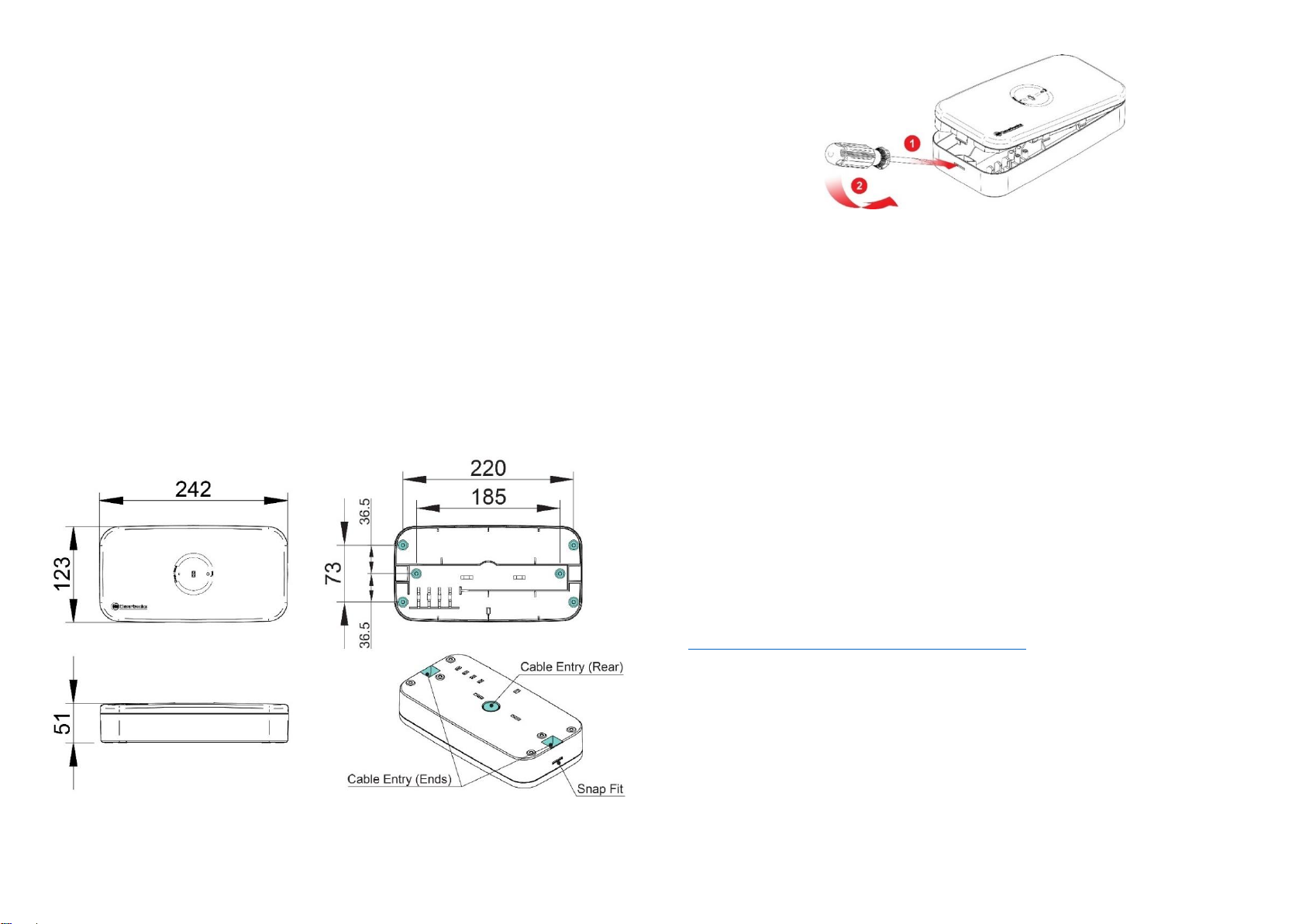

Dimensions:

Lid Removal:

Testing:

Once connected to the 240V mains supply, ensure the UPS unit has been allowed to charge. Conduct

the following tests:

•For the first test, the lamp must remain illuminated for at least 2 hours after disconnection from the

mains supply with the UPS running from the battery.

•Subsequent tests require the unit to illuminate for at least 90 minutes. The results of all tests are

required to be recorded in a service logbook, which is to be kept on-site at all times. If the unit fails

to remain illuminated for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test. For more specific information, please

refer to the current edition of the AS 2293.3 Standard.

Trouble Shooting:

Below are a list of common problems and their possible causes.

Fault: The Status LED indicator and main lamp is not illuminated.

Check: A.C. is connected and is turned on.

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

UPS battery condition

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/
