Clevertronics CLP LIFELIGHT Pro Manuale utente

1942401

V1.1

9 September 2020

Zoneworks, HIVE and DATA Monitored Options

Fittings with part numbers -ZW, -HVG, -DATA are fitted with Zoneworks communications modules

(nodes). These fittings are monitored using either Powerline Carrier Technology that utilize the power

cable to provide data communication, RF transceiver modules operating in the ISM band or a dedicated

data cable to/from data routers installed on a dedicated data trunk connected to a central Server (can also

be connected via Ethernet/Internet/Fibre)

. Zoneworks software on the server is used to monitor,

coordinate testing and collate test data from each fitting. Zoneworks Fittings can be commissioned by a

single push of the test switch or by scanning the supplied barcode. The LED Test Switch indicator provides

a multifunction indication of the status of the fitting during testing and normal operation:

Option

State

LED Operation

ZW, HVG, DATA

Commissioned

LED on Solid (Green)

ZW, DATA Un-commissioned

Batt plugged-in: yellow 1s, green 1s

Batt unplugged: red 1s, off 1s

HVG Un-commissioned

With network connectivity

Batt plugged-in: yellow 1s, green 1s

Batt unplugged:

red 1s, off 1s

HVG Un-commissioned

Without network connectivity

Batt plugged-in: yellow 250mS, green

250mS, yellow 250mS, green 250mS,

green 1s

Batt unplugged: red 250mS, off

250mS, red 250mS,off 250mS, off 1s

ZW, DATA

Emergency Light Test In Progress

LED flashes at yellow 5s , 0ff 1s

HVG

Emergency Light Test In Progress

LED flashes at yellow 1s , 0ff 1s

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

Luminaires with part numbers having -DALI are fitted with DALI modules (nodes) that facilitate connection

and integration to 3rd Party Lighting Control Systems. Before installing the -DALI fitting please confirm

that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The -DALI

fitting will be addr

essed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned LED on Solid (Green)

Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND” Fitting goes into emergency mode for 10 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a 5/6way

“structured wiring system” lead and plug facilitating the power and DALI connection. DALI connections

are marked as Da Da.

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

Maintained fittings (CLIFEM-PRO-SM-WP-xx-yy-ww) cannot be scanned with a camera using the

Clevertest Plus App as the maintained light source interferes with the camera scanning function. To

and enter manually into Clevertest Plus App.

CLP™ LIFELIGHT Pro Surface Mount

Weatherproof Emergency Luminaire

Installation & Maintenance Instruction Leaflet

NOTE: Standard product codes with this symbol

are enabled with Clevertest Plus capability. Please refer to the

operation guide supplied with the product for details.

Australia (Head Office)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

UK OFFICE

362 Stockley Close

West Drayton UB7 9BL

Phone: 01895 430 255

Models:

CLIFEx-PRO-SM-WP-xx-yy-ww

Testing:

Options:

Manual Test

xx = Blank

yy = TP

Tamperproof

Zoneworks

xx = ZW

ww = BLK

Colour, Black

Z/W DATA

xx = DATA

x=Blank

Non-Maintained

DALI Registered

xx = DALI

x=M

Maintained

HIVE

xx = HVG

Spare Parts:

1550231

BATT:LP 3.2V 6400mAh.200mm lead, No Brkt

8050170

HWSUB: CT10668-D2

8002908

PCA: CT10142-L9 2C250/475mA CTP UK Vert Connectors

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant British Standards.

1942401

V1.1

9 September 2020

Installation:

Please follow the steps below to correctly install the product;

•The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer

than 300mm is not expected.

•Remove the Lid from the Base by using a flat screwdriver to release the snap fits (see below)

•For products requiring a Corridor or Area Lens, replace Lens now (see below)

•Cut/Drill out Cable Entry points (A=End Entry, B=Rear Entry)

•Drill out the required fixing holes on the Base (see image below, C=Junction Box fixing)

•Mark holes on mounting surface (use drilled out holes on the Base as a template)

•Insert Mains Cables & mount Base using appropriate fixings to ensure a secure installation

(mounting points must be sealed appropriately to ensure proper protection from water ingress)

•Mount Base using appropriate fixings to ensure a secure installation (pre-drill holes if required)

•Terminate the Mains Cables into terminal block. Ensure Live, L & Neutral, N wires are connected

as per Terminal Block Label. Earth is not required, if Earth is brought in, it can be terminated to E.

•Re-attach Lid Assembly, ensuring to align Mains Connector Pins into Terminal Block

•Where QR/Barcode labels have been supplied with the product, ensure one of the QR/Barcode

labels is adhered to a visible surface on the base of the product.

•If the CTP capabilities are activated, please affix the CTP Status Label to a visible surface.

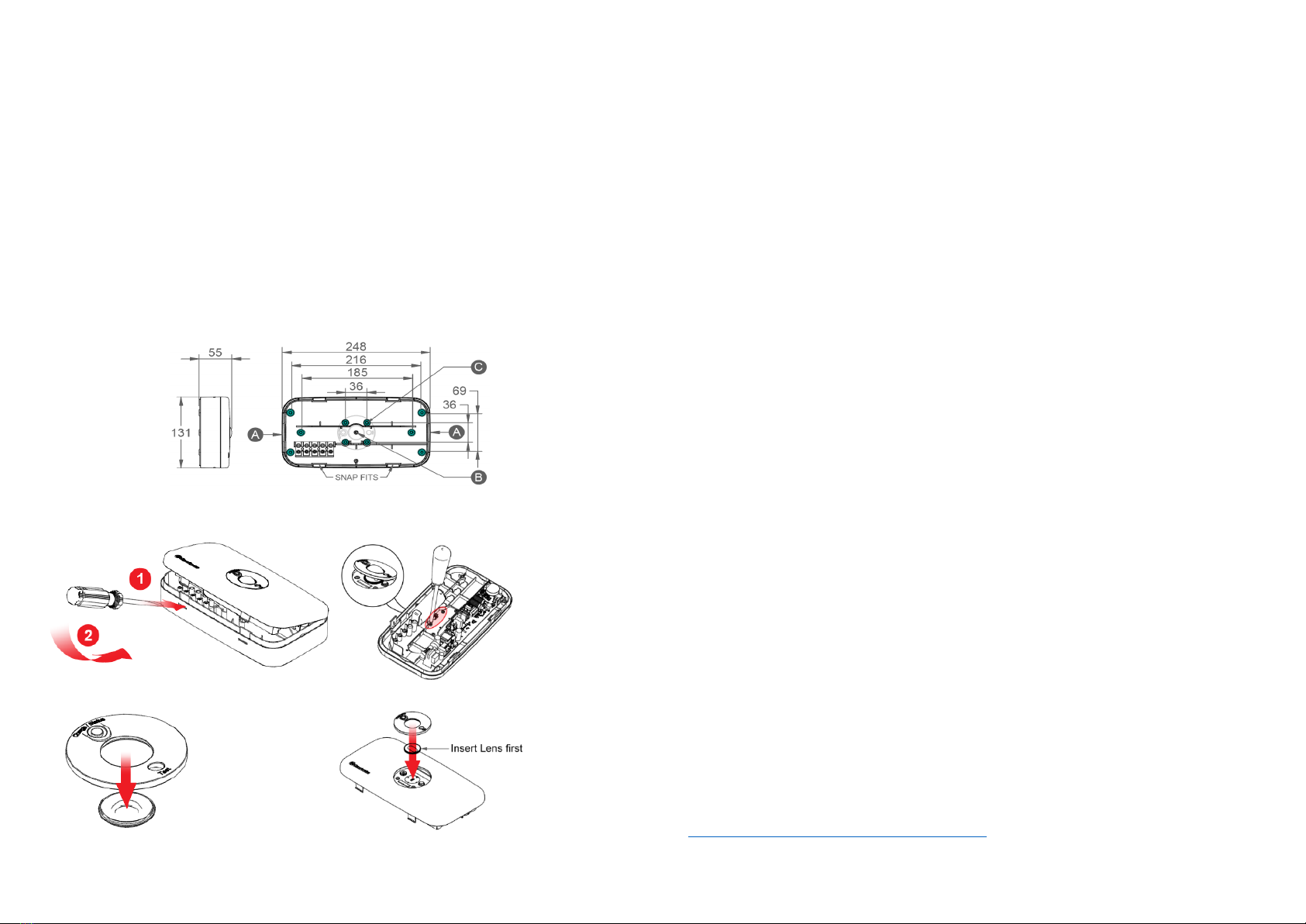

Dimensions:

Lid Removal / Lens Replacement:

STEP 1 – Insert flat screw driver and lever to

remove lid

STEP 2 – Remove the two coloured screws and

push out Bezel/Lens

STEP 3 – Release Lens from the Bezel

STEP 4 – Insert required Lens followed by Bezel

and re-insert coloured screws and Lid

Note: for Corridor Lens ensure the two pins

engage into the PCA

Note:

This luminaire (with reinforced insulation between control/LED terminal and AC supply) contains non-

user replaceable light source and battery - to be replaced (if required, refer installation instructions for

battery replacement) by Clevertronics service personnel/agents or a registered electrician.

Battery Replacement:

1. Prior to any work, isolate the power to the luminaire that requires battery replacement

2. Open the fitting by removing the Lid as shown in Lid Removal.

3. Remove the Battery Connector from the Emergency Driver board.

4. Remove the battery from the Lid pressing out one end first.

5. Replace battery, reconnect battery connecter to Emergency Driver board.

6. Reinstall the Lid, ensure both ends are clipped in.

Testing Procedure:

Once connected to the 240V mains supply, the unit must be allowed to charge the battery for at least 24

hours. Conduct the following tests:

•The emergency lamp must illuminate for at least 180 min after disconnection from the mains. If the

unit fails to illuminate for the requisite time, remedial action must be taken to repair the situation

and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Trouble Shooting:

Below are a list of common problems and their possible causes:

Fault: The Green LED indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected.

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Exit & Emergency Units, on these circuits, will have their batteries

discharged or “cycled”. The battery in this fitting has been selected to give excellent long life

performance in a controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce

through-life performance and may lead to premature battery failure. Battery warranty claims, as a result

of such abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

https://clevertronics.co.uk/product-warranty-statement/
