Clevertronics LP LIFELIGHT-2PRO-SMS-600 Manuale utente

1941966

V1.1

3 March 2020

Clevertest and Clevertest Plus

Refer to the supplementary operation guide supplied with the Product.

After Power ON, the Status LED on a Clevertest Plus enabled fitting will display a rapid Green or Red

flashing for a period up to 2 minutes.

Zoneworks and DATA Monitored Options

CLIFE-2PROs with part numbers containing -ZW, -DATA are fitted with Zoneworks communications

modules (nodes).These fittings are monitored using either Powerline Carrier Technology that utilises the

power cable to provide data communication or a dedicated data cable to/from data routers installed on a

dedicated data trunk connected to a central Server (can also be connected via Ethernet/Internet/Fibre).

Zoneworks software on the server is used to monitor, coordinate testing and collate test data from each

Lifelight. Zoneworks CLIFE-2PROs can be commissioned by a single push of the test switch, or scanning

of the supplied barcode. The LED Test Switch indicator provides a multifunction indication of the status of

the Lifelight during testing and normal operation:

State

LED Operation

Commissioned LED on Solid (Green)

Un-commissioned LED flashes at 0.5Hz (0.5s Green, 0.5s Yellow)

Emergency Light Test In Progress LED flashes at 3s On (Yellow) & 0.5s Off

In the case of the DATA version a 2-way “figure 8” cable and terminal block facilitates the connection to

the DATA network via a multi-drop bus (daisy chain connection). For further information of installation of

a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA

version)

DALI EM Option

CLIFE-2PROs with part numbers containing -DALI are fitted with DALI modules (nodes) that facilitate

connection and integration to 3rd Party Lighting Control Systems. Before installing the –DALI fitting please

confirm that the Lighting Control System has the capability to monitor DALI Emergency Luminaires. The

–DALI fitting will be addressed and configured into the control system by the Lighting Control System

Commissioning Technicians and not Clevertronics.

State

LED Operation

Commissioned/ Un-commissioned

LED on Solid (Green)

Emergency Light Test in progress LED flashes at 1s On (Yellow) & 1s Off

“IDENTIFY COMMAND” Fitting goes into emergency mode for 10 seconds

A 2-way “figure 8” cable and terminal block facilitates the connection to the DALI network OR a 5/6way

“structured wiring system” lead and plug facilitating the power and DALI connection. DALI connections

are marked as Da Da.

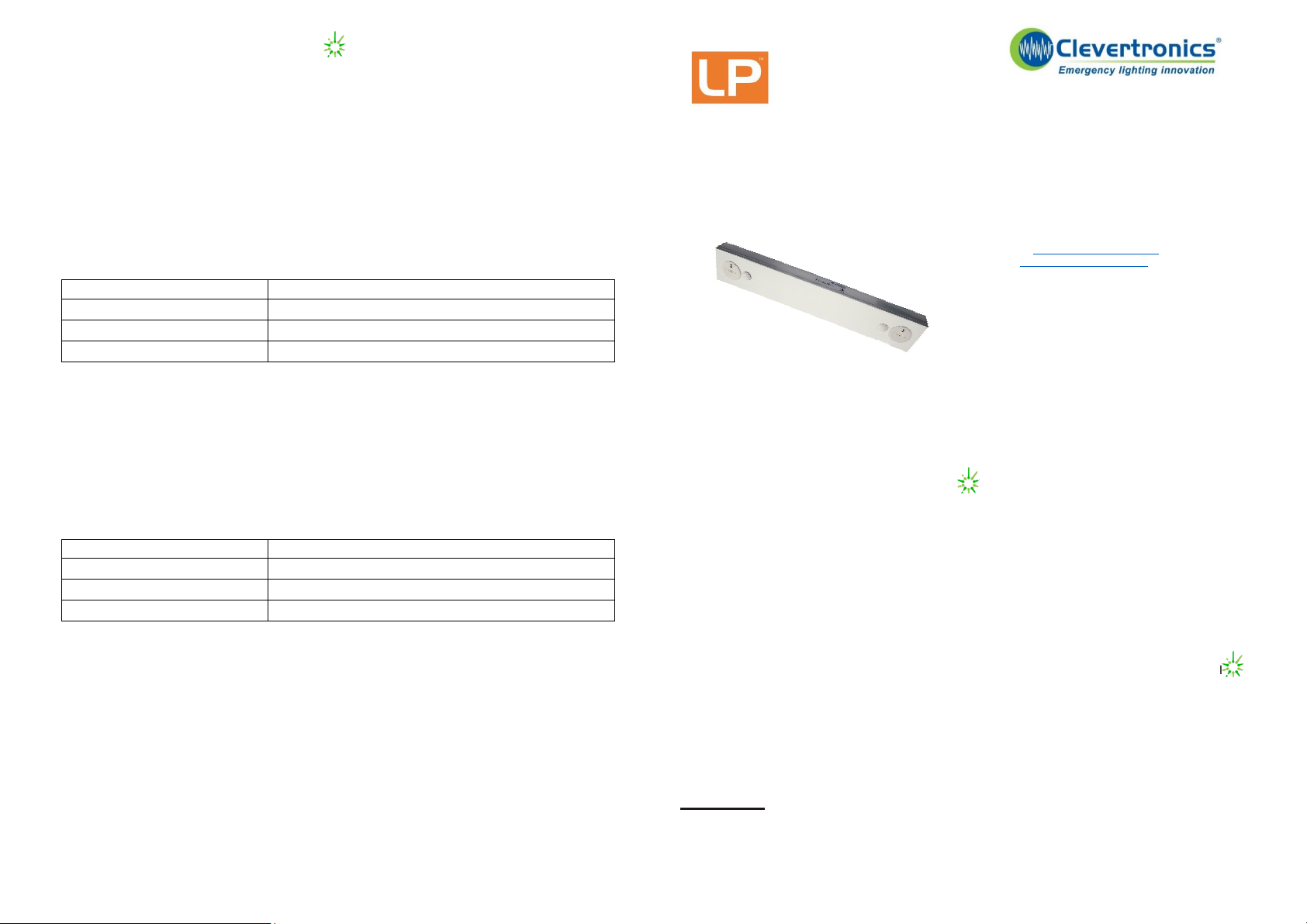

LP LIFELIGHT-2PRO-SMS-600

Surface Mount Emergency

Installation & Maintenance Instruction Leaflet

Designed in Australia to comply with the

requirements of AS2293.3: 2005 and AS/NZS

CISPR15: 2011.

NOTE: Standard product codes with this symbol

are enabled with Clevertest Plus capability.

Please refer to the operation guide supplied with

the product for details.

Victoria (Head Office & Manufacturing)

Website: www.clevertronics.com.au

Email: info@clevertronics.com.au

Phone: +61 3 9559 2700

Fax: +61 3 9559 2799

New South Wales

Phone: +61 2 8805 6400

Fax: +61 2 8805 6444

Queensland

Phone: +61 7 3442 9700

Fax: +61 7 3442 9777

South Australia/Northern Territory

Phone: +61 8 8301 8800

Fax: +61 8 8351 8286

Western Australia

Phone: +61 8 9248 3720

Fax: +61 8 9248 3725

New Zealand

Phone: +64 800 548 448

Models: CLIFE-2PRO-SMS-xx-600

Testing

Manual Test

xx = Blank

Zoneworks

xx = ZW

Zoneworks DATA

xx = DATA

DALI Compatible

xx = DALI

Clevertest

xx = CT (NOTE: Products supplied with the Clevertest Plus Symbol

are

activated with Clevertest PLUS capability. Please refer to the

operation guide supplied with the product for details).

Spare Parts:

1550230

BATT: LP 3.2V 6400mAh.200mm lead.Brkt.

1100869

Lifelight Pro Head Assembly, Ld:280mm,Rnd,LT,Gen 2

CLIFE-PRO-CKIT-NP

LifelightPro,Control Only, LP, NP

Important:

It is illegal for anyone, except for a licensed electrician to install or maintain this product. Before installation,

ensure that the electricity supply has been switched off and isolated. Installation must be carried out in

accordance with the relevant Australian and International Standards.

1941966

V1.1

3 March 2020

Installation:

This LIFELIGHT-2PRO-SMS Surface mount non-maintained Emergency Luminaire can be installed on

solid or T-BAR ceilings or used to replace an existing unit.

•Locate the installation position.

•Refer Images and Dimensions below for the Cut-out Hole and other dimensions.

•Pre-drill mounting holes

•Mount base plate and use suitable fixings to secure the base plate into the pilot holes

•Bring in supply cables via the rear entry hole or via the end of the base plate (surface mount

conduit entry)

•Terminate the supply cables to the L, N & E terminals (in the case of the –DALI or –DATA fittings

terminate the DALI or DATA cable to the terminals marked Da Da or DATA).

•Install the top cover, containing the LifeLight Pro heads, ensuring to reconnect the Heads assembly

to the Control Gear.

•Ensure the Battery is connected

•Screw the cover to the base plate.

•If the CTP capabilities are activated, please affix the CTP status label to a visible surface and Four

Segment Marking on the product will include an ‘’F’’ in third segment block.

Networking:

When installing the product on a monitored network, (ZONEWORKS, DATA, DALI) simply insert the

relevant Smart Node PCA.

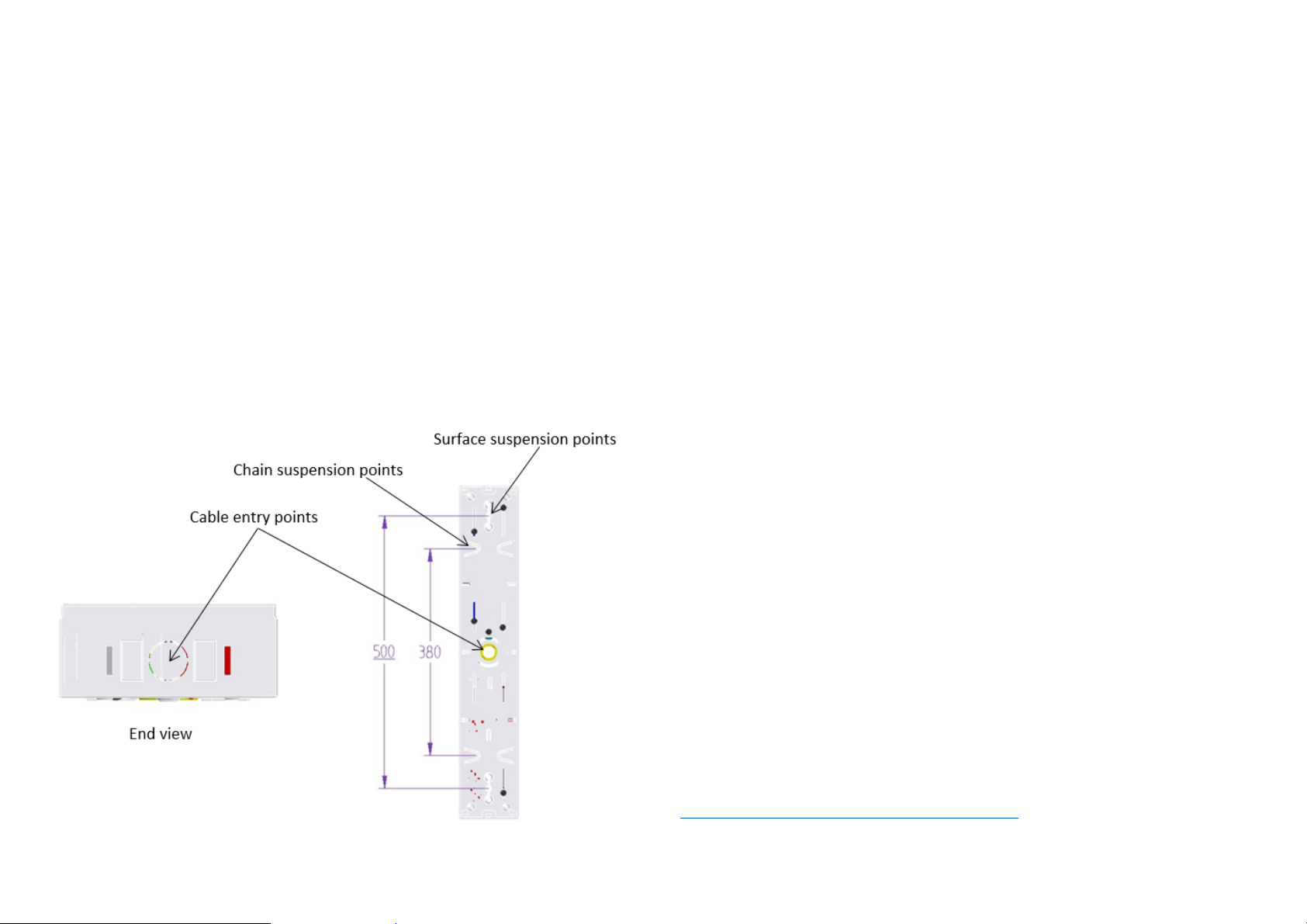

Images and Dimensions:

Testing:

When the LIFELIGHT 2PRO unit is connected to the un-switched active, it must be allowed to charge

the battery for at least 24 hours. The emergency lamp only illuminates during a power fail. Conduct the

following tests:

•The emergency lamp must illuminate for at least 2 hours after disconnection from the mains. The

results of all tests are required to be recorded in a service logbook, which is to be kept on-site at all

times. If the unit fails to illuminate for the requisite time, remedial action must be taken to repair the

situation and once completed, the unit must pass a subsequent test.

•Press and hold Test Button or switch Off Mains Supply, check that the emergency lamp is On.

•Release the Test Button or Switch On Mains Supply, check that the emergency lamp is Off (Non-

maintained operation).

Below are a list of common problems and their possible causes:

Fault: The Green LED indicator is not illuminated.

Check: A.C. is connected and is turned on.

Battery is connected.

Test Switch for damage.

Fault: Lamp does not illuminate in emergency mode.

Check: A.C. is connected.

Lamp is correctly inserted.

Battery is connected

Fault: Lamp illuminates in emergency mode, but only stays on for a short period.

Check: Battery has been allowed to charge for at least 24 hours.

Battery for damage.

Rated Emergency Lumen Output in accordance with AS2293.1 (refer

to spacing tables for installation positions):

Refer to the technical label on the product for classification.

Caution:

On many building sites, power circuits may be cut off in an uncontrolled and repetitive basis during

construction. As a result, any Lifelight Units, on these circuits, will have their batteries discharged or

“cycled”. The Li-ion battery in the Lifelight has been selected to give excellent long life performance in a

controlled IEC 60598-2-22 testing environment. Excessive battery cycling will reduce through-life

performance and may lead to premature battery failure. Battery warranty claims, as a result of such

abuse, are specifically EXCLUDED from Clevertronics warranty terms.

Warranty:

For Product Warranty information and Terms and Conditions of Sales please refer to our website

http://clevertronics.com.au/terms-conditions-sale-australia-nz/
