C3900 SPEAKER MOUNT - 2013+ Ford Fusion

FOR PASSENGER AND DRIVER SIDE SPEAKERS

IMPORTANT! Read all instructions before installing and using. Installer: This manual must be delivered to the end user.

Installation and Operation Instructions

WARNING!

Failure to install or use this product according to manufacturer’s recommendations may result in property damage, serious injury, and/

or death to those you are seeking to protect!

Do not install and/or operate this safety product unless you have read and understood the safety information

contained in this manual.

1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to

ensure the safety of emergency personnel and the public.

2. Emergency warning devices often require high electrical voltages and/or currents. Exercise caution when working with live electrical

connections.

3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing,

which can cause personal injury and/or severe vehicle damage, including re.

4. Proper placement and installation is vital to the performance of this warning device. Install this product so that output performance of

the system is maximized and the controls are placed within convenient reach of the operator so that they can operate the system without

losing eye contact with the roadway.

5. It is the responsibility of the vehicle operator to ensure daily that all features of this product work correctly. In use, the vehicle operator

should ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors),

people, vehicles or other obstructions.

6. The use of this or any other warning device does not ensure all drivers can or will observe or react to an emergency warning signal.

Never take the right-of-way for granted. It is the vehicle operator’s responsibility to be sure they can proceed safely before entering an

intersection, drive against trafc, respond at a high rate of speed, or walk on or around trafc lanes.

7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws

regarding emergency warning devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The

manufacturer assumes no liability for any loss resulting from the use of this warning device.

Specications*:

*specications for a single C3900 speaker

w/o Bracket w/ Bracket

Power: 100 Watt

Impedance: 11 Ohm

Weight: 2.8 lbs 4.8 lbs

Dimensions: 1.61in (L) 9.05in (L)

5.86in (W) 7.91in (W)

5.96in (H) 6.25in (H)

WARNING!

Sirens produce loud sounds that may damage hearing.

• Wear hearing protection when testing

• Use siren only for emergency response

• Roll up windows when siren is operating

• Avoid exposure to the siren sound outside of vehicle

Page 2 of 8

Installation and Mounting (Driver Side):

Step 1. Refer to the Ford Service manual to remove the front facia

from the Ford Fusion.

Step 2. Install the speaker onto the bracket by threading two (2) ¼”-

20 X 1 ¼” Phillips pan head screws with two (2) ¼” split lock wash-

ers through the holes in the bracket and into the threaded holes in

the back side of the speaker body as shown in Figure 1. Tighten the

screws until the lock washers fully atten out but do not over tighten.

Note: Make sure the speaker is mounted in the correct orienta-

tion with the word “BOTTOM” at the bottom of the assembly

(See Figure 1 for correct speaker orientation). Caution: Severe

damage could occur to the speaker if it is not mounted in the

proper orientation.

Step 3. Locate and loosen the two (2) vehicle bolts shown in Figure

Step 4. Slip the mounting ange of the speaker bracket into position

as shown in Figure 3.

Step 5. Hold the speaker bracket assembly in position while tight-

ening the two (2) vehicle bolts to fasten the speaker bracket to the

vehicle as shown in Figure 4.

Step 6. The nished assembly will look as shown in Figure 5.

Step 7. Connect the unit’s wires to customer supplied wires & route

to the desired power source.

"BOTTOM"

MACHINE

SCREW

LOCK

WASHER

Figure 1

Figure 2

Figure 4

Figure 3

Figure 5

Page 3 of 8

Installation and Mounting (Passenger Side):

Step 1. Refer to the Ford Service manual to remove the front facia

from the Ford Fusion.

Step 2. Install the speaker onto the bracket by threading two (2) ¼”-

20 X 1 ¼” Phillips pan head screws with two (2) ¼” split lock wash-

ers through the holes in the bracket and into the threaded holes in

the back side of the speaker body as shown in Figure 6. Tighten the

screws until the lock washers fully atten out but do not over tighten.

Note: Make sure the speaker is mounted in the correct orienta-

tion with the word “BOTTOM” at the bottom of the assembly

(See Figure 6 for correct speaker orientation). Caution: Severe

damage could occur to the speaker if it is not mounted in the

proper orientation.

Step 3. Locate and loosen the two (2) vehicle bolts shown in Figure

Step 4. Slip the mounting ange of the speaker bracket into position

as shown in Figure 8.

Step 5. Hold the speaker bracket assembly in position while tight-

ening the two (2) vehicle bolts to fasten the speaker bracket to the

vehicle as shown in Figure 9.

Step 6. The nished assembly will look as shown in Figure 10.

Step 7. Connect the unit’s wires to customer supplied wires & route

to the desired power source.

"BOTTOM"

LOCK

WASHER

MACHINE

SCREW

Figure 6

Figure 7

Figure 9

Figure 8

Figure 10

Page 4 of 8

Replacement Parts and Accessories:

Description Part No.

C3900 Speaker 140-1533-00

Driver Side Bracket 220-1020-00

Passenger Side Bracket 220-1165-00

1/4”-20 x 1 1/4” Phillips Pan Head Machine Screw 321-0126-00

1/4” Split Lock Washer T03745

Figure 11 Figure 12

Page 5 of 8

Notes:

Page 6 of 8

Notes:

Page 7 of 8

Notes:

Page 8 of 8

10986 North Warson Road

St. Louis, MO 63114

Technical Service

(314) 996-2800

[email protected]

www.code3esg.com

An ECCO SAFETY GROUP™ Brand

www.eccosafetygroup.com

Warranty:

Product Returns:

If a product must be returned for repair or replacement*, please contact our factory to obtain a Return Goods Authorization Number (RGA

number) before you ship the product to Code 3®, Inc. Write the RGA number clearly on the package near the mailing label. Be sure you use

sufcient packing materials to avoid damage to the product being returned while in transit.

*Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring

service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.

Manufacturer Limited Warranty Policy:

Manufacturer warrants that on the date of purchase this product will conform to Manufacturer’s specications for this product (which are avail-

able from the Manufacturer upon request). This Limited Warranty extends for Sixty (60) months from the date of purchase.

DAMAGE TO PARTS OR PRODUCTS RESULTING FROM TAMPERING, ACCIDENT, ABUSE, MISUSE, NEGLIGENCE, UNAPPROVED MODIFICA-

TIONS, FIRE OR OTHER HAZARD; IMPROPER INSTALLATION OR OPERATION; OR NOT BEING MAINTAINED IN ACCORDANCE WITH THE

MAINTENANCE PROCEDURES OUTLINED IN MANUFACTURER’S INSTALLATION AND OPERATING INSTRUCTIONS VOIDS THIS LIMITED WAR-

RANTY.

Exclusion of Other Warranties:

MANUFACTURER MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. THE IMPLIED WARRANTIES FOR MERCHANTABILITY, QUALITY

OR FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE ARE HEREBY EX-

CLUDED AND SHALL NOT APPLY TO THE PRODUCT AND ARE HEREBY DISCLAIMED, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE

LAW. ORAL STATEMENTS OR REPRESENTATIONS ABOUT THE PRODUCT DO NOT CONSTITUTE WARRANTIES.

Remedies and Limitation of Liability:

MANUFACTURER’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDY IN CONTRACT, TORT (INCLUDING NEGLIGENCE), OR UNDER ANY

OTHER THEORY AGAINST MANUFACTURER REGARDING THE PRODUCT AND ITS USE SHALL BE, AT MANUFACTURER’S DISCRETION, THE

REPLACEMENT OR REPAIR OF THE PRODUCT, OR THE REFUND OF THE PURCHASE PRICE PAID BY BUYER FOR NON-CONFORMING PROD-

UCT. IN NO EVENT SHALL MANUFACTURER’S LIABILITY ARISING OUT OF THIS LIMITED WARRANTY OR ANY OTHER CLAIM RELATED TO

THE MANUFACTURER’S PRODUCTS EXCEED THE AMOUNT PAID FOR THE PRODUCT BY BUYER AT THE TIME OF THE ORIGINAL PURCHASE.

IN NO EVENT SHALL MANUFACTURER BE LIABLE FOR LOST PROFITS, THE COST OF SUBSTITUTE EQUIPMENT OR LABOR, PROPERTY

DAMAGE, OR OTHER SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES BASED UPON ANY CLAIM FOR BREACH OF CONTRACT, IM-

PROPER INSTALLATION, NEGLIGENCE, OR OTHER CLAIM, EVEN IF MANUFACTURER OR A MANUFACTURER’S REPRESENTATIVE HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. MANUFACTURER SHALL HAVE NO FURTHER OBLIGATION OR LIABILITY WITH RESPECT

TO THE PRODUCT OR ITS SALE, OPERATION AND USE, AND MANUFACTURER NEITHER ASSUMES NOR AUTHORIZES THE ASSUMPTION OF

ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH SUCH PRODUCT.

This Limited Warranty denes specic legal rights. You may have other legal rights which vary from jurisdiction to jurisdiction. Some jurisdic-

tions do not allow the exclusion or limitation of incidental or consequential damages.

920-0671-00 Rev. A

Indice

Altri manuali Code 3 Rack e supporto

Code 3

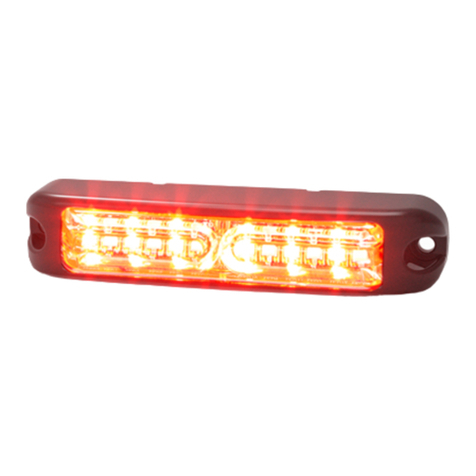

Code 3 CD5031 Manuale utente
