Features and Benefits of the Code Alarm CA-140TM

Two Easy-to-Use Weather-Resistant Remote Controls

The remote controls included with the Code Alarm CA-140TM (1 two-

way tranceiver, 1 one-way transmitter)utilize durable, moisture

resistant cases and sealed rubber buttons for reliability and long

life. Rolling code technology prevents the transmitter signals from

being duplicated. The button functions are clearly labeled to make the

Code Alarm CA-140TM simple to operate.

Two-Way Confirming Tranceiver and PowerRangeTM Antenna

The Code Alarm CA-140TM features an advanced tranceiver with

LED confirmation which allows it to transmit and receive information

to and from the vehicle. The PowerRangeTM antenna allows you to

oper ate the systemfrom distances of up to 1/8mile.

All Entrances Protected

Opening any door or entrance protected by the security system

triggers the vehicle’s horn or Songbird Speaker and flashes the

vehicle parking lights.

Starter Disable

The Code Alarm CA-140TM protects your vehicle from theft by

disabling the starter when the security system is armed.

IT-sTM Interior Theft Sensor

This patented sensor uses infra-red technology to reliably detect

vehicle impact associated with attempted intrusion.The IT-s sensor

guards against vehicle body damage, and theft of the vehicle’s

equipment (such as airbags) and personal belongings.

Interior Status Indicator

The bright-blue warning light is an effective visual deterrent to a

would-be thief. The status indicator is also used to alert you to the

status of the security system (ie: theft attempt, valet mode, etc.).

Passive Arming

The Code Alarm CA-140TM has an optional passive arming feature

that guarantees your vehicle will be protected even if you forget to

actively arm the system.

“Real Panic Sound” Horn Honk (RPS)

The unique digitally produced sound of the patented “RPS” horn

honk provides a distinctive sound to scare-off theives while

drawing attention to a vehicle theft attempt.

E-Code Coded Override System

If this feature is enabled, it will allow you to enter a personal 4-digit

code that only you will know.This will be used for overriding the

system in the case of an emergency or a lost transmitter.

Personal Protection Features

Remote Panic Alarm, Headlight Control, Illuminated Entry,

and Car Finder are among an array of features that enhance

personal safety. **May require additional componets and/or labor.

Remote Keyless Entry

The Code Alarm CA-140TM conveniently locks and unlocks vehicle

doors and opens the trunk or hatch by remote control.*

Auxillary Outputs

The Code Alarm CA-140TM is equipped with 4 auxillary outputs to

operate additional vehicle accessories (ie: Power window/sunroof

up or down,Headlight control, personalized transmitters for memory

seat activation). **May require additional components and/or labor.

TurboTimer Option

Designed for turbocharged vehicles, this option allows the vehicle

to stay running for an additional 5-minutes without the key for a

“Turbo-Cool-Down Mode” **May require additional components

and/or labor.

Retained Accessory Power Option

The Retained Accessory Power Option allows the Code Alarm CA-

140TM to leave accessories like power windows and radio powered

after the ignition key is turned off until the vehicle door is opened.

**May require additional components and/or labor.

SongbirdTM

Another Code Alarm exclusive feature. SongbirdTM allows you to

customize your system by assigning different song snipets or

unique sounds to security system and transmitter functions.

* If vehicle is equipped with power door locks and they are connected to the alarm system by your installer.

Features and Benefits of the Code Alarm CA-140TM

* Throughoutthismanual, ‘press’ referstopressing for lessthan1 second; ‘pressand hold’ refers to

pressing for more than 1 second. **’Siren’ also refers to the vehicle horn if it is used as the alarm sounding

device.*

Arming the Security System

To arm the system, exit the vehicle, close all doors, then press* the

LOCK/ARM button. The siren** will “chirp” twice and the parking

lights will flash twice, indicating the system is armed. The doors will

also lock at this time (if equipped and connected). The status

indicator (blue warning light on the dash) will blink steadily, once per

second.

Pre-arm Mode

If the siren chirps and the parking lights flash only once, this indicates

that the vehicle courtesy light is on, or that an entrance is not closed

securely. Check to see that doors, hood, and trunk are properly

closed. Once all entrances are secured (and the courtesy light is off),

the system will chirp / flash again.The system is now fully armed.

(If the entrance is not secured within 4 minutes, the system will arm

and ignore the unsecured entrance until it is closed.)

Disarming the Security System

To disarm the system, press the UNLOCK/DISARM button. The siren

will chirp and the parking lights will flash once, and the doors will

unlock. The courtesy light will turn on for 1 minute, or until the vehicle

is started.

Attempted Intrusion Identification

If the siren chirps four times when

disarming, this indicates that the

system was triggered in your

absence. The status indicator will

also flash rapidly. Perform the

following operation to determine the

protected zone that triggered the

system: After disarming, press the emergency override button. The

siren will chirp to indicate the cause of the alarm trigger:

1 chirp IT-s Interior Theft Sensor

2 chirps Door

3 chirps Hood

4 chirps Trunk/Optional Sensors

5 chirps Ignition was turned on

Using Your Remote Transmitter

The functions in this section can done using either the two-way

confirming tranceiver or the one-way transmitter. Button

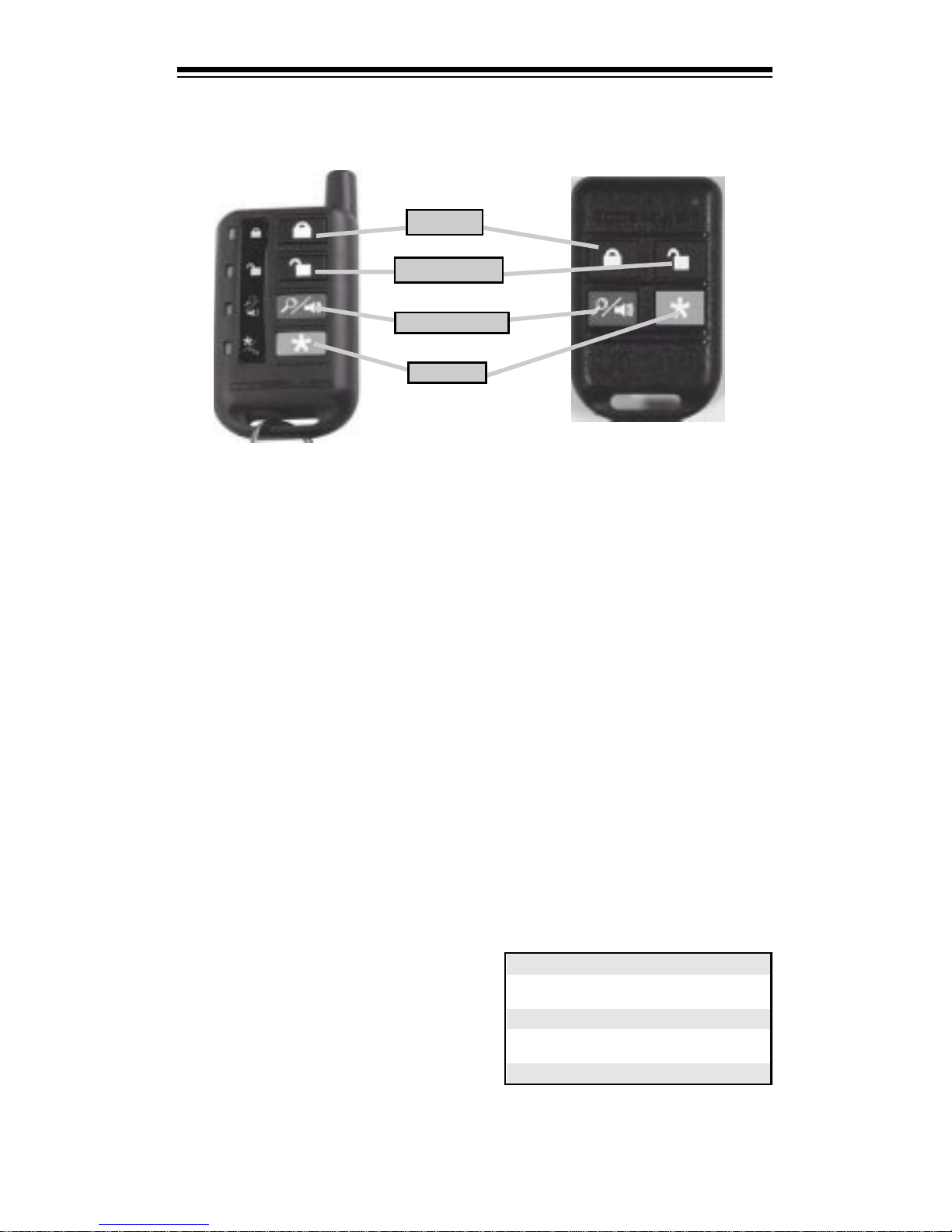

configurations are shown in the graphic below.

“UNLOCK”

“LOCK”

“FIND/PANIC”

“AUX”

6UsingYour Remote Transmitter (cont.)

Disabling the IT-s InteriorTheft Sensor

It may be necessary at times to disable the IT-s Interior Theft Sensor,

especially when parking in areas (like parking garages) where

extreme vibration may cause false alarms. Press the LOCK button

and then press the FIND/PANIC button within two seconds of

pressing LOCK to disable the interior theft sensor.The siren will

chirp two times to indicate that the sensor is disabled. The sensor

will become enabled again the next time the system is armed

normally.

Two-Stage Door Unlock

If this feature is enabled on your system, pressing UNLOCK one time

will unlock only the driver’s door. Press UNLOCK again within 1

minute to unlock all doors.

Activating theTrunk Release Feature

Press and hold UNLOCK to open the vehicle trunk or hatch (if

equipped and connected). If this button is used to operate another

accessory, the accessory will stay active for as long as the button is

held.

Turning on the Vehicle Headlights/AUX 1

Press and hold the LOCK button to turn on the vehicle headlights.

(The alarm system will attempt to arm if not already armed, unless it

is in Valet Mode.) The lights will stay on for 20 seconds, or until LOCK

is pressed again.

AUX2

If this feature is enabled on your system, pressing and holding AUX

for two seconds or Operating duration will activate AUX 2.

AUX3

If this feature is enabled on your system, holding AUX and

immediately pressing LOCK for one second or Operating duration will

activate AUX 3. If the personalized transmitters feature is enabled

on your system, this output is used to activate the memory seat

feature for driver 1.

AUX 4

If this feature is enabled on your system, holding AUX and

immediately pressing UNLOCK for one second or Operating duration

will activate AUX 4. If the personalized transmitters feature is

enabled on your system, this output is used to activate the memory

seat feature for driver 2.

Using the Progressive Car Finder Feature

Press FIND/PANIC on the remote control to locate your vehicle. The

vehicle’s horn will emit five short chirps at low volume, increasing in

volume each of three times the button is pressed. If Songbird is

enabled and programmed to this function, the siren will emit the

programmed song.

Personal Protection Alarm (Panic)

Press and hold the FIND/PANIC button to activate the vehicle siren

and parking lights for 30 seconds. The vehicle’s horn is or siren will

“pulse” for 30 seconds. Press any remote control button to turn off the

Panic alarm.

UsingValet Mode

If the Passive Arming feature is enabled on your system, Valet mode

temporarily prevents the alarm system from arming automatically.

This is useful when fueling or servicing your vehicle.

To enterValet Mode:

With the vehicle ignition on, press the ARM button.The blue

dashboard warning light (status indicator) will turn on for one second,

then turn off.This indicates that the system is in Valet mode. Once the

ignition is turned off, the status indicator will emit a quick double-flash

pattern.

Note: In Valet mode, all keyless entry, convenience and remote start

features operate normally.

To exitValet Mode:

With the vehicle ignition on, press the DISARM button.The red

dashboard warning light (status indicator) will turn on for one second,

then turn off.This indicates that the system has exitedValet mode.

Hint: To prevent your security system from automatically arming while

unloading or refueling your vehicle, without placing the system

inValet mode, simply press the disarm button on your remote control

transmitter after turning the ignition key off. Doing so places your

system into a temporary or one time Valet mode. Next time you exit

your vehicle the system will arm in the normal manner.

Using the Turbo Timer Option

The CA-140TM turbo timer option allows the vehicle to remain running

for five minutes after the ignition key has been turned off. The turbo

timer option must be enabled before the feature will operate, see your

installing dealer for information.

To activate turbo timer:

1. After parking the vehicle, place your foot on the brake pedal.

2. Place the shifter in the PARK position on automatic

transmisson vehicles, or neutral and engage the parking brake

for manual transmission vehicles.

3. Continue to hold the brake pedal for 5-seconds.

4. Remove your foot from the brake pedal.

5. Turn the ignition key off, and remove from the ignition switch.

6. The vehicle will remain running for 5 minutes or unless the

brake pedal is pressed.

UsingYour Remote Transmitter (cont.)

8Automatic Convenience Options

The CA-140TM performs a variety of automatic functions to enhance

security and comfort. Some of these features are programmable at

the time of installation. Please see your installer for further details.

Illuminated Entry

When the alarm system is disarmed, the vehicle courtesy lights will turn

on for 1 minute, or until the vehicle is started or the system is re-

armed.

Illuminated Exit

When removing the key from the ignition, the vehicle courtesy lights

will turn on for 1 minute, or until the CA-140TM is armed. This feature is

not available if the “Retained Accessory Power” option has been

enabled on your system.

Automatic Arming

The CA-140TM will arm automatically 1 minute after the key is removed

from the ignition. This feature can be temporarily disabled by placing

the system into Valet mode.

Ignition Lock

If all doors are closed and the vehicle is started with the key, the

doors will automatically lock.

Ignition Unlock

When removing the key from the ignition, the doors will automatically unlock.

Using the Songbird Option

The Code Alarm CA-140TM is equipped with a feature called

“Songbird”. Songbird allows you to program different songs or tones

similar to “ring tones” on a cellular phone. A song or tone can be

programmed to almost any system function that has a vehicle horn or

siren response (ie: arm/disarm chirps, lite touch impact sensor,

panic mode).

Functions that can’t be programmed with a Songbird tone:

1. Impact sensor override

2. Alarm trip ID

Turning Songbird On:

Using either the 2-way tranceiver ot the 1-way transmitter remote

control, press both LOCK and UNLOCK buttons simultaneously.

The siren will emit a confirmation tone indicating that songbird is on.

Selecting a Function and SongbirdTone/Song

1. Activate a function that you would like to set to a specific tone

(ie: lite touch impact sensor is activated by striking the

vehicle with an impact that would trigger a lite touch

response.

2. Within 10 seconds of activating the function:

A). Press AUX, then press FIND/PANIC within 2 seconds.

The siren will emit a confirmation tone indicating that you

have entered the program mode.

3. Use the LOCK and UNLOCK buttons to advance up or down

through the different tones. Pressing the AUX button will

play different versions and lengths of the tone you have

selected.

4. When you have decided on a specific tone, press the FIND/

PANIC button to lock that tone to the function, and exit

programming.

The siren will emit a confirmation tone indicating that you have exited

programming mode.

Turning Songbird OFF:

Press both UNLOCK and FIND/PANIC buttons simultaneously.

The siren will emit a confirmation tone indicating that songbird has

been turned off.

10 WhenYour Security System isTriggered

The Code Alarm CA-140TM will trigger if one of the following events

occurs while the system is armed:

• Any protected entrance is opened

• The vehicle ignition is turned on

• The vehicle is jolted hard enough to signal the impact sensor

Once the alarm is triggered, the siren (or horn) sounds and the

vehicle parking lights flash for 30 seconds. The system will then re-

arm, awaiting the next intrusion attempt. To stop the siren while

keeping the alarm armed and doors locked, press the LOCK button

while the system is triggering.

The Status Indicator is a high-intensity blue light mounted in a visible

location on the vehicle dashboard. This blue light gives a visual

indication of the alarm system’s state of operation. Note the chart

below:

If the Status Indicator is... ....then the Security System

Off is disarmed

Flashing Slowly is armed

Flashing Very Quickly was triggered in your absence

(see Attempted Intrusion ID - page 5)

Flashing Intermittently is in Valet mode

(2 flashes, off, 2 flashes)

On (not flashing) is in Pre-arm mode

Your Two-Way Tranceiver Remote Control

The Code Alarm CA-140 two-way tranceiver remote control is

designed to access system status information. The LED display can

give you information about the state of the CA-140, security system,

etc. The table below shows the system functions as well as the

audible signal from the remote control.

nottuBrettimsnarTnoitcnuFmetsySesnopseRelbiduAreviecnarT

&srooDelciheVkcoL

metsySmralAmrA sdnuospeeb2,sdnoces2rofnosnrutDEL

&srooDelciheVkcolnU

metsySmralAmrasiD dnuospeeb1,sdnoces2rofnosnrutDEL

esaeleRhctaHknurT dnuospeeb1,sdnoces2rofnosnrutDEL

/noitavitcAthgildaeH

2XUA dsnuospeeb2,sdnoces2rofnosnrutDEL

redniFraCsdnuospeeb3,sdnoces2rofnosnrutDEL

mralAcinaPetomeR sdnuospeeb3,sdnoces2rofnosnrutDEL

3XUAsdnuospeeb2sdnoces2rofnosnrutDEL

4XUAsdnuospeeb2,sdnoces2rofnosnrutDEL

+ Hold Simultaneously

Hold For 2 Seconds

Hold For 3 Seconds

Press and Release

Indice

Altri manuali Code Alarm Allarme auto

Code Alarm

Code Alarm CA-135 Manuale utente

Code Alarm

Code Alarm PROFESSIONAL CA 1045 Manuale utente

Code Alarm

Code Alarm CA-120 Manuale utente

Code Alarm

Code Alarm CA-130 Manuale utente

Code Alarm

Code Alarm CA-130 Manuale utente

Code Alarm

Code Alarm CA-670 Manuale utente

Code Alarm

Code Alarm ca6355E Manuale utente

Code Alarm

Code Alarm CA 680 Manuale utente

Code Alarm

Code Alarm Professional caSECRS Manuale utente

Code Alarm

Code Alarm Professional ca6153 Manuale utente

Code Alarm

Code Alarm ca 1151 Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES Manuale utente

Code Alarm

Code Alarm CA 521 Manuale utente

Code Alarm

Code Alarm CSI-200 Manuale utente

Code Alarm

Code Alarm CA 650 Manuale utente

Code Alarm

Code Alarm ELITE Series Manuale utente

Code Alarm

Code Alarm CA-500 Manuale utente

Code Alarm

Code Alarm CSI-300 Manuale utente

Code Alarm

Code Alarm CA 310 Manuale utente

Code Alarm

Code Alarm CA1B5 Manuale utente

Code Alarm

Code Alarm Car Alarm Manuale utente

Code Alarm

Code Alarm CATX630 Istruzioni operative

Code Alarm

Code Alarm CA1355E Manuale utente

Code Alarm

Code Alarm CA 170 Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
