Code Alarm Ca 2051 Manuale utente

1ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

PROFESSIONAL

SERIES

ca 2051

Owner’s Guide

IMPORTANT NOTE: Theoperationof theSecurity andConvenience System asdescribed in this manual is

applicableto most vehicles.However, duetothe configurationof some vehicles,some functions AND/OR

SAFETYPRECAUTIONS maynot apply.Pleasesee yourinstallingdealer for moreinformation.

Remote Keyless Entry System

2 ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Table of Contents

Using Your Remote Control ...............................................................3

Locking the Vehicle ..........................................................................3

Unlocking the Vehicle .......................................................................3

Two Stage Door Unlock (optional) ...................................................3

Eliminating Lock / Unlock Notification Chirps ...................................3

Valet Mode ........................................................................................3

Activating Trunk Release (optional) ................................................4

Using the Progressive Car Finder Feature......................................4

Using the Personal Protection Alarm ...............................................4

LED, Horn and Parking Light Indications.........................................4

Transmitter Button Functions ...........................................................5

Replacing Remote Control Batteries...............................................5

Warranty Information...........................................................................6

3ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Locking the Vehicle

To lock the vehicle, exit the vehicle, close all doors, then press the button. The

parking lights will flash 2 times, indicating the system has locked the doors and

activated the starter interrupt feature (if equipped and connected). The LED

status indicator will blink steadily, once per second.

NOTE: The system is equipped with a feature called Silent Choice. If enabled, the

system requires a second press of the button to activate an audible locking

response from the vehicle.

Using Your Remote Control

Two Stage Door Unlock (Optional)

If this feature is enabled on your system, pressing the button one time will

unlock only the driver’s door. Press again within three seconds to unlock the

remaining doors.

Eliminating Lock / Unlock Notification Chirps

System lock and unlock notification chirps can be toggled ON or OFF without

entering the programming feature banks.

1. Turn the ignition ON then OFF.

2. Press and release the valet/programming button 3 times. The system

will respond with 1 chirp for ON or 2 chirps for OFF.

Valet Mode

When valet mode is activated the status LED will light solid, and the optional

starter interrupt feature will be disabled. To enter or exit valet mode simply follow

the 4 steps outlined below:

1. Turn the vehicle’s ignition ON.

2. Push and hold the programming/valet button.

3. The LED will turn on solid when valet mode is active

4. Release the programming/valet button.

Unlocking the Vehicle

To unlock the vehicle press the button. The parking lights will flash 1 time,

indicating the system has unlocked the doors and disabled the starter interrupt

feature (if equipped and connected).

NOTE: The system is equipped with a feature called Silent Choice. If enabled, the

system requires a second press of the button to activate an audible unlocking

response from the vehicle. If your system is set up for 2 step unlock, a third

press of unlock will activate the audible response.

4 ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Activating the Trunk Release Feature (Optional)

If this feature is enabled on your system, pressing and holding the button for 3

seconds will open the vehicle’s trunk or hatch.

Using the Progressive Car Finder Feature

Press the button to locate your vehicle. The system will sound 5 times at low

volume, increasing in volume each time the button is pressed.

Using the Personal Protection Alarm (Panic)

Press and hold the button for 3 seconds to activate the personal protection

alarm. During panic mode, the normal function of the transmitter buttons will be

suspended. The transmitter’s and buttons can be used to lock and unlock the

door (if the option is installed). To stop the alarm, press and hold the button on

the transmitter again for 3 seconds. The system will automatically stop after 30

seconds.

LED, Horn and Parking Light Indications

LED Display Indications

LED Function

OFF UNLOCKED

SLOW FLASH LOCKED

ON(SOLID) VALETMODE

Horn Indications

Chirps Function

1 UNLOCK

2 LOCK

5 CARLOCATOR

Parking Light Flash Indications

Flashes Function

1 DISARM

2 ARM

5 CARLOCATOR

5ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

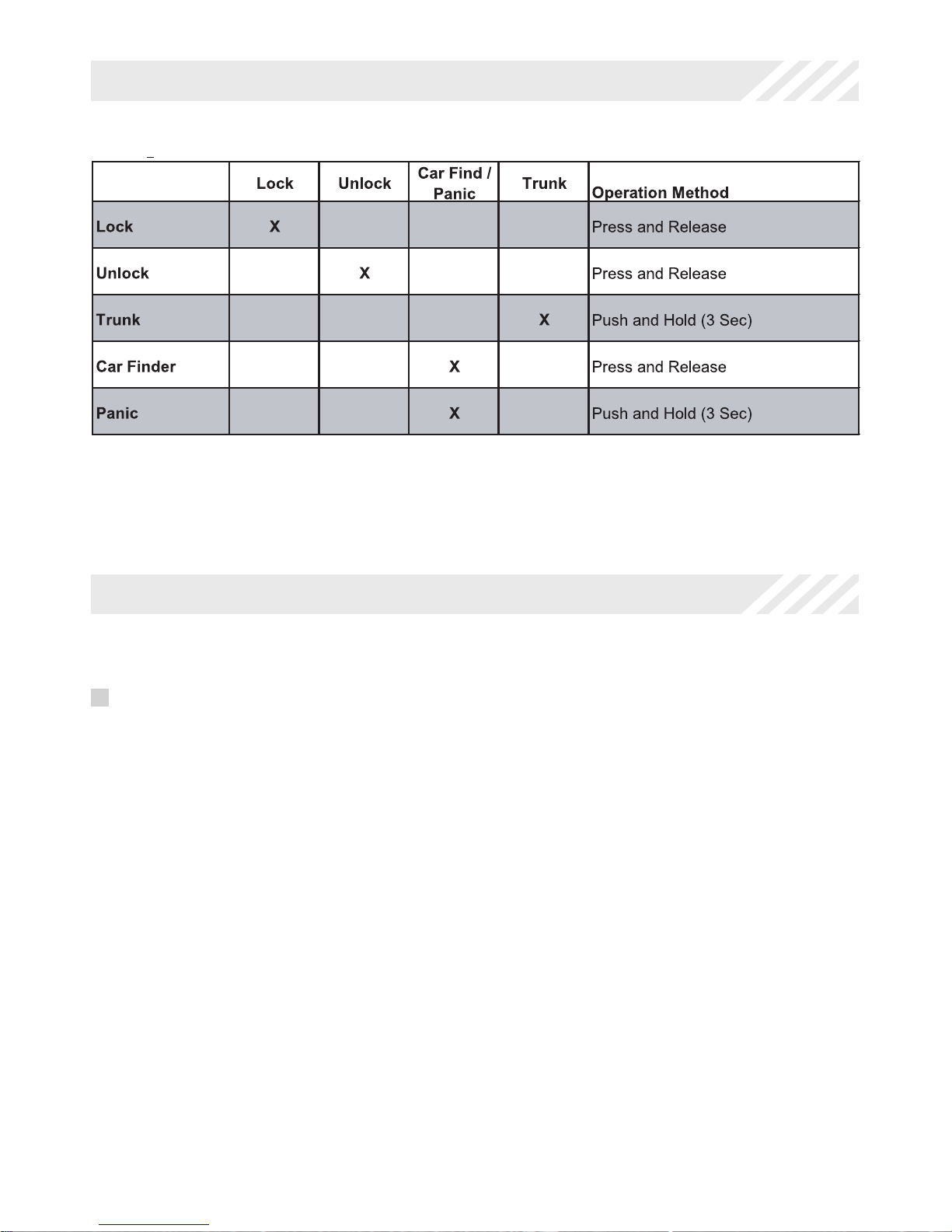

Transmitter Button Functions

Replacing Remote Control Batteries

1-Way Remote Control:

The batteries (model CR2016) inside each remote control should last approximately

1 year under normal use. When the batteries become weak you will notice the

remote control range (the distance from the vehicle the remote control will work)

deteriorate and the small LED on the remote control will dim. To replace the remote

control batteries:

1. Unsnap and disassemble the halves of the remote control.

2. Remove the old batteries, observing the +/- symbols on the batteries

and replace with new CR2016 batteries.

3. Reassemble the halves of the remote control.

4. Test operation of the remote control.

6 ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Code Systems, Inc. Limited Lifetime Warranty

Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE

vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as

provided below) should this Product under normal use and conditions, be proven defective in

material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGI-

NALLYINSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for

parts directly related to repairs of the defect(s).

Switches, indicator lights, and transmitter cases are similarly warranted to the original

purchaser for a period of one (1) year from the date of purchase of the Product.

CODE accessories, sold separately, are covered by the applicable warranty accompa-

nying the accessory.

This warranty is non-transferable, non-assignable and is voided when: (1) the Product is

removed from the vehicle in which it was originally installed; or (2) the vehicle in which the Product

was originally installed is transferred to another party.

This warranty does not apply to any product damaged by accident, physical or electrical

abuse, improper installation, alteration, or use contrary to its intended function, fire, flood, or other

natural acts.

In order for the Product to be repaired or replaced under the terms of this warranty, the

defective Product must be returned to an authorized CODE dealer and accompanied by a copy of

the retail sales receipt. The date of purchase and year, make and model of the vehicle in which the

Product was originally installed must be clearly indicated on the sales receipt.

This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED

OR IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WAR-

RANTY, EXPRESS OR IMPLIED, WHATSOEVER.

CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT OF

CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT

PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PURCHASE

PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTALLATION

LABOR.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation may not apply to you. This warranty gives you specific legal

rights and you may also have other rights which vary from state to state

7ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

8 ca2051revB.2011AudiovoxElectronicsCorporation.Allrightsreserved.

Audiovox Electronics Corporation.

Customer Service 1-800-421-3209

WWW.CODE-ALARM.COM

FCC COMPLIANCE

This device complies with Part 15 of the FCC rules and with RSS-210 of

Industry Canada. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including any interference

that may cause undesired operation.

Warning!

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.
