CA 310 Owners Manual

128-6530

2 of 10

Page 2

Your system has many features and available options some of which are

selected at time of installation. Consult your installing dealer for options that

may have been installed and are not listed.

ARMINGTHESYSTEM:

1. Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk.

2. Press and release the LOCK button of your Factory (OEM) transmitter one

time.

The parking lights will flash once, the siren will chirp once, and the dash

mounted LED will begin to flash slowly confirming the system is armed.

NOTE: If the siren/horn sounds 3 chirps, then you have left a door, trunk, or

hood lid ajar. Simply close the opened entry point to provide full protection.

PASSIVEARMINGTHESYSTEM:

If the passive arming feature has been selected:

Turn the engine OFF, exit the vehicle, and close all doors, hood and trunk.

The dash mounted LED will begin to flash rapidly indicating that the 30

second passive arming timer has begun. If the LED does not begin to flash

rapidly, then you have left a door, hood, or trunk ajar. Closing this entry point

will allow the arming cycle to begin. If any entry point is opened during the 30

second arming cycle, arming will be suspended. When all entry points are

closed, the arming cycle will begin again. At the end of the 30 seconds, the

parking lights will flash once, the siren will chirp once, and the dash mounted

LED will begin to flash slowly confirming the system is armed.

PROTECTIONWHILETHE SYSTEM ISARMED:

Opening any protected entry point, hood, trunk, or doors will cause the alarm

to trigger immediately. The siren will sound and the parking lights will flash

for 30 seconds, then stop and continue to monitor all protected entry points. If

the thief left the door opened, the system will sound for six 30 second cycles

then shut down, isolate the triggered zone and continue to protect all other

zones. Whenever the system is armed, the dash mounted LED will slowly

flash. This serves as a visual deterrent to a potential thief. This LED is a very

low current light emitting diode, and will not cause the battery to drain even if

left unattended for long periods of time.

128-6530

3 of 10

Whenever the system is triggered, the vehicle's parking lights will flash for the

full siren sounding period. Optional - whenever the system is triggered, the

interior courtesy light will flash for the full siren sounding period. Optional-

whenever the system is armed, the vehicle starter circuit is disabled, and the

vehicle will not start with the ignition key. Whenever the system is armed, any

strong impact to the vehicle will cause the shock sensor to trigger the alarm.

Any lesser impact will cause the pre-detect stage of the shock sensor to emit

a few short series of warning tones from the siren.

DISARMINGTHESYSTEM:

As you approach the vehicle, press and release the UNLOCK button on your

Factory (OEM) transmitter. The parking lights will flash 2 times, the siren will

chirp 2 times, and the dash mounted LED will turn off.

NOTE: If the passive arming mode was selected at time of installation, the

dash mounted LED will start flashing rapidly indicating that the system is

rearming. Opening any door will suspend the automatic arming.

If the parking lights flashed 3 times, and the siren chirps 4 times, this

indicates that the alarm system was triggered during your absence. Before

turning on the ignition key, examine the dash mounted LED's flash pattern.

The number of flashes identifies the triggered zone. For additional

information, refer to INTRUSION WARNING SIGNALS found later in this

manual.

INTRUSIONWARNINGSIGNAL:

This system will inform you if an intrusion attempt has occurred while you

were away from the vehicle. Upon disarm, the siren will chirp 4 times and the

parking lights will flash 3 times. Enter the vehicle and before turning on the

ignition switch, observe the LED flash pattern.

If the LED flashes 2 times...pause, 2 times...pause etc., then an intrusion

attempt was made to open the hood, trunk, or by an accessory triggering

device. Check the vehicle for indications of forced entry to these openings.

If the LED flashes 3 times...pause, 3 times...pause etc., then an intrusion

attempt was made to the vehicle doors. Check all doors for indications of

forced entry.

Page 3

128-6530

4 of 10

Page 4

If the LED flashes 4 times...pause, 4 times...pause etc., then an intrusion

attempt was made by impact or a strong vibration that the shock sensor

detected. Check the vehicle for possible damage to the glass or body panels.

NOTE: The LED intrusion warning indications are stored in the system's

memory and will be erased when the ignition switch is turned on.

VALET/OVERRIDE SWITCH:

The valet switch allows you to temporarily bypass all alarm functions,

eliminating the need to hand your transmitter to parking attendants or garage

mechanics. When the system is in valet mode, all alarm functions are

bypassed, however the remote panic feature and remote door locks will

remain operational.

1. Enter the vehicle, and turn the ignition key to the ON position.

2. Press and hold the valet pushbutton switch until the dash mounted LED

turns on solid. The system will remain in the valet mode.

3. To return to normal operation, press and release the push button switch

any time the ignition is on.

NOTE: Always remember to return the vehicle to the valet OFF position. This

will ensure that the vehicle remains protected at all times.

MANUALLYOVERRIDINGYOURSYSTEM:

USINGTHEVALET/OVERRIDESWITCH:

Your Security system can be disarmed without the use of the OEM transmitter.

This is necessary, since you will need the ability to operate your vehicle if the

transmitter is lost or its battery fails. To Bypass the system:

1. Open the vehicle door. The system will sound.

2. Turn the ignition key to the ON position.

3. Within 5 seconds, press and release the valet pushbutton switch.

The system will stop sounding and enter the (by-passed) mode. You can now

start and operate the vehicle normally.

Typically this override mode is used only if the Factory (OEM) transmitter has

become inoperative.

128-6530

5 of 10

Page 5

ELIMINATING/RETURNINGTHE NORMALARM/DISARMCHIRPS

You can selectively eliminate the normal arm & disarm chirps using the valet/

override switch, following these steps.

1) Turn the ignition key ON the OFF.

2) Within 10 seconds of turning the ignition key OFF, press and release the

valet/override switch 3 times.

3) If, before step 1,the chirps were ON, then you will hear 2 short chirps,

which indicates the chirps are turned OFF.

4) If, before step 1, the chirps were OFF. then you will hear 1 short chirp,

which indicates the chirps are turned ON.

5) Whenever the system's power has been disconnected, the chirps will be

ON when power is reconnected.

ALARMDASHLED INDICATORS

RAPIDFLASHING = PASSIVEARMING

SLOWFLASHING = ARMED

OFF = DISARMED

ON SOLID = VALETMODE

4FLASH...PAUSE = INTRUSION SHOCK SENSOR

3FLASH...PAUSE = INTRUSION DOOR

2FLASH...PAUSE = INTRUSION HOOD OR TRUNK

ALARMSIREN CHIRPINDICATION

1 CHIRP* = ARM

2 CHIRPS* = DISARMED

3 CHIRPS = ARMINGWITHENTRY POINT OPENED

4 CHIRPS = DISARMAFTERINTRUSION

CONTINUOUS = ALARMTRIGGERED

ALARMPARKING LAMPINDICATIONS

1 FLASH = ARM

2 FLASH = DISARM

3 FLASH = DISARMAFTERINTRUSION

CONTINUOUS FLASH = TRIGGERED

CA-310

SYSTEM FUNCTIONS AT A GLANCE

128-6530

6 of 10

Code Systems, Inc. Limited Lifetime Warranty

Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE

vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as

provided below) should this Product under normal use and conditions, be proven defective in material

or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGINALLY

INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for parts

directly related to repairs of the defect(s).

Switches, indicator lights, and transmitter cases are similarly warranted to the original

purchaser for a period of one (1) year from the date of purchase of the Product.

CODE accessories, sold separately, are covered by the applicable warranty accompany-

ing the accessory.

This warranty is non-transferable, non-assignable and is voided when: (1) the Product is

removed from the vehicle in which it was originally installed; or (2) the vehicle in which the Product

was originally installed is transferred to another party.

This warranty does not apply to any product damaged by accident, physical or electrical

abuse, improper installation, alteration, or use contrary to its intended function, fire, flood, or other

natural acts.

In order for the Product to be repaired or replaced under the terms of this warranty, the

defective Product must be returned to an authorized CODE dealer and accompanied by a copy of the

retail sales receipt. The date of purchase and year, make and model of the vehicle in which the

Product was originally installed must be clearly indicated on the sales receipt.

This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED

OR IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-

CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE

DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WAR-

RANTY, EXPRESS OR IMPLIED, WHATSOEVER.

CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT OF

CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT

PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PURCHASE

PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTALLATION

LABOR.

Some states do not allow the exclusion or limitation of incidental or consequential dam-

ages, so the above limitation may not apply to you. This warranty gives you specific legal rights and

you may also have other rights which vary from state to state

128-6530

7 of 10

CODE-SYSTEM, INC. Theft Protection Program

The Theft Protection Program is designed to provide the retail purchaser of a

security system provided by CODE-ALARM, INC. (“CODE”) an additional

benefit, at no additional cost to the purchaser, should their vehicle be stolen

while protected by a CODE-ALARM security system. While CODE has created

this program as a way of showing appreciation to its customers, CODE RE-

SERVESTHE RIGHT TO UNILATERALLY CHANGE,ALTER, MODIFY, OR

DISCONTINUEALLOR PART OF THIS THEFT PROTECTION PROGRAM

WITHOUTPRIOR NOTICE.THIS THEFTPROTECTION PROGRAM IS NOTAN

INSURANCE POLICY AND SHOULD NOT REPLACE AN AUTOMOBILE OR

HOMEOWNERSINSURANCEPOLICY.THISTHEFTPROTECTIONPROGRAM

DOESNOTCOVER LOSSESARISING FROMTHETHEFTOFITEMS WITHIN

THEAUTOMOBILE ORANY DAMAGESARISING FROM, RELEATED TO,AND/

OR INCIDENTAL OR A CONSEQUENCE OF A VEHICLE THEFT EXCEPT AS

SPECIFICALLY DELINEATED BELOW.

128-6530

8 of 10

How to file a request for payment:

If the above conditions are met, make your request for payment by submitting the

following to CODE. The request for payment must be received by CODE no later than

sixty (60) days after the vehicle is reported stolen.

1. Copy of the retail sales receipt for the purchase of the security system, clearing

showing the model of system purchased and the year, make and model of the

vehicle in which the system was installed.

2. A copy of the police report for the stolen vehicle.

3. A copy of the paid insurance claim and reimbursement check from the insurance

company.

*The Theft Protection Program is not available in all states please contact

dealer for more information.

CODE SYSTEMS, INC.

1-800-421-3209

Plan duration: 3 Years from the date of installation.

Plan amount: Maximum allowable value equal to insurance deductible or up to

$2,500 whichever is less.

Conditions of the Theft Protection Program:

1. The Theft Protection Program is non-transferable and non-assignable.

2. The system must be installed by an authorized CODE dealer.

3. Vehicle must be less than three (3) model years old at the time of installation.

4. The security system must have been fully armed at the time of the vehicle theft.

5. The vehicle in which the system is installed must be insured for theft by a licensed

insurance underwriter in the state in which the vehicle is registered.

Terms of payment:

1. The vehicle must first be considered a total loss due to theft by your insurance

company.

2. Your insurance company has settled all claims arising from this theft and there are

no other pending legal actions as a result of this theft.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Code Alarm Allarme auto

Code Alarm

Code Alarm ca1153 Manuale utente

Code Alarm

Code Alarm CA-150 Manuale utente

Code Alarm

Code Alarm CA-500 Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES Manuale utente

Code Alarm

Code Alarm CA 1550 Manuale utente

Code Alarm

Code Alarm CA 1150 Manuale utente

Code Alarm

Code Alarm CATX130 Istruzioni operative

Code Alarm

Code Alarm CA611 Manuale utente

Code Alarm

Code Alarm CA-120 Manuale utente

Code Alarm

Code Alarm CSI-200 Manuale utente

Code Alarm

Code Alarm ELITE Series Manuale utente

Code Alarm

Code Alarm 420A Manuale utente

Code Alarm

Code Alarm PowerCode PC 6100 Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES CA 1551 Manuale utente

Code Alarm

Code Alarm Professional Series CA 1550 Manuale utente

Code Alarm

Code Alarm ca6355E Manuale utente

Code Alarm

Code Alarm CA 510 Manuale utente

Code Alarm

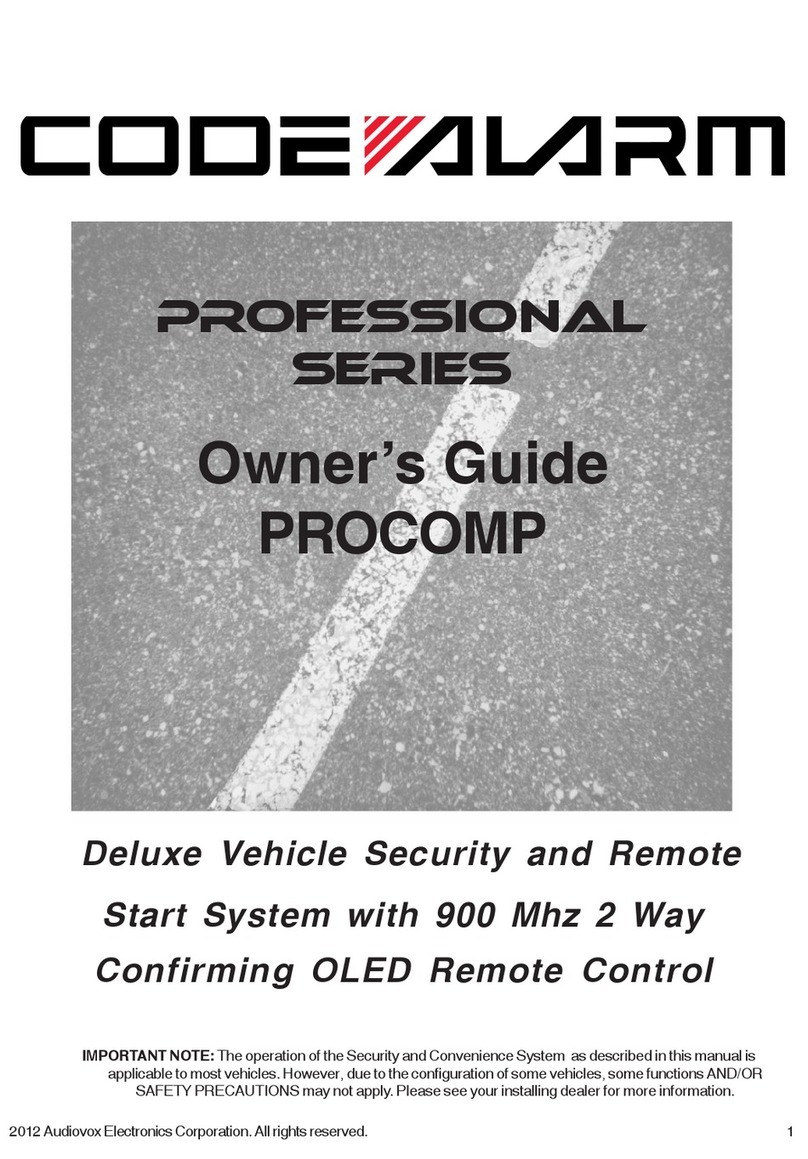

Code Alarm Procomp Manuale utente

Code Alarm

Code Alarm ca1555 Manuale utente

Code Alarm

Code Alarm Elite ca1155E Manuale utente

Code Alarm

Code Alarm CATX520 Istruzioni operative

Code Alarm

Code Alarm CA-230 Manuale utente

Code Alarm

Code Alarm CATX110 Istruzioni operative

Code Alarm

Code Alarm CA 170 Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
