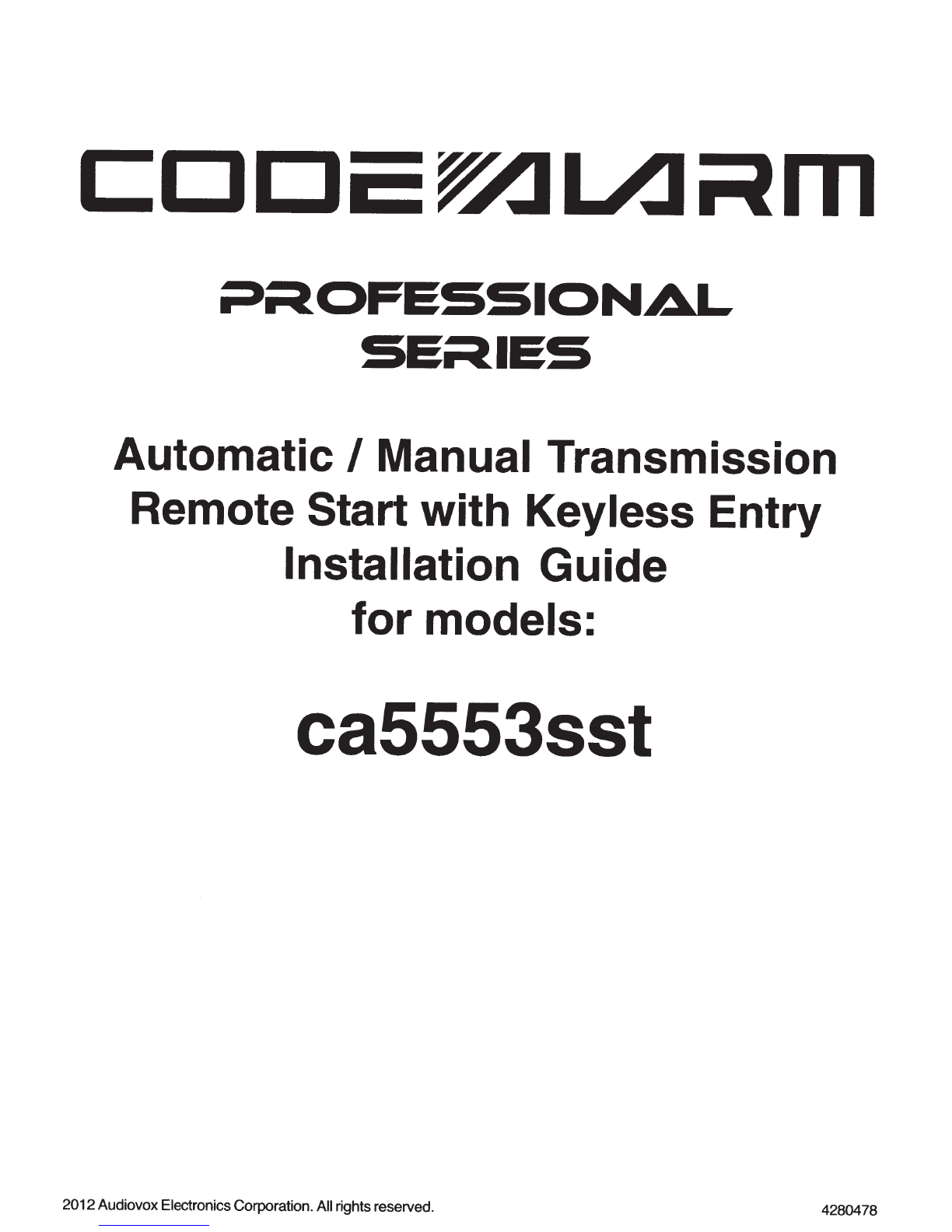

Code Alarm Ca5553sst Manuale utente

CCCJc:~lA~m

r:»~OFESSIONAI

SE~IES

Automatic

I Manual Transmission

Remote Start

with

Keyless

Entry

Installation Guide

for

models:

ca5553sst

2012 Audiovox Electronics Corporation.

All

rights reserved. 4280478

Table

Contents

Before

You

Begin

......................................................................................3

Wire

Connection

Guide

...........................................................................4

Pin Main Harness .................................................................................5

3 Pin Parking Light Harness .....................................................................8

6 Pin Start Harness ...................................................................................9

4 Pin Alternate Harness .......................................................................... 10

2 Pin Door Lock Harness ........................................................................

Add

ion

Ports

......................................................................................15

Antenna I LED I Programming Port ....................................................... 15

DBIPort....................................................................................................15

Telematic Interface Port .......................................................................... 15

Set

Programming

..........................................................................16

Transmitter Programming ........................................................................ 16

Manual Feature Programming ................................................................. 16

Programming Feature Banks .................................................................. 17

Tach Programming .................................................................................. 19

Smart Tachless Mode ............................................................................. 19

Feature

Descriptions

.............................................................................20

Transmitter

Button

Functions

.............................................................26

Remote

Start

Shutdown

Diagnostics

................................................27

System

Layout

.........................................................................................28

2 ca5553sst rev A

•

....

BEFORE YOU BEGIN

PROFESSIONAL INSTALLATION

STRONGLY RECOMMENDED

Roll down window to avoid locking keys

vehicle

during installation

Avoid mounting components or routing wires near

hot surfaces

Avoid mounting components or routing wires near

moving parts

Tape or loom wires under hood for protection and

appearance

Use a Digital Multi Meter for testing and verifying

circuits. DO NOT USE A TEST LIGHT, OR

"COMPUTER SAFE PROBE" as these can set off air

bags or damage vehicle computers.

Technical Support (800) 421-3209

or go to

http://techservices.codesystems.com

2012 Audiovox Electronics Corporation.

All

rights reserved.

a..

(/)

zr-

-:x:

a..(!)

('f)

.....J

0:::

(/)

a..

Pin Main Harness

GRAY/RED PARKING BRAKE INPUT

)

PURPLE DOOR INPUT (

GREEN DOOR INPUT ( - )

BLACK/WHITE ILLUMINATED ENTRY OUTPUT ( - )

BROWN/BLACK HORN OUTPUT ( - )

RED/WHITE TRUNK RELEASE OUTPUT ( - )

BLUE/BLACK START STATUS

ACTIVE OUTPUT ( - )

PURPLE/WHITE TACH INPUT

GRAY HOOD PIN INPUT ( - )

BROWN/RED BRAKE INPUT ( + )

VIOLET/BLACK AUX 1 OUTPUT

(-)

3 Pin Parking Light Harness

BLACK GROUND

WHITE/RED PARKING LIGHT INPUT

WHITE PARKING LIGHT OUTPUT

6 Pin Start Harness

PURPLE STARTER

OUTPUT-

MOTOR SIDE

RED BATTERY 12V (

ORANGE ACCESSORY 1 ( + )

PINK/WHITE IGNITION 2 ( + )

RED/WHITE BATTERY 12V (

PINK IGNITION 1 (

ca5553sstrev A

-(.)

a..

C\I_..J

4 Pin Alternate Harness

BLACK/YELLOW PULSE DURING CRANK ( - )

GREEN/WHITE PULSE AFTER SHUTDOWN ( - )

LT BLUE FACTORY ARM

PULSE AFTER START ( - )

LT GREEN/BLACK FACTORY DISARM

PULSE BEFORE START ( - )

2 Pin Door Lock Harness

BLUE UNLOCK

(-)

GREEN LOCK

(-)

Pin Main Harness

GRAY/RED PARKING BRAKE INPUT

(-)

Locate the vehicle's parking brake wire.

Verification: This wire will register ground when the vehicle's PARKING

BRAKE is engaged.

NOTE: The following connection is required for Manual Transmission

Mode.

PURPLE

DOOR TRIGGER INPUT (

Locate the vehicle's dome light or door pin switch wire.

Verification: This wire will register positive voltage (POS) when the door is

opened and the interior light is on. This wire will

off.

Connect the PURPLE wire to the vehicle's positive door input wire(s).

NOTE: Certain vehicles may require multiple connections. Refer to vehicle

application guide.

GREEN

DOOR TRIGGER INPUT (-)

Locate the vehicle's dome light or door pin switch wire.

Verification: This wire will register ground (NEG) when the door is opened

and the interior light is on. This wire will register positive voltage when the

door is closed and the interior light is off.

Connect the GREEN wire to the vehicle's negative door input wire(s).

NOTE:

Certain vehicles may require multiple connections. Refer to vehicle

application guide.

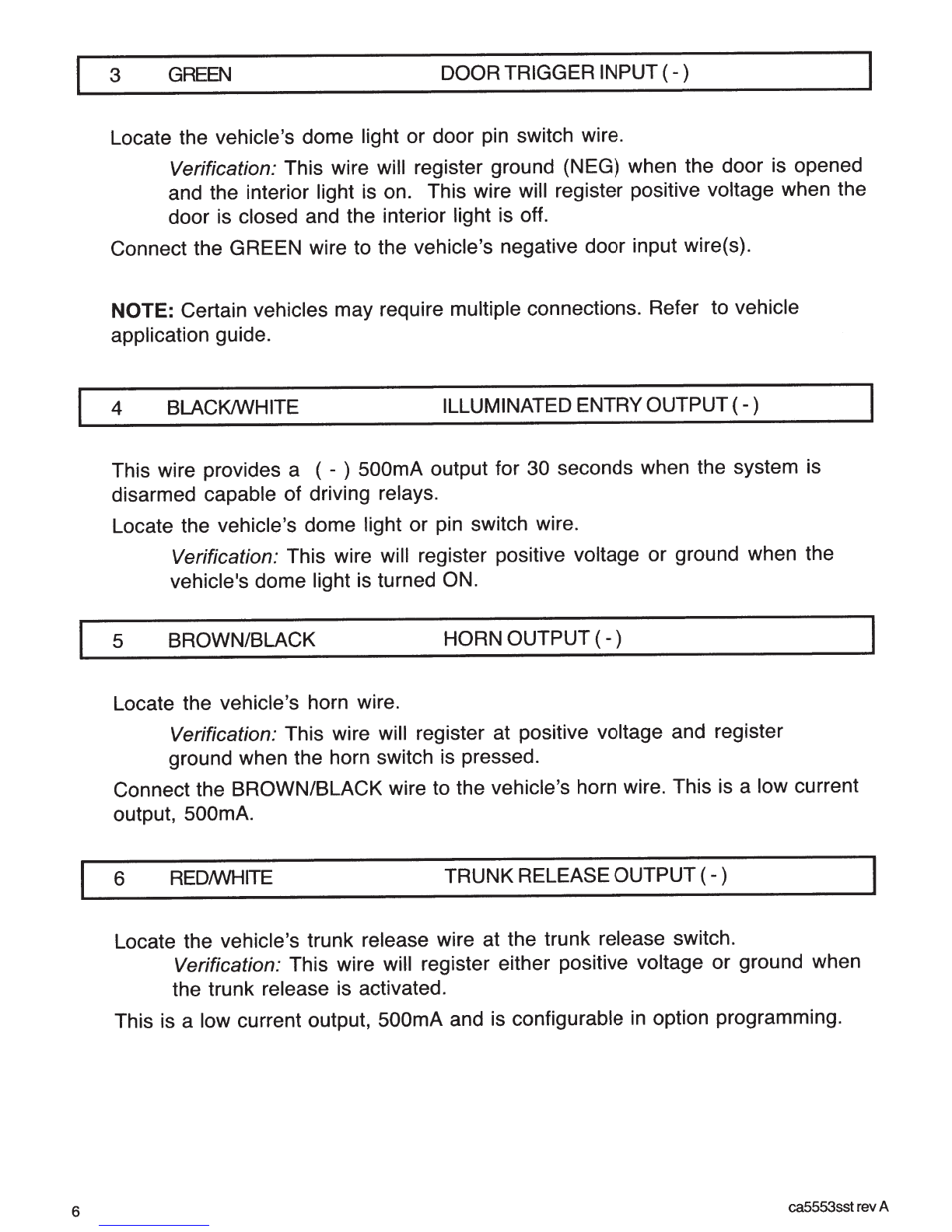

4 BLACK/WHITE ILLUMINATED ENTRYOUTPUT

(-)

This wire provides a ( - ) 500mA output for 30 seconds when the system is

disarmed capable of driving relays.

Locate the vehicle's dome light or pin switch wire.

Verification: This wire will register positive voltage or ground when the

vehicle's dome light is turned ON.

BROWN/BLACK HORN OUTPUT (- )

Locate the vehicle's horn wire.

Verification: This wire will register at positive voltage and register

ground when the horn switch is pressed.

Connect the BROWN/BLACK wire to the vehicle's horn wire. This is a low current

output, 500mA.

RED!WHITE

TRUNK RELEASE OUTPUT

(-)

Locate the vehicle's trunk release wire at the trunk release switch.

Verification: This wire will register either positive voltage or ground when

the trunk release is activated.

This is a low current output, 500mA and is configurable

option programming.

ca5553sst rev A

7 BLUE/BLACK START STATUS I ACTIVE OUTPUT

(-)

This wire provides a ground output when the remote start function is activated

and remains until 4 seconds after the remote start is shutdown. If this wire will

be used for multiple application's a 1 amp diode is required in-line with the stripe

facing the control module.

PURPLE!WHITE

TACH

INPUT

Locate the vehicle's ignition coil or fuel injector in the engine compartment.

Verification: Test using the following procedure:

Set voltmeter to AC VOLTS.

Attach positive lead of a volt meter to a constant 12-volt source.

3. Attach negative lead of a volt meter to the wire to be tested.

4. Start the engine.

Have someone press on the gas pedal slightly as you monitor the meter. If

connected to the correct wire, the voltage reading will increase as the engine's

RPM increases.

Connect the PURPLE/WHITE wire to the negative side of the vehicle ignition coil

or fuel injector.

9 GRAY HOOD PIN INPUT

(-)

Install a Hood Pin Switch and connect to the GRAY wire. This connection is

required for Remote Start.

Verification: This wire when connected will register ground when the

vehicle's hood is opened.

Connect the GRAY wire to the hood pin.

NOTE:

Be sure to loom the wire, and seal the grommet.

0 BROWN/RED BRAKE INPUT (

Locate the vehicle's brake light wire at the brake pedal mounted switch. This

connection is required for Remote Start.

Verification: This wire registers positive voltage when the brake pedal is

pressed.

Connect the BROWN/RED wire to the vehicle's brake light wire.

2012 Audiovox Electronics Corporation.

All

rights reserved. 7

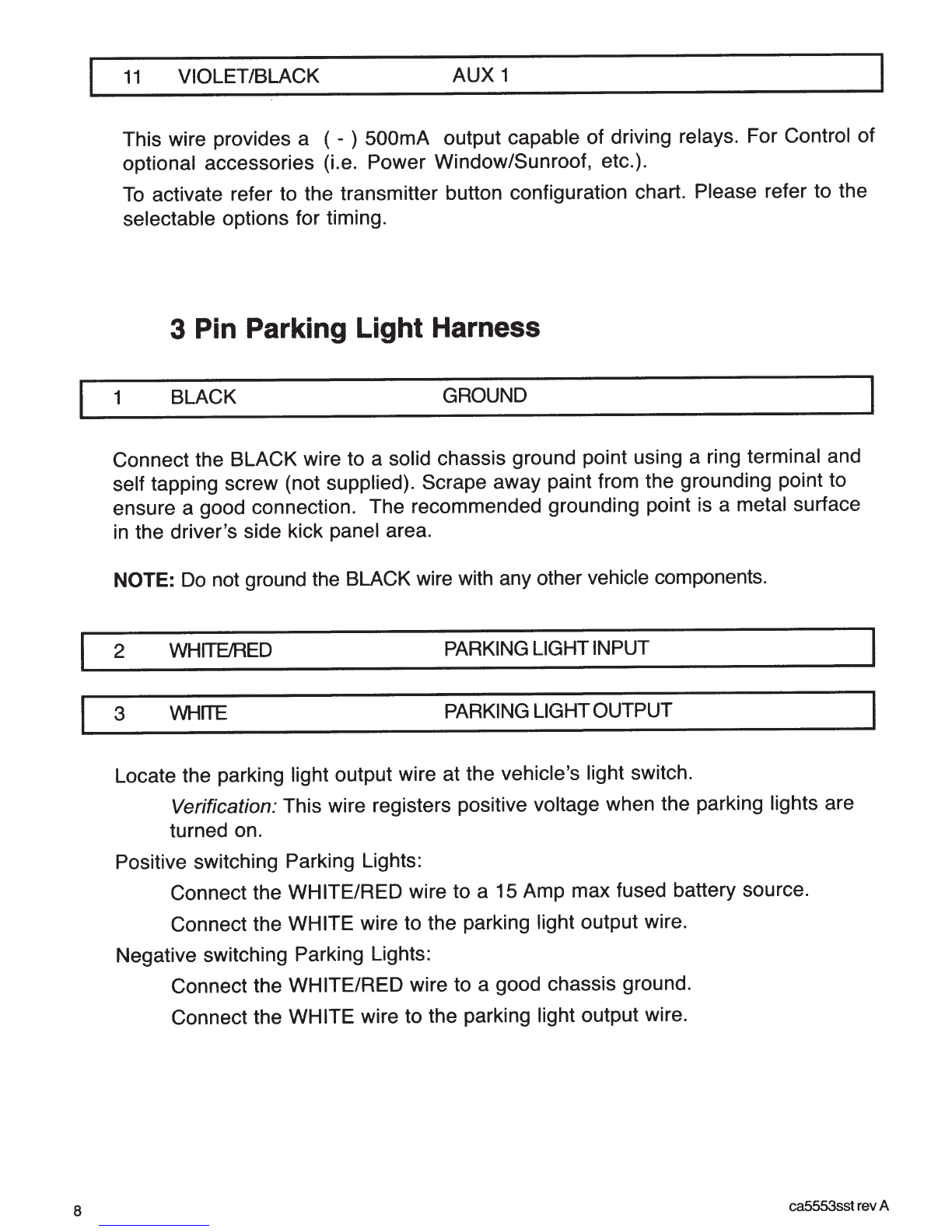

VIOLET/BLACK AUX 1

This wire provides a ( - ) 500mA output capable of driving relays. For Control of

optional accessories (i.e. Power Window/Sunroof, etc.).

activate refer to the transmitter button configuration chart. Please refer to the

selectable options for timing.

3 Pin Parking Light Harness

BLACK

GROUND

Connect the BLACK wire to a solid chassis ground point using a ring terminal and

self tapping screw (not supplied). Scrape away paint from the grounding point to

ensure a good connection. The recommended grounding point is a metal surface

the driver's side kick panel area.

NOTE:

not ground the BLACK wire with any other vehicle components.

WHITE/RED

PARKING

LIGHT INPUT

WHITE

PARKING

LIGHTOUTPUT

Locate the parking light output wire at the vehicle's light switch.

Verification: This wire registers positive voltage when the parking lights are

turned on.

Positive switching Parking Lights:

Connect the WHITE/RED wire to a 15 Amp max fused battery source.

Connect the WHITE wire to the parking light output wire.

Negative switching Parking Lights:

Connect the WHITE/RED wire to a good chassis ground.

Connect the WHITE wire to the parking light output wire.

ca5553sst rev A

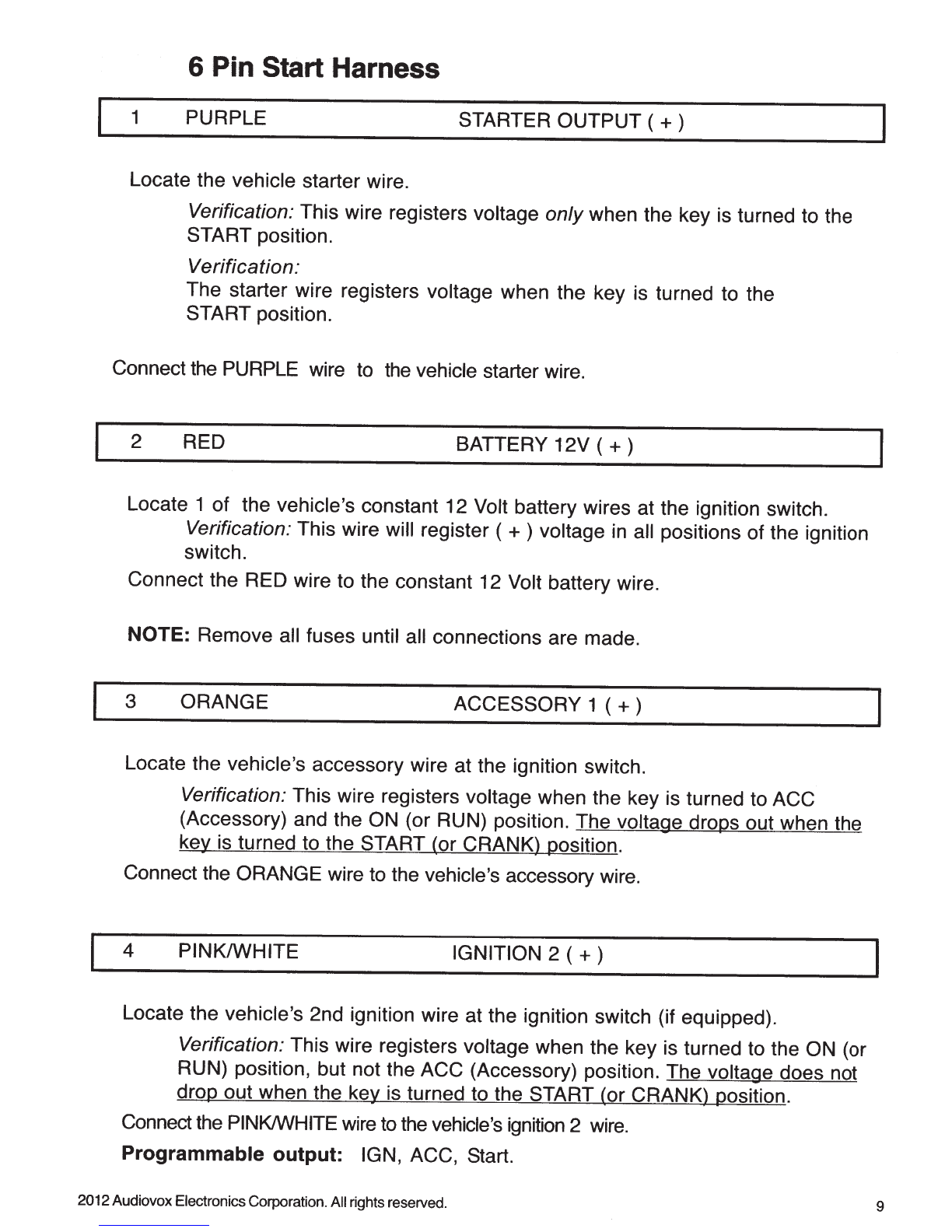

6 Pin Start Harness

1 PURPLE STARTER

OUTPUT

( + )

Locate the vehicle starter wire.

Verification:

This wire registers voltage

only

when the key is turned to the

START position.

Verification:

The starter wire registers voltage when the key is turned to the

START position.

Connect the PURPLE wire to the vehicle starter wire.

2 RED BATTERY 12V ( + )

Locate 1 of the vehicle's constant 12 Volt battery wires at the ignition switch.

Verification:

This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

ORANGE

ACCESSORY 1 ( + )

Locate the vehicle's accessory wire at the ignition switch.

Verification:

This wire registers voltage when the key is turned to ACC

(Accessory) and the ON (or RUN) position. The voltage drops out when the

key is turned to the START (or CRANK) position.

Connect the ORANGE wire to the vehicle's accessory wire.

4 PINK/WHITE IGNITION 2 ( + )

Locate the vehicle's 2nd ignition wire at the ignition switch (if equipped).

Verification:

This wire registers voltage when the key is turned to the ON (or

RUN) position, but not the ACC (Accessory) position. The voltage does not

drop out when the key is turned to the START (or CRANK) position.

Connect the PINK/WHITE wire to the vehicle's ignition 2 wire.

Programmable output: IGN, ACC, Start.

2012 Audiovox ElectronicsCorporation.

All

rights reserved. 9

RED

!WHITE BATTERY 12V ( + )

Locate 1 of the vehicle's constant 12 Volt battery wires at the ignition switch.

Verification: This wire will register ( + ) voltage in all positions of the ignition

switch.

Connect the RED/WHITE wire to the constant 12 Volt battery wire.

NOTE: Remove all fuses until all connections are made.

PINK

IGNITION 1 (

Locate the vehicle's ignition wire at the ignition switch.

Verification: This wire registers voltage when the key is turned to the ON (or

RUN) position. The voltage does not drop out when the key is turned to the

START (or CRANK) position.

Connect the PINK wire to the vehicle's Ignition wire.

This wire is also used for Ignition 1 Output.

4 Pin Alternate Harness

BLACKNELLOW

PULSE DURING CRANK

(-)

Locate the vehicle's second starter (crank) wire at the ignition switch. (if equipped)

Verification: This wire registers voltage only in the start (crank) position of

the ignition switch.

Connect the BLACK/YELLOW wire as shown in the diagram below. Use an SPOT

relay (not supplied).

This output is configurable in option programming.

GREEN/WHITE

PULSEAFTER SHUTDOWN

(-)

This wire will supply a ( - ) 500mA pulse after the remote start shuts down. This

is typically used to re-lock the vehicle's doors if they unlock upon remote start

shutdown. It can also be used to pulse a door pin-switch wire to prevent the

vehicle's accessories from remaining on after remote start shutdown.

This output is configurable

option programming.

ca5553sst

rev

Indice

Altri manuali Code Alarm Avviamento remoto

Code Alarm

Code Alarm CA-520A Manuale utente

Code Alarm

Code Alarm ca5554 Professional series Manuale utente

Code Alarm

Code Alarm Professional ca5054 Manuale utente

Code Alarm

Code Alarm F40 Manuale utente

Code Alarm

Code Alarm PROFESSIONAL SERIES Manuale utente

Code Alarm

Code Alarm Professional Series CA 1050 Manuale utente

Code Alarm

Code Alarm CA2LCD5 Manuale utente

Code Alarm

Code Alarm PC 4300 Manuale utente

Code Alarm

Code Alarm ca6554 Manuale utente

Code Alarm

Code Alarm Professional Series CA 5050 Manuale utente

Code Alarm

Code Alarm CA-535 Manuale utente

Code Alarm

Code Alarm ca4054 Manuale utente

Code Alarm

Code Alarm CA-630 Manuale utente

Code Alarm

Code Alarm ca 2051 Manuale utente

Code Alarm

Code Alarm Professional Series CA6555 Manuale utente

Code Alarm

Code Alarm SRT 9000 Manuale utente

Code Alarm

Code Alarm ca6554 Manuale utente

Code Alarm

Code Alarm CSM-3 Manuale utente

Code Alarm

Code Alarm ca 4552 Manuale utente

Code Alarm

Code Alarm CA-550 Manuale utente

Code Alarm

Code Alarm ca5554 Professional series Manuale utente

Code Alarm

Code Alarm ca5154 professional Series Manuale utente

Code Alarm

Code Alarm CA-630 Manuale utente

Code Alarm

Code Alarm CA-430 Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale

Rooboost

Rooboost RB-1750WP Manuale utente

Code Alarm ca5553sst Manuale utente

Manuali Avviamento remoto popolari di altre marche
