Coleman 5100 Series 9990-132 Guida all'applicazione

9990B051 (5/12/04)

IMPORTANT!! TO AVOID UNNECESSARY PROBLEMS!!

BEFORE YOU BEGIN: Review this parts list with the parts in

your carton. If you have missing or damaged parts, call this

number IMMEDIATELY, 1-800-356-3612, for the SERVICE

CENTER nearest you.

The Coleman Company, Inc.

3600 N. Hydraulic

Wichita, KS 67219

Internet site:

www.coleman.com

1-800-356-3612

TDD: 316-832-8707

ASSEMBLER / INSTALLER:

Leave these instructions with the consumer.

CONSUMER / USER:

Read all these instructions and keep them in a

safe place for future reference.

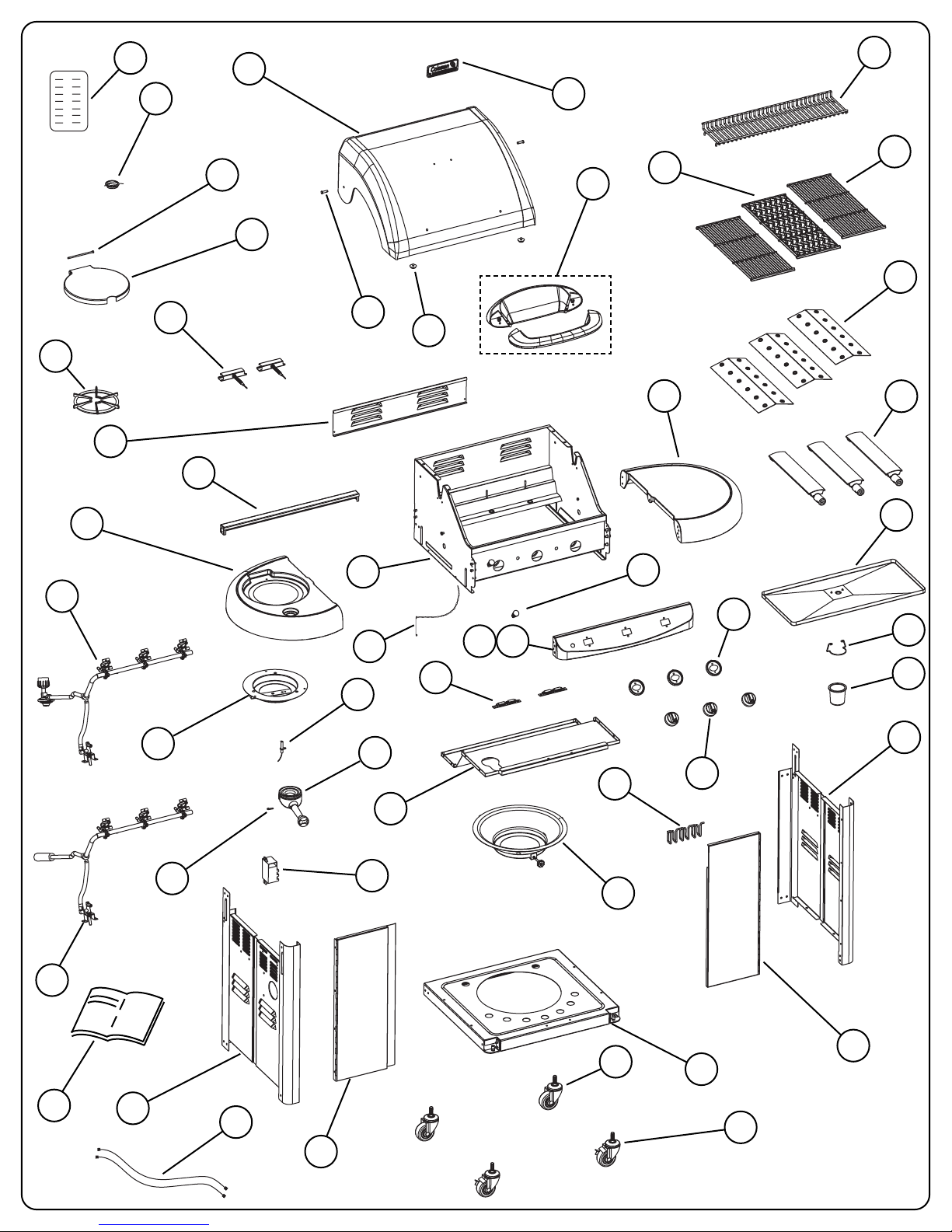

Gas Barbecue

Replacement Parts List

5100 LP Gas Series

5110 Natural Gas Series

(Models 9990-132 and 9991-132)

Gas Barbecue

Replacement Parts List

5100 LP Gas Series

5110 Natural Gas Series

Number

9990-3811

9990-2091

9990-3221

9990-3111

9990-3101

9990-3431

9990-3441

9990-3121

9990-3131

9990-3561

9990-3571

9990-3141

9990-3651

9990-3161

9990-3261

9990-3951

9990-3021

9990-3051

9990-3001

9990-3881

9990-4311

9990-4321

9990-4291

9990-4341

9990-4351

9990-5181

9990-5361

9990-5381

9990-3601

9990-5221

9990-5481

9990-5491

9990-5501

9947-6561

9990-5341

9990-5511

9990-5531

9990-5541

9990-5201

9990-5301

9990-5841

9990-5061

9990-5071

9990-5551

9990-5471

9990-5011

9990-2621

9990-5351

9990-0511

9990-3421

9990-4681

Description

Hood Wrapper Assembly

Lid Handle Assembly w/ Hardware

Firebox Assembly (Black PE)

Control Panel (LP Graphics) (Model 9990-132 only)

Control Panel (NG Graphics) (Model 9991-132 only)

Side Table Frame (LH)

Side Table Frame (RH)

Cabinet Side Panel (LH)

Cabinet Side Panel (RH)

Cabinet Front Door (LH) W/Hinge

Cabinet Front door (RH)w/Hinge

Cabinet Bottom Panel

Grease Tray

Rear Trim Panel

Top Panel

Warming Rack

LP-HVR Assembly (Model 9990-132 only)

NG_HVR Assembly (Model 9991-132 only)

Instruction Manual 5100/5110 Series

Hardware Pack

Side Burner Lid

Side Burner Hinge

Side Burner Drip Tray Assembly

Side Burner Electrode

Side Burner Trivet

Cylinder Support Assembly

Electronic Module

Main Burner

Stretcher - Rear Cabinet

Door Magnet

Locking Caster

Caster

Tool Hook

Side Burner

Main Burner Knob

Heat Tent

Logo Plate

Hood Hinge Pin (2 pk)

Collector Box Assembly

Side Burner Hair Pin

Side Burner Control Knob

Drip Cup

Drip Cup Hanger

Control Knob Bezel

Power Cooking Grill

Normal Cooking Grill

Lead Wires (2 pk)

Ignitor Switch

Repair Parts List 5100/5110 Series

Pads- Rubber Lid (2 pk)

Chain - Matchstick Extension

Item
