Coleman EVEN HEAT Manuale utente

DURABILITY • POWER • PERFORMANCE

Manual Revision #: 07282014 AT

www.colemanbbqs.com

EVEN HEAT™

BARBECUE

WITH 3 BURNERS

ASSEMBLY MANUAL

85-3068-0 (G52227) Propane

85-3069-8 (G52228) Natural Gas

LIMITED 5-YEAR WARRANTY

Read and save manual for future reference.

Assemble your grill immediately. Missing or damaged parts

should be claimed within 30 days of purchase.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-800-275-4617.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous

ﬁres, explosions, property damage, or

serious personal injury or even death.

Follow all leak check procedures

carefully prior to operation of barbecue,

even if grill was dealer assembled. Do

not try to light this barbecue without

reading the Lighting Instructions section

of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to

assemble and cook.

CAUTION

Sharp edges. Wear gloves when

assembling your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING

1-800-275-4617

INSTALLER OR ASSEMBLER/

CONSUMER

This manual should be kept with the

BBQ at all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories,

or to register your warranty, please visit us on the web at

www.colemanbbqs.com

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance

b. Extinguish any open ﬂame

c. Open lid

d. If odor continues, keep

away from the appliance and

immediately call your gas

supplier or your ﬁre department

2. Requires two people to complete

the assembly process.

3. Beware of sharp edges.

WARNING

1. Do not store or use gasoline

or other ﬂammable liquids or

vapours in the vicinity of this or

any other appliance.

2. An LP cylinder not connected for

use shall not be stored in the vicinity

of this or any other appliance.

WARNING

IN DIRECT SUN, AND IN OPERATION,

YOUR BBQ’S STAINLESS STEEL

AND PAINTED STEEL PARTS CAN

BECOME VERY HOT.

TOOLS NEEDED FOR ASSEMBLY

• #2 Phillips screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

For correct hardware assembly, always

position the lock washer between the screw

and the ﬂat washer.

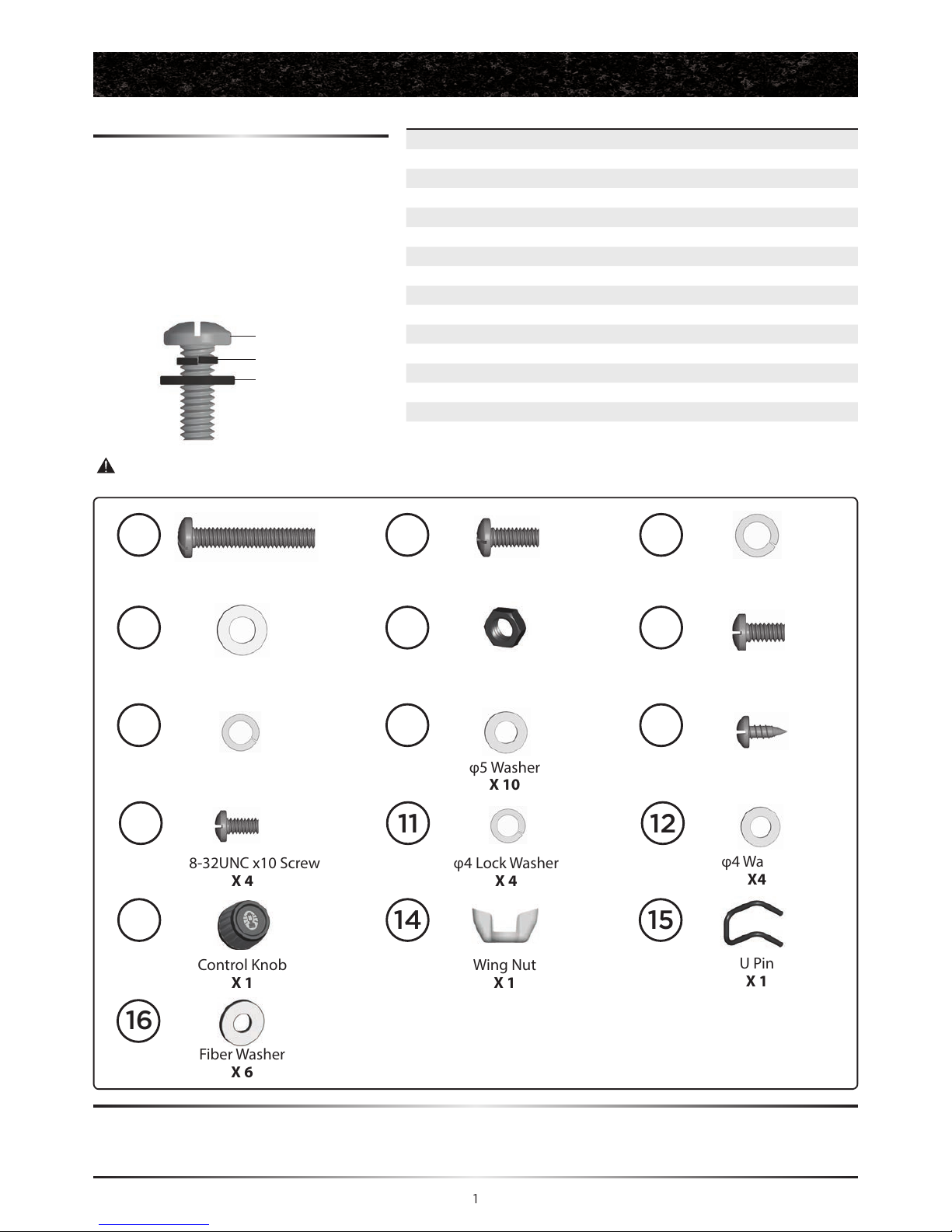

HARDWARE PACK

1/4”-20UNCx38 Screw

X 8

φ7 Washer

X 24

ST4.2x10 Tapping Screw

X 4

1/4”-20UNCx16 Screw

X 16

1/4”-20UNC Nut

X 6

Fiber Washer

X 6

φ5 Lock Washer

X 10

φ7 Lock Washer

X 18

NO.10-24UNCX13 Screw

X 10

φ5 Washer

X 10

NO.8-32UNC x10 Screw

X 4

φ4 Lock Washer

X 4

123

4 5

78 9

10 11 12

13 14 15

Control Knob

X 1

Wing Nut

X 1

U Pin

X 1

φ4 Washer

No. Description Part Number Qty.

1 ¼"-20UNCX38 Screw 20120-13038-250 8

2 ¼"-20UNCX16 Screw 20120-13016-250 16

3 φ7 Lock Washer 41400-07000-250 18

4 φ7 Washer 40300-07000-250 24

5 1/4”-20UNC Nut 30220-13000-250 6

6 NO.10-24UNCx13 Screw 20124-10013-250 10

7 φ5 Lock Washer 41400-05000-250 10

8 φ5 Washer 40300-05000-250 10

9 ST4.2x10 Tapping Screw 22500-42010-137 4

10 NO.8-32UNCx10 Screw 20132-08010-250 4

11 φ4 Lock Washer 41400-04000-250 4

12 φ4 Washer 40300-04000-250 4

13 Control Knob G522-C700-9000 1

14 Wing Nut 33301-04000-032 1

15 U Pin G350-0026-9000 1

16 Fiber Washer G501-0054-9100 6

Lock Washer

Flat Washer

Screw

BEFORE ASSEMBLING THE BARBECUE, READ THESE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a ﬂat, clean surface. Grill is heavy. You should have at least two

people assemble the barbecue together.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

Parts List (propane) for 85-3068-0 (G52227)

Item No. Qty. Description Part No.

AA 1 Top lid assembly G522-M100-01

AB 1 Thermometer G522-0062-01

AC 2 Screw for top lid G466-0007-01

AD 2 Lid bumper, front G522-0088-01

AE 2 Lid bumper, rear G501-0066-01

BA 1 Burner box assembly G522-M300-01

BB 3 Even Heat™ burners G522-B600-01

BC 1 Carryover assembly G522-0071-01

BD 3 Even Heat™ heat distribution

plate

G353-0034-01

BE 3 Cooking grate G522-0097-01

BF 1 Warming rack G522-00D4-01

BG 1 Match holder G608-0019-01

CA 1 Manifold assembly-LP G522-M600-01

CB 1 Regulator G606-0008-01

CC 1 Side burner valve with T

bracket - LP

G522-00G2-01

CD 1 Metal hose, side burner G508-0024-01

CE1 1 Electronic ignition assembly G511-0055-01

CE2 1 Ignition battery cover G515-0030-01

CE3 1 Instastart™ ignition button G353-0009-01

CF 3 Electrode set, main burner G522-0020-01

CG 3 Control knob G522-B700-01

CH 1 Control panel G522-00D5-01

CI 1 Front brace G522-0025-01

CJ 1 Quick Clean™ grease tray G522-7500-01

CK 1 Quick Clean™ grease cup G416-0015-01

CL 1 Upper back panel G522-0026-01

CM 1 Heat shield G522-0041-01

CN 1 Right track G522-0043-01

CO 1 Left track G522-0027-01

CP 1 Door support rail G522-5000-01

Item No. Qty. Description Part No.

DA 1 Left side burner side shelf G522-C400-01

DB 1 Side burner drip pan G522-0031-01

DC 1 Side burner G515-1000-01

DD 1 Electrode wire, side burner G515-0039-01

DE 1 Side burner lid G522-0032-01

DF 1 Side burner cooking grate G501-0077-01

DG 1 Right side shelf G522-C200-01

DH/

#13

1 Side burner control knob

(#13)

G522-C700-01

EA 1 Left side panel G522-F600-01

EB 1 Right side panel G522-B900-01

EC 1 Left door assembly G522-8000-01

ED 1 Right door assembly G522-9000-01

EE 2 Door handle G522-00B8-01

EF 1 Bottom shelf-LP G522-F700-01

EG 2 Locking castor G515-0082-01

EH 2 Castor G350-0024-01

EI 2 Door magnet assembly G501-00F2-01

EJ 1 Tank exclusion wire G522-0092-01

F1 1 Hardware pack G522-B020-01

F2 1 Assembly manual G522-M027-01

F3 1 Safe use and care manual G522-M027-02

F5 1 Tank Screw G505-0047-01

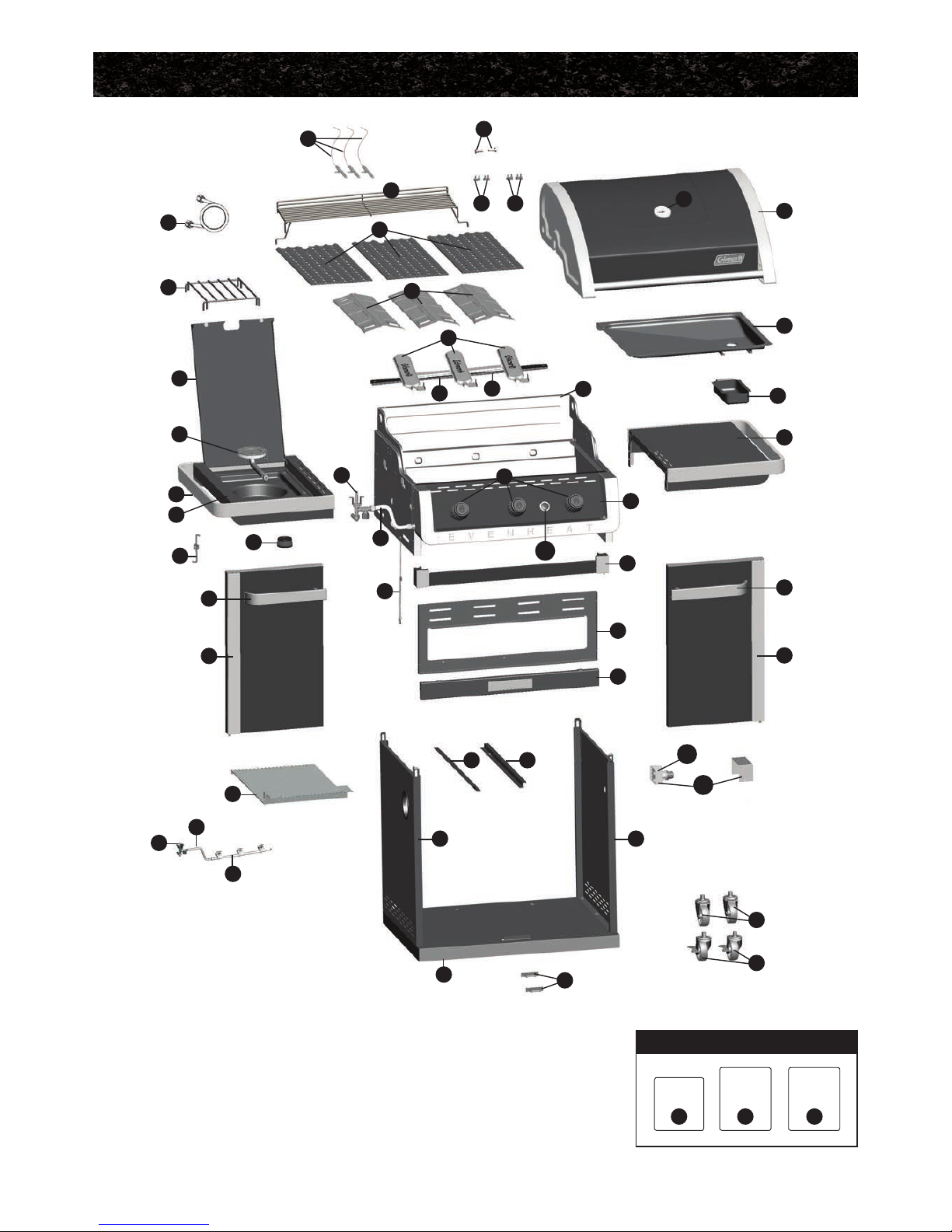

EXPLODED DIAGRAM (PROPANE) FOR 85-3068-0 (G52227)

Extras

Hardware

Pack

Assembly

Manual

Safe Use

& Care

Manual

F1 F2 F3

CE1

CE2

CE3

EBEA

CNCO

EF EI

BC BC

PARTS LIST (NATURAL GAS) FOR 85-3069-8 (G52228)

Item No. Qty. Description Part No.

AA 1 Top lid assembly G522-M100-01

AB 1 Thermometer G522-0062-01

AC 2 Screw for top lid G466-0007-01

AD 2 Lid bumper, front G522-0088-01

AE 2 Lid bumper, rear G501-0066-01

BA 1 Burner box assembly G522-M300-01

BB 3 Even Heat™ burners G522-B600-01

BC 1 Carryover assembly G522-0071-01

BD 3 Even Heat™ heat distribution

plate

G353-0034-01

BE 3 Cooking grate G522-0097-01

BF 1 Warming rack G522-00D4-01

BG 1 Match holder G608-0019-01

CA 1 Manifold assembly- NG G522-N000-01

CB 1 Natural Gas hose G501-0099-01

CC 1 Side burner valve with

T bracket - NG

G522-00G3-01

CD 1 Metal hose, side burner G508-0024-01

CE1 1 Electronic ignition assembly G511-0055-01

CE2 1 Ignition battery cover G515-0030-01

CE3 1 Instastart™ ignition button G353-0009-01

CF 3 Electrode set, main burner G522-0020-01

CG 3 Control knob G522-B700-01

CH 1 Control panel G522-00D5-01

CI 1 Front brace G522-0025-01

CJ 1 Quick Clean™ grease tray G522-7500-01

CK 1 Quick Clean™ grease cup G416-0015-01

CL 1 Upper back panel G522-0026-01

CM 1 Heat shield G522-0041-01

CN 1 Right track G522-0043-01

CO 1 Left track G522-0027-01

CP 1 Door support rail G522-5000-01

Item No. Qty. Description Part No.

DA 1 Left side burner side shelf G522-C400-01

DB 1 Side burner drip pan G522-0031-01

DC 1 Side burner G515-1000-01

DD 1 Electrode wire, side burner G515-0039-01

DE 1 Side burner lid G522-0032-01

DF 1 Side burner cooking grate G501-0077-01

DG 1 Right side shelf G522-C200-01

DH/

#13

1 Side burner control knob

(#13)

G522-C700-01

EA 1 Left side panel G522-F600-01

EB 1 Right side panel G522-B900-01

EC 1 Left door assembly G522-8000-01

ED 1 Right door assembly G522-9000-01

EE 2 Door handle G522-00B8-01

EF 1 Bottom shelf-NG G522-4600-01

EG 2 Locking castor G515-0082-01

EH 2 Castor G350-0024-01

EI 2 Door magnet assembly G501-00F2-01

F1 1 Hardware pack G522-B020-01

F2 1 Assembly manual G522-M027-01

F3 1 Safe use and care manual G522-M027-02

EXPLODED DIAGRAM (natural gas) FOR 85-3069-8 (G52228)

Extras

Hardware

Pack

Assembly

Manual

Safe Use

& Care

Manual

F1 F2 F3

CE1

CE2

CE3

EBEA

CNCO

EF EI

BC BC

a. Separate the 2 dierent types of

castors:

2 locking castors (EG) and 2 regular

castors (EH).

NOTE: Regular castors (EH) need to

be assembled to the front of

the bottom shelf (EF), and

locking castors (EG) need to be

assembled to the back of the

bottom shelf (EF), as shown in

image A.

b. Insert the U Pin (#15) into one of the

regular castors (EH), as shown in

image B. Attach the regular castor

(EH) to the front of the bottom shelf

(EF), and use the U Pin (#15) to secure

and tighten.

Repeat for remaining 3 castors (EG &

EH).

ASSEMBLY INSTRUCTIONS

X 1

YOU WILL NEED:

Upside down view

Close up

EF EH

Front view

Ensure that the locking castors (EG) are

ﬁrmly locked in the “ON” position before

continuing.

Assemble the left side panel (EA) and

the right side panel (EB), to the bottom

shelf (EF).

Attach the front brace (CI) to the left

and right cart side panels (EA and EB).

The top of the front brace (CI) can be

identiﬁed by two clips located on the top

left, and right side of this part.

TIP: One person should align the left

side, while the second person assem-

bles the right side.

ASSEMBLY INSTRUCTIONS

876

YOU WILL NEED:

6 7 8

Close up

Back view

X 4 X 4 X 4

876

2 3 4

X 6 X 6 X 6

Close up

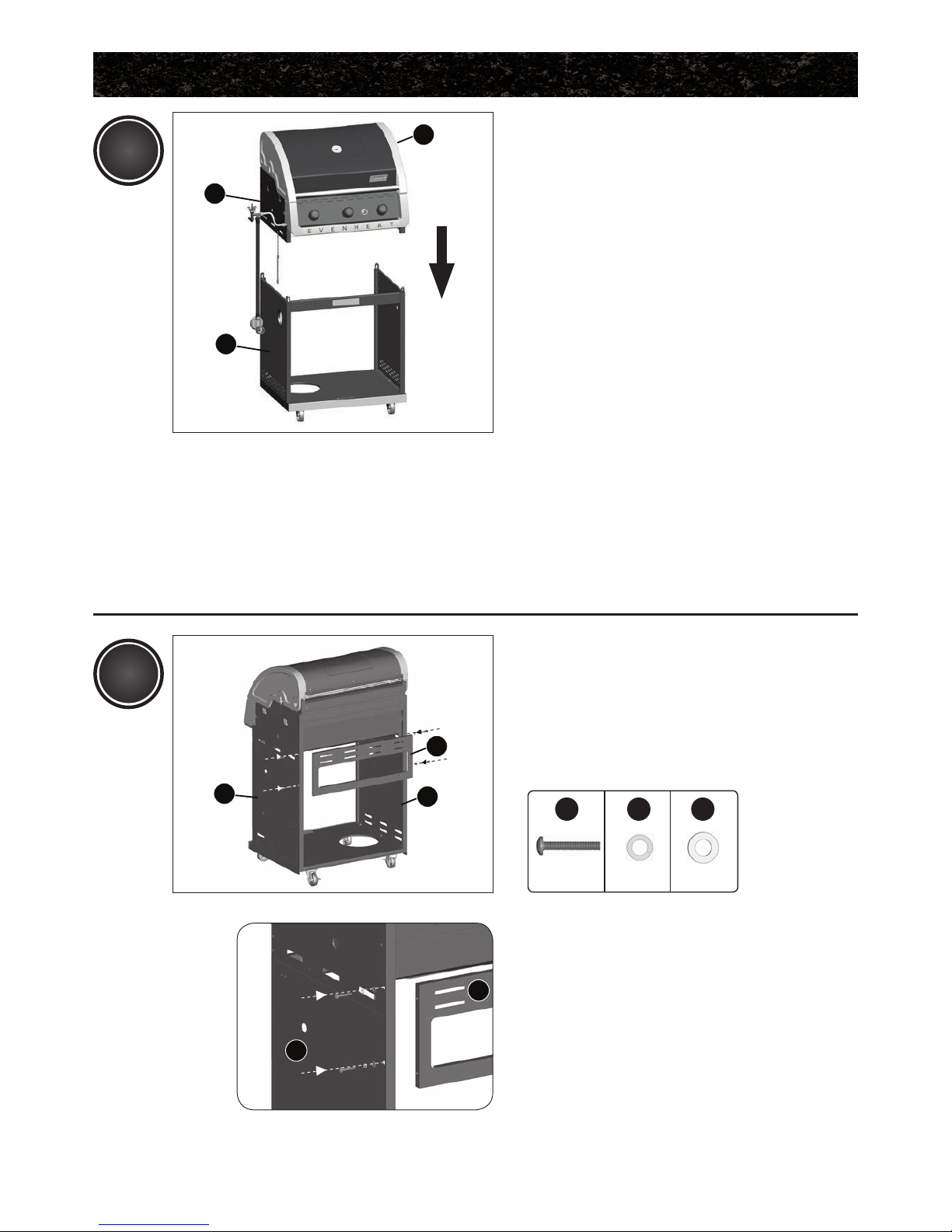

Attach the upper back panel (CL) to

both the left and right side panels (EA &

EB).

DO NOT tighten screws until all

hardware has been positioned.

YOU WILL NEED:

ASSEMBLY INSTRUCTIONS

1 3 4

X 4 X 4 X 4

Close up

Back view

Front view

THIS STEP REQUIRES 3 PEOPLE.

DO NOT ATTEMPT ALONE.

EXTREMELY HEAVY.

Position the top lid assembly and burner

box assembly (A & B) onto the cart

assembly (C), as shown.

Altri manuali per EVEN HEAT

Indice

Altri manuali Coleman Griglia

Coleman

Coleman 9956 Series Manuale utente

Coleman

Coleman COOKOUT PELLET GRILL Manuale utente

Coleman

Coleman 9941 Manuale utente

Coleman

Coleman Revolution G36303 Manuale utente

Coleman

Coleman 3000 SERIES Manuale utente

Coleman

Coleman 9958 Series Manuale utente

Coleman

Coleman 9945-700 Guida utente

Coleman

Coleman 9949A Series Manuale utente

Coleman

Coleman COOKOUT G45151 Manuale utente

Coleman

Coleman 9995A Series 9995A700 Manuale utente

Coleman

Coleman RoadTrip 9928-A50 Guida rapida alla configurazione

Coleman

Coleman 4000 Series LG40811E Manuale utente

Coleman

Coleman 3300 Series DT331-BBF Manuale utente

Coleman

Coleman REVOLUTION G53237 Manuale utente

Coleman

Coleman Revolution 85-3118-2 Manuale utente

Coleman

Coleman 3000 Series LG30610EB Manuale utente

Coleman

Coleman 9995- Series Manuale utente

Coleman

Coleman REVOLUTION G36324 Manuale utente

Coleman

Coleman 8450 Series Manuale utente

Coleman

Coleman Revolution Manuale utente

Coleman

Coleman Gas Barbecue Manuale utente

Coleman

Coleman 5100 LP Gas Series Manuale utente

Coleman

Coleman REVOLUTION G53235 Manuale utente

Coleman

Coleman 5300 Series 9990-142 Guida all'applicazione

Manuali Griglia popolari di altre marche

Orbegozo

Orbegozo GR 2300 Manuale utente

bora

bora PT11 Manuale utente

Klarstein

Klarstein 10031664 Manuale utente

Garland

Garland MWE3W Manuale utente

Char-Broil

Char-Broil 463722714 Manuale utente

Nexgrill

Nexgrill 720-0830HK Manuale utente

Kenmore

Kenmore 415.16123800 Manuale utente

Camp Chef

Camp Chef PG24CLAU Manuale utente

Tucker Barbecues

Tucker Barbecues GTR Series Istruzioni per il montaggio

Monogram

Monogram ZGG540NCP1SS Manuale utente

Equipex

Equipex Sodir Savoy Manuale utente

Gaggenau

Gaggenau VR 414 610 Manuale utente

Miele

Miele KM 408-1 Manuale utente

George Foreman

George Foreman GGR50B Manuale utente

AOG

AOG T series Manuale utente

Gorenje

Gorenje TG2000CB Manuale di istruzioni

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuale utente

Glen

Glen SA 3037 Manuale utente
