;< =9:2,->?:.,9&

Thank! you! for! choosing! Kodiak! Series! Trail! Cameras! from! Comanche! Outfitters.!

Kodiak!Series!Cameras!are!the!first!trail!cameras!on!the!market!with!fully!integrated!

Wi<Fi!functionality,!without!the!need!for!any!external!remotes!or!accessories.! You!

are!about!to!experience!the!future!of!trail!camera!technology.!

;<@&(AA5.?/:.,93&

This!camera!is!designed!for!home!security,! warehouse!surveillance,!and,!most!

importantly,! scouting! for! game.! Camera! installation! takes! less! than! a! minute! to!

complete,!and!is!capable!of!running!for!several!months!on!one!set!of!batteries.!This!

allows! the! camera! to! be! installed! in! virtually! any! location! regardless! of! the!

availability!of!external!power!sources.!The!camera!can!also!be!used!to!take!photos!

and!videos!manually!at!will.!

a.! Instant! surveillance! camera! for! home,! office,! construction! site,! and!

warehouse,!etc.;!

b.!Motion<triggered!infra<red!night!vision!surveillance;!

c.!Animal!observation!and!hunting;!

;<B&C,D12&">AA5E&

(< ((&(50/5.91&F/::12.13&

Kodiak!Series!Trail!Cameras!can!operate!on!either!4!or!8!AA!Alkaline!or!Lithium!

batteries.! For! maximum! performance! we! recommend! using! 8! Energizer! Ultimate!

Lithium!AA!batteries.!Please!note!that!rechargeable!batteries!cannot!be!used!with!

this! camera,! as! the! voltage! of! rechargeable! AA! batteries! (1.2V)! is! insufficient! to!

power! the! device.! Ensure! that! the! batteries! are! inserted! into! both! battery!

compartments! (front! portion! and! rear! portion)! correctly,! as! incorrect! battery!

installation!can!cause!the!camera!to!malfunction.!

F< ",5/2&C/915&

Kodiak!Series!Trail!Cameras!are!designed!to!be!able!to!work!with!most!standard!

6~12V!lithium!battery!built<in!solar!panels.!If!you!are!unsure!if!your!solar!panel!is!

compatible!please!contact!us.&

7< C,D12&(-/A:12&

The! camera! can! also! be! powered! by! an! external! 6~12V! DC! adapter.! We!

recommend! removing! the! AA! batteries! from! the! device! when! an! external! power!

adapter!is!used.!

;<G&(::19:.,9&

1.!Please!insert!the!SD!memory!card!correctly,!this!camera!does!not!support!SD!card!

hot!swap!(insertion).! !

2.! Please! use! high! quality! AA! batteries! to! ensure! maximum! performance! and!

durability.!

3.! Remember! to! use! the! correct! adapter! (6V/1A! or! 2A)! for! this! unit,! and! do! not!

invert!the!electrode!when!installing!batteries.!

4.!When!in!Live!View!mode,!the!camera!screen!will!automatically!power!off!after!1!

minute!of!inactivity.!Hold!the!ON!button!again!to!reactivate!it.!

5.!Make!sure!that!the!camera’s!power!supply!is!not!interrupted!during!the!firmware!

upgrade!process.!

6.! Do! not! frequently! insert! or! pull! out! the! SD! card! or! battery/adapter! when! the!

camera!is!powered!on.!

8.! Try!not! to! position! the! camera! next! to! heat! producing! objects! such! as! air!

conditioner!exhaust!vents,!lights,!etc.!to!avoid!photo/video!recordings.!

;<H&+1E&I1/:>213&

a. Programmable!5/8/12!Megapixel!high<resolution!still!images;!

b. User!friendly!interface;!

c. Optional!built<in!audio!playback;!

d. 40!IR!LEDs!for!flash!range!as!great!as!65!feet;!

e. Adjustable!PIR!sensitivity;!

f. Multi<shot!photo!capture!(up!to!7!photos!per!trigger);!

g. Rapid!trigger!time!of!0.8!seconds!

h. Supports!standard!6~12V!solar!panels;!

i. Full!color!daytime!photos;!incredibly!detailed!black!and!white!night!photos.!

j. Adjustable!delay!between!triggers;!

k. Up!to!5!months!of!standby!time!using!8!Alkaline!AA!batteries!;!

l. Over!a!year!of!standby!time!using!Energizer!Ultimate!Lithium!AA!batteries;!

m. Operating!temperature:!<25°F!to!140°F;!

n. Time! Lapse! function! for! automatically! recording! pictures/videos! at! preset!

intervals;!

o. Adjustable! timer! allows! the! camera! to! be! programmed! to! work! only! during!

preset!time!periods!each!day;!

p. Each!photo!includes!a!stamp!with!the!following!information:!!"#$& *(F#*,!date,!

time,!temperature!and!moon!phase.!This!allows!the!user!to!identify!where!and!

when!the!photo!was!taken;!

q. Built<in!2.0"!TFT!color!screen!allows!users!to!view!photos!and!videos!directly!on!

the!camera.!

r. High<quality!audio!recording;!

s. Two!different!TV!OUT!settings!allow!users!to!connect!their!camera!to!an!external!

television!for!media!playback.!

@< 7/812/&J.1D3&

@<;&I.K>21&;L&I2,9:&J.1D&,M&7/812/N&

@<@&I.K>21&B<@L&F,::,8&J.1D&,M&7/812/N&

@<B&I.K>21&B<BL&".-1&J.1D&,M&7/812/<&

@<G&I.K>21&B<GL&=9:129/5&J.1D&,M&7/812/&

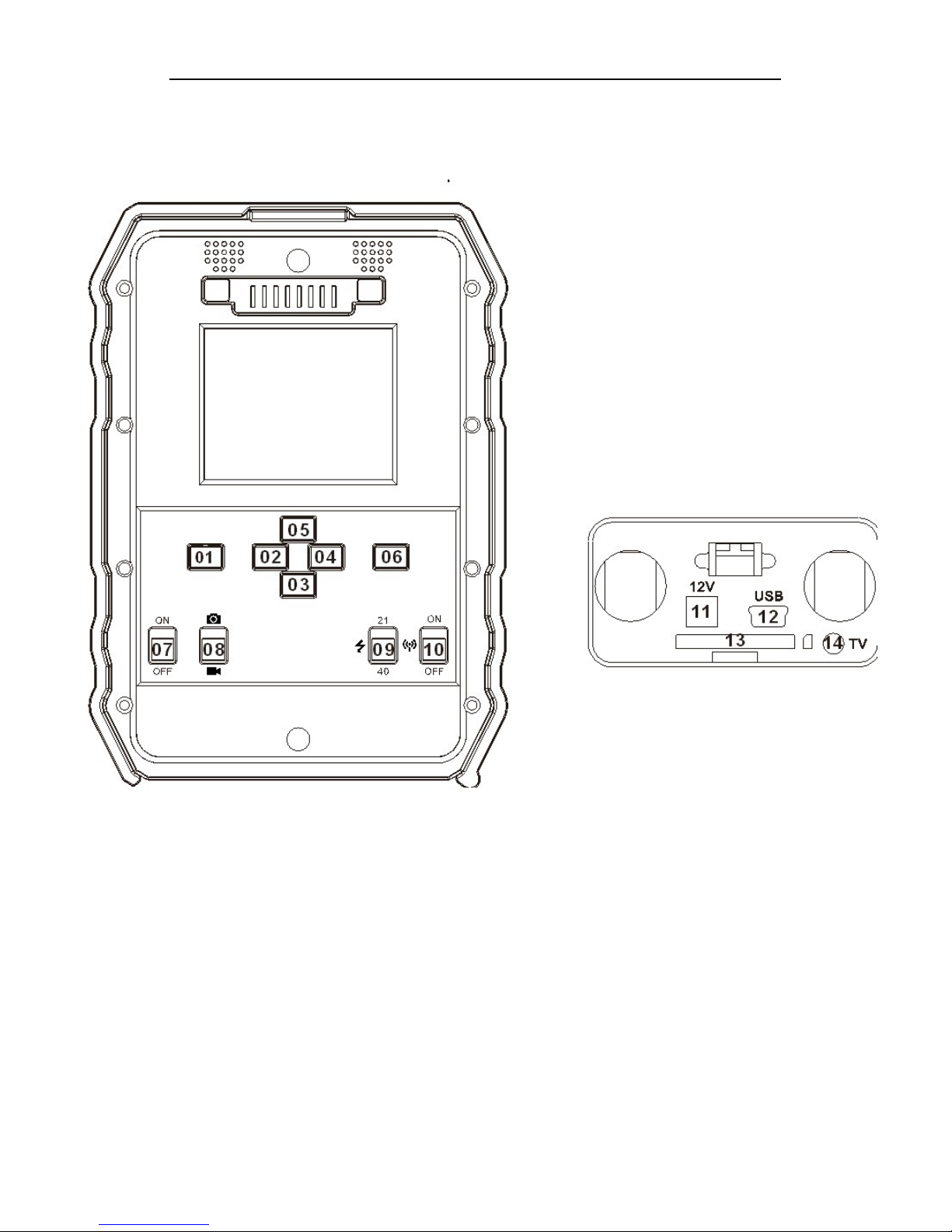

=9:2,->?:.,9&,M&1/?O&P>::,9&

/Q&F>::,93&

R;L!Menu;!R@S&RBS&RGS&RHL!navigation!arrow!buttons;!RTL!OK!

PQ&"D.:?O13&

RUL! Power! Switch;! RVL! Camera/Video! Switch;&RWL! IR! LED! Group! Switch;! ;RL! Future!

upgrade!switch!(leave!off)!

?Q&=9:12M/?13&

;;L!12V!DC!in;!;@L&USB!Port;!;BL!SD!Card!Slot;!;GL!TV!Out.!

@<H&I>9?:.,9&+1E3&X&Y:O12&Z1:/.53&

(< "D.:?O13&

Power!Switch!

Switch! up:! Power! Y9—PIR! intelligent! automatic! monitoring;!

light!sensor!flashes!5!times!before!entering!“Power!On”!Mode!

Switch!“On”,!press!“OK”!once!to!wake!up!camera!LCD!screen!

and!enter!Live!View!Mode;!Press!and!hold!“OK”!button!for!5!

seconds!to!get!back!to!“Power!On”!mode!

Switch!down:!YII—Camera!shuts!off!completely&

Video/Photo!

Switch!

Switch!up:!CO,:,—Photograph!Mode!

Switch!down:!J.-1,—Video!Recording!Mode!

IR!LED!Group!

Switch!

Switch!up:!;W—Top!19!IR!LEDS!will!be!active!

Switch!down:!GR—All!40!IR!LED!will!be!active!

Future!Upgrade!

Switch!

Leave!in!the!off!position!

F< )/[.K/:.,9&P>::,93&

a) Switch! power! to! “On”,! hold! “OK”! for! 5! seconds! to! activate! the! camera! LCD!

screen!and!enter!Live!View!Mode;!

b) In!Live!View!Mode!press!“Menu!(M)”!once!to!enter!the!camera!settings!menu;!

Press!“OK”!to!capture!photo(s)!or!video!clips.!

c) In!Live!View!Mode,!navigate!the!interface!by!pressing!“←”,!“↑”,!“→”,!or!“↓”,!

press!“OK”!for!selection.!To!modify!the!selection,!press!“↑”!and!“↓”again!and!

press!“OK”!to!confirm.!To!return!to!the!previous!menu,!press!“Menu”.!

d) Press!and!hold!the!“OK”!button!for!5!seconds!to!return!to!“Power!On”!mode.!

B< \>.?0&":/2:&

B<;&],D&:,&":/2:&:O1&7/812/&

Switch! button! ⑦! to! “ON”,! hold! button! ⑥! “OK”!for! 5! seconds! to! activate! the!

camera!LCD!screen!(to!enter!Live!View!Mode.)!In!order!to!prepare!the!camera!for!

installed!use!(motion!detection!mode),!all!the!user!needs!to!do!is!switch!the!power!

switch!to!the!“ON”!position,!then!reconnect!the!front!portion!of!the!camera!with!the!

rear!portion.!

B<@&],D&:,&(-^>3:&7/812/&"1::.9K3&

C. In!Live!View!Mode,!press!button!①!“Menu”!once!to!enter!the!camera!settings!

menu;! !

D. Navigate!the!menu!interface!by!pressing!“←”,!“↑”,!“→”,!or!“↓”,!press!“OK”!for!

selection.!To!modify!the!selection,!press!“↑”!and!“↓”again!and!press!“OK”!to!

confirm.!To!return!to!the!previous!menu,!press!“Menu”.!

E. Exit!Menu,! then!press! button!⑥! “OK”!for! 5!seconds! to! return! the! camera! to!

motion!detection!mode.!

F. Switch!button!⑧!to!switch!“Photo”/!“Video!Recording”;!

G. Switch!button!⑨!to!turn!on!19!IR!LEDs!or!all!40!IR!LEDs.!

H. Leave!button!⑩!in!the!“OFF”!position.!

G< YA12/:.,9&*.3:&

G<;&J.-1,SCO,:,&C5/EP/?0&

In!*.[1& J.1D!Mode!press!the!arrow!button!“↑”!to!enter!Playback;!press!“←”!and!

“→”!for!selection,!“OK”!to!play!photo/video.!Press!button!“↑”!again!to!return.!Press!

“Menu”!button!to!initiate!Deletion!of!files!or!to!format!the!SD!card.!

G<@&Z151:1L& &

a. Delete!one:!delete!selected!photo/video;!

b. Delete!All.!

Press“↑”!and!“↓”for!selection,!and!“OK”!to!confirm,!then!“MENU”!to!return!to!the!

previous!interface.!

G<B&I,28/:&,M&"Z&7/2-&

a. No!

b. Yes:!Deletes!all!content!on!the!SD!card.!

Press“↑”!and!“↓”for!selection,!“OK”!to!confirm,!and!“MENU”!to!return.!

G<G&YA12/:.,9&'19>&

In! Live! View! Mode,! Press! “Menu”! once! to! enter! the! camera! settings! menu;! then!

navigate!the!settings!interface!by!pressing!“←”,!“↑”,!“→”,!or!“↓”,!press!“OK”!for!

selection,!and!“Menu”!to!return!back!to!the!previous!menu.&

'/.9&'19>&

Z1M/>5:&

"1::.9K&

I>9?:.,93&Z13?2.A:.,9&

;<&7/812/&=Z!

YII&

Select!“ON”!to!set!a!4!character!ID!for!the!

camera! for! identifying! which! camera!

captured!each!photo.&

@<&7/812/&_&J.-1,!

YII&

Select!“ON”!to!enable!the!camera!to!take!

simultaneous! photos! and! video! based! on!

J.-1,&*19K:O!and!'>5:.`3O,:!user!settings.!

B<&'>5:.`"O,:!

;C&

Adjustable!1<7!photos!per!trigger!

G<&=8/K1&".a1!

H'C&

12MP/8MP/5MP!

4000x3000,!3264x2448,!2592x1944!

H<&J.-1,&".a1!

TGR&

HD/640/320:!1080x720/640x480/320x160!

T<&J.-1,&I2/81!

BRIC"&

30fps/15fps,!programmable&

U<&Z.K.:/5&b,,8!

)Y&

Optional!2x,!3x,!or!4x!zoom!

V<!J.-1,&*19K:O!

H&"1?&

Adjustable!between!5<60!seconds&

W<&C=$&"193.:.[.:E!

'.--51&

High/!Middle/!Low;! !

We! highly! recommend! setting! the! PIR!

(motion!detector)!sensitivity!to&].KO&when!

used!in!high!temperature!environments.!

;R<&6.812!

YII&

Select!“ON”!to!set!the!start!time!and!end!

time! (hour/minute);! if! activated,! the!

camera! will! only! operate! during! this!

interval.&

;;<&6.81&*/A31!

YII&

Select!“ON”,!to!set!the!interval;!PIR!sensor!

will! be! turned! off;! camera! will! shoot!

photos!or! video! clips! automatically! at!the!

user!set!intervals.!

7,9M.K>2/P51& .9:12[/5L! 5! seconds! to! 24!

hours.!

;@<!Z15/E!

YII&

The! pre<set! time! interval! you! desire!

between! photo/video! recordings! upon!

motion.! This! option! prevents! the! camera!

from! taking! too! many! photos! of! each!

subject.!

#c/8A51L& Camera! will! wait! 1! minute!

between!

photo/video!recordings!with!motion!

7,9M.K>2/P51& -15/E& :.81L& 5! seconds! to! 2!

hours.&

;B<&(>-.,&$1?,2-.9K!

Y)&

Select!“ON”,!audio!available!in!video!clips.!

;G<&6J&Y>:!

NTSC/PAL&

;H<&":/8A!

Y)&

To! select! or! cancel! imprinting! of!

programmed! user! label,! moon! phase,!

temperature,!date,!and!time!on!photos.!

;T<&I21d>19?E!

HR]a&

Improper! settings! may! cause! the! camera!

screen!to!flicker&

;U<&*/9K>/K1!

#9K5.3O&

#9K5.3Oe&f128/9e&I219?Oeg&

;V<&6.81SZ/:1!

R;S&R;S&@R;;&

;@L&RR&

Date/Time;! Date:! “month/! date/! year”;!

Time:!“hour/minute”&

;W<&7/812/&",>9-!

Y)&

Select!“OFF”!to!turn!off!camera!speaker.!

@R<&7E?51&$1?,2-.9K!

YII&

When! turned! “ON”,! the! camera! will!

continue!to!record!photos/videos!after!the!

card!is!full!by!deleting! the!earliest!photos!

or!video!clips!recorded!on!the!SD!card.!

@;<&C/33D,2-!

YII&

Select!“ON”!to!enable!password!protection!

for! your! camera;! supports! up! to! 6!

characters!

@@<&$131:!

),&

Select! “Yes”! to! reset! the! camera! back! to!

factory!default!settings.!

H< "A1?.M.?/:.,9&

Image!Sensor!

5!Mega!Pixels!Color!CMOS! !

Effective!Pixels!

2560x1920!

Day/Night!Mode!

Yes!

IR!range!

65!feet!

IR!Setting!

Top:!19!LEDs,!Bottom:!21!LEDs!

Memory!

SD!Card!(8MB!–!32!GB)! !

Operating!keys!

10!

Lens!

F=3.0;!FOV=52°;!Auto!IR<Cut<Remove!(at!night)!

LCD!Screen!

2”!TFT,!RGB,!262k!

PIR!Sensitivity!

3!sensitive!levels:!High!/!Normal!/!Low!

PIR!distance!

39ft<65ft!

PIR!Angle!

60°!

Picture!size!

5MP/8MP/12MP! =!

2592x1944/3264x2448/4000x3000!

Picture!Format!

JPEG!

Video!resolution!

720P!(1280x720),!640x320,!320x160!

Video!Format!

AVI!

Video!Length!

1<60!sec.!programmable!

Multi<Shot!

1<7!

Trigger!Time!

0.8!seconds!

Trigger!Interval!

2s<5s!

Altri manuali per Kodiak Series

Indice

Altri manuali Comanche Outfitters Telecamera da ricognizione

Comanche Outfitters

Comanche Outfitters Kodiak Series Manuale utente

Manuali Telecamera da ricognizione popolari di altre marche

Nestbox

Nestbox C13 Manuale utente

Wildview

Wildview STC-TGL1 Manuale utente

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuale utente

Suntek

Suntek HC-800M Manuale utente

Spypoint

Spypoint G4 Manuale utente

Duramaxx

Duramaxx 10029765 Manuale utente

Brecom

Brecom C2400 Manuale utente

BlazeVideo

BlazeVideo A280W Manuale utente

Bestok

Bestok 5210GM Manuale utente

GardePro

GardePro X60P Manuale utente

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuale utente

PNI

PNI HUNTING 280C Manuale utente

Muddy

Muddy Pro-Cam 14 Manuale utente

Bresser

Bresser 3310006 Manuale utente

Recon Outdoors

Recon Outdoors HS410 Manuale utente

Braun

Braun 57660 Manuale utente

Wildgame

Wildgame Shadow Manuale utente

Spypoint

Spypoint FLEX Manuale utente
