Come.up Winch DV-9si Manuale utente

Self-Recovery Winch

Model:

PN: 859038 12V 859040 12V

859055 24V 859045 24V

Introduction

 Feature

Line pull: 9,000 lb wire rope first layer

Synthetic rope: 10 mm × 30.5 m (3/8

”

×100

’

) synthetic rope

Brake: Patented cone brake holds full load

Clutch: Turn the

-handle for rapid rope payou

Control: Handheld pendant switch to power the winch

 Unpacking

．Winch assembly……………………………………………………... 1 pc

．Control box…………………………………………….……………... 1 pc

．Remote control………………………………………………………. 1 pc

．Synthetic rope with sling hook.……………………………………. 1 pc

．Hawse fairlead……………………………………………………….. 1 pc

．6′ 2 gauge battery lead……………………………………………… 1 pc

 Read this manual carefully

You should carefully read and understand this manual before operating it.

Careless winch operation may result in personal injury hazards or property

damage.

Installation

Before using the winch, make sure all electrical components have no

corrosion or damaged; the environment should be clear and dry.

 Winch and roller fairlead mountings

．It is very important that the winch will be mounted on

a flat and hard surface of mounting channel in

order to make sure the motor, drum and gearbox

housing are aligned correctly.

．Hawse fairlead does not mount to the winch directly.

．The synthetic rope shall be wound in an

under-wound orientation only.

．Four (4) M10 x 1.50 pitch 10.9 grade with 63.8 N-m torque settings

(maximum) high tensile steel bolts must be used in order to sustain the

loads imposed on the winch mounting.

．

Two (2) M10 x 1.50 pitch stainless steel bolts must be used for fastening the

hawse fairlead into the mounting channel.

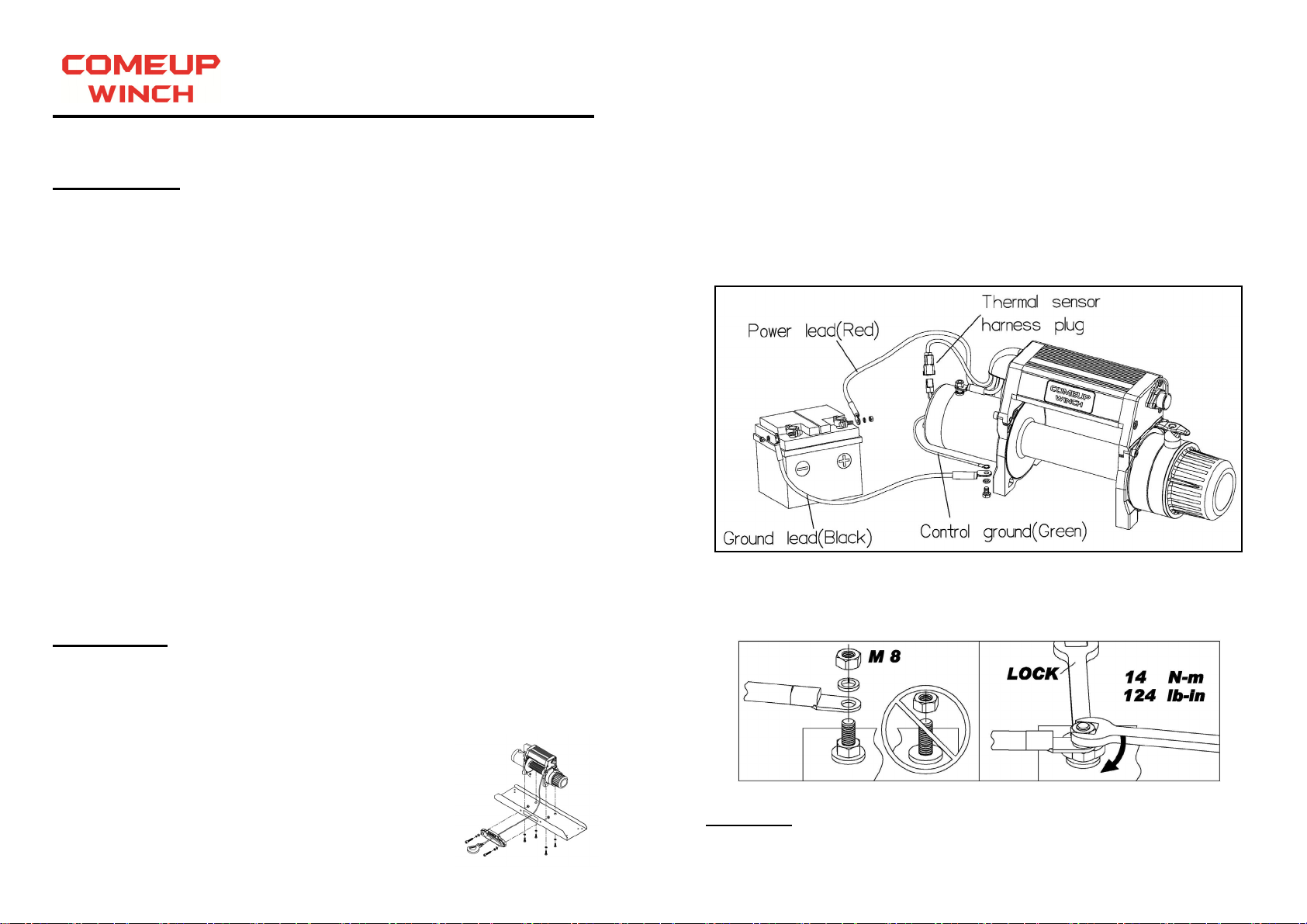

 Wiring Diagram

•Connect thermal sensor harness plug, control ground, and cable A/F1/F2 to

the motor.

•Attach the ground lead firmly to the negative (–) battery terminal and power

lead to the positive (+) battery terminal. The voltage drop for the winch

motor must not exceed 10% of the nominal voltage of 12/24V DC.

 Nut fastening for motor & contactor

1.Holding the lower nut on the stub and fastening the upper nut clockwise.

2.The torque setting for nut is 124 lb-in.

Warning

．The winch is not intended to be used in any manner for the movement or lifting

of personnel.

．The rated line pull shown is based on the first layer of rope on the drum.

．The rope winding on the drum shall remain 10 wraps from the drum to support

the rated load.

．Manufacturer is not responsible for the results of misuse, misapplication, faulty

installation or abuse of synthetic rope in any way.

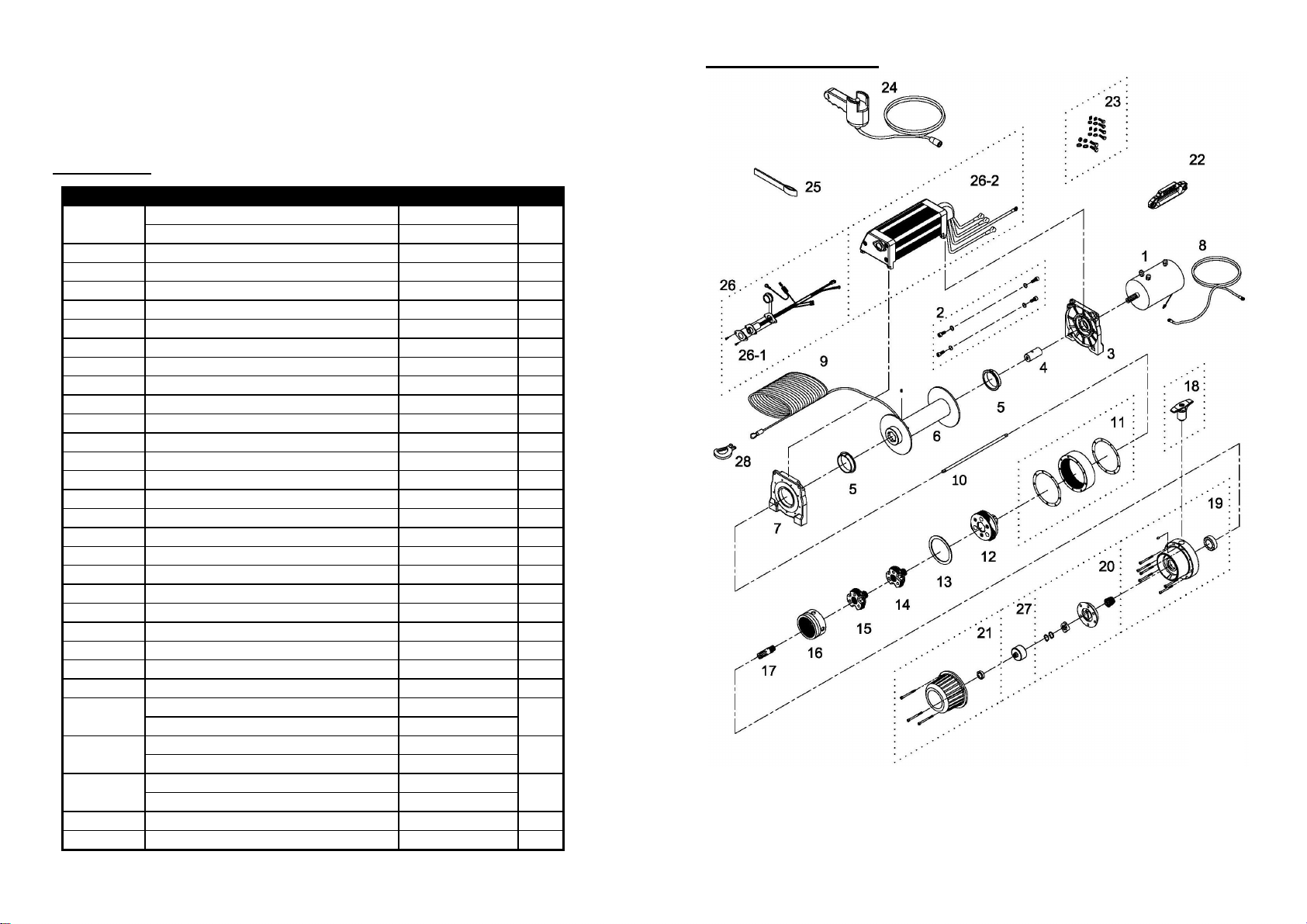

Parts List

Item No. Description Part No. Qty

1 Motor 12V 882153 1

Motor 24V 883126

2 Bolt, washer kit 880051 1

3 Motor support rack 881779 1

4 Motor coupling 880005 1

5 Drum bushing 880006 2

6 Drum kit 881521 1

7 Gearbox support rack 881780 1

8 Grounding lead 880009 1

9 Synthetic rope 883248 1

10 1st shaft 880011 1

11 3rd ring gear kit 881781 1

12 3rd stage carrier 880013 1

13 3rd bushing 880014 1

14 2nd stage carrier 880015 1

15 1st stage carrier 880016 1

16 1st & 2nd ring gear 880017 1

17 1st pinion kit 880018 1

18 Clutch kit 881303 1

19 Gear box kit 881782 1

20 Cone brake disc kit 880021 1

21 Brake cover kit 881783 1

22 Hawse fairlead 883410 1

23 Mounting hardware 880125 1

24 Remote control 880126 1

25 Handsaver strap 880026 1

26 Control box 12V 883127 1

Control box 24V 883128

26-1 Remote socket kit 12V 881373 1

Remote socket kit 24V 881374

26-2 Control pack 12V 883129 1

Control pack 24V 883130

27 Brake clutch base 881100 1

28 Sling hook 882477 1

Winch Assembly

2022/02/16 Ver:03
