Quick Start Guide
DaisyNET II SRX
1. Assigning an IP address
Each DaisyNET II SRX Scaling Receiver (SRX) needs a unique IP address . And the chain length (number of units) must be
configured as well. The SRX offers two ways for configuring these settings.

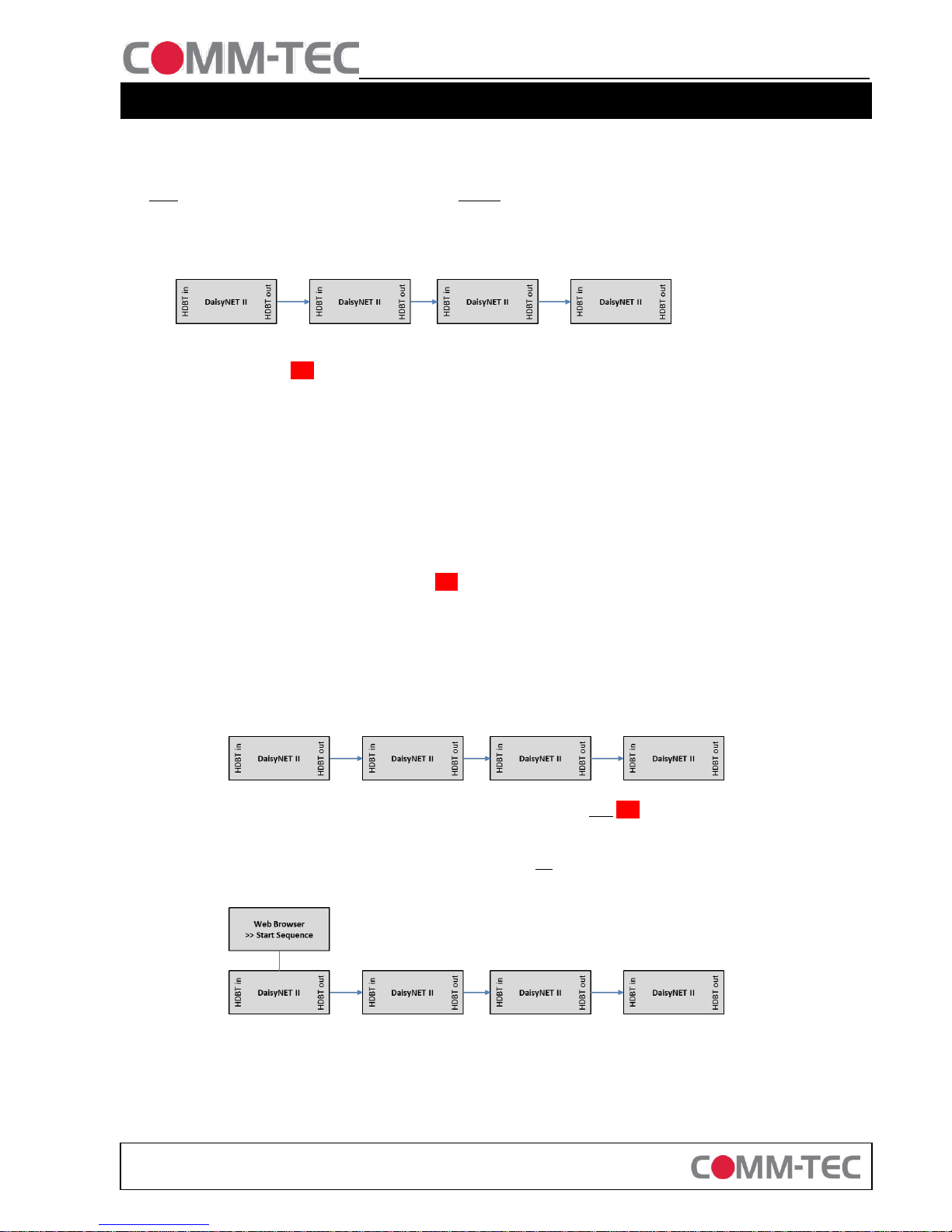

a. Automatic IP and Sequence configuration
Cascade all TRX and SRX units via HDBaseT (bus configuration) and power them up. Example:
Now go to the first TRX in the chain and press the SHOWME button on the front of the device for about 10 seconds
until all LEDs on the front panel start to flash. Now each TRX and SRX unit in this chain has been assigned a unique IP
in sequencial numbers, starting at the first TRX with 192.168.1.121 upwards. The sequence length has also been
configured automatically, the setup is now ready to operate. If required, the chain can now be closed to a ring (see
chapter 2.)
b. Manual IP and Sequence configuration
This shouldn´t be necessary, the automatic configuration is the preferred way of configuration.
But if desired, the configuration of the SRX can be done manually as follows:
oConnect one SRX via Ethernet with your PC (each SRX needs to be configured separately)
oEnter the default IP address of the SRX 192.168.1.122 in your browser and login
>>Password: admin
oMenu >> Configuration >> Device >> Network
oEnter a unique IP address, a matching netmask and gateway address and click „Apply“
oNote: If your don´t know the IP address of a unit, press and hold the „Reset“ button on the front of the
device at least for 5 seconds to execute a factory reset.
oAfter all SRX units have been configured, they can be cascaded with other DaisyNET II units via HDBaseT
(„HDBT out“ to „HDBT in“).
oAfter powering all units up, login to the web interface of the first TRX in the chain
(default IP: 192.168.1.121, default password: admin)
oGo to Configuration >> Device >> Network >> Daisy-chain Sequence
oEnter at „DaisyChain Quantity“ the total number of all units (TRX and SRX), in this example 4 units
oPress „Start Sequence“
TRX1
TRX2
SRX1
SRX2
TRX1
TRX2
SRX1
SRX2
TRX1
TRX2
SRX1
SRX2
Subject to change
COMM-TEC GMBH SIEMENSSTRASSE 14 TEL: +49 7161-3000-0 WWW.COMM-TEC.DE
D-73066 UHINGEN FAX: +49 7161-3000-400

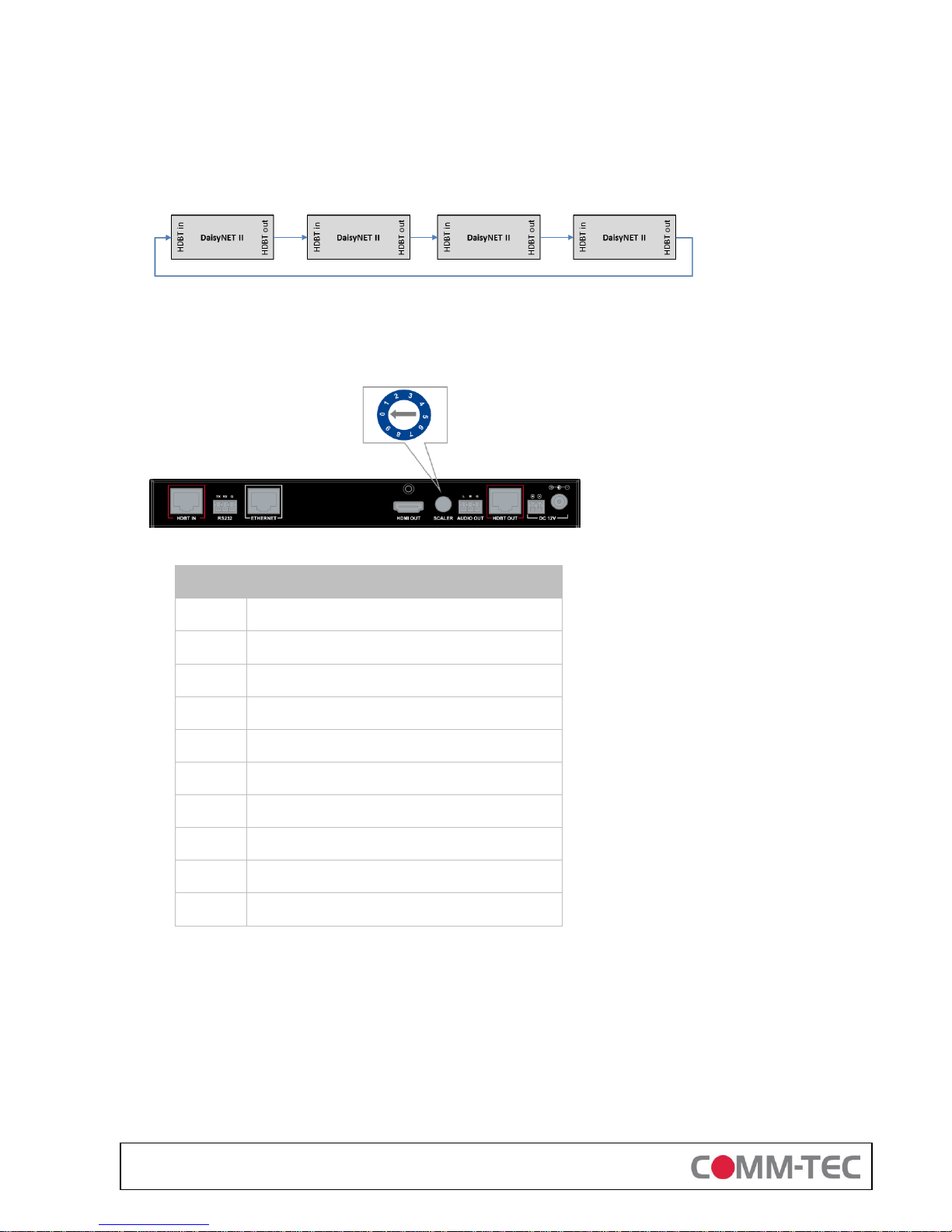

2. Connection type (bus or ring connection)
- After configuring network and sequence settings, the device is ready to use. There are two ways how you can set up
a DaisyNET installation: bus type (standard) or ring type. If you want to use the ring-type connection, connect the
HDBaseT output at the last device in the chain with the HDBaseT input of the first device in the chain.
3. Setting the output resolution
The rotary switch on the front panel lets you chose the scaling resolution for the HDMI output.
Note: The signal on the HDBaseT output is presented in the original, unscaled format of the source.
Position
Functions
0
Auto Scaler setting via EDID
1
Set 1024 x 768@60Hz as output resolution
2
Set 1280 x 720@60Hz as output resolution
3
Set 1280 x 800@60Hz as output resolution
4
Set 1280 x 1024@60Hz as output resolution
5
Set 1920 x 1080@60Hz as output resolution
6
Set 1920 x 1200@60Hz as output resolution
7
Set 3840 x 2160@30Hz as output resolution
8
Set 3840 x 2160@60Hz as output resolution
9
Set resolution via Web interface or API Control
Note: Scaler configuration by WEB or API control is only effective when the rotary switch is set to position 9
4. Further information
You can download the manual, firmware updates etc. from our website www.daisynet.de
COMM-TEC / DWN / 22.11.2017
