Commax DR-2A2N Manuale utente

Door Unit DR-2A2N

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

ИНТЕРНЕТ-МАГАЗИН: TELECAMERA.RU

1

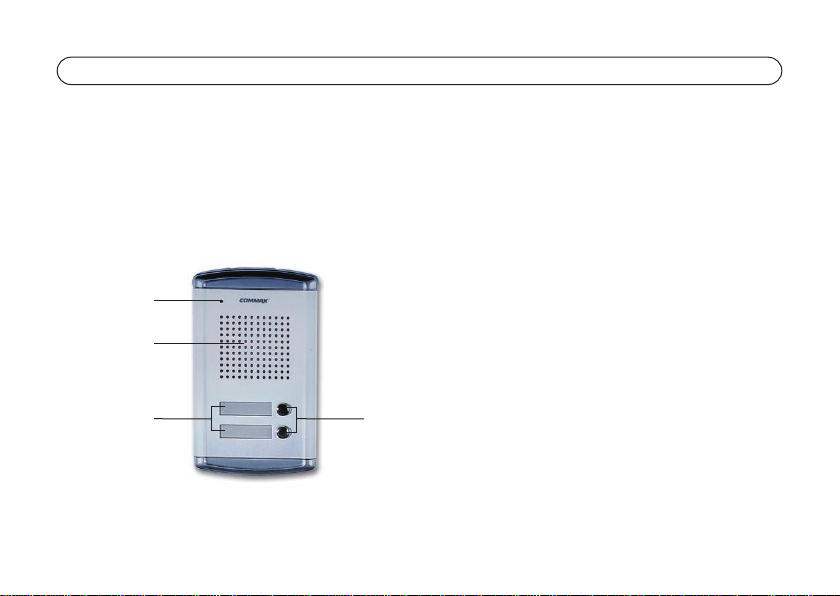

①Microphone : Transmits visitor’s voice.(Outdoor ⇨Indoor)

②Call Button : Call to household.

③Speaker : Transmits householder’s voice.(Indoor ⇨Outdoor)

④Name Tag : Name of each household.

Overview

①

②

③

④

ИНТЕРНЕТ-МАГАЗИН: TELECAMERA.RU

2

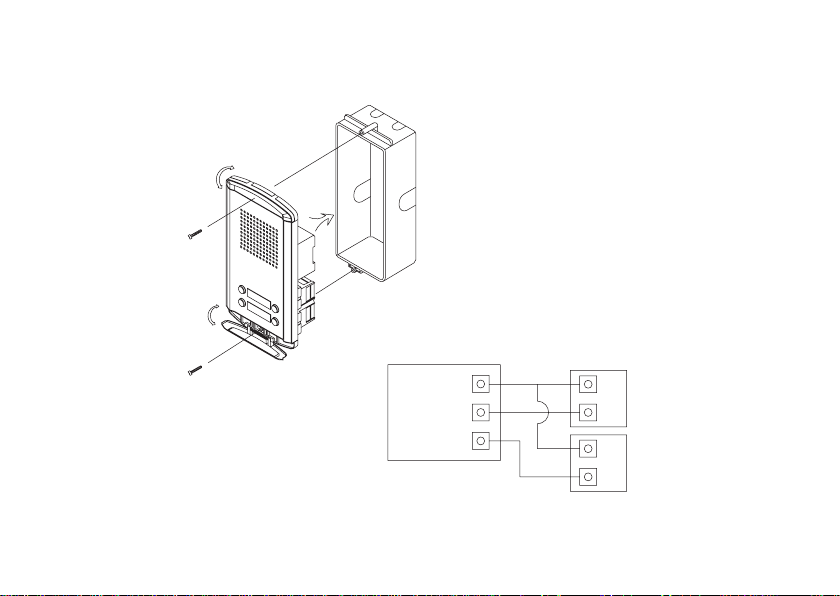

Wiring and Installation

1. Fix the hole of bracket with wall hole.

2. Connect Room station cables as appeared in the figure below.

3. Put the door unit inside of a back box as shown in the figure below.

4. Connect Door Release cable as appeared in the figure below.

5. Place the unit on the wall and mount with screws supplied.

ИНТЕРНЕТ-МАГАЗИН: TELECAMERA.RU

3

DR-2A2N

ROOM

STATION 1

ROOM

STATION 2

1

21

2

1

2

3

ИНТЕРНЕТ-МАГАЗИН: TELECAMERA.RU

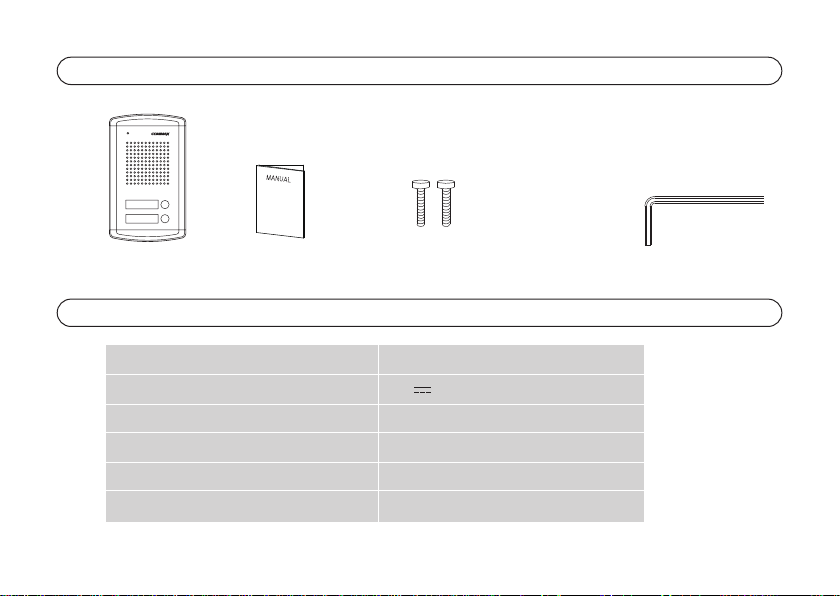

Contents

ManualDR-2A2N BOLT/NUT/WRENCH 2.5#

BOLT/NUT/WRENCH 3X30

Specification

Model No.

Rated voltage/Power consumption

Wiring

Installation

Dimension

Operating Temp.

DR-2A2N

9V (supplied from Room Unit)

3 Wired

Flush mounted type

123 X 210 X 16(59)mm

-10°C ~ +50°C

4

ИНТЕРНЕТ-МАГАЗИН: TELECAMERA.RU

Printed In Korea / 2011.06.105

PM132A2N0010

513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea

Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133

Web site : www.commax.com
