Commax DRC-40K Manuale utente

Color Door Camera DRC-40K

User Manual

•Thank you for purchasing COMMAX products.

•Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

•The company is not responsible for any safety accidents caused by abnormal operation of the product.

6. Specification

DRC-40K

DC 12V (Supplied from monitor)

4 wires to a monitor (polarity)

2wires tothe door release (non-polarity)

CMOS IMAGE SENSOR

NTSC or PAL STANDARD.

Simultaneous communication

0.1 Lux (within 300mm)

Embedded night LED (activated at night)

Horizontal 75°, Vertical 55°

Up, down 12 Degrees

-10 ℃ ~ +40 ℃

400g

96(W) x 155(H) x 32.5(D)

Diameter (pie)

Diameter (meter)

Model No.

Rated Voltage / Power Consumption

Sensor Type

Video Transmission Standard

Communication

Minimum Illumination

LED

Effective Viewing Angle

Angle Adjustment

Operating Temperature

Weight (g)

Dimension (mm)

Distance between a door

camera and monitor

Wiring (Main Unit / Door Release)

0.5 0.65 0.8

28m 50m 70m

1. Introdution ..........................................................................2

2. Important Safeguard...........................................................3

3. Overview ............................................................................4

4. Package contents...............................................................6

5. Wiring and Installation........................................................7

6. Specification......................................................................9

Contents

Your unit is designed so it can be flush mounted on the or used. When flush mounted on the wall, the stand permils you to the

unit for an gular of unit view. The model number is located on the bottom and record the serial number in the space provided

below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product.

Model No. Serial No.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

This symbol is intended to alert the use to the presence of uninsulated

“dangerous Voltage”

within the product’s enclose that

may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the use to the presence of important operating and maintemance(servicing) instructions in the

literature accompanying the appliance

1. Introduction

CAUTION : To reduce the risk of electric shock, do not remove cover(or back) no user-serviceable

part inside refer servicing to qualified service personnel

caution

Risk of electric shock

do not open

▲

Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per-

sonnel under the following conditions:

ⓐwhen the power is damaged.

ⓑif liquid has been spilled or objects have fallen into the unit

ⓒif the equipment has been exposed to rain or water.

ⓓif the equipment has been dropped or otherwise damaged.

ⓔwhen the equipment exhibits a distinct change in performance- this indicates a need for service.

▲

Water and Moisture: Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, or near a swimming pool, and the like.

▲

Accessories: The product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Any

mounting of the manufacture’s instructions, and should use a mounting accessory recommended by the manu-

facturer.

▲

Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any

kind on the product.

▲

Lightning: For added protection for this product before a lightning storm, or when it is left un attached and un used for long

periods of time, unplug it from the wall outlt and disconnect the other system. This will prevent damage to the prod-

uct due to lightning and power-line surges. If you live in an area heavily prone to lightning storms, it is recom-

mended that you invest in power-line, telephone-line, RFcable and actuator/ polarization surge protectors to protect

your appliance system from possible damage

2. Important Safeguards

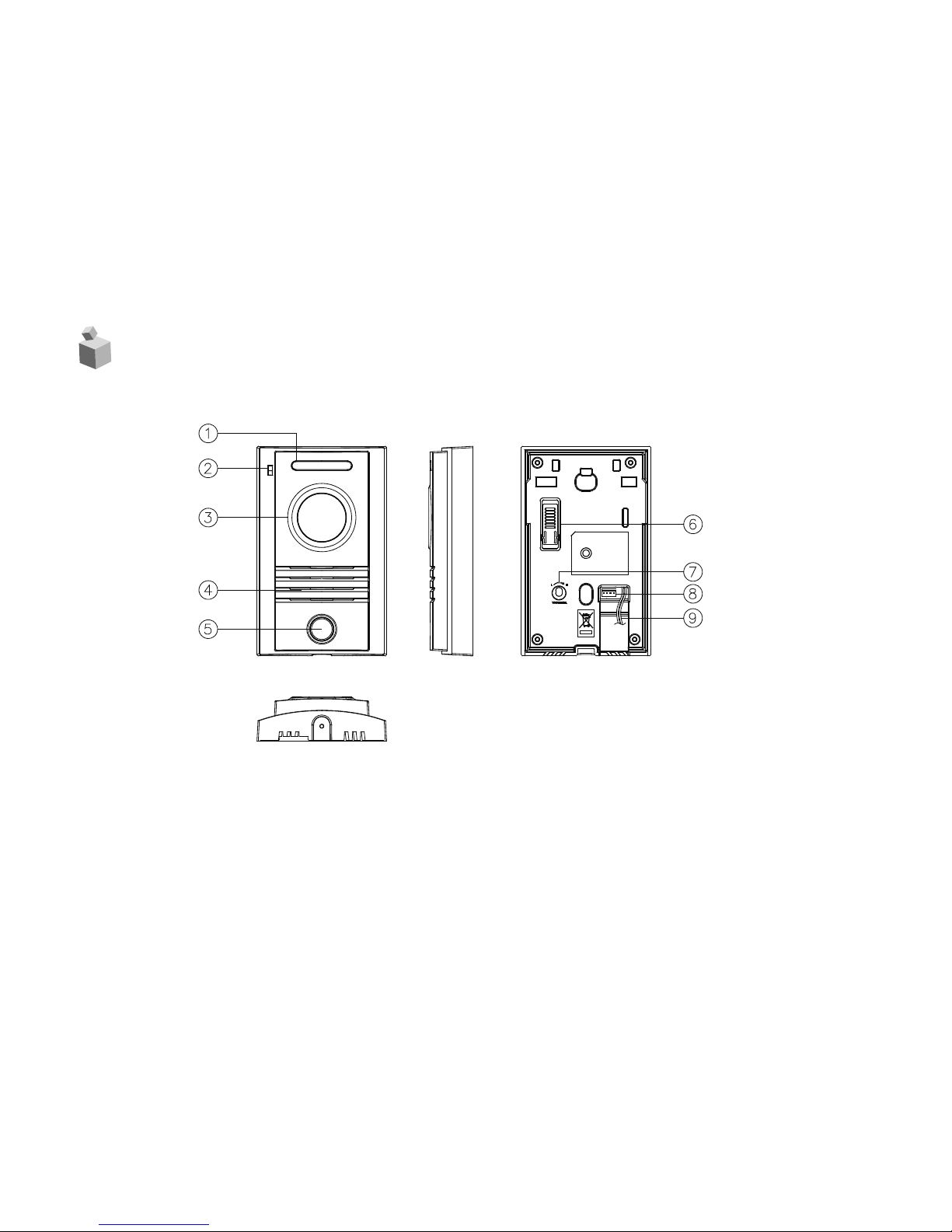

3. Overview

①White LED & Illumination Sensor : Offer clear image at night

②Microphone : Deliver voice signal from a visitor

③Camera Lens : Transfer image

* Make sure the lens is always kept clean

④Speaker : Deliver voice signal to a visitor

⑤Call Button : Pressed to call to a household

⑥Angle Adjustment Lever : Adjust lens angle

⑦Volume Adjuster : Adjust speaker volume

⑧Monitor Connection Terminal (Polarity with care)

⑨Door Release Connection Line

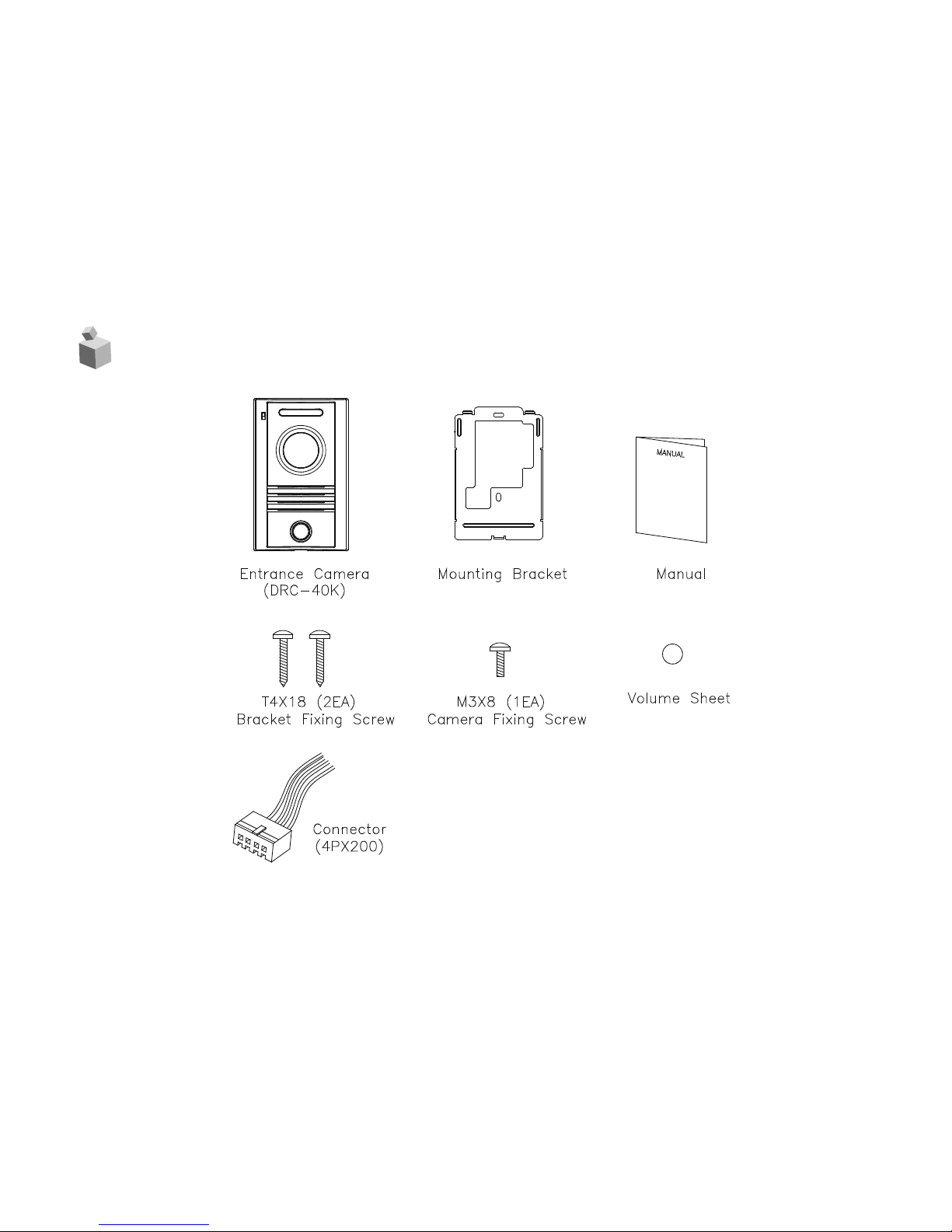

Package contents

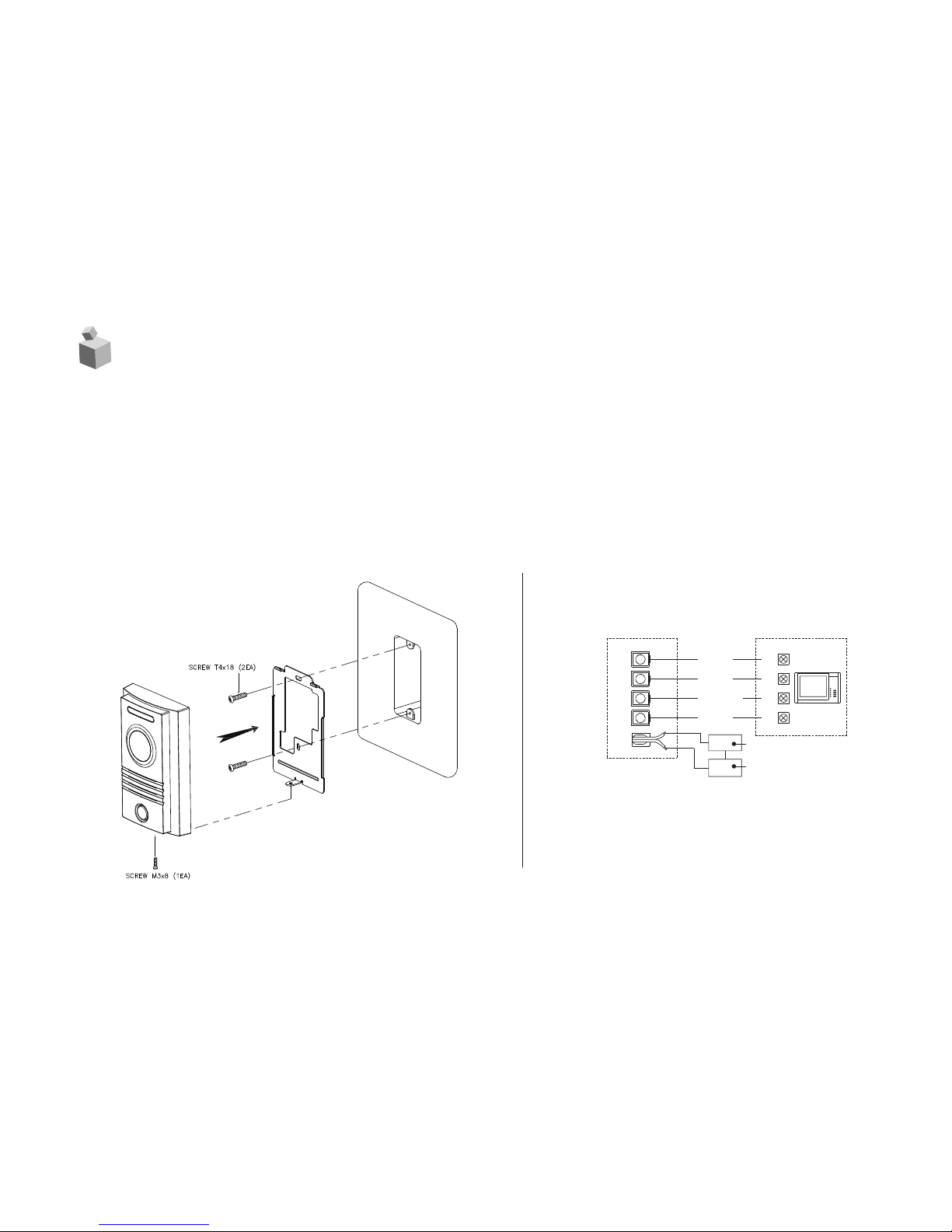

5. Wiring and Installation

1. Match the fix the whole in the wall and the fixing bracket [FIG.1]

2. Match and connect monitor line as shown below [FIG.2]

(#1: Audio, #2: GND, #3: DC12V, #4: Video)

3. Adjust camera location on the wall by checking the image on monitor screen and

fix its location

4. Connect the Door Release Connection Line as shown below [FIG.2]

5. Tighten a screw at the bottom side of the camera [FIG.1]

MONITOR

Audio

GND

DC12V

Video

Door Release Cable

Door Release

[FIG-1] [FIG-2]

SCREW M3X8 (1EA)

SCREW T4X18 (2EA)

[FIG.1] [FIG.2]

▶Installation place

•

Do not install the product where direct lays of the sun reach the camera lens.

•

Adjust the position by using the angle adjustor (in the back).

•

Install a separate lighting at night for better picture quality.

ㅌ

▶Cautions at a time of installation

1. Do not install where there is much dust, waste or humidity.

2. Make sure to connect accurately.

3. Make sure to fix it tightly so that it does not come off due to vibration.

4. Avoid places where there are direct lays of the sun or where it rains a lot.

5. Take good care of it to prevent dust or cracks on the window of the door camera lens.

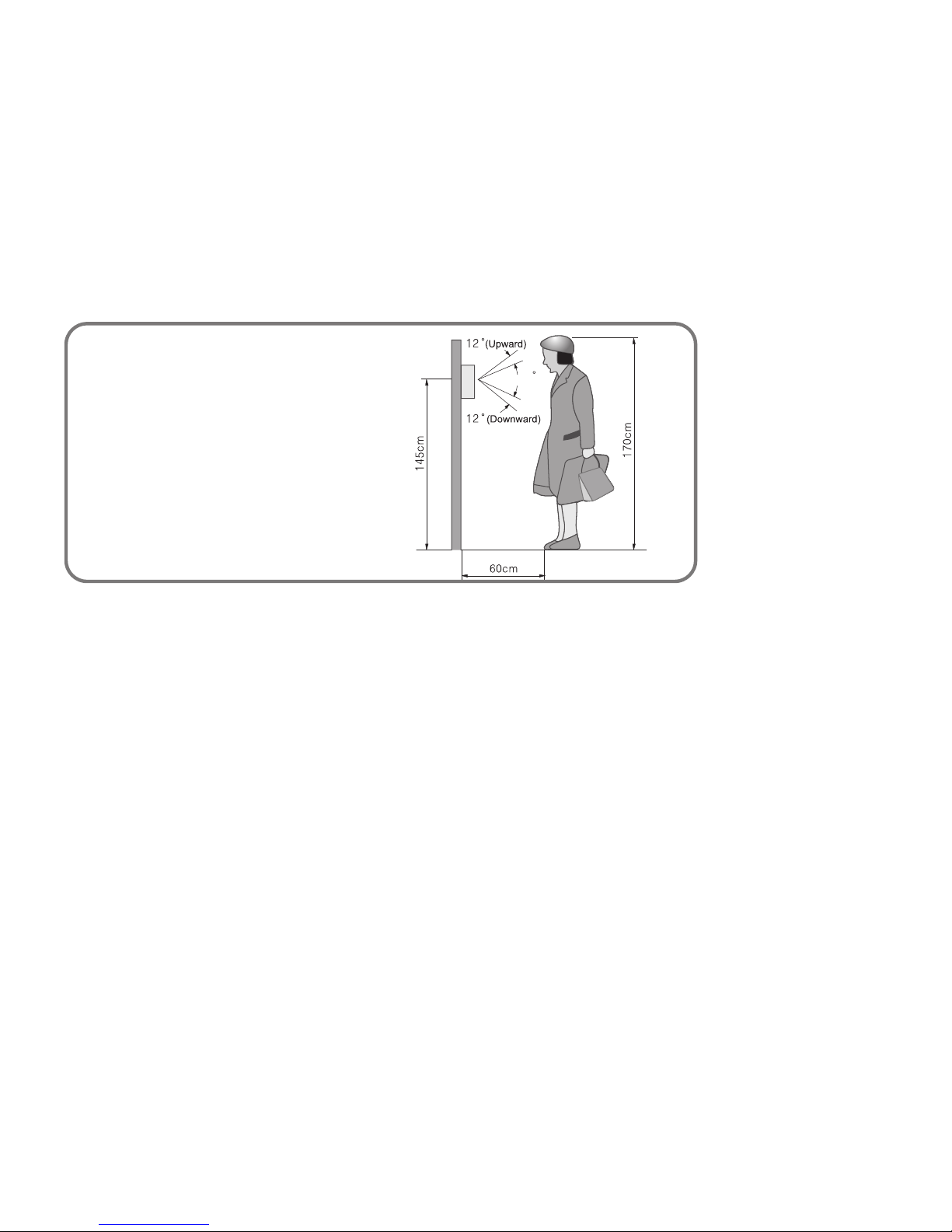

▶Position of camera
