CommScope AMP NETCONNECT MRJ21 Manuale utente

Figure 1

MRJ21 48–port straight patch panels are designed to

be mounted onto a standard 483–mm [19–in.]

Electronic Industries Alliance (EIA) rack or equipment

cabinet as shown in Figure 1. AMPTRAC patch panels

are designed for use with the

AMP NETCONNECT® AMPTRAC system. Read these

instructions thoroughly before starting installation.

AMPTRAC Retrofit Kit 1479951–1 can be installed onto

the standard patch panel to enable the patch panel to

be connected to the AMP NETCONNECT® AMPTRAC

system. Back Cable Manager Kits 1933352–[ ] must be

used to support the cable.

Reasons for reissue of this instruction sheet are

provided in Section 6, REVISION SUMMARY.

Each 10/100BASE–T patch panel contains four

MRJ21 receptacles (one per 2 6 RJ45 connector

assembly), and each 10/100/1000BASE–T patch

panel contains eight MR21 receptacles (two per 2 6

RJ45 connector assembly). The ports are identified

by numbers printed on the front and on the back of

the patch panel. Four 12–24 screws are included to

mount the patch panel to the rack. In addition,

AMPTRAC patch panels have a sensor pc board

subassembly and two HDP–22 connectors to enable

the patch panel to connect to the

AMP NETCONNECT® AMPTRAC system.

AMP NETCONNECT®

9-JAN-17 Rev E

This product is covered by one or more U.S.

patents or their foreign equivalents. For patents, see

www.commscope.com/ProductPatent/ProductPatent.aspx

To obtain information on CommScope®products, visit our website at

http://www.commscope.com/SupportCenter/TechnicalSupport.aspx

Shielded patch panels are designed to protect the

internal electronic components from electromagnetic

interference (EMI).

1. Using the screws, mount the patch panel onto

the rack. Refer to Figure 1.

2. Plug a connector (from the trunk cable) into

each MRJ21 receptacle (at the back of the patch

panel). Refer to Figure 2. Make sure to align the

keying features of the connector and receptacle.

Ensure that the connector is fully seated,

then

using a small cross–recessed tipped screwdriver,

turn the jack screws of the connector

clockwise

and tighten to a maximum torque of 0.23 Nm

[2 lbf–in.].

3. For AMPTRAC patch panels, plug the connector

of an I/O cable assembly (PN 1499507–[ ]) from

the analyzer into each HDP–22 connector (at the

back of the patch panel). See Figure 2.

4. Install the retro–fit kit onto the rack according to

Instruction Sheet 408–10170. Using cable ties or

similar fasteners, attach the cables to the tie–down

bar. It is recommended to maintain a minimum

bend radius of 50.8 mm [2 in.] when securing and

routing cables. See Figure 2.

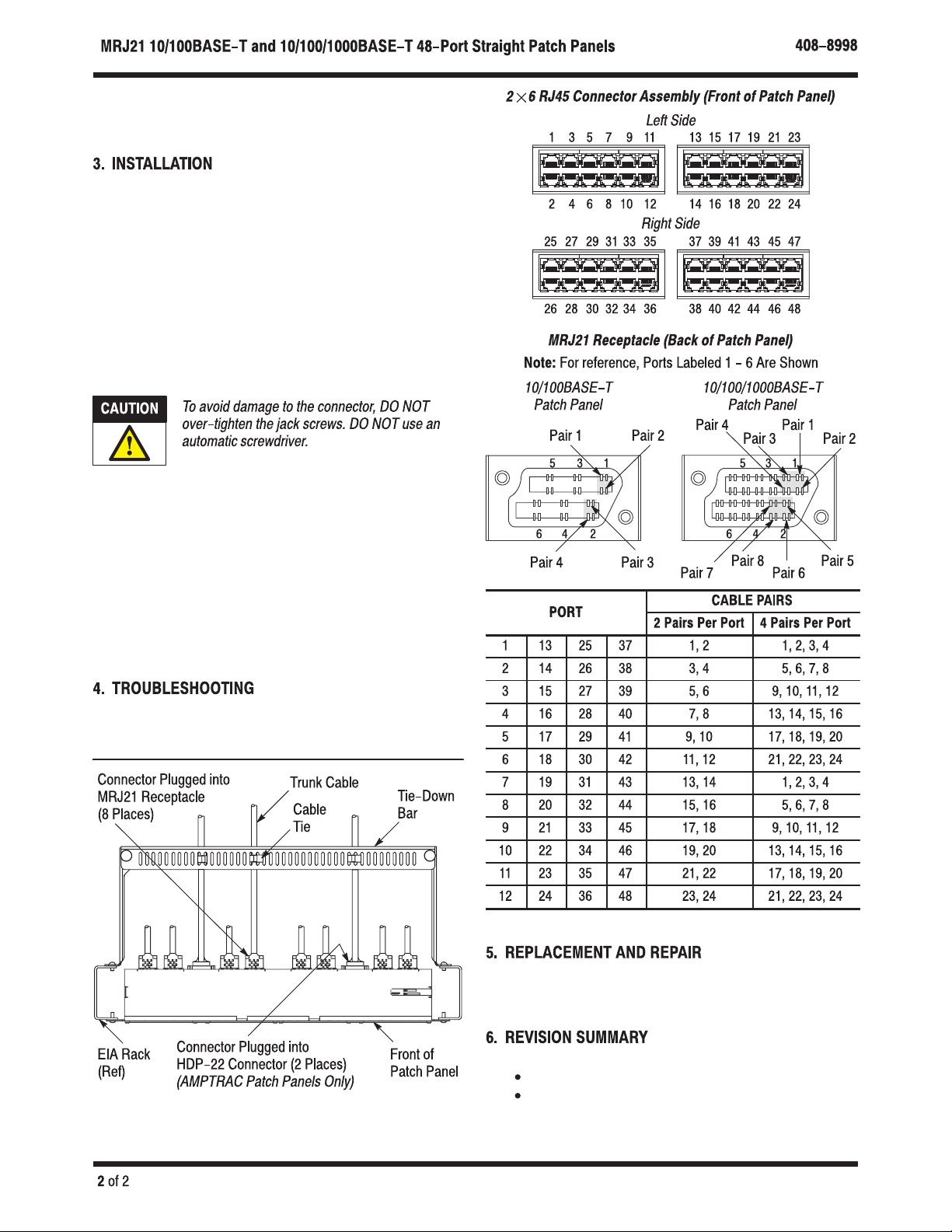

For port–to–cable pair cross–reference, refer to

Figure 3.

Figure 2

Figure 3

Patch panels are not repairable. DO NOT use a

damaged patch panel or one with damaged or

defective connectors.

Revisions to this instruction sheet include:

Added shielded patch panels

Removed wiring distribution bracket kit, and

modified Figure 2

S Rebranded to CommScope
