Comnet CNGE8US Series Manuale utente

INS_CNGE8US_REV–

06/10/11

PAGE 1

INSTALLATION AND OPERATION MANUAL

CNGE8US Series

8 port Gigabit Ethernet unmanaged switch

The ComNet™ CNGE8US 8 port unmanaged Gigabit Ethernet switch is

designed to transmit and receive Gigabit Ethernet data using small form factor

pluggable (SFP) transceiver modules. It is environmentally hardened to operate

in demanding environments.

LED indicators are provided for confirming equipment operating status.

Packaged in the exclusive ComNet ComFit housing, these units may be wall-

or rack-mounted without modification, or may be DIN-rail mounted by using

ComNet model DINBKT1 adaptor plate, sold separately. See Figure A on Page 3

for installation instructions.

See Figures 1 – 3 for complete installation details.

INS_CNGE8US_REV–

06/10/11

PAGE 2

NOTE: Remove

Electrical Connector for

Rack Mount Units

UP TO 8

CONNECTIONS

AS DETERMINED

BY SELECTION OF

SFP MODULES

BLACK

BLACK WITH WHITE STRIPE

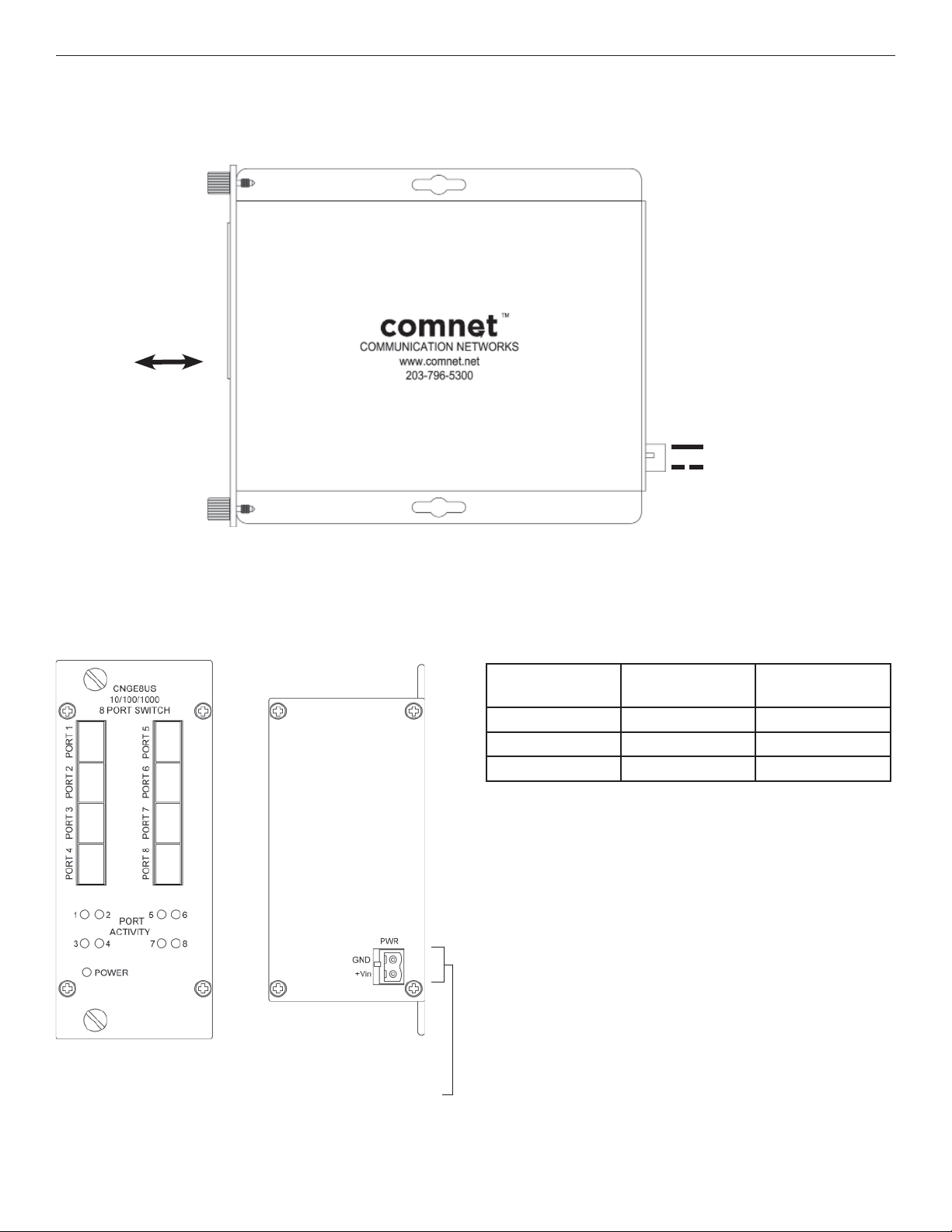

FIGURE 2 – CNGE8US

FIGURE 1 – CNGE8US

INSTALLATION AND OPERATION MANUAL CNGE8US SERIES

REAR PANELFRONT PANEL

TECH SUPPORT: 1.888.678.9427

FIGURE 3 – LED INDICATORS

PORT ACTIVITY

(1 – 8)

POWER

SOLID No Activity Unit powered up

BLINKING Activity –

OFF No Link Unit Powered Down

INS_CNGE8US_REV–

06/10/11

PAGE 3

3 CORPORATE DRIVE | DANBURY, CT 06810 | USA

T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | INFO@COMNET.NET

8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE

T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET

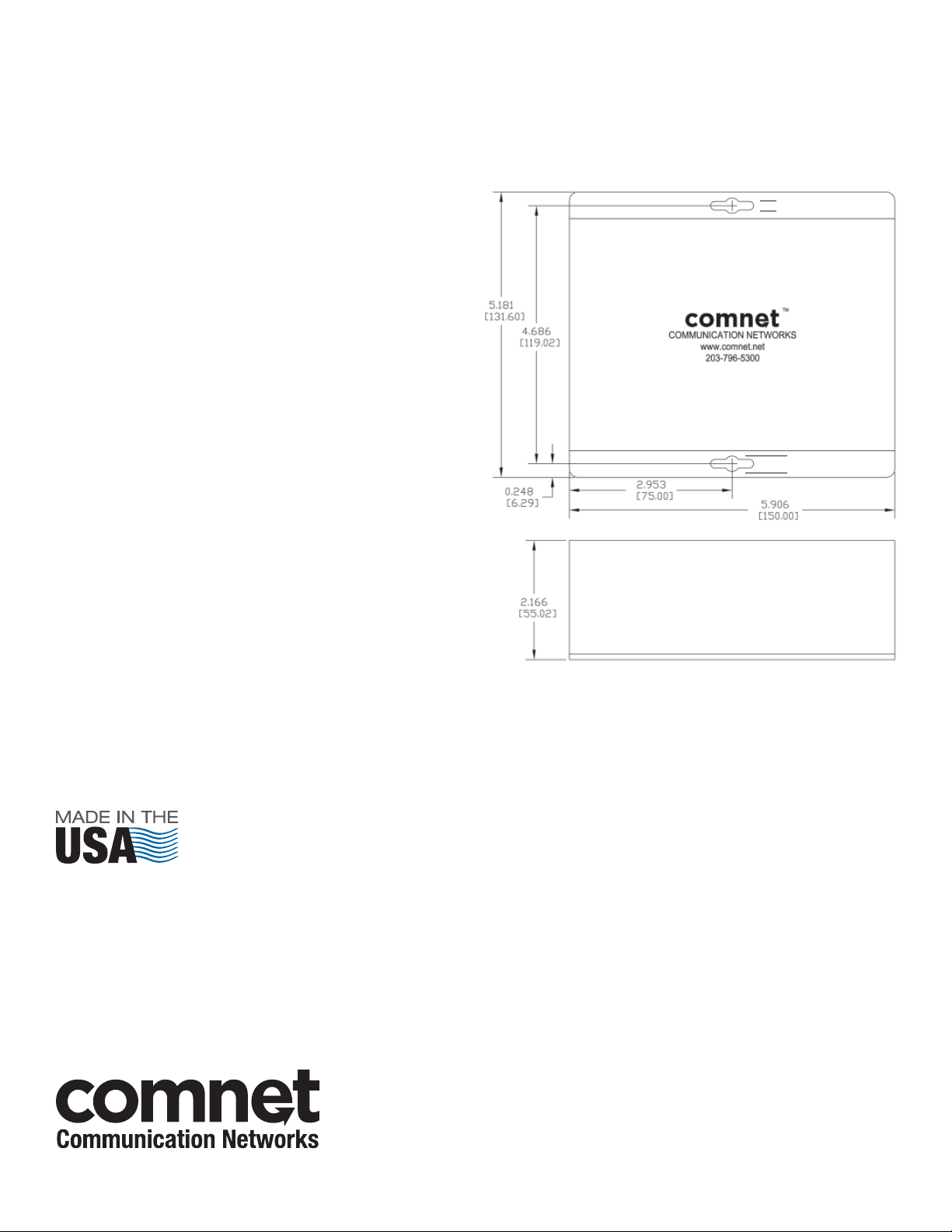

MECHANICAL INSTALLATION INSTRUCTIONS

.313 [7.95 mm]

.156 [3.96 mm]

FIGURE A

Dimensions are for a standard ComNet™ two slot module

INSTALLATION CONSIDERATIONS

This fiber-optic link is supplied as a Standalone/Rack module. Units

should be installed in dry locations protected from extremes of

temperature and humidity.

C1-US, C1-EU, C1-AU OR C1-CH CARD CAGE RACKS

CAUTION: Although the units are hot-swappable and may be installed

without turning power off to the rack, ComNet recommends that

the power supply be turned off and that the rack power supply

is disconnected from any power source. Note: Remove electrical

connector before installing in card cage rack.

1. Make sure that the card is oriented right side up, and slide it into

the card guides in the rack until the edge connector at the back

of the card seats in the corresponding slot in the rack’s connector

panel. Seating may require thumb pressure on the top and bottom

of the card’s front panel.

CAUTION: Take care not to press on any of the LEDs.

2. Tighten the two thumb screws on the card until the front panel of

the card is seated against the front of the rack.

WARNING: Unit is to be used with a Listed Class 2 or LPS power supply rated

12-24 VDC @ 700 mA.

IMPORTANT SAFEGUARDS:

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack

assembly, the operating ambient temperature of the rack environment may

be greater than room ambient. Therefore, consideration should be given to

installing the equipment in an environment compatible with the maximum

ambient temperature (Tma) specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such

that the amount of air flow required for safe operation of the equipment is

not compromised.
