Compaq AP250 - Deskpro Workstation

158772-001 1

Addenda #1 and 2 to Compaq

Deskpro Workstation AP250

Maintenance & Service Guide

Compaq Deskpro Workstation AP250

Part number 118133-003

Spare part number 158269-001

The complete MSG follows this addendum.

This addendum contains changes to the original document.

registered in the U. S. Patent and Trademark Office. Product names

mentioned herein may be trademarks and/or registered trademarks of their

respective companies. Second Edition (August 2000).

2Addendum to MSG 118133-001

Spare Part Numbers

Description Spare Part

Number Warranty

Tier

Intel Pentium III processor with heatsink (401405-003), clip

(120891-001), and baffle (118110-001).

600-MHz/133-MHz 158263-001 A

Intel Pentium III processor with heatsink (401405-003) and clip

(170524-001).

733-MHz/133-MHz 170527-001 A

867-MHz/133-MHz 180710-001 A

Intel Pentium III processor with heatsink (401405-003), clip

(170524-001), and baffle (212889-001).

1-GHz/133-MHz 216699-001 A

Memory Modules

RIMM 256-MB 171959-001 A

256-MB, 45 NS, RDRAM 161454-001 A

Graphics Controllers

Matrox G200 MMS 171975-001 A

Matrox MGA-G400A, AGP 2x/4x 163361-001 A

nVIDIA TNT2 PRO, 16-MB SGRAM 179997-001 A

ELSA Gloria II AGP, 64 MB 174641-001 A

Hard Drives

10-GB Ultra ATA Hard Drive (7200 RPM) 135364-001 A

20-GB Ultra ATA Hard Drive (7200 RPM) 180475-001 A

13.5-GB Ultra ATA Hard Drive (7200 RPM) 140515-001 A

30-GB Ultra ATA Hard Drive (7200 RPM) 180477-001 A

36.2-GB Wide-Ultra 160 Hard Drive 192197-001 A

Other Drives

48x CD-ROM Drive 187263-001 A

32x R-W CD-ROM Drive 173747-001 A

DVD-ROM Drive, 10x 215422-001 A

DVD-ROM Drive, 6x/32x, Opal 120417-001 A

DVD-ROM Drive, 10x/40x, Opal 161430-001 A

LS120 SuperDisk 209938-001 A

158772-001 3

Spare Part Numbers (continued)

Description Spare Part

Number Warranty

Tier

Miscellaneous Cable Kit

CD-ROM data, 12.5”(179048-001)

CD-ROM data, 12.5”(105876-001)

Diskette drive, 15.5”(179049-001)

CD-ROM audio, 12”(288489-001)

Thermal sensor (166785-001)

Hard drive/CD-ROM drive data, 14”(242947-001)

Hard drive data, 7”(247116-001)

Hard drive/CD-ROM drive data, 14.25”(242947-008)

Diskette drive data, 12”(247176-003)

Hard drive, CD-ROM drive data, 10”(247116-002)

Y-adapter, hard drive data (296563-001)

179182-001 A

Miscellaneous Cable Kit

Diskette Drive, 11”(166838-001)

CD-ROM Audio, 21”(288489-002)

Hard drive data, IDE, 7”single device (247116-001)

Hard drive data, IDE, 14”single device (242947-001)

Diskette drive, twisted cable, 34”(356107-001)

Hard drive data, IDE, dual devices, 18”(108950-007)

166879-002 A

Ultra SCSI-2 Cable, 4 device 402266-001*A

SCSI LVD Twisted Pair Cable 158277-001 A

Fan, 90mm 166922-001 A

Speaker 158267-001 A

Intel PRO/100+ Management Adapter NIC (10/100 Mb/s Auto-

sensing Ethernet controller) PCI card with Wake-On/Alert-On

LAN

116188-001*A

NIC 10/100 PCI card with Wake-On/Alert-On LAN 118042-001 A

PCI SCSI Adapter 158364-001 A

Wide-Ultra2 SCSI Controller, PCI 330522-001*A

*These spare part numbers correct the listings in the original MSG.

4Addendum to MSG 118133-001

Specifications –Graphics Controllers

Matrox MGA-G400A Graphics Controller

Maximum display resolution

Graphics

Memory Color palette* Double-buffering

without Z-buffering

Double buffering

with 16-bit Z-

buffering

Double buffering

with 32-bit Z-

buffering

16 MB 64 K colors (16-bit) 2048 x 1536 1800 x 1440 1600 x 1200

16 M colors (32-bit) 1600 x 1200 1280 x 1024 1280 x 1024

32 MB 64 K colors (16-bit) 2048 x 1536 2048 x 1536 2048 x 1536

16 M colors (32-bit) 2048 x 1536 2048 x 1536 1800 x 1440

* 3D acceleration is only available with a 16- or 32-bit color palette.

Matrox G200 Quad MMS Graphics Controller

Refresh Rate/Display

Graphics

Memory Aspect Ratio Resolution Vertical Horizontal

32 MB 4:3/5:4 640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

1800 x 1440

60 - 200 Hz

30 - 140 Hz

60 - 120 Hz

60 - 100 Hz

60 - 90 Hz

60 - 70 Hz

31 –102 kHz

38 –114 Khz

48 - 113 kHz

54 - 110 kHz

64 - 107 kHz

75 - 13 kHz

89 - 1 04 kHz

32 MB 16:9/16:10 856 x 480

1280 x 720

1600 x 1024

1920 x 1080

1920 x 1200

60 –200 Hz

60 –100 Hz

60 - 100 Hz

60 - 80 Hz

60 - 76 Hz

30 –108 kHz

44 –76 kHz

64 –108 kHz

70 –94 kHz

75 –95 kHz continued

158772-001 5

Specifications –Graphics Controllers (c ontinued)

ELSA Gloria II AGP Graphics Controller

Graphics

Memory Maximum Colors

Supported Resolution Maximum Refresh

Rate Memory Dedicated

to Texture Support

64 MB 16.7M 640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 800

1280 x 960

1280 x 1024

1600 x 1000

1600 x 1200

1600 x 1280

1900 x 1080

1920 x 1080

1920 x 1200

1900 x 1200

2048 x 1536

120 Hz

100 Hz

100 Hz*

85 Hz

75 Hz

85 Hz

75 Hz

85 Hz*

75 Hz

60 MB

58 Mb

54 MB

52 MB

49 MB

48 MB

45 MB

41 MB

40 MB

39 MB

37 MB

27 MB

* Refresh rate may function but may not be officially supported by Compaq.

6Addendum to MSG 118133-001

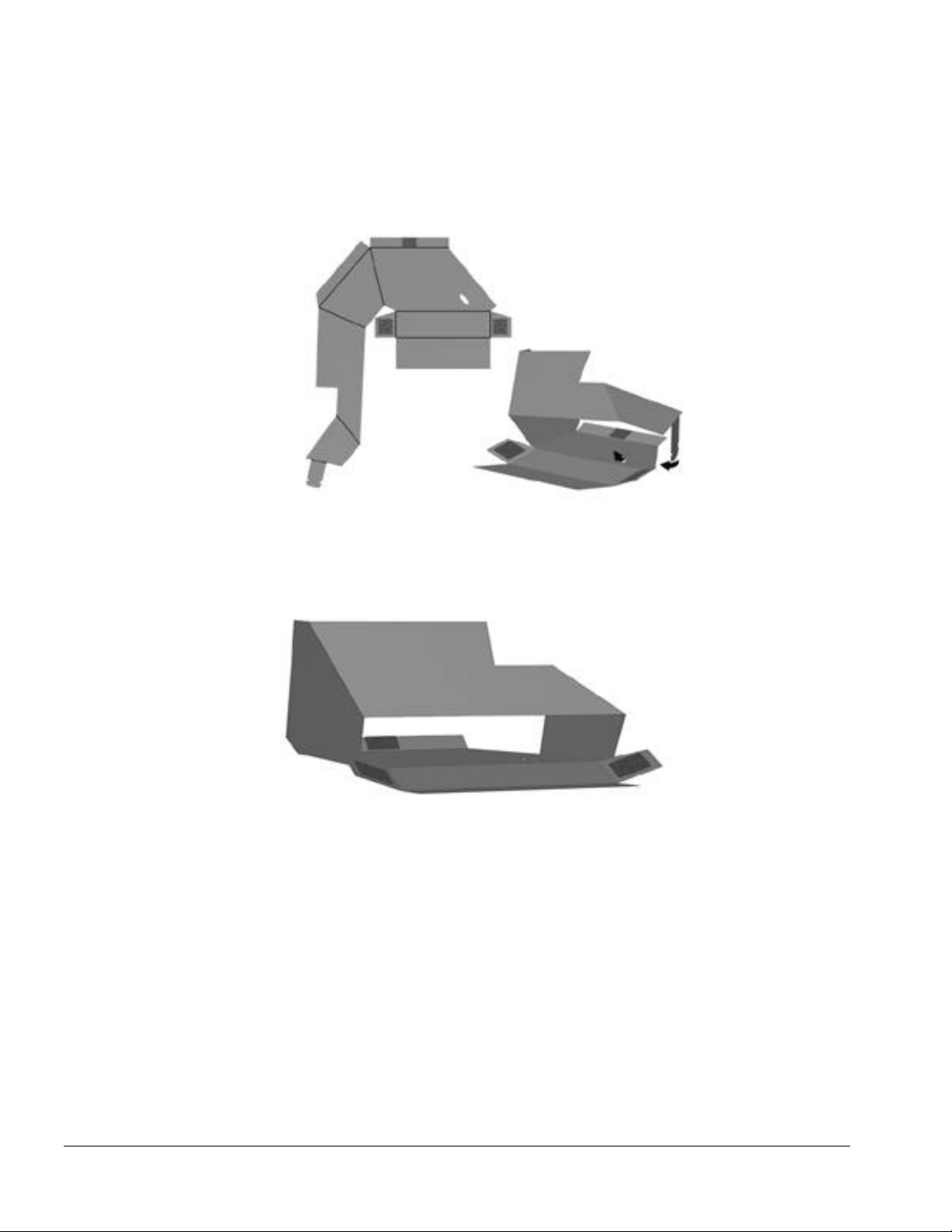

Air Baffle Assembly

Compaq Deskpro Workstation AP250

Maintenance and Service Guide

Compaq Confidential – Need to Know Required

Writer: Bruce Sullivan Project: Compaq Deskpro Workstation AP250 Maintenance and Service Guide Comments:

Part Number: 118133-001 File Name: a-frnt.doc Last Saved On: 10/26/99 2:34 PM

Deskpro Workstation AP250

Maintenance and Service Guide

First Edition (October 1999)

Part Number 118133-001

Spare Part Number 158269-001

Compaq Computer Corporation

Compaq Confidential –Need to Know Required

Writer: Bruce Sullivan Project: Compaq Deskpro Workstation AP250 Maintenance and Service Guide Comments:

Part Number: 118133-001 File Name: a-frnt.doc Last Saved On: 10/26/99 2:34 PM

Notice

The information in this publication is subject to change without notice.

COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR

EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR

USE OF THIS MATERIAL. THIS INFORMATION IS PROVIDED “AS IS,” AND COMPAQ

COMPUTER CORPORATION DISCLAIMS ANY WARRANTIES, EXPRESS, IMPLIED OR

STATUTORY, AND EXPRESSLY DISCLAIMS THE IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, GOOD TITLE, AND AGAINST

INFRINGEMENT.

This publication contains information protected by copyright. No part of this publication may be

photocopied or reproduced in any form without prior written consent from Compaq Computer

Corporation.

The software described in this guide is furnished under a license agreement or nondisclosure agreement.

The software may be used or copied only in accordance with the terms of the agreement.

Compaq, Deskpro, Fastart, Compaq Insight Manager, Systempro, Systempro/LT, ProLiant, ROMPaq,

QVision, SmartStart, NetFlex, QuickFind, PaqFax, and ProSignia are registered with the United States

Patent and Trademark Office.

Neoserver, Netelligent, Systempro/XL, SoftPaq, QuickBlank, and QuickLock are trademarks and/or

service marks of Compaq Computer Corporation.

Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Pentium is a registered trademark and Xeon is a trademark of Intel Corporation.

Other product names mentioned herein may be trademarks and/or registered trademarks of their

respective companies.

Compaq Deskpro Workstation AP250

Maintenance and Service Guide

First Edition (October 1999)

Part Number 118133-001

Spare Part Number 158269-001

Compaq Confidential –Need to Know Required

Writer: Bruce Sullivan Project: Compaq Deskpro Workstation AP250 Maintenance and Service Guide Comments:

File Name: a-frnt.doc Last Saved On: 10/26/99 2:34 PM

Contents

About This Guide

Text Conventions ...................................................................................................... vii

Symbols in Text .......................................................................................................viii

Symbols on Equipment ............................................................................................viii

Rack Stability............................................................................................................. ix

Getting Help................................................................................................................ x

Compaq Technical Support.................................................................................. x

Compaq Website.................................................................................................. x

Compaq Authorized Reseller.............................................................................. xi

Chapter 1

Illustrated Parts Catalog

Mechanical Parts ......................................................................................................1-2

System Components.................................................................................................1-3

Spare Parts List.........................................................................................................1-4

Chapter 2

Service Preliminaries

Preliminary Warnings and Cautions......................................................................... 2-1

Electrostatic Discharge Information.........................................................................2-2

Equipment Symbols .................................................................................................2-3

Tools and Software Requirements............................................................................2-3

Warranty Information...............................................................................................2-4

Chapter 3

Removal and Replacement Procedures

Serial Number ..........................................................................................................3-1

Service Preparations.................................................................................................3-2

Removing the Cable Lock........................................................................................3-3
