Compaq S920 Manuale utente
User’s Guide
Compaq S920 Color Monitor
July 2001
© 2001 Compaq Computer Corporation.
Compaq, the Compaq logo Registered in U. S. Patent and Trademark
Office.
All other product names mentioned herein may be trademarks of their
respective companies.
Compaq shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is”
without warranty of any kind and is subject to change without notice. the
warranties for Compaq products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should
be construed as constituting an additional warranty.
ÄCAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of
information.
ÅWARNING: Text set off in this manner indicates that failure to follow
directions could result in bodily harm or loss of life.
User’s Guide
Compaq S920 Color Monitor
First Edition (July 2001)
Part Number: 243590-001
Compaq S920 Color Monitor User’s Guide 1
5/3/01
File: Safety.fm
Safety Precautions
Power Input
Refer to the section about “Connecting the Power Cord”.
■Do not modify the three-prong grounding type monitor power
plug in any way.
Installation
■Do not place the monitor on an unstable cart, stand, or shelf
where it may fall and injure personnel or damage equipment.
■Route power cords so that they cannot be walked upon or
tripped over.
■Do not allow anything to rest on the power cord.
■Do not install the monitor where there is dampness, or where
it may be exposed to rain or water. Avoid spilling liquid of
any kind on the unit.
Ventilation
■Do not block or cover ventilation openings on the back or
bottom of the monitor cabinet.
■Do not place the monitor near a radiator or heating vent.
■Do not push objects of any kind through cabinet openings.
This may result in fire or electric shock.
2Compaq S920 Color Monitor User’s Guide
5/3/01
File: Safety.fm
Compaq S920 Color Monitor User’s Guide 3
Last modified: 6/21/01
File: body.fm
Packing Contents
The package contains:
■CRT monitor
■AC power cord
■Documentation kit
Unpacking Procedure
Repacking
Save the original box and all packing material for future shipping
needs.
Note: Packing materials and product are recyclable.
4Compaq S920 Color Monitor User’s Guide
Last modified: 6/21/01
File: body.fm
Introduction
This microprocessor-based, digitally controled 19” color monitor
is a high performance and easy to use product. It employs the
latest on-screen-menu technology. The microprocessor capability
offers 10 most commonly used VESA timing modes preset in the
factory, and 6 modes adjustable to the special timings the user
may need.
Power Saving
When the monitor is in its normal operating mode, the monitor
utilizes less than 120 watts of power and the Power LED is green.
The monitor also supports a reduced power state. The reduced
power state will be entered into if the monitor detects the absence
of either the horizontal sync signal and/or the vertical sync signal.
Upon detecting the absence of these signals, the monitor screen is
blanked, the backlight is turned off, and the Power LED is turned
amber. When the monitor is in the reduced power state, the
monitor will utilize less than 3 watts of power. There is a brief
warm up period before the monitor will return to its normal
operating mode.
Refer to your computer manual for instructions on setting energy
saver features (sometimes called power management features).
Note: The above energy saver feature only works when
connected to computers that have energy saver features. This
feature meets the EPA (Environmental Protection Agency)
Energy Star requirements and reduces power consumption.
Compaq S920 Color Monitor User’s Guide 5
Last modified: 6/21/01
File: body.fm
Installing the Monitor

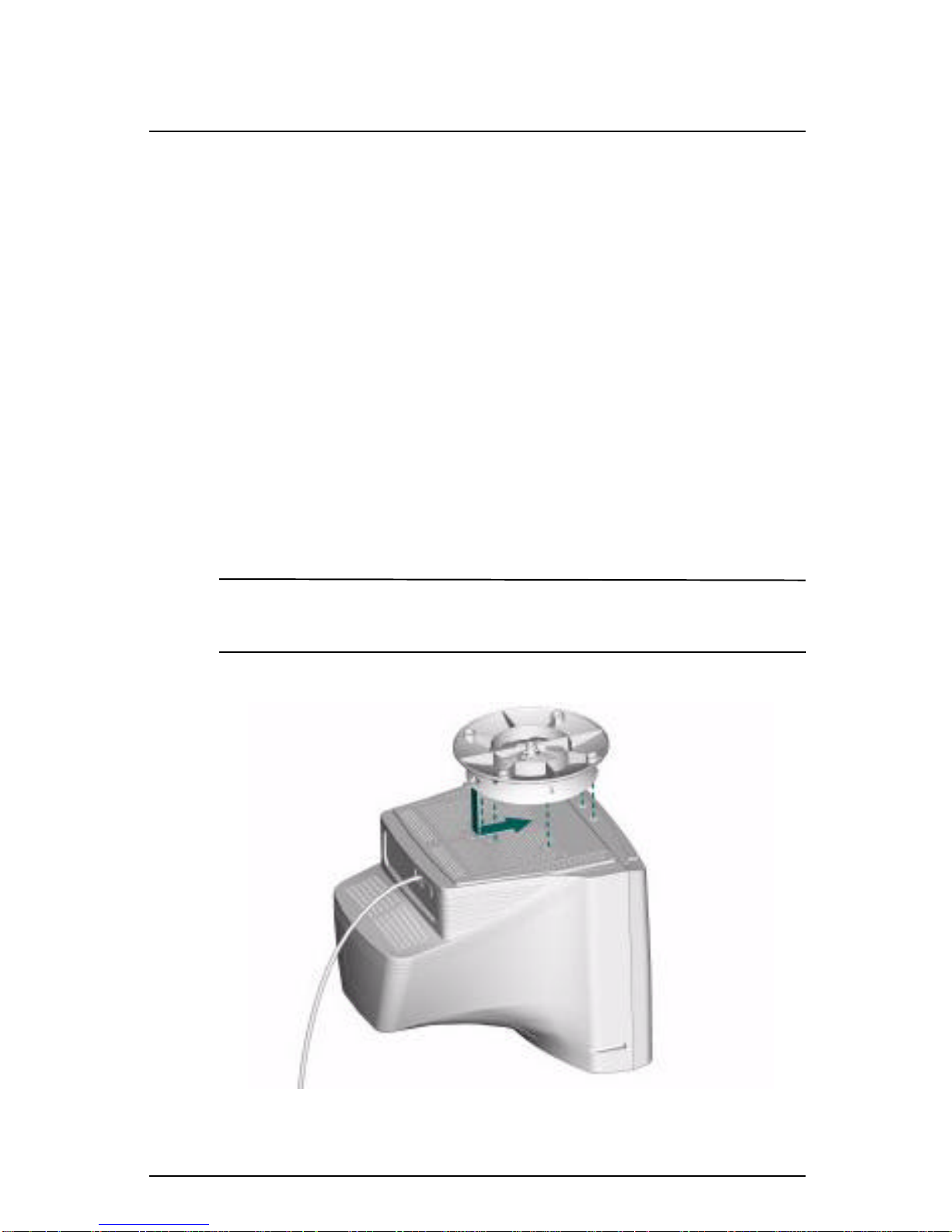

To connect the tilt/swivel base to the monitor:
1. Align the hooks with the sockets on the bottom side of the
monitor, and gently push the base towards the front of the
monitor.
2. Attach the 15-pin D-shell signal connector on the signal cable
to the video adapter output on your personal computer. Then
lock both screws on the connector to ensure a firm
connection.
3. Turn the computer power switch ON. Then turn the monitor
power switch ON, by pressing the switch inward. The green
power indicator will light up.
Note: If your display fails to function properly, please first refer
to the section "Troubleshooting" in this manual.
6Compaq S920 Color Monitor User’s Guide
Last modified: 6/21/01
File: body.fm
User Controls and Indicators
Compaq S920 Color Monitor User’s Guide 7
Last modified: 6/21/01
File: body.fm
Using the On-Screen Menu
Menu screen
1. Press the “1” button to display the menu below and to exit
menus as needed.
AB C DEF
User Controls and Indicators
Reference Control Function
A1Displays menu & exits menu
B
C<
>Scrolls through menu to choose an icon
for adjustment/Adjusts level of selected
icon
D2Confirms menu selection
EPower LED
FPower ON/OFF button
8Compaq S920 Color Monitor User’s Guide
Last modified: 6/21/01
File: body.fm
2. Press the arrow keys on your monitor to move the selection
mark to the desired location, then press the “2” button.
The selected adjustment screen appears. A sample adjustment
screen for Horizontal Position is shown below.
3. Follow the onscreen instructions.
