Compuprint L03 Manuale utente

Compuprint 4247 Serial Matrix Printers

Compuprint 4247 Model L03 Printer:

Quick Setup Guide

MAN10292.00.00

ii Quick Setup Guide

Before using this information and the product it supports, read the information in “Notices” on page 27.

First edition (October 2011)

This edition applies to the Compuprint 4247 L03 printer and to all subsequent releases and modifications

until otherwise indicated in new edition.

Internet

Visit our home page: http://www.compuprint.com

You can send comments by e-mail to : [email protected] or by mail to:

Compuprint s.r.l.

Via Lombardore 282

10040 Leinì (Turin)

ITALY

Contents

Safety and environmental notices . . . v

Safety notices ..............v

Danger hazard level ...........v

Caution hazard level ..........v

Attention notices .............v

Safety precautions ............vi

Electrical safety ............vi

Approved power cord and receptacle .....vi

Electrical safety and portable power strip

receptacles .............vii

Connecting or disconnecting a communication

port, a teleport, or an attachment connector . . vii

Servicing during an electrical storm .....vii

Setting up your printer ........1

Step 1 – Unpacking Your Printer........1

Printer Parts .............2

Choosing a Suitable Location ........3

Removing the Shipment Locks .......4

Installing the operator panel overlay .....4

Step 2 - Installing the Ribbon Cartridge .....5

Replacing the Ribbon Cartridge .......7

Step 3 – Installing the Controller Board .....8

Handling the Controller Board .......8

Inserting the Controller Board .......8

Step 4 – Starting the Printer .........11

Host Computer Connection ........11

Software Driver Selection.........12

Power Connection ...........12

Step 5 – Selecting the Display Language .....14

Step 6 – Loading Fanfold Paper .......15

Printing a Default Configuration Sheet .....20

Configuring the Printer .........20

Maintenance & Troubleshooting .......21

Cleaning the Printer ..........21

Printing the Self Test ..........21

LCD Display Messages ..........22

Error Messages ............24

Options................25

iii

Notices . . . . . . . . . . . . . . 27

iv Quick Setup Guide

Safety and environmental notices

Safety notices

There are two levels of safety notices: Danger and Cautions.

Danger hazard level

The word Danger indicates the presence of a hazard that has the potential of

causing death or serious personal injury.

Most DANGER notices are numbered <1-1>,<1-2>, and so forth where they

appear in the text of this manual.

Example of a Danger notice:

DANGER

<1-10> Hazardous voltages are present. Do not touch the pins or sockets of

the power receptacle.

Caution hazard level

The word Caution indicates the presence of a hazard that has the potential of

causing moderate or minor personal injury.

Most CAUTION notices are numbered <2-1>,<2-2>, and so forth where they

appear in the text of this manual.

Example of a Caution notice:

!CAUTION:

<2-22> Carefully follow all cleaning instructions, using only the materials and

solutions recommended.

Attention notices

The word Attention calls attention to the possibility of damage to a program,

device, system, or data.

Attention notices are not numbered.

Examples of an Attention notice:

Attention: The above openings must always be protected with their covers. Do

not touch inside and do not insert any object into these openings or into the gears.

Safety precautions

Never remove any printer cover except to install a printer accessory as expressly described

in this manual.

The following areas of the printer should be covered for safety reasons:

Attention: The above openings must always be protected with their covers. Do

not touch inside and do not insert any object into these openings or into the gears.

Electrical safety

This printer is inspected and listed by recognized national testing laboratories,

such as Underwriters Laboratories, Inc. (UL) in the U.S.A. and Canadian Standards

Association (CSA) in Canada. Listing of a product by a national testing laboratory

indicates that the product is designed and manufactured in accordance with

national requirements intended to minimize safety hazards. This equipment meets

a very high standard of safety in design and manufacture. Remember, however,

that this product operates under conditions of high electrical potentials and heat

generation, both of which are functionally necessary.

Because the paper used in the printer can burn, you should take normal

precautions to prevent fire. These precautions include common-sense measures,

such as keeping potentially combustible materials (for example, curtains and

chemicals) away from the printer, providing adequate ventilation and cooling,

limiting unattended operation, and having trained personnel available and

assigned to the printer.

Approved power cord and receptacle

DANGER

<1-11> Your country may require an approved power cord and plug.

Ensure that you have the correct power cord and plug. Use this cord and

plug only with an approved, correctly-installed power receptacle.

Small Rear Cover

HC0I0001

Large Rear Cover

vi Quick Setup Guide

Electrical safety and portable power strip receptacles

Extension cords

DANGER

DANGER <1-1> Do not use an extension power-cord.

The customer must supply the correct electrical outlet which must meet the

requirements stated under “Printer Specifications” in the User's Guide.

Portable power strip receptacles (temporary power taps)

Portable power strip receptacles (referred to as “temporary power taps” by the

National Electrical Code) may be used if they are fully approved in the customer's

geographic location. It is the customer's responsibility to supply a fully approved

“temporary power tap”, if one is to be used.

Connecting or disconnecting a communication port, a

teleport, or an attachment connector

DANGER

<1-14> Switch off printer power and unplug the printer power cord before

connecting or disconnecting a communication port, a teleport, or other

attachment connector.

Servicing during an electrical storm

DANGER

<1-13> Do not connect or disconnect a communication port, a teleport, or

any other connector during an electrical storm.

Safety and environmental notices vii

viii Quick Setup Guide

Setting up your printer

To set up your printer, follow these steps.

Step 1 – Unpacking Your Printer

The following items are included in the carton:

Contact your point of purchase seller if any items are missing.

The Controller Board includes the printer software program (firmware) and the

interface connectors to the host system.

Figure 1. Carton Contents

Printer Parts

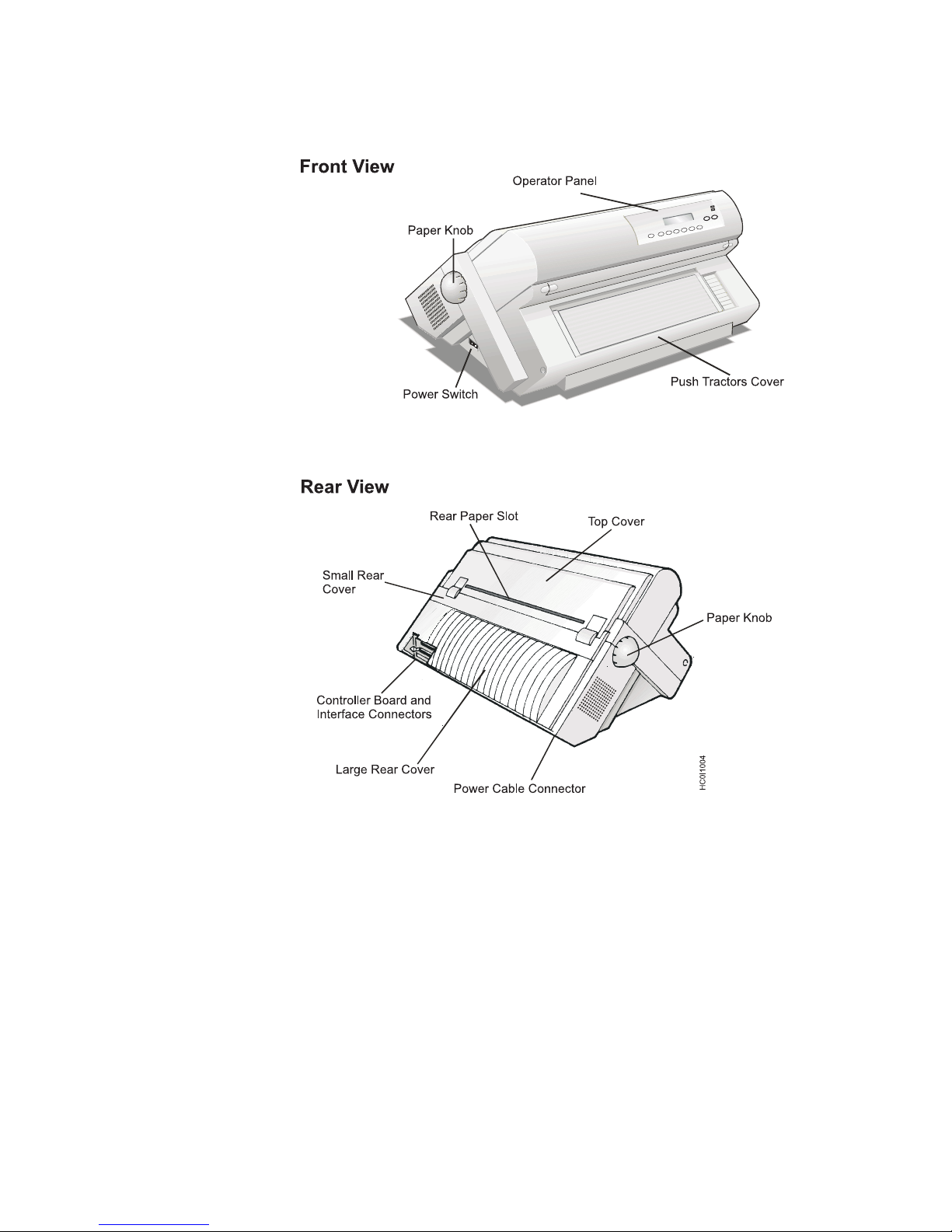

Figure 2. Printer Parts: Front and Rear View

2Quick Setup Guide
